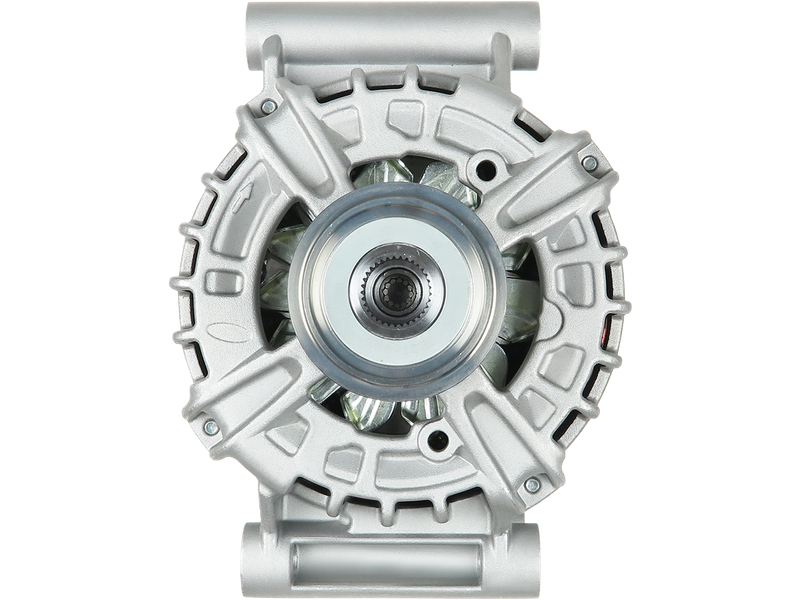

SEG Automotive A0770(SEG) Generator — FORD

SEG Automotive A0770(SEG) Generator — FORD

2 610,00 kr inkl. moms

PREMIUM LINE | Tillverkare: SEG Automotive | Ersätter: BOSCH

Spänning [ V ] 12
Ström [ A ] 210
A-storlek [ mm ] 44.00
C-storlek [ mm ] 74.00
G [ qty. ] 7
O.D.1 [ mm ] 58.50
Remskiva AFP
D.1 [ mm ] 11.50
D.2 [ mm ] 11.50
D.3 [ mm ] 13.00
E.1 [ mm ] 97.00
E.2 [ mm ] 97.00
L.1 [ mm ] 202.00
Plug PL_2305
COM ID 88
SEG AutomotivePREMIUM LINE
EAN5902129231073
ErsätterBOSCH
OE-nummer0125811085

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: A0770(SEG) Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0125811085

Specifikationer

Spänning [ V ] 12
Ström [ A ] 210
A-storlek [ mm ] 44.00
C-storlek [ mm ] 74.00
G [ qty. ] 7
O.D.1 [ mm ] 58.50
Remskiva AFP
D.1 [ mm ] 11.50
D.2 [ mm ] 11.50
D.3 [ mm ] 13.00
E.1 [ mm ] 97.00
E.2 [ mm ] 97.00
L.1 [ mm ] 202.00
Plug PL_2305
COM ID 88

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
FORD2.2 TDCiTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)DRFD100Diesel2011–2014
FORD2.2 TDCiTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)DRFA100Diesel2011–2014
FORD2.2 TDCiTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)DRFC100Diesel2011–2014
FORD2.2 TDCiTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)DRFE100Diesel2011–2014
FORD2.2 TDCiTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)DRFB100Diesel2011–2014
FORD2.2 TDCiTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)QWFA130Diesel2006–2014
FORD2.2 TDCiTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CYFA125Diesel2011–2014
FORD2.2 TDCiTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CYFC125Diesel2011–2014
FORD2.2 TDCiTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CYFB125Diesel2011–2014
FORD2.2 TDCiTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CYFD125Diesel2011–2014
FORD2.2 TDCiTRANSIT V363 Platform/Chassis (FED, FFD)CY14125Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Platform/Chassis (FED, FFD)DRFF100Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Platform/Chassis (FED, FFD)CYFG125Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Platform/Chassis (FED, FFD)DRF5100Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Platform/Chassis (FED, FFD)CYF5125Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Platform/Chassis (FED, FFD)CVF5155Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Platform/Chassis (FED, FFD)USF6125Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Platform/Chassis (FED, FFD)DRFG100Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Van (FCD, FDD)DRF5100Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Van (FCD, FDD)CYF5125Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Van (FCD, FDD)DRFG100Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Van (FCD, FDD)USF6125Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Van (FCD, FDD)CY14125Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Van (FCD, FDD)DRFF100Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Van (FCD, FDD)CYFG125Diesel2013–2018
FORD2.2 TDCiTRANSIT V363 Van (FCD, FDD)CVF5155Diesel2013–2018
FORD2.2 TDCi 4x4TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CYRB125Diesel2011–2014
FORD2.2 TDCi 4x4TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CYRC125Diesel2011–2014
FORD2.2 TDCi 4x4TRANSIT V363 Bus (FAD, FBD)CYR5125Diesel2013–2018
FORD2.2 TDCi 4x4TRANSIT V363 Bus (FAD, FBD)CY24125Diesel2013–2018
FORD2.2 TDCi 4x4TRANSIT V363 Platform/Chassis (FED, FFD)CYR5125Diesel2013–2018
FORD2.2 TDCi 4x4TRANSIT V363 Platform/Chassis (FED, FFD)CVR5155Diesel2013–2018
FORD2.2 TDCi 4x4TRANSIT V363 Platform/Chassis (FED, FFD)CY24125Diesel2013–2018
FORD2.2 TDCi 4x4TRANSIT V363 Platform/Chassis (FED, FFD)CV24155Diesel2013–2018
FORD2.2 TDCi 4x4TRANSIT V363 Van (FCD, FDD)CVR5155Diesel2015–2018
FORD2.2 TDCi 4x4TRANSIT V363 Van (FCD, FDD)CYR5125Diesel2013–2018
FORD2.2 TDCi 4x4TRANSIT V363 Van (FCD, FDD)CV24155Diesel2015–2018
FORD2.2 TDCi 4x4TRANSIT V363 Van (FCD, FDD)CY24125Diesel2013–2018
FORD2.2 TDCi All-wheel DriveTRANSIT V363 Bus (FAD, FBD)CV24155Diesel2015–2018
FORD2.2 TDCi All-wheel DriveTRANSIT V363 Bus (FAD, FBD)CVR5155Diesel2015–2018
FORD2.2 TDCi RWDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)DRRA100Diesel2011–2014
FORD2.2 TDCi RWDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)DRRC100Diesel2011–2014
FORD2.2 TDCi RWDTRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)DRRB100Diesel2011–2014
FORD2.2 TDCi RWDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CVRA155Diesel2011–2014
FORD2.2 TDCi RWDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CVRC155Diesel2011–2014
FORD2.2 TDCi RWDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CYRA125Diesel2011–2014
FORD2.2 TDCi RWDTRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)CVRB155Diesel2011–2014
FORD2.2 TDCi RWDTRANSIT V363 Bus (FAD, FBD)UYR6155Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Bus (FAD, FBD)USR6125Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Bus (FAD, FBD)UHR5135Diesel2013–
FORD2.2 TDCi RWDTRANSIT V363 Bus (FAD, FBD)CVR5155Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Bus (FAD, FBD)CYR5125Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Bus (FAD, FBD)CV24155Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Bus (FAD, FBD)DRR5100Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Platform/Chassis (FED, FFD)UYR6155Diesel2013–
FORD2.2 TDCi RWDTRANSIT V363 Platform/Chassis (FED, FFD)CV24155Diesel2013–
FORD2.2 TDCi RWDTRANSIT V363 Platform/Chassis (FED, FFD)CYR5125Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Platform/Chassis (FED, FFD)DRR5100Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Platform/Chassis (FED, FFD)CYR5155Diesel2013–
FORD2.2 TDCi RWDTRANSIT V363 Platform/Chassis (FED, FFD)UHR5135Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Platform/Chassis (FED, FFD)CVR5155Diesel2013–
FORD2.2 TDCi RWDTRANSIT V363 Platform/Chassis (FED, FFD)USR6125Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Van (FCD, FDD)CYR5125Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Van (FCD, FDD)CVR5155Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Van (FCD, FDD)CV24155Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Van (FCD, FDD)DRR5100Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Van (FCD, FDD)USR6125Diesel2013–2018
FORD2.2 TDCi RWDTRANSIT V363 Van (FCD, FDD)UYR6155Diesel2013–2018
