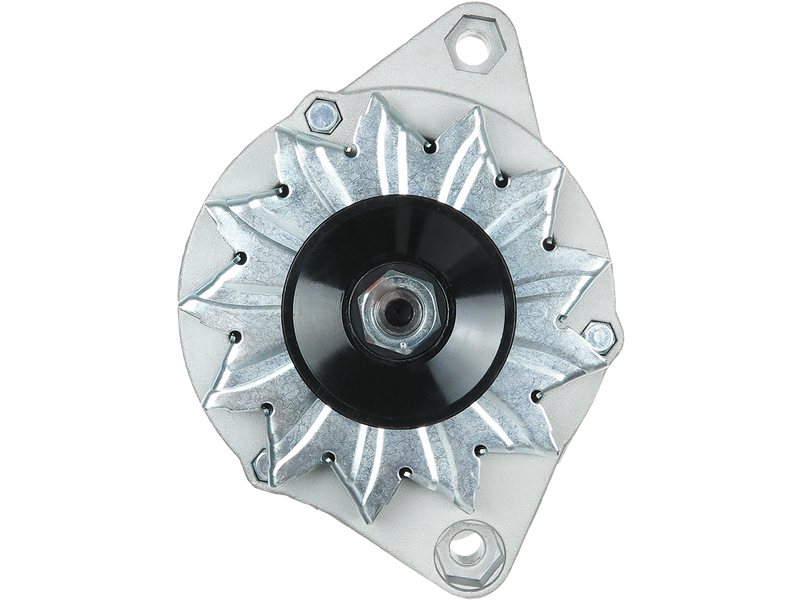

AS-PL A4138S Generator — FIAT, LANCIA, YUGO

AS-PL A4138S Generator — FIAT, LANCIA, YUGO

874,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MAGNETI MARELLI

Spänning [ V ] 12
Ström [ A ] 60
A-storlek [ mm ] 51.00
B-storlek [ mm ] 24.50
C-storlek [ mm ] 75.50
G [ qty. ] 1
O.D.1 [ mm ] 43.00
O.D.2 [ mm ] 67.00
W.1 [ mm ] 10.00
Remskiva AP
D.1 [ mm ] 11.00
D.2 [ mm ] 10.50
D.3 [ mm ] 10.00
L.1 [ mm ] 160.00
Plug PL_9104
AS-PLSTANDARD LINE
EAN5902129146728
ErsätterMAGNETI MARELLI

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: A4138S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MAGNETI MARELLI.

Specifikationer

Spänning [ V ] 12
Ström [ A ] 60
A-storlek [ mm ] 51.00
B-storlek [ mm ] 24.50
C-storlek [ mm ] 75.50
G [ qty. ] 1
O.D.1 [ mm ] 43.00
O.D.2 [ mm ] 67.00
W.1 [ mm ] 10.00
Remskiva AP
D.1 [ mm ] 11.00
D.2 [ mm ] 10.50
D.3 [ mm ] 10.00
L.1 [ mm ] 160.00
Plug PL_9104

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
AUTOBIANCHI1.3 i.e. GTY10156B.00078Petrol1989–1995
AUTOBIANCHI1.3 i.e. GTY10146A5.04673Petrol1989–1995
FIAT1.3RITMO (138_)138A3.00075Petrol1981–1982
FIAT1.3 Turbo i.e.UNO (146_, 158_)146A2.14699Petrol1987–1987
FIAT1.3 Turbo i.e.UNO (146_, 158_)146A2.246101Petrol1989–1991
FIAT1.3 Turbo i.e.UNO (146_, 158_)146A2.000105Petrol1985–1989
FIAT1.4 (160.AC)TIPO (160_)160A1.04871Petrol1987–1989
FIAT1.4 (160.AC)TIPO (160_)160A1.00071Petrol1987–1989
FIAT1.4 Turbo i.e.UNO (146_, 158_)146A8.046112Petrol1989–1993
FIAT1.4 Turbo i.e.UNO (146_, 158_)146A8.000118Petrol1989–1996
FIAT1.4 i.e. (159.AA)TEMPRA (159_)159A2.00078Petrol1991–1996
FIAT1.4 i.e. (160.AP, 160.AD, 160.EA)TIPO (160_)160A1.04870Petrol1989–1995
FIAT1.4 i.e. (160.AP, 160.AD, 160.EA)TIPO (160_)160A1.04670Petrol1989–1995
FIAT1.4 i.e. (160.AP, 160.AD, 160.EA)TIPO (160_)836A4.00070Petrol1989–1995
FIAT1.5ELBA (146_)149C1.00067Petrol1992–1996
FIAT1.5RITMO (138_)149A5.00079Petrol1985–1987
FIAT1.5RITMO (138_)138C2.04875Petrol1978–1988
FIAT1.5RITMO (138_)149C1.00075Petrol1978–1988
FIAT1.5RITMO (138_)138A2.00075Petrol1978–1988
FIAT1.5RITMO (138_)138C3.04875Petrol1978–1988
FIAT1.5RITMO (138_)138B3.00082Petrol1983–1987
FIAT1.5 (128AS1_)X 1/9 (128_)138AS.00085Petrol1978–1989
FIAT1.5 (128AS1_)X 1/9 (128_)138A4.00085Petrol1978–1989
FIAT1.6TEMPRA S.W. (159_)159A3.00086Petrol1990–1993
FIAT1.6 (159.AD)TEMPRA (159_)159A3.00086Petrol1990–1994
FIAT1.6 (159.AD)TEMPRA (159_)159B9.00086Petrol1990–1994
FIAT1.6 (159AE)TEMPRA S.W. (159_)159A3.04677Petrol1991–1993
FIAT1.6 (159AS, 159AT)TEMPRA (159_)159A3.04869Petrol1990–1996
FIAT1.6 i.e. (159.AE)TEMPRA (159_)159A3.04678Petrol1990–1992
FIAT1.6 i.e. (159.AE)TEMPRA S.W. (159_)835C1.00078Petrol1990–1996
FIAT1.6 i.e. (159.AE)TEMPRA S.W. (159_)159A3.04678Petrol1990–1996
FIAT1.6 i.e. (159.AS, 159.AT)TEMPRA (159_)835C1.00075Petrol1992–1996
FIAT1.6 i.e. (159.AS, 159.AT)TEMPRA (159_)159A3.04875Petrol1992–1996
FIAT1.6 i.e. (159.AS, 159.AT)TEMPRA S.W. (159_)835C1.00075Petrol1992–1996
FIAT1.6 i.e. (159.AS, 159.AT)TEMPRA S.W. (159_)159A3.04875Petrol1992–1996
FIAT1.6 i.e. (160.AF)TIPO (160_)159A3.04678Petrol1990–1993
FIAT70 1.3REGATA (138_)149A3.00065Petrol1983–1989
FIAT70 1.3REGATA (138_)149A7.00065Petrol1983–1989
FIAT70 1.3REGATA (138_)138B2.00068Petrol1983–1986
FIAT70 S 1.4UNO (146_, 158_)160A1.04871Petrol1988–2006
FIAT70 S 1.4UNO (146_, 158_)160A1.04671Petrol1988–2006
FIAT75 1.5REGATA (138_)138B3.04875Petrol1983–1989
FIAT75 1.5REGATA (138_)138C3.04875Petrol1983–1989
FIAT75 1.5REGATA (138_)138C2.04875Petrol1983–1989
FIAT75 1.5REGATA (138_)149C1.00075Petrol1983–1989
FIAT75 1.5REGATA Weekend (138_)138C2.04875Petrol1984–1989
FIAT75 1.5REGATA Weekend (138_)149C1.00075Petrol1984–1989
FIAT75 1.5REGATA Weekend (138_)138B3.04875Petrol1984–1989
FIAT75 1.5REGATA Weekend (138_)138C3.04875Petrol1984–1989
FIAT75 i.e. 1.5FIORINO Box Body/MPV (146_)149C1.00075Petrol1988–1993
FIAT75 i.e. 1.5UNO (146_, 158_)149C1.00075Petrol1985–1993
FIAT75 i.e. 1.5UNO (146_, 158_)138C2.04875Petrol1985–1993
FIAT85 1.5REGATA (138_)149A5.00079Petrol1985–1987
FIAT85 1.5REGATA (138_)138B3.00086Petrol1984–1986
FIAT85 1.5REGATA Weekend (138_)138B3.00082Petrol1984–1989
FIAT85 1.5RITMO Convertible (138_)138B3.00082Petrol1983–1986
FIAT85 1.5RITMO Convertible (138_)138A4.00086Petrol1980–1989
FIAT85 1.6REGATA (138_)149A.00082Petrol1983–1990
FIAT85 Super 1.5REGATA (138_)138B3.00082Petrol1983–1985
LANCIA1.3 i.e. (156AF)Y10 (156_)146A5.04672Petrol1989–1995
LANCIA1.3 i.e. (156AF)Y10 (156_)156B.00072Petrol1989–1995
LANCIA1.5 (831AB)PRISMA (831_)831B1.04875Petrol1985–1992
LANCIA1.5 (831AB)PRISMA (831_)138C2.04875Petrol1985–1992
LANCIA1.5 (831AB)PRISMA (831_)831A1.00086Petrol1983–1986
LANCIA1.5 (831AB)PRISMA (831_)831B1.00080Petrol1986–1989
LANCIA1.5 (831AB.025)DELTA I (831_)831A1.00086Petrol1979–1992
LANCIA1.5 (831AB.025)DELTA I (831_)831B1.00086Petrol1979–1992
LANCIA1.6 (831AB)PRISMA (831_)831A4.000105Petrol1983–1986
LANCIA1.6 i.e. (835AA)DEDRA (835_)835A1.00090Petrol1989–1994
LANCIA1.6 i.e. Super (831AB)PRISMA (831_)149C2.00090Petrol1987–1989
YUGO1.3 (103 A)FLORIDA (VX65)13E.3.06468Petrol1991–2008
YUGO1.4FLORIDA (VX65)160A1.00069Petrol1991–1995
YUGO1.4 CatFLORIDA (VX65)160A1.00071Petrol1988–2008
YUGO1.6FLORIDA (VX65)149A.00084Petrol1989–1995
ZASTAVA1.3101128AR.00065Petrol1981–1993
ZASTAVA65 EFI (145 A)YUGO13E1.06465Petrol1981–1995
