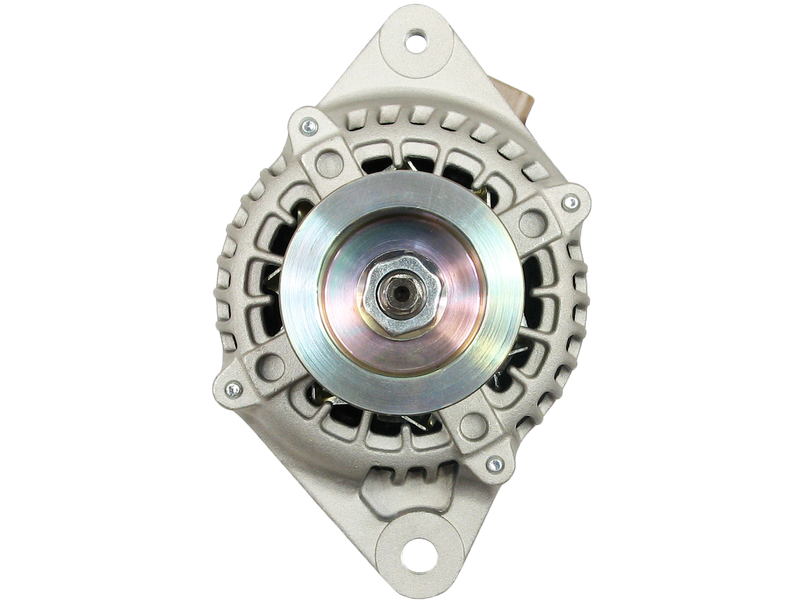

AS-PL A6152 Generator — ISUZU

AS-PL A6152 Generator — ISUZU

1 351,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 12
Ström [ A ] 80
A-storlek [ mm ] 43.00
B-storlek [ mm ] 13.00
C-storlek [ mm ] 83.00
G [ qty. ] 7
O.D.1 [ mm ] 62.50
Remskiva AP
D.1 [ mm ] M8x1.25
D.2 [ mm ] 10.00
D.3 [ mm ] 10.00
L.1 [ mm ] 186.00
Plug PL_2002
AS-PLSTANDARD LINE
EAN5901259473940
ErsätterDENSO
OE-nummer104210-9031

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: A6152 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

OE-nummer: 104210-9031

Specifikationer

Spänning [ V ] 12
Ström [ A ] 80
A-storlek [ mm ] 43.00
B-storlek [ mm ] 13.00
C-storlek [ mm ] 83.00
G [ qty. ] 7
O.D.1 [ mm ] 62.50
Remskiva AP
D.1 [ mm ] M8x1.25
D.2 [ mm ] 10.00
D.3 [ mm ] 10.00
L.1 [ mm ] 186.00
Plug PL_2002

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ISUZU2.5 CRDiD-MAX II Platform/Chassis (TFR, TFS)4JK1-TCY163Diesel2012–
ISUZU2.5 CRDi (TFR86J)D-MAX II (TFR, TFS)4JK-1E5-TC163Diesel2012–2018
ISUZU2.5 CRDi (TFR86J)D-MAX II (TFR, TFS)4JK1-E5S-L163Diesel2012–2018
ISUZU2.5 CRDi 4WDD-MAX II Platform/Chassis (TFR, TFS)4JK1-TCY163Diesel2012–
ISUZU2.5 CRDi 4x4 (TFS86J)D-MAX II (TFR, TFS)4JK1-E5S-L163Diesel2012–2018
ISUZU2.5 CRDi 4x4 (TFS86J)D-MAX II (TFR, TFS)4JK-1E5-TC163Diesel2012–2018
ISUZU2.5 DiTD (TFR86_)D-MAX I (TFR, TFS)4JK1-TC136Diesel2006–2012
ISUZU2.5 DiTD 4x4 (TFS86_)D-MAX I (TFR, TFS)4JK1-TC136Diesel2007–2012
ISUZU3.0 DiTD (TFR85_)D-MAX I (TFR, TFS)4JJ1E4C-L163Diesel2007–2012
ISUZU3.0 DiTD (TFR85_)D-MAX I (TFR, TFS)4JJ1-TC163Diesel2007–2012
ISUZU3.0 DiTD 4x4 (TFS85_)D-MAX I (TFR, TFS)4JJ1E4C-L163Diesel2007–2012
ISUZU3.0 DiTD 4x4 (TFS85_)D-MAX I (TFR, TFS)4JJ1-TC163Diesel2007–2012
