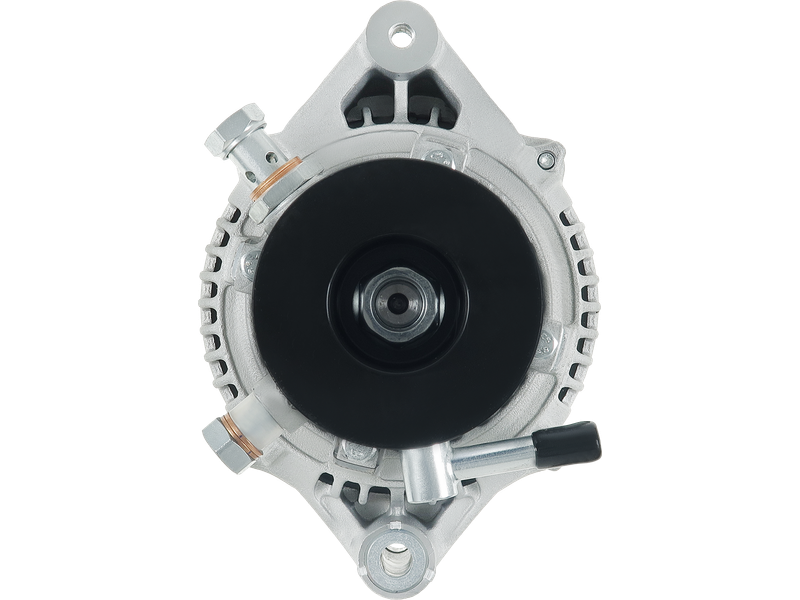

AS-PL A6939S Generator — TOYOTA

AS-PL A6939S Generator — TOYOTA

1 808,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 12
Ström [ A ] 100
A-storlek [ mm ] 148.00
B-storlek [ mm ] 69.50
G [ qty. ] 2
O.D.1 [ mm ] 49.00
O.D.2 [ mm ] 77.00
W.1 [ mm ] 11.00
Remskiva AP
D.1 [ mm ] 10.50
D.2 [ mm ] M8x1.25
L.1 [ mm ] 237.00
Plug PL_3314
Vacuum pump Yes
AS-PLSTANDARD LINE
EAN5902129261872
ErsätterDENSO
OE-nummer100213-1930

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: A6939S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

OE-nummer: 100213-1930

Specifikationer

Spänning [ V ] 12
Ström [ A ] 100
A-storlek [ mm ] 148.00
B-storlek [ mm ] 69.50
G [ qty. ] 2
O.D.1 [ mm ] 49.00
O.D.2 [ mm ] 77.00
W.1 [ mm ] 11.00
Remskiva AP
D.1 [ mm ] 10.50
D.2 [ mm ] M8x1.25
L.1 [ mm ] 237.00
Plug PL_3314
Vacuum pump Yes

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
TOYOTA2.4 (RZH10)HIACE IV Van (_H1_)2RZ-E120Petrol1989–1995
TOYOTA2.4 (RZH103, RZH113)HIACE IV Van (_H1_)2RZ116Petrol1989–1998
TOYOTA2.4 (RZH103, RZH183)HIACE IV Bus (_H1_)2RZ-E120Petrol1989–2003
TOYOTA2.4 (RZH103_, RZH103R)HIACE IV Van (_H1_)2RZ98Petrol1989–1996
TOYOTA2.4 (RZH125)HIACE IV Bus (_H1_)2RZ98Petrol1989–1996
TOYOTA2.4 4WD (RCH103_, RCH113_, RCH103R, RCH113R)HIACE IV Van (_H1_)2RZ-E120Petrol1989–1995
TOYOTA2.4 4WD (RZH103_, RZH109_, RZH113_, RZH115_, RZH103R,...HIACE IV Bus (_H1_)2RZ-E120Petrol1989–1995
TOYOTA2.4 Carb (RZH125)HIACE IV Bus (_H1_)2RZ116Petrol1989–1998
TOYOTA2.4 D (LH100, LH110, LH104, LH114)HIACE IV Bus (_H1_)2L78Diesel1989–2004
TOYOTA2.4 D (LH102)HIACE IV Bus (_H1_)2L75Diesel1989–1995
TOYOTA2.4 D (LH102, LH104, LH112)HIACE IV Van (_H1_)2L78Diesel1989–1995
TOYOTA2.4 D (LH112)HIACE IV Van (_H1_)2L75Diesel1989–2004
TOYOTA2.4 D (LN145, LN150)HILUX VI Pickup (_N1_)2L79Diesel1997–2005
TOYOTA2.4 D (LN145, LN150)HILUX VI Pickup (_N1_)2L-II83Diesel1997–2001
TOYOTA2.4 D (LN145, LN150)HILUX VI Pickup (_N1_)2L83Diesel1997–2001
TOYOTA2.4 D (LN150, LN145)HILUX VI Pickup (_N1_)2L75Diesel1997–2005
TOYOTA2.4 D (LN90_, LN90R)HILUX V Pickup (_N8_, _N9_, _N10_, _N11_)2L79Diesel1995–1997
TOYOTA2.4 D (LY100_)DYNA 100 Platform/Chassis (LY1_, YY1_)2L79Diesel1995–2001
TOYOTA2.4 D 4WDHIACE IV Van (_H1_)2L78Diesel1989–1995
TOYOTA2.4 D 4WDHILUX VI Pickup (_N1_)2L83Diesel1997–2001
TOYOTA2.4 D 4WD (LH100, LH102, LH110, LH140)HIACE IV Bus (_H1_)2L78Diesel1989–1995
TOYOTA2.4 D 4WD (LH108, LH118)HIACE IV Van (_H1_)2L75Diesel1989–1999
TOYOTA2.4 TD (LN190)HILUX VI Pickup (_N1_)2L-T90Diesel1997–2001
TOYOTA2.4 TD (LN85)HILUX II SUV (_N13_)2L-T90Diesel1991–1997
TOYOTA2.4 TD (LXH12, LXH22)HIACE IV Bus (__H1_, __H2_)2L-T90Diesel1995–2001
TOYOTA2.4 TD (LXH12, LXH22)HIACE IV Van (__H1_, __H2_)2L-T90Diesel1995–2001
TOYOTA2.4 TD 4WD (LN130)HILUX II SUV (_N13_)2L-T90Diesel1989–1998
TOYOTA2.4 TD 4WD (LN130_)HILUX II SUV (_N13_)2L-T125Diesel1988–1997
TOYOTA2.4 TD 4WD (LN165_, LN170_, LN190_, LN165, LN165H,...HILUX VI Pickup (_N1_)2L-T90Diesel1998–2002
TOYOTA2.4 TD 4WD (LXH18, LXH28)HIACE IV Bus (__H1_, __H2_)2L-T90Diesel1995–2001
TOYOTA2.4 TD 4WD (LXH18, LXH28)HIACE IV Van (__H1_, __H2_)2L-T90Diesel1995–2001
TOYOTA2.4 TDi 4WD (LN130)HILUX II SUV (_N13_)2L-TE97Diesel1990–1993
TOYOTA3.0 D (LY102, LY112, LY122)DYNA 150 Platform/Chassis (LY_)5L88Diesel1998–2001
TOYOTA4-093DYNA 150 Platform/Chassis (_U3_, _U4_)5L91Diesel2016–
