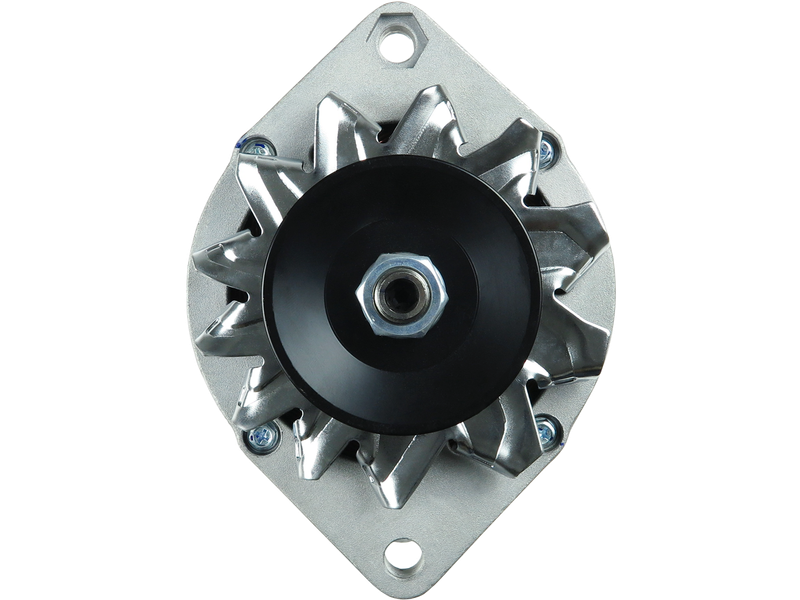

AS-PL A9216 Generator — IVECO, FIAT

AS-PL A9216 Generator — IVECO, FIAT

753,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: ISKRA / LETRIKA

Spänning [ V ] 24
Ström [ A ] 35
A-storlek [ mm ] 48.00
B-storlek [ mm ] 17.00
C-storlek [ mm ] 72.00
G [ qty. ] 1
O.D.1 [ mm ] 56.00
O.D.2 [ mm ] 82.00
W.1 [ mm ] 9.50
Remskiva AP
D.1 [ mm ] 11.50
D.2 [ mm ] 12.50
D.3 [ mm ] 12.50
L.1 [ mm ] 177.00
Plug PL_9104
AS-PLSTANDARD LINE
EAN5902129033554
ErsätterISKRA / LETRIKA
OE-nummer11.201.055

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: A9216 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från ISKRA / LETRIKA.

OE-nummer: 11.201.055

Specifikationer

Spänning [ V ] 24
Ström [ A ] 35
A-storlek [ mm ] 48.00
B-storlek [ mm ] 17.00
C-storlek [ mm ] 72.00
G [ qty. ] 1
O.D.1 [ mm ] 56.00
O.D.2 [ mm ] 82.00
W.1 [ mm ] 9.50
Remskiva AP
D.1 [ mm ] 11.50
D.2 [ mm ] 12.50
D.3 [ mm ] 12.50
L.1 [ mm ] 177.00
Plug PL_9104

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
FIAT100ESeries 1008060.02.0001221973–1976
FIAT100NCSeries 1008060.02.0001221973–1975
FIAT110NCSeries 1108060.02.0001221973–1983
FIAT240F26TSeries 2602601978–1981
FIAT260PACSeries 2602601977–1983
FIAT260PACSeries 2602601977–1983
FIAT314/3Series 3008060.121201958–1971
FIAT330.35Series 3303501981–1985
FIAT50N, 50NCSeries 508040.02821972–1976
FIAT55NSeries 558040.02821972–1976
FIAT619N1Series 6008210.02.0322601970–1980
FIAT619N1PSeries 6002601972–1986
FIAT619T1, 619T1PSeries 6002601970–1980
FIAT65NSeries 65CO3/41901972–1976
FIAT65NSeries 65CO3/41901972–1976
FIAT65PSeries 658040.02821977–1979
FIAT65PSeries 658040.02821975–1979
FIAT65PSeries 658040.02821975–1977
FIAT680N, 682N, CP48Series 6001231950–1952
FIAT684NSeries 6008200.02.2202001970–1980
FIAT684NPSeries 6008200.02.2202001974–1980
FIAT684T, 684TL, 684TPSeries 6008200.02.2202001970–1980
FIAT697NSeries 600260-2611970–1995
FIAT697NPSeries 6002601970–1980
FIAT697TSeries 6002601970–1976
FIAT70FNMSeries 70CO3/41901973–
FIAT70NSeries 70CO3/41901972–1976
FIAT75NSeries 75CO3/41901972–1976
FIAT75PSeries 758060.02.0001221975–1977
FIAT75PSeries 758060.02.0001221977–1979
FIAT75PSeries 758060.02.0001221975–1977
FIAT80NSeries 808060.02.0001221972–1976
FIAT80N, 80NCSeries 808060.02.0001221972–1976
FIAT90N, 90NCSeries 908060.02.0001221972–1976
FIAT90PSeries 908060.02.0001221977–1979
FIAT90PSeries 901301979–1983
FIAT90PSeries 908060.02.0001221975–1977
FIAT90PSeries 908060.02.0001221977–1979
FIAT90PSeries 901301979–1983
FIAT90PSeries 908060.02.0001221975–1977
IVECO100 E 15 KEUROCARGO I-III8060.25R.4200LTC1431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.45R.50031431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.25R.4200LTC1431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.45R.50011431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.45R.50051431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.45R.50001431991–2015
IVECO100 E 18 KEUROCARGO I-III8060.25V.40001771991–2015
IVECO100 E 18, 100 E 18 PEUROCARGO I-III8060.25V.40001771991–2015
IVECO100 E 21, 100 E 21 PEUROCARGO I-III8060.45.4100TCA2071991–2015
IVECO100 E 21, 100 E 21 PEUROCARGO I-III8060.45.41802071991–2015
IVECO109-14ZETA8060.04.6891351983–1985
IVECO109-14ZETA8060.05.289137-1391985–1991
IVECO109-14 HZETA8060.04.6891351983–1985
IVECO109-14 HZETA8060.05.289137-1391985–1991
IVECO115-17M8060.25.6001771986–1991
IVECO115-17 HM8060.25.6001771986–1991
IVECO120 E 15EUROCARGO I-III8060.25R.42001431991–2015
IVECO120 E 15EUROCARGO I-III8060.25R.42801431991–2015
IVECO120 E 15 KEUROCARGO I-III8060.25R.42801431991–2015
IVECO120 E 18 KEUROCARGO I-III8060.25V.40801771991–2015
IVECO120 E 18, 120 E 18 P, 120 E 18 HEUROCARGO I-III8060.25V.40801771991–2015
IVECO120 E 18, 120 E 18 P, 120 E 18 HEUROCARGO I-III8060.45B.51001771991–2015
IVECO120 E 21 HEUROCARGO I-III8060.45B.51002071992–2015
IVECO120 E 23,120 E 23 P, 120 E 23 FP, 120 E 23 HEUROCARGO I-III8060.45.60902271991–2015
IVECO120 E 23,120 E 23 P, 120 E 23 FP, 120 E 23 HEUROCARGO I-III8060.45S.72002271991–2015
IVECO120 E 23,120 E 23 P, 120 E 23 FP, 120 E 23 HEUROCARGO I-III8060.45S.68002271991–2015
IVECO130 E 15EUROCARGO I-III8060.25R.42801431991–2015
IVECO130 E 15 KEUROCARGO I-III8060.25R.42801431991–2015
IVECO130 E 18EUROCARGO I-III8060.25V.40801771991–2015
IVECO130 E 18 KEUROCARGO I-III8060.25V.40801771991–2015
IVECO130 E 23EUROCARGO I-III8060.45.60902271991–2015
IVECO130 E 23EUROCARGO I-III8060.45S.60002271991–2015
IVECO135 E 18 WEUROCARGO I-III8060.25V.48001771991–2015
IVECO135 E 18 WREUROCARGO I-III8060.25V.48001771991–2015
IVECO135 E 23 WEUROCARGO I-III8060.45STCA2271991–2015
IVECO135 E 23 WREUROCARGO I-III8060.45STCA2271991–2015
IVECO135-17M8060.25.6001771986–1991
IVECO135-17 HM8060.25.6001771986–1992
IVECO135-17 TM8060.25.6001771986–1991
IVECO145-17M8060.25.6001771986–1991
IVECO150 E 15EUROCARGO I-III8060.25R.42801431991–2015
IVECO150 E 15 KEUROCARGO I-III8060.25R.42801431991–2015
IVECO150 E 18 KEUROCARGO I-III8060.25V.40801771991–2015
IVECO150 E 18 KEUROCARGO I-III8060.25V.40001771991–2015
IVECO150 E 18, 150 E 18 PEUROCARGO I-III8060.45B175-1771991–2015
IVECO150 E 18, 150 E 18 PEUROCARGO I-III8060.25V.4080175-1771991–2015
IVECO150 E 18, 150 E 18 PEUROCARGO I-III8060.25V.4000175-1771991–2015
IVECO150 E 23, 150 E 23 P, 150 E 23 FPEUROCARGO I-III8060.45.60902271991–2015
IVECO150 E 23, 150 E 23 P, 150 E 23 FPEUROCARGO I-III8060.45S.68002271991–2015
IVECO170 E 15 KEUROCARGO I-III8060.25R.42801431991–2000
IVECO170 E 18 K, 180 E 18 KEUROCARGO I-III8060.25V.48001771991–2015
IVECO170 E 18, 180 E 18EUROCARGO I-III8060.25V.48001771991–2015
IVECO170 E 23 K,180 E 23 KEUROCARGO I-III8060.45STCA2271991–2015
IVECO170 E 23,180 E 23EUROCARGO I-III8060.45STCA2271991–2015
IVECO175-17M8060.25.6001771986–1992
IVECO175-24M8460.21.002239-2421986–1992
IVECO175-24M8460.21.010239-2421986–1992
IVECO175-24 TM8460.21.010239-2421986–1992
IVECO175-24 TM8460.21.002239-2421986–1992
IVECO180 E 21 TEUROCARGO I-III8060.45.4100TCA2071991–2015
IVECO180 E 30 REUROTECH MT8460.41C.3203011992–1996
IVECO190 E 30EUROTECH MT8460.41C.3203011997–1998
IVECO190 E 30 KEUROTECH MT8460.41C.3203011997–1998
IVECO190-26TURBOTECH8460.21.1022601990–1992
IVECO190-26 TTURBOTECH8460.21.1022601990–1992
IVECO190-30 HP/PA8210.22.5253051987–1990
IVECO190-30 HP/PA8210.22.5353051991–1992
IVECO190-30 HP/PA8210.22.5113051987–1990
IVECO190-30 HP/PA8210.22.5253051987–1990
IVECO190-30 HP/PA8210.22.5353051991–1992
IVECO190-30 HP/PA8210.22.2103051987–1990
IVECO190-30 HP/PA8210.22.2363051991–1992
IVECO190-30 HP/PA8210.22.5373051987–1990
IVECO190-30 HP/PA8210.22.5233051987–1990
IVECO190-30 HP/PA8210.22.5373051987–1990
IVECO190-30 HP/PA8210.22.5213051991–1992
IVECO190-30 HP/PA8210.22.2103051991–1992
IVECO190-30 HP/PA8210.22.5113051987–1990
IVECO190-30 HP/PA8210.22.5213051991–1992
IVECO190-30 HP/PA8210.22.2363051987–1990
IVECO190-30 HP/PA8210.22.5253051991–1992
IVECO190-30 HP/PA8210.22.5233051987–1990
IVECO190-30 HP/PA8210.22.5113051991–1992
IVECO190-30 HP/PA8210.22.5253051991–1992
IVECO190-30 HP/PA8210.22.2103051991–1992
IVECO190-30 HP/PA8210.22.5353051987–1990
IVECO190-30 HP/PA8210.22.5373051991–1992
IVECO190-30 HP/PA8210.22.5213051987–1990
IVECO190-30 HP/PA8210.22.5353051987–1990
IVECO190-30 HP/PA8210.22.5373051991–1992
IVECO190-30 HP/PA8210.22.2363051987–1990
IVECO190-30 HP/PA8210.22.5113051991–1992
IVECO190-30 HP/PA8210.22.2103051987–1990
IVECO190-30 HP/PA8210.22.5233051991–1992
IVECO190-30 HP/PA8210.22.2363051991–1992
IVECO190-30 HP/PA8210.22.5213051987–1990
IVECO190-30 HP/PA8210.22.5233051991–1992
IVECO190-30 HTP/PA8210.22.5373051989–1990
IVECO190-30 HTP/PA8210.22.5113051989–1990
IVECO190-30 HTP/PA8210.22.5213051990–1992
IVECO190-30 HTP/PA8210.22.5233051989–1990
IVECO190-30 HTP/PA8210.22.5253051990–1992
IVECO190-30 HTP/PA8210.22.2103051990–1992
IVECO190-30 HTP/PA8210.22.5353051989–1990
IVECO190-30 HTP/PA8210.22.2363051989–1990
IVECO190-30 HTP/PA8210.22.5373051990–1992
IVECO190-30 HTP/PA8210.22.5113051990–1992
IVECO190-30 HTP/PA8210.22.5213051989–1990
IVECO190-30 HTP/PA8210.22.5233051990–1992
IVECO190-30 HTP/PA8210.22.5253051989–1990
IVECO190-30 HTP/PA8210.22.2103051989–1990
IVECO190-30 HTP/PA8210.22.5353051990–1992
IVECO190-30 HTP/PA8210.22.2363051990–1992
IVECO190-30 NP/PA-Haubenfahrzeuge8210.22.1753051987–1990
IVECO190-30 NP/PA-Haubenfahrzeuge8210.22.1753051991–1993
IVECO190-30 NTP/PA-Haubenfahrzeuge8210.22.1753051987–1990
IVECO190-30 NTP/PA-Haubenfahrzeuge8210.22.1753051991–1993
IVECO190-32TURBOTECH8460.41.1023181990–1992
IVECO190-32 TTURBOTECH8460.41.1023181990–1992
IVECO240 E 30 PSEUROTECH MP8460.41C.TCA3011997–
IVECO260 E 23 KEEUROCARGO I-III8060.45STCA2271992–2015
IVECO260 E 23 TEUROCARGO I-III8060.45STCA2271991–2015
IVECO260 E 23 TEUROCARGO I-III8060.45S.60002271991–2015
IVECO280 E 23 TEUROCARGO I-III8060.45S.60002271991–2015
IVECO330-30 HP/PA8210.22X.5233051984–1992
IVECO330-30 HP/PA8210.22X.2353051988–1990
IVECO330-30 HP/PA8210.22X.2353051984–1990
IVECO330-30 HP/PA8210.22X.2353051991–1992
IVECO330-30 HP/PA8210.22X.2353051984–1992
IVECO330-30 HP/PA8210.22X.5233051988–1990
IVECO330-30 HP/PA8210.22X.5233051984–1990
IVECO330-30 HP/PA8210.22X.5233051991–1992
IVECO330-30 HTP/PA8210.22X.5233051991–1992
IVECO330-30 HTP/PA8210.22X.2353051988–1992
IVECO330-30 HTP/PA8210.22X.5233051988–1990
IVECO330-30 HTP/PA8210.22X.2353051991–1992
IVECO330-30 HTP/PA8210.22X.5233051988–1990
IVECO330-30 HTP/PA8210.22X.2353051988–1990
IVECO330-30 HTP/PA8210.22X.5233051988–1992
IVECO330-30 HTP/PA8210.22X.2353051988–1990
IVECO330-30 NP/PA-Haubenfahrzeuge8210.22X.5753051987–1990
IVECO330-30 NP/PA-Haubenfahrzeuge8210.22X.5753051987–1990
IVECO330-30 NP/PA-Haubenfahrzeuge8210.22X.5753051987–1992
IVECO330-30 NP/PA-Haubenfahrzeuge8210.22X.0693051987–1990
IVECO330-30 NP/PA-Haubenfahrzeuge8210.22X.5753051991–1992
IVECO330-30 NP/PA-Haubenfahrzeuge8210.22X.0693051987–1990
IVECO330-30 NP/PA-Haubenfahrzeuge8210.22X.0693051987–1992
IVECO330-30 NP/PA-Haubenfahrzeuge8210.22X.0693051991–1992
IVECO330-30 NWP/PA-Haubenfahrzeuge8210.22X.0693051991–1992
IVECO330-30 NWP/PA-Haubenfahrzeuge8210.22X.5753051987–1990
IVECO330-30 NWP/PA-Haubenfahrzeuge8210.22X.5753051987–1990
IVECO330-30 NWP/PA-Haubenfahrzeuge8210.22X.5753051987–1992
IVECO330-30 NWP/PA-Haubenfahrzeuge8210.22X.0693051987–1990
IVECO330-30 NWP/PA-Haubenfahrzeuge8210.22X.0693051987–1990
IVECO330-30 NWP/PA-Haubenfahrzeuge8210.22X.5753051991–1992
IVECO330-30 NWP/PA-Haubenfahrzeuge8210.22X.0693051987–1992
IVECO330-36 HP/PA8210.42.2693601989–1990
IVECO330-36 HP/PA8210.42.2703601989–1990
IVECO330-36 HP/PA8210.42.2713601989–1990
IVECO330-36 HP/PA8210.42.2103601989–1990

Visar 200 av 361 fordon
