Nikko A9595(NIKKO) Generator — KOMATSU

Nikko A9595(NIKKO) Generator — KOMATSU

15 395,00 kr inkl. moms

PREMIUM LINE | Tillverkare: Nikko | Ersätter: NIKKO

Spänning [ V ] 24
Ström [ A ] 90

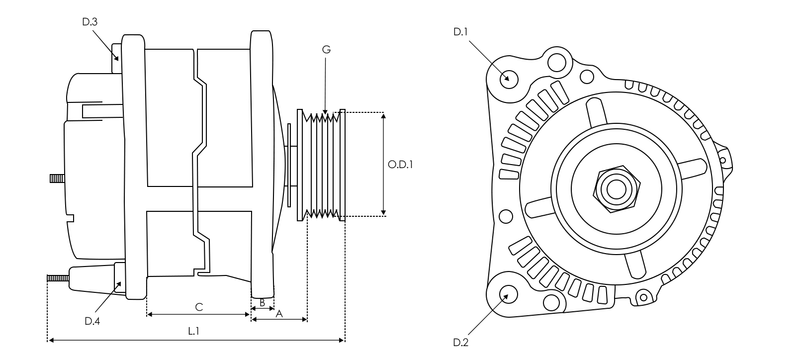

A-storlek [ mm ] 64.00
B-storlek [ mm ] 25.00
C-storlek [ mm ] 101.00
G [ qty. ] 2
O.D.1 [ mm ] 50.00
Remskiva AP
D.1 [ mm ] M12x1.5
D.2 [ mm ] 13.00
D.3 [ mm ] 13.00
L.1 [ mm ] 248.00
Plug PL_9104
NikkoPREMIUM LINE
EAN5902129258957
ErsätterNIKKO

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: A9595(NIKKO) Category: Tags: ,

Description

Denna produkt ersätter originaldelar från NIKKO.

Specifikationer

Spänning [ V ] 24
Ström [ A ] 90
A-storlek [ mm ] 64.00
B-storlek [ mm ] 25.00
C-storlek [ mm ] 101.00
G [ qty. ] 2
O.D.1 [ mm ] 50.00
Remskiva AP
D.1 [ mm ] M12x1.5
D.2 [ mm ] 13.00
D.3 [ mm ] 13.00
L.1 [ mm ] 248.00
Plug PL_9104

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
KOMATSUD375A-5 23.15SA6D170E02001–2018
KOMATSUD375A-5 23.15SAA6D170E02001–2018
KOMATSUD375A-5D 23.15SA6D170E02001–2018
KOMATSUD375A-5E0 23.15SAA6D170E02005–2019
KOMATSUD375A-6 23.15SAA6D170E02010–2020
KOMATSUD475A-3 30.48SDA12V14001999–2008
KOMATSUD475A-5 30.48SDA12V140E02004–2008
KOMATSUD475A-5A 30.48SDA12V140E02004–2008
KOMATSUD475A-5E0 30.48SAA12V140E02007–2020
KOMATSUD475ASD-5E0 30.48SAA12V140E02007–2020
KOMATSUHD465-7E0 23.15SAA6D170E02006–2018
KOMATSUHD465-8 23.15SAA6D170E02017–2021
KOMATSUHD605-7E0 23.15SAA6D170E02006–2018
KOMATSUHD605-8 23.15SAA6D170E02017–2021
KOMATSUHD785-3 30.48SA12V14001988–1998
KOMATSUHD785-5SA12V14001996–2006
KOMATSUHD785-7 30.48SAA12V140E02007–2020
KOMATSUPC2000-11 30.48SAA12V140E02019–2020
KOMATSUPC2000-8 30.48SAA12V140E02007–2020
KOMATSUWA600-6 23.15SAA6D170E02006–2020
KOMATSUWA700-3 23.15SAA6D170E01999–2010
KOMATSUWA800-2 30.48SA12V14001987–1997
KOMATSUWA800-3 30.48SA12V14002000–2007
KOMATSUWA800-3E0 30.48SAA12V140E02007–2020
KOMATSUWA900-3 30.48SA12V14002007–2020
KOMATSUWA900-3E0 30.48SAA12V140E02007–2020
KOMATSUWD600-6 23.15SAA6D170E02009–2017
KOMATSUWD900-3 30.48SA12V14002000–2020
KOMATSU11.0D85EX-15E0SAA6D125E02006–2020
KOMATSU11.0D85EX-18SA6D125E02015–2020
KOMATSU11.0D85EXi-18SA6D125E02016–2020
KOMATSU11.0D85PX-15E0SAA6D125E02006–2020
KOMATSU11.0D85PX-18SAA6D125E02015–2020
KOMATSU11.0D85PXi-18SAA6D125E02016–2020
KOMATSU11.0HM300-3SAA6D125E02012–2014
KOMATSU11.0HM300-5SAA6D125E02015–2021
KOMATSU11.0PC490C-11SAA6D125E02014–2021
KOMATSU11.0PC490Ci-11SAA6D125E02016–2021
KOMATSU11.0WA430-5SAA6D125E02002–2005
KOMATSU11.0WA470-5SAA6D125E-32742001–2006
KOMATSU11.0WA470-8SAA6D125E02015–2021
KOMATSU11.0WA470-86D125E02015–2021
KOMATSU11.0WA475-10SAA6D125E02020–2021
KOMATSU11.0WA475-10EOSAA6D125E02020–2021
KOMATSU11.0WA480-5SAA6D125E-32742002–2007
KOMATSU11.0WA480-8SAA6D125E02017–2021
KOMATSU11.0WA480-86D125E02018–2021
KOMATSU15.2D155AX-7SAA6D140E02012–2020
KOMATSU15.2D155AX-8SAA6D140E02014–2020
KOMATSU15.2D155AXi-8SAA6D140E02015–2020
KOMATSU15.2HD325-8SAA6D140E02016–2021
KOMATSU15.2HD325-8E0SAA6D140E02016–2021
KOMATSU15.2HD405-8SAA6D140E02016–2020
KOMATSU15.2HM400-3SAA6D140E02012–2015
KOMATSU15.2HM400-5SAA6D140E02015–2021
KOMATSU15.2PC650C-11SAA6D140E02017–2021
KOMATSU15.2WA500-7SAA6D140E02012–2018
KOMATSU15.2WA500-76D140E02012–2018
KOMATSU15.2WA500-86D140E02016–2021
KOMATSU15.2WA500-8SAA6D140E02016–2021
KOMATSU23.1PC1100-6SAA6D170E01998–2002
KOMATSU23.1PC1100C-6SAA6D170E01998–2002
KOMATSU23.1PC1100SP-6SAA6D170E01998–2002
KOMATSU23.1PC1250-11SAA6D170E02018–2020
KOMATSU23.1PC1250-7SAA6D170E02002–2006
KOMATSU23.1PC1250-8SAA6D170E02006–2020
KOMATSU23.1PC1250C-11SAA6D170E02018–2020
KOMATSU23.1PC1250C-7SAA6D170E02002–2006
KOMATSU23.1PC1250C-8SAA6D170E02006–2020
KOMATSU23.1PC1250SP-11SAA6D170E02018–2020
KOMATSU23.1PC1250SP-7SAA6D170E02002–2006
KOMATSU23.1PC1250SP-8SAA6D170E02006–2020
KOMATSU30.5HD785-5SA12V14010641999–2007
KOMATSU4.5D61EX-24SAA4D107E02015–2020
KOMATSU4.5D61EXi-24SAA4D107E02016–2020
KOMATSU4.5D61PX-24SAA4D107E02015–2020
KOMATSU4.5D61PXi-24SAA4D107E02016–2020
KOMATSU4.5HB215C-3SAA4D107E02018–2020
KOMATSU4.5WA200-6SAA4D107E02008–2020
KOMATSU4.5WA200-7SAA4D107E02014–2020
KOMATSU4.5WA200-8SAA4D107E02017–2021
KOMATSU4.5WA200PZ-6SAA4D107E02008–2018
KOMATSU6.5WA200-16D10501985–1987
KOMATSU6.7D61EX-23SAA6D107E02012–2020
KOMATSU6.7D61EX-24SAA6D107E02015–2020
KOMATSU6.7D61EXi-23SAA6D107E02013–2020
KOMATSU6.7D61EXi-24SAA6D107E02016–2020
KOMATSU6.7D61PX-23SAA6D107E02012–2020
KOMATSU6.7D61PX-24SAA6D107E02015–2020
KOMATSU6.7D61PXi-23SAA6D107E02013–2020
KOMATSU6.7D61PXi-24SAA6D107E02016–2020
KOMATSU6.7GD555-5SAA6D107E02011–2020
KOMATSU6.7GD655-5SAA6D107E-12242012–2018
KOMATSU6.7GD655-6SAA6D107E02015–2020
KOMATSU6.7GD675-5SAA6D107E02010–2020
KOMATSU6.7PC210-11SAA6D107E02015–2021
KOMATSU6.7PC210-116D107E02015–2021
KOMATSU6.7PC210C-11SAA6D107E02015–2021
KOMATSU6.7PC210C-116D107E02015–2021
KOMATSU6.7PC210Ci-11SAA6D107E02017–2021
KOMATSU6.7PC240C-11SAA6D107E02015–2021
KOMATSU6.7PC240C-116D107E02015–2021
KOMATSU6.7PC290-116D107E02015–2021
KOMATSU6.7PC290C-11SAA6D107E02015–2021
KOMATSU6.7PC290C-11E0SAA6D107E02015–2021
KOMATSU6.7PC290Ci-11SAA6D107E02019–2021
KOMATSU6.7PC290Ci-116D107E02019–2021
KOMATSU6.7WA250-6SAA6D107E02008–2018
KOMATSU6.7WA250PZ-6SAA6D107E02007–2017
KOMATSU6.7WA270-7SAA6D107E02013–2020
KOMATSU6.7WA270-86D107E02016–2021
KOMATSU6.7WA270-8SAA6D107E02016–2021
KOMATSU6.7WA320-6SAA6D107E02008–2020
KOMATSU6.7WA320-6NSAA6D107E02010–2014
KOMATSU6.7WA320-7SAA6D107E02013–2020
KOMATSU6.7WA320-86D107E02016–2021
KOMATSU6.7WA320-8SAA6D107E02016–2021
KOMATSU6.7WA320PZ-6SAA6D107E02008–2010
KOMATSU6.7WA380-6SAA6D107E02006–2010
KOMATSU6.7WA380-7SAA6D107E02012–2020
KOMATSU6.7WA380-8SAA6D107E02016–2021
KOMATSU8.3D65EX-15E0SAA6D114E02005–2010
KOMATSU8.3D65EX-16SAA6D114E02010–2018
KOMATSU8.3D65EX-17SAA6D114E02011–2020
KOMATSU8.3D65EX-18SAA6D114E02015–2020
KOMATSU8.3D65EXi-18SAA6D114E02015–2020
KOMATSU8.3D65PX-15E0SAA6D114E02005–2010
KOMATSU8.3D65PX-16SAA6D114E02011–2018
KOMATSU8.3D65PX-17SAA6D11402011–2020
KOMATSU8.3D65PX-18SAA6D114E02015–2020
KOMATSU8.3D65PXi-18SAA6D114E02015–2020
KOMATSU8.3D65WX-15E0SAA6D114E-32092004–2010
KOMATSU8.3D65WX-16SAA6D114E02010–2011
KOMATSU8.3D65WX-17SAA6D114E02010–2020
KOMATSU8.3D65WX-18SAA6D114E02014–2020
KOMATSU8.3GD655-3ASAA6D114E02006–2010
KOMATSU8.3GD655-3CSAA6D114E02003–2011
KOMATSU8.3GD655-3E0SAA6D114E02007–2011
KOMATSU8.3GD675-3SAA6D114E02003–2011
KOMATSU8.3GD675-3ASAA6D114E02007–2009
KOMATSU8.3GD675-3E0SAA6D114E02007–2011
KOMATSU8.3GD705-5SAA6D114E02014–2020
KOMATSU8.3HB365C-3SAA6D114E02016–2020
KOMATSU8.3PC360C-11SAA6D114E02015–2020
KOMATSU8.3PC360C-116D114E02015–2020
KOMATSU8.3PC360Ci-11SAA6D114E02016–2020
KOMATSU8.3PC360Ci-116D114E02016–2020
KOMATSU8.3PC390C-11SAA6D114E02015–2020
KOMATSU8.3PC390Ci-11SAA6D114E02017–2020
KOMATSU8.3WA380-5SAA6D114E-21902001–2008
KOMATSU8.3WA400-5SAA6D114E02002–2007
KOMATSU8.3WA430-6SAA6D114E02006–2020
