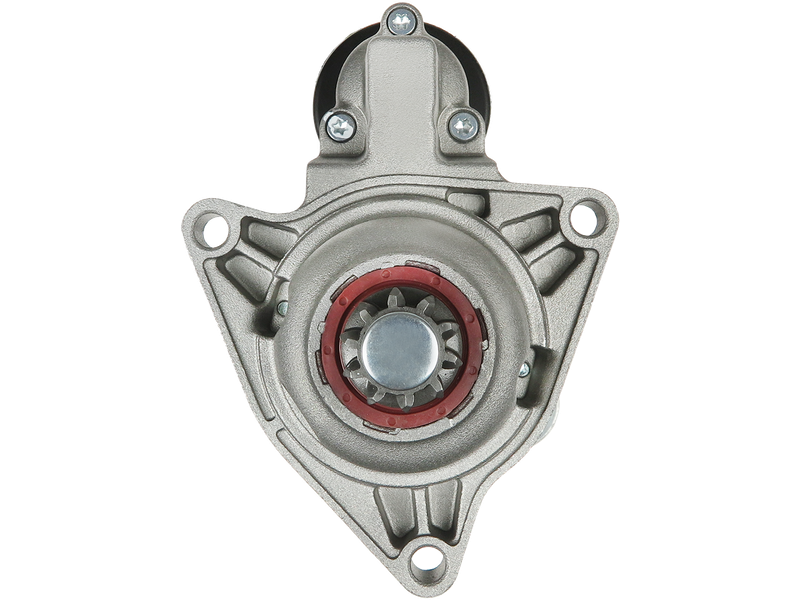

AS-PL S0005SR Startmotor — VW, SEAT

AS-PL S0005SR Startmotor — VW, SEAT

698,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 2.00
Startmotors rotation ACW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 53.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10, 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 235.00
O.1 [ mm ] 101.50
O.2 [ mm ] 101.50
O.3 [ mm ] 106.50
C.1 [ mm ] 9.00
C.2 [ mm ] 9.00
C.3 [ mm ] 9.00
AS-PLSTANDARD LINE
EAN5902129150114
ErsätterBOSCH

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0005SR Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.00
Startmotors rotation ACW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 53.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10, 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 235.00
O.1 [ mm ] 101.50
O.2 [ mm ] 101.50
O.3 [ mm ] 106.50
C.1 [ mm ] 9.00
C.2 [ mm ] 9.00
C.3 [ mm ] 9.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
SEAT1.9 DIBIZA II (6K1)1Y64Diesel1993–1999
SEAT1.9 TDIBIZA II (6K1)AAZ75Diesel1993–1996
VW1.9 DTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)1X60Diesel1990–1995
VW1.9 DTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D1X60Diesel1990–1995
VW1.9 DTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D1X61Diesel1990–1995
VW1.9 DTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)1X61Diesel1990–1995
VW1.9 DTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)1X60Diesel1990–1995
VW1.9 TDTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)ABL68Diesel1992–2003
VW1.9 TDTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DABL68Diesel1992–2003
VW1.9 TDTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)ABL68Diesel1992–2003
VW2.4 DCALIFORNIA T4 Camper (7DJ, 7DK, 70J)AJA75Diesel1998–2002
VW2.4 DTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AAB78Diesel1990–1998
VW2.4 DTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AJA75Diesel1997–2003
VW2.4 DTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAJA75Diesel1997–2003
VW2.4 DTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAAB78Diesel1990–1998
VW2.4 DTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AAB78Diesel1990–1998
VW2.4 DTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AJA75Diesel1997–2003
VW2.4 D SyncroTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AAB78Diesel1992–1998
VW2.4 D SyncroTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAAB78Diesel1992–1998
VW2.4 D SyncroTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AAB78Diesel1992–1998
VW2.5CALIFORNIA T4 Camper (7DJ, 7DK, 70J)AEU110Petrol1998–2002
VW2.5TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AET115Petrol1996–2003
VW2.5TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AVT115Petrol1996–2003
VW2.5TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)ACU110Petrol1990–2003
VW2.5TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AEU110Petrol1990–2003
VW2.5TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)APL115Petrol1996–2003
VW2.5TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AAF110Petrol1990–2003
VW2.5TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AEN110Petrol1990–2003
VW2.5TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAET115Petrol1996–2003
VW2.5TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAEN110Petrol1990–2003
VW2.5TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAVT115Petrol1996–2003
VW2.5TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DACU110Petrol1990–2003
VW2.5TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAEU110Petrol1990–2003
VW2.5TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAPL115Petrol1996–2003
VW2.5TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAAF110Petrol1990–2003
VW2.5TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AVT115Petrol1996–2003
VW2.5TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AEN110Petrol1990–2003
VW2.5TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)APL115Petrol1996–2003
VW2.5TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)ACU110Petrol1990–2003
VW2.5TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AEU110Petrol1990–2003
VW2.5TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AET115Petrol1996–2003
VW2.5TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AAF110Petrol1990–2003
VW2.5 SyncroTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AEU110Petrol1992–2003
VW2.5 SyncroTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AET115Petrol1996–2003
VW2.5 SyncroTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)ACU110Petrol1992–2003
VW2.5 SyncroTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AVT115Petrol1996–2003
VW2.5 SyncroTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AAF110Petrol1992–2003
VW2.5 SyncroTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)APL115Petrol1996–2003
VW2.5 SyncroTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAET115Petrol1996–2003
VW2.5 SyncroTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAVT115Petrol1996–2003
VW2.5 SyncroTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAAF110Petrol1992–2001
VW2.5 SyncroTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAEU110Petrol1992–2001
VW2.5 SyncroTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAPL115Petrol1996–2003
VW2.5 SyncroTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DACU110Petrol1992–2001
VW2.5 SyncroTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AAF110Petrol1992–2001
VW2.5 SyncroTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)APL115Petrol1996–2003
VW2.5 SyncroTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AEU110Petrol1992–2001
VW2.5 SyncroTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AET115Petrol1996–2003
VW2.5 SyncroTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)ACU110Petrol1992–2001
VW2.5 SyncroTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AVT115Petrol1996–2003
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AYC102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AXG151Diesel1998–2003
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AJT88Diesel1998–2003
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AHY151Diesel1998–2003
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AUF102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AYY88Diesel1998–2003
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)ACV102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DACV102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAYY88Diesel1998–2003
VW2.5 TDITRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAYC102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAJT88Diesel1998–2003
VW2.5 TDITRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAUF102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AUF102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AHY151Diesel2000–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AYY88Diesel1998–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)ACV102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AJT88Diesel1998–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AYC102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AXG151Diesel2000–2003
VW2.5 TDI SyncroTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AXL102Diesel1996–2003
VW2.5 TDI SyncroTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)ACV102Diesel1996–2003
VW2.5 TDI SyncroTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAXL102Diesel1998–2003
VW2.5 TDI SyncroTRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DACV102Diesel1998–2003
VW2.5 TDI SyncroTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AXL102Diesel1995–2003
VW2.5 TDI SyncroTRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)ACV102Diesel1995–2003
VW2.8TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAES140Petrol1996–2000
VW2.8 VR 6TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AES140Petrol1995–2000
VW2.8 VR6TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AMV204Petrol2000–2003
VW2.8 VR6TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AXK204Petrol2000–2003
VW2.8 VR6TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAMV204Petrol2000–2003
VW2.8 VR6TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AMV204Petrol2000–2003
VW2.8 VR6TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AES140Petrol1996–2000
VW2.8 VR6TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AXK204Petrol2000–2003
