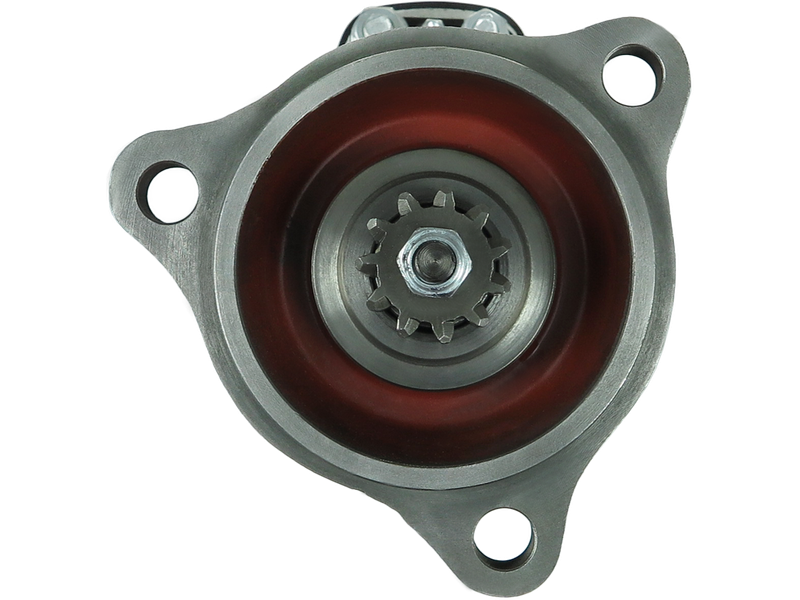

AS-PL S0008 Startmotor — VOLVO, IVECO, MERCEDES-BENZ

2 283,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	24
Effekt [ kW ]	6.50
Startmotors rotation	CW
A-storlek [ mm ]	115.00
B-storlek [ mm ]	20.00
Antal kuggar [ qty. ]	11
Antal kuggar (passar in) [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	410.00
O.1 [ mm ]	127.00
O.2 [ mm ]	127.00
O.3 [ mm ]	127.00
C.1 [ mm ]	15.50
C.2 [ mm ]	15.50
C.3 [ mm ]	15.50
Oil sealed	Yes
Waterproof	Yes

AS-PLSTANDARD LINE

EAN	5901259418446
Ersätter	BOSCH
OE-nummer	0001417006

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0008 Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001417006

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	6.50
Startmotors rotation	CW
A-storlek [ mm ]	115.00
B-storlek [ mm ]	20.00
Antal kuggar [ qty. ]	11
Antal kuggar (passar in) [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	410.00
O.1 [ mm ]	127.00
O.2 [ mm ]	127.00
O.3 [ mm ]	127.00
C.1 [ mm ]	15.50
C.2 [ mm ]	15.50
C.3 [ mm ]	15.50
Oil sealed	Yes
Waterproof	Yes

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	År
FIAT	260PAC	Series 260		260	1977–1983
FIAT	260PAC	Series 260		260	1977–1983
FIAT	330.35	Series 330		350	1981–1985
FIAT	619N1	Series 600	8210.02.032	260	1970–1980
FIAT	619N1P	Series 600		260	1972–1986
FIAT	619T1, 619T1P	Series 600		260	1970–1980
FIAT	684N	Series 600	8200.02.220	200	1970–1980
FIAT	684NP	Series 600	8200.02.220	200	1974–1980
FIAT	684T, 684TL, 684TP	Series 600	8200.02.220	200	1970–1980
FIAT	697N	Series 600		260-261	1970–1995
FIAT	697NP	Series 600		260	1970–1980
FIAT	697T	Series 600		260	1970–1976
IVECO	180 E 42	EUROTECH MP	8210.42L.400	420	1992–1993
IVECO	190 E 42, 190 E 42 /P	EUROTECH MP	8210.42L.400	420	1993–
IVECO	190-30 H	P/PA	8210.22.511	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.523	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.525	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.210	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.535	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.521	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.537	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.535	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.537	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.236	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.511	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.525	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.210	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.523	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.236	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.521	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.523	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.511	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.535	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.521	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.525	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.535	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.210	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.236	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.537	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.523	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.537	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.210	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.511	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.521	305	1991–1992
IVECO	190-30 H	P/PA	8210.22.236	305	1987–1990
IVECO	190-30 H	P/PA	8210.22.525	305	1991–1992
IVECO	190-30 HT	P/PA	8210.22.521	305	1989–1990
IVECO	190-30 HT	P/PA	8210.22.523	305	1990–1992
IVECO	190-30 HT	P/PA	8210.22.525	305	1989–1990
IVECO	190-30 HT	P/PA	8210.22.535	305	1990–1992
IVECO	190-30 HT	P/PA	8210.22.210	305	1989–1990
IVECO	190-30 HT	P/PA	8210.22.236	305	1990–1992
IVECO	190-30 HT	P/PA	8210.22.537	305	1989–1990
IVECO	190-30 HT	P/PA	8210.22.511	305	1989–1990
IVECO	190-30 HT	P/PA	8210.22.521	305	1990–1992
IVECO	190-30 HT	P/PA	8210.22.523	305	1989–1990
IVECO	190-30 HT	P/PA	8210.22.525	305	1990–1992
IVECO	190-30 HT	P/PA	8210.22.210	305	1990–1992
IVECO	190-30 HT	P/PA	8210.22.535	305	1989–1990
IVECO	190-30 HT	P/PA	8210.22.236	305	1989–1990
IVECO	190-30 HT	P/PA	8210.22.537	305	1990–1992
IVECO	190-30 HT	P/PA	8210.22.511	305	1990–1992
IVECO	190-30 N	P/PA-Haubenfahrzeuge	8210.22.175	305	1991–1993
IVECO	190-30 N	P/PA-Haubenfahrzeuge	8210.22.175	305	1987–1990
IVECO	190-30 NT	P/PA-Haubenfahrzeuge	8210.22.175	305	1991–1993
IVECO	190-30 NT	P/PA-Haubenfahrzeuge	8210.22.175	305	1987–1990
IVECO	190-36	TURBOSTAR	8210.42.101	360	1987–1990
IVECO	190-36	TURBOSTAR	8210.42.181	377	1990–1993
IVECO	190-36	TURBOSTAR	8210.42.152	377	1990–1993
IVECO	190-36	TURBOSTAR	8210.42.191	377	1990–1993
IVECO	190-36	TURBOSTAR	8210.42.162	377	1990–1993
IVECO	190-36	TURBOSTAR	8210.42.182	377	1990–1993
IVECO	190-36	TURBOSTAR	8210.42.154	377	1990–1993
IVECO	190-36	TURBOTECH	8210.42.151	377	1990–1992
IVECO	190-36	TURBOTECH	8210.42.101	360	1990–1992
IVECO	190-36	TURBOTECH	8210.42.171	377	1990–1992
IVECO	190-36	TURBOTECH	8210.42.061	377	1990–1992
IVECO	190-36	TURBOTECH	8210.42.161	377	1990–1992
IVECO	190-36	TURBOTECH	8210.42.271	360	1990–1992
IVECO	190-36 P	TURBOSTAR	8210.42.181	377	1990–1993
IVECO	190-36 P	TURBOSTAR	8210.42.191	377	1990–1993
IVECO	190-36 P	TURBOSTAR	8210.42.152	377	1990–1993
IVECO	190-36 P	TURBOSTAR	8210.42.162	377	1990–1993
IVECO	190-36 P	TURBOSTAR	8210.42.182	377	1990–1993
IVECO	190-36 P	TURBOSTAR	8210.42.101	360	1987–1990
IVECO	190-36 P	TURBOSTAR	8210.42.154	377	1990–1993
IVECO	190-36 T	TURBOSTAR	8210.42.191	377	1990–1993
IVECO	190-36 T	TURBOSTAR	8210.42.152	377	1990–1993
IVECO	190-36 T	TURBOSTAR	8210.42.162	377	1990–1993
IVECO	190-36 T	TURBOSTAR	8210.42.182	377	1990–1993
IVECO	190-36 T	TURBOSTAR	8210.42.154	377	1990–1993
IVECO	190-36 T	TURBOSTAR	8210.42.101	360	1987–1990
IVECO	190-36 T	TURBOSTAR	8210.42.181	377	1990–1993
IVECO	190-36 T	TURBOTECH	8210.42.151	377	1990–1992
IVECO	190-36 T	TURBOTECH	8210.42.171	377	1990–1992
IVECO	190-36 T	TURBOTECH	8210.42.161	377	1990–1992
IVECO	190-36T	TURBOTECH	8210.42.271	360	1990–1992
IVECO	190-36T	TURBOTECH	8210.42.101	360	1990–1992
IVECO	190-42	TURBOSTAR	8280.22.201	420	1986–1990
IVECO	190-42	TURBOSTAR	8280.22.205	420	1984–1986
IVECO	190-42	TURBOSTAR	8280.22.205	420	1986–1990
IVECO	190-42	TURBOSTAR	8280.22.201	420	1984–1986
IVECO	190-42 T	TURBOSTAR	8280.22.201	420	1984–1986
IVECO	190-42 T	TURBOSTAR	8280.22.205	420	1986–1990
IVECO	190-42 T	TURBOSTAR	8280.22.201	420	1986–1990
IVECO	190-42 T	TURBOSTAR	8280.22.205	420	1984–1986
IVECO	190-48	TURBOSTAR	8280.42.001	476	1991–1993
IVECO	190-48	TURBOSTAR	8280.42.050	476	1989–1991
IVECO	190-48	TURBOSTAR	8280.42.050	476	1991–1993
IVECO	190-48	TURBOSTAR	8280.42.001	476	1989–1991
IVECO	190-48 T	TURBOSTAR	8280.42.001	476	1991–1993
IVECO	190-48 T	TURBOSTAR	8280.42.050	476	1989–1991
IVECO	190-48 T	TURBOSTAR	8280.42.050	476	1991–1993
IVECO	190-48 T	TURBOSTAR	8280.42.001	476	1989–1991
IVECO	220-36 PT	TURBOTECH	8210.42.172	377	1990–1992
IVECO	220-36 PT	TURBOTECH	8210.42.155	377	1990–1992
IVECO	220-36 PT	TURBOTECH	8210.42.152	377	1990–1992
IVECO	240 E 42	EUROTECH MP	8210.42L.400	420	1992–
IVECO	240 E 42	EUROTECH MP	8210.42L.400	420	1992–
IVECO	240-36 P	TURBOTECH	8210.42.165	377	1990–1992
IVECO	240-36 P	TURBOTECH	8210.42.185	377	1990–1992
IVECO	240-36 P	TURBOTECH	8210.42.195	377	1990–1992
IVECO	240-36 P	TURBOTECH	8210.42.155	377	1990–1992
IVECO	240-36 P	TURBOTECH	8210.42.175	377	1990–1992
IVECO	240-36 P	TURBOTECH	8210.42.186	377	1990–1992
IVECO	260 E 42	EUROTECH MP	8210.42L.400	420	1994–
IVECO	330-30 H	P/PA	8210.22X.523	305	1988–1990
IVECO	330-30 H	P/PA	8210.22X.523	305	1984–1990
IVECO	330-30 H	P/PA	8210.22X.523	305	1991–1992
IVECO	330-30 H	P/PA	8210.22X.523	305	1984–1992
IVECO	330-30 H	P/PA	8210.22X.235	305	1988–1990
IVECO	330-30 H	P/PA	8210.22X.235	305	1984–1990
IVECO	330-30 H	P/PA	8210.22X.235	305	1991–1992
IVECO	330-30 H	P/PA	8210.22X.235	305	1984–1992
IVECO	330-30 HT	P/PA	8210.22X.235	305	1991–1992
IVECO	330-30 HT	P/PA	8210.22X.235	305	1988–1990
IVECO	330-30 HT	P/PA	8210.22X.523	305	1988–1992
IVECO	330-30 HT	P/PA	8210.22X.235	305	1988–1990
IVECO	330-30 HT	P/PA	8210.22X.523	305	1991–1992
IVECO	330-30 HT	P/PA	8210.22X.235	305	1988–1992
IVECO	330-30 HT	P/PA	8210.22X.523	305	1988–1990
IVECO	330-30 HT	P/PA	8210.22X.523	305	1988–1990
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1992
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.069	305	1991–1992
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1990
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1990
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1992
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1990
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.575	305	1991–1992
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.575	305	1991–1992
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1992
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.069	305	1991–1992
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1992
IVECO	330-36 H	P/PA	8210.42.269	360	1989–1992
IVECO	330-36 H	P/PA	8210.42.270	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.237	360	1991–1992
IVECO	330-36 H	P/PA	8210.42.271	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.210	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.210	360	1989–1992
IVECO	330-36 H	P/PA	8210.42.270	360	1991–1992
IVECO	330-36 H	P/PA	8210.42.235	360	1991–1992
IVECO	330-36 H	P/PA	8210.42.235	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.237	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.271	360	1989–1992
IVECO	330-36 H	P/PA	8210.42.237	360	1989–1992
IVECO	330-36 H	P/PA	8210.42.269	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.270	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.271	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.269	360	1991–1992
IVECO	330-36 H	P/PA	8210.42.210	360	1991–1992
IVECO	330-36 H	P/PA	8210.42.210	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.235	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.270	360	1989–1992
IVECO	330-36 H	P/PA	8210.42.235	360	1989–1992
IVECO	330-36 H	P/PA	8210.42.271	360	1991–1992
IVECO	330-36 H	P/PA	8210.42.237	360	1989–1990
IVECO	330-36 H	P/PA	8210.42.269	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.270	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.271	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.210	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.210	360	1989–1992
IVECO	330-36 HT	P/PA	8210.42.235	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.237	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.269	360	1991–1992
IVECO	330-36 HT	P/PA	8210.42.237	360	1989–1992
IVECO	330-36 HT	P/PA	8210.42.269	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.270	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.271	360	1991–1992
IVECO	330-36 HT	P/PA	8210.42.210	360	1991–1992
IVECO	330-36 HT	P/PA	8210.42.270	360	1989–1992
IVECO	330-36 HT	P/PA	8210.42.271	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.210	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.235	360	1989–1990
IVECO	330-36 HT	P/PA	8210.42.237	360	1991–1992
IVECO	330-36 HT	P/PA	8210.42.235	360	1989–1992

Visar 200 av 758 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S0008 Startmotor — VOLVO, IVECO, MERCEDES-BENZ”

AS-PL S0008 Startmotor — VOLVO, IVECO, MERCEDES-BENZ

Description

Specifikationer

Fordonskompatibilitet

Reviews

Related products

AS-PL ARD9039 + dioder för växelströmsgenerators likriktare

AS-PL ARD9043 + dioder för växelströmsgenerators likriktare

AS-PL ARD9035 + dioder för växelströmsgenerators likriktare
