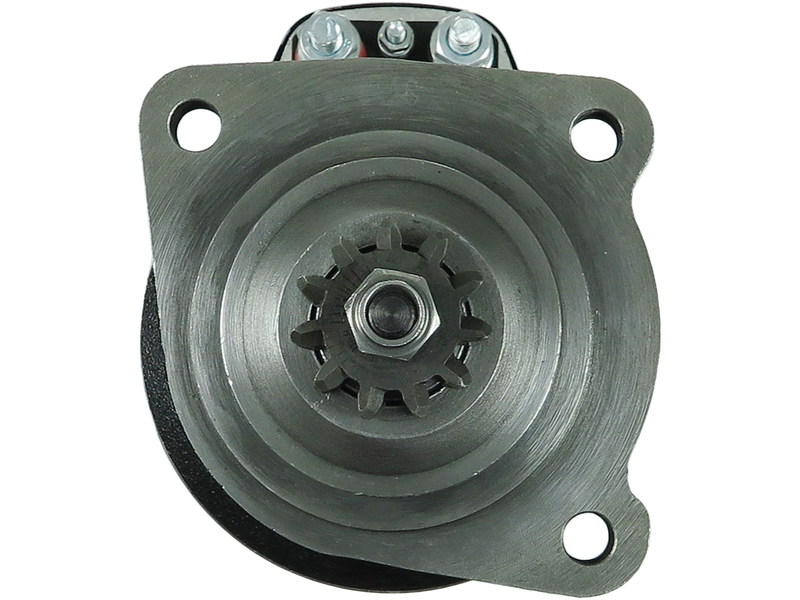

AS-PL S0009 Startmotor — VOLVO, FIAT, VOLVO PENTA

2 500,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	24
Effekt [ kW ]	6.60
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	11
Antal kuggar (passar in) [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	405.00
O.1 [ mm ]	90.00
O.2 [ mm ]	90.00
O.3 [ mm ]	127.50
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00
Oil sealed	Yes
Insulated return	Yes

AS-PLSTANDARD LINE

EAN	5901259418460
Ersätter	BOSCH
OE-nummer	0001417023

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0009 Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001417023

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	6.60
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	11
Antal kuggar (passar in) [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	405.00
O.1 [ mm ]	90.00
O.2 [ mm ]	90.00
O.3 [ mm ]	127.50
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00
Oil sealed	Yes
Insulated return	Yes

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	År
FIAT	65N	Series 65	CO3/41	90	1972–1976
FIAT	65N	Series 65	CO3/41	90	1972–1976
FIAT	70FNM	Series 70	CO3/41	90	1973–
FIAT	70N	Series 70	CO3/41	90	1972–1976
FIAT	75N	Series 75	CO3/41	90	1972–1976
VOLVO	F 10/260	F10	TD100GA	261-272	1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272	1982–1985
VOLVO	F 10/260	F10	TD101G	261-272	1982–1985
VOLVO	F 10/260	F10	TD101G	261-272	1983–1985
VOLVO	F 10/260	F10	TD100GA	261-272	1982–1985
VOLVO	F 10/260	F10	TD100G	261-272	1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272	1982–1985
VOLVO	F 10/260	F10	TD101G	261-272	1982–1985
VOLVO	F 10/260	F10	TD100G	261-272	1982–1985
VOLVO	F 10/260	F10	TD100G	261-272	1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272	1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272	1983–1985
VOLVO	F 10/260	F10	TD100G	261-272	1982–1985
VOLVO	F 10/260	F10	TD101G	261-272	1982–1985
VOLVO	F 10/260	F10	TD100G	261-272	1982–1985
VOLVO	F 10/260	F10	TD101G	261-272	1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272	1982–1985
VOLVO	F 10/260	F10	TD101G	261-272	1982–1985
VOLVO	F 10/260	F10	TD101G	261-272	1982–1985
VOLVO	F 10/260	F10	TD100G	261-272	1982–1985
VOLVO	F 10/260	F10	TD100G	261-272	1983–1985
VOLVO	F 10/270	F10	TD101GA	272	1984–1986
VOLVO	F 10/270	F10	TD101GA	272	1984–1986
VOLVO	F 10/270	F10	TD100GA	272	1976–1983
VOLVO	F 10/270	F10	TD101GA	272	1984–1986
VOLVO	F 10/270	F10	TD100GA	272	1976–1983
VOLVO	F 10/280	F10	TD100B	280-282	1977–1982
VOLVO	F 10/280	F10	TD100B	280-282	1977–1982
VOLVO	F 10/280	F10	TD100B	280-282	1977–1982
VOLVO	F 10/280	F10	TD100B	280-282	1977–1982
VOLVO	F 10/280	F10	TD100B	280-282	1977–1982
VOLVO	F 10/300	F10	TD101FA	292-299	1987–1987
VOLVO	F 10/300	F10	TD101FA	299	1984–1986
VOLVO	F 10/300	F10	TD101F	292-299	1987–1987
VOLVO	F 10/300	F10	TD101FA	292-299	1984–1986
VOLVO	F 10/300	F10	TD101FA	299	1984–1986
VOLVO	F 10/300	F10	TD101F	292-299	1987–1987
VOLVO	F 10/300	F10	TD101FA	292-299	1984–1986
VOLVO	F 10/300	F10	TD101F	292-299	1983–1986
VOLVO	F 10/300	F10	TD101FA	292-299	1984–1986
VOLVO	F 10/300	F10	TD101F	292-299	1984–1986
VOLVO	F 10/300	F10	TD101FA	299	1984–1986
VOLVO	F 10/300	F10	TD101FA	292-299	1987–1987
VOLVO	F 10/300	F10	TD101F	292-299	1984–1986
VOLVO	F 10/300	F10	TD101F	292-299	1984–1986
VOLVO	F 10/300	F10	TD101FA	292-299	1983–1986
VOLVO	F 10/310	F10	TD102F	313	1987–1995
VOLVO	F 10/310	F10	TD102F	313	1987–1995
VOLVO	F 10/310	F10	TD102FM	313	1987–1995
VOLVO	F 10/310	F10	TD102FM	313	1987–1995
VOLVO	F 10/310	F10	TD102FM	313	1987–1995
VOLVO	F 10/310	F10	TD102F	313	1987–1995
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	320	1987–1995
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	320	1987–1995
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	320	1987–1995
VOLVO	F 10/320	F10	TD102FDQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FD	320	1987–1995
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1990–1994
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	320	1987–1995
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	320	1987–1995
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	320	1987–1995
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FD	320	1987–1995
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 12/320	F12	TD121G	320	1987–1987
VOLVO	F 12/320	F12	TD121G	320	1987–1987
VOLVO	F 12/320	F12	TD121G	320	1987–1987
VOLVO	F 12/320	F12	TD121G	320	1987–1987
VOLVO	F 12/320	F12	TD121G	320	1987–1987
VOLVO	F 12/320	F12	TD121G	320	1987–1987
VOLVO	F 12/320	F12	TD121G	320	1987–1987
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330	1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330	1977–1986
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1988–1990
VOLVO	F 12/360	F12	TD122FH	356	1991–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1988–1990
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1988–1990
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1991–1994
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1988–1990
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1988–1990

Visar 200 av 298 fordon
