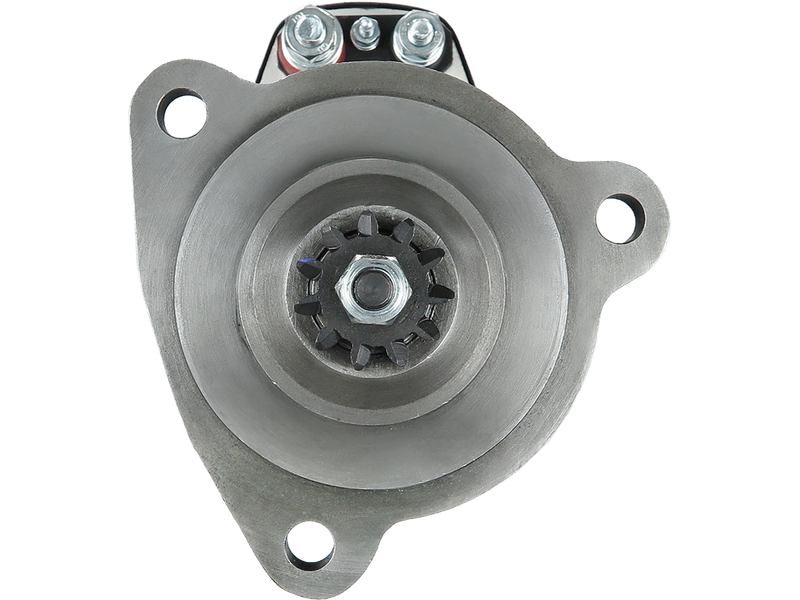

AS-PL S0023 Startmotor — DAF

2 299,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	24
Effekt [ kW ]	5.40
Startmotors rotation	CW
A-storlek [ mm ]	110.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	11
Antal kuggar (passar in) [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	386.00
O.1 [ mm ]	127.00
O.2 [ mm ]	127.00
O.3 [ mm ]	127.00
C.1 [ mm ]	13.50
C.2 [ mm ]	13.50
C.3 [ mm ]	13.50
Oil sealed	Yes

AS-PLSTANDARD LINE

EAN	5901259418668
Ersätter	BOSCH
OE-nummer	0001416062

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0023 Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001416062

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	5.40
Startmotors rotation	CW
A-storlek [ mm ]	110.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	11
Antal kuggar (passar in) [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	386.00
O.1 [ mm ]	127.00
O.2 [ mm ]	127.00
O.3 [ mm ]	127.00
C.1 [ mm ]	13.50
C.2 [ mm ]	13.50
C.3 [ mm ]	13.50
Oil sealed	Yes

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	År
DAF	FA 75.240	75	RS180	245	1992–1998
DAF	FA 75.240	75	RS180M	245	1992–1998
DAF	FA 75.240	75	RS180L	245	1992–1998
DAF	FA 75.270	75	RS200	272	1992–1998
DAF	FA 75.270	75	RS200M	272	1992–1998
DAF	FA 75.270	75	RS200L	272	1992–1998
DAF	FA 75.300	75	RS222L	302	1992–1998
DAF	FA 75.300	75	RS222	302	1992–1998
DAF	FA 75.300	75	RS222M	302	1992–1998
DAF	FA 85.300	85	WS222G	302	1992–1997
DAF	FA 85.300	85	WS222G	302	1992–1997
DAF	FA 85.300	85	WS222G	302	1992–1997
DAF	FA 85.300	85	WS222G	302	1992–1997
DAF	FA 85.330	85	WS242	329	1992–1998
DAF	FA 85.330	85	WS242M	329	1992–1998
DAF	FA 85.330	85	WS242L	329	1992–1998
DAF	FA 85.360	85	WS268L	364	1992–1998
DAF	FA 85.360	85	WS268	364	1992–1998
DAF	FA 85.360	85	WS268M	364	1992–1998
DAF	FA 85.400	85	WS295M	401	1995–1998
DAF	FA 95 XF 430	95 XF	XE315C	428	1997–2002
DAF	FA 95 XF 430	95 XF	XF315M	428	1997–2002
DAF	FA 95.310	95	WS225	306	1987–1990
DAF	FA 95.330	95	WS242	330	1990–1993
DAF	FA 95.350	95	WS259	352	1987–1990
DAF	FA 95.360	95	WS268L	364	1990–1998
DAF	FA 95.360	95	WS268G	364	1990–1998
DAF	FA 95.360	95	WS268M	364	1990–1998
DAF	FA 95.360	95	WS268	364	1990–1998
DAF	FA 95.380	95	WS282	384	1987–1990
DAF	FA 95.400	95	WS295G	401	1990–1998
DAF	FA 95.400	95	WS295M	401	1990–1998
DAF	FA 95.400	95	WS295	401	1990–1998
DAF	FA 95.400	95	WS295L	401	1990–1998
DAF	FA 95.430	95	WS315M	428	1992–1998
DAF	FA 95.430	95	WS315	428	1992–1998
DAF	FA 95.430	95	WS315L	428	1992–1998
DAF	FA 95.430	95	WS315G	428	1992–1998
DAF	FAC 95 XF 430	95 XF	XE315C	428	1997–2002
DAF	FAC 95 XF 430	95 XF	XF315M	428	1997–2002
DAF	FAC 95.310	95	WS225	306	1987–1998
DAF	FAC 95.330	95	WS242	330	1990–1998
DAF	FAC 95.350	95	WS259	352	1987–1998
DAF	FAC 95.360	95	WS268	365	1990–1998
DAF	FAC 95.380	95	WS282	384	1987–1998
DAF	FAC 95.400	95	WS295	401	1990–1998
DAF	FAC 95.430	95	WS315	428	1992–1998
DAF	FAD 85.300	85	WS222G	302	1992–1997
DAF	FAD 85.300	85	WS222G	302	1992–1997
DAF	FAD 85.330	85	WS242M	329	1992–1998
DAF	FAD 85.330	85	WS242L	329	1992–1998
DAF	FAD 85.360	85	WS268M	364	1992–1998
DAF	FAD 85.360	85	WS268L	364	1992–1998
DAF	FAD 85.400	85	WS295M	401	1995–1998
DAF	FAD 95 XF 430	95 XF	XF315M	428	1997–2002
DAF	FAD 95.310	95	WS225	306	1987–1998
DAF	FAD 95.330	95	WS242	330	1990–1998
DAF	FAD 95.350	95	WS259	352	1987–1990
DAF	FAD 95.360	95	WS268	364	1990–1998
DAF	FAD 95.360	95	WS268L	364	1990–1998
DAF	FAD 95.360	95	WS268G	364	1990–1998
DAF	FAD 95.360	95	WS268M	364	1990–1998
DAF	FAD 95.380	95	WS282	384	1987–1990
DAF	FAD 95.400	95	WS295L	401	1990–1998
DAF	FAD 95.400	95	WS295G	401	1990–1998
DAF	FAD 95.400	95	WS295M	401	1990–1998
DAF	FAD 95.400	95	WS295	401	1990–1998
DAF	FAD 95.430	95	WS315	428	1992–1998
DAF	FAD 95.430	95	WS315M	428	1992–1998
DAF	FAD 95.430	95	WS315L	428	1992–1998
DAF	FAG 75.240,FAN 75.240	75	RS180M	245	1992–1998
DAF	FAG 75.240,FAN 75.240	75	RS180L	245	1992–1998
DAF	FAG 75.270,FAN 75.270	75	RS200L	272	1992–1998
DAF	FAG 75.270,FAN 75.270	75	RS200M	272	1992–1998
DAF	FAG 75.300,FAN 75.300	75	RS222M	302	1992–1998
DAF	FAG 75.300,FAN 75.300	75	RS222L	302	1992–1998
DAF	FAG 85.300	85	WS222G	302	1992–1997
DAF	FAG 85.300	85	WS222G	302	1992–1997
DAF	FAG 85.300	85	WS222G	302	1992–1997
DAF	FAG 85.300	85	WS222G	302	1992–1997
DAF	FAG 85.330	85	WS242M	329	1992–1998
DAF	FAG 85.330	85	WS242L	329	1992–1998
DAF	FAG 85.360	85	WS268L	364	1992–1998
DAF	FAG 85.360	85	WS268M	364	1992–1998
DAF	FAG 85.400	85	WS295M	401	1995–1998
DAF	FAG 95.350	95	WS259	352	1987–1990
DAF	FAG 95.360	95	WS268G	364	1990–1998
DAF	FAG 95.360	95	WS268M	364	1990–1998
DAF	FAG 95.360	95	WS268	364	1990–1998
DAF	FAG 95.360	95	WS268L	364	1990–1998
DAF	FAG 95.380	95	WS282	384	1987–1990
DAF	FAG 95.400	95	WS295M	401	1990–1998
DAF	FAG 95.400	95	WS295	401	1990–1998
DAF	FAG 95.400	95	WS295L	401	1990–1998
DAF	FAG 95.400	95	WS295G	401	1990–1998
DAF	FAG 95.430	95	WS315	428	1992–1998
DAF	FAG 95.430	95	WS315M	428	1992–1998
DAF	FAG 95.430	95	WS315L	428	1992–1998
DAF	FAK 95.360	95	WS268	364	1990–1998
DAF	FAK 95.360	95	WS268M	364	1990–1998
DAF	FAK 95.360	95	WS268L	364	1990–1998
DAF	FAK 95.400	95	WS295M	401	1990–1998
DAF	FAK 95.400	95	WS295L	401	1990–1998
DAF	FAK 95.400	95	WS295	401	1990–1998
DAF	FAK 95.430	95	WS315L	428	1992–1998
DAF	FAK 95.430	95	WS315	428	1992–1998
DAF	FAK 95.430	95	WS315M	428	1992–1998
DAF	FAR 75.240,FAS 75.240	75	RS180M	245	1992–1998
DAF	FAR 75.240,FAS 75.240	75	RS180L	245	1992–1998
DAF	FAR 75.270,FAS 75.270	75	RS200L	272	1992–1998
DAF	FAR 75.270,FAS 75.270	75	RS200M	272	1992–1998
DAF	FAR 75.300,FAS 75.300	75	RS222M	302	1992–1998
DAF	FAR 75.300,FAS 75.300	75	RS222L	302	1992–1998
DAF	FAR 85.300	85	WS222G	302	1992–1997
DAF	FAR 85.300	85	WS222G	302	1992–1997
DAF	FAR 85.300	85	WS222G	302	1992–1997
DAF	FAR 85.300	85	WS222G	302	1992–1997
DAF	FAR 85.330,FAS 85.330	85	WS242M	329	1992–1998
DAF	FAR 85.330,FAS 85.330	85	WS242L	329	1992–1998
DAF	FAR 85.360,FAS 85.360	85	WS268M	364	1992–1998
DAF	FAR 85.360,FAS 85.360	85	WS268L	364	1992–1998
DAF	FAR 85.400,FAS 85.400	85	WS295M	401	1995–1998
DAF	FAR 95 XF 430	95 XF	XF315M	428	1997–2002
DAF	FAR 95 XF 430	95 XF	XE315C	428	1997–2002
DAF	FAR 95.310	95	WS225	306	1987–1990
DAF	FAR 95.330, FAS 95.330	95	WS242	330	1990–1993
DAF	FAR 95.350, FAS 95.350	95	WS259	352	1987–1990
DAF	FAR 95.360, FAS 95.360	95	WS268M	364	1990–1998
DAF	FAR 95.360, FAS 95.360	95	WS268	364	1990–1998
DAF	FAR 95.360, FAS 95.360	95	WS268L	364	1990–1998
DAF	FAR 95.360, FAS 95.360	95	WS268G	364	1990–1998
DAF	FAR 95.380, FAS 95.380	95	WS282	384	1987–1990
DAF	FAR 95.400, FAS 95.400	95	WS295	401	1990–1998
DAF	FAR 95.400, FAS 95.400	95	WS295L	401	1990–1998
DAF	FAR 95.400, FAS 95.400	95	WS295G	401	1990–1998
DAF	FAR 95.400, FAS 95.400	95	WS295M	401	1990–1998
DAF	FAR 95.430, FAS 95.430	95	WS315L	428	1992–1998
DAF	FAR 95.430, FAS 95.430	95	WS315	428	1992–1998
DAF	FAR 95.430, FAS 95.430	95	WS315M	428	1992–1998
DAF	FAS 85.300	85	WS222G	302	1992–1997
DAF	FAS 85.300	85	WS222G	302	1992–1997
DAF	FAS 85.300	85	WS222G	302	1992–1997
DAF	FAS 85.300	85	WS222G	302	1992–1997
DAF	FAS 95 XF 430	95 XF	XF315M	428	1997–2002
DAF	FAS 95 XF 430	95 XF	XE315C	428	1997–2002
DAF	FAT 75.240	75	RS180	245	1992–1997
DAF	FAT 75.240	75	RS180	245	1992–1997
DAF	FAT 75.240	75	RS180	245	1992–1997
DAF	FAT 75.240	75	RS180	245	1992–1997
DAF	FAT 75.270	75	RS200M	272	1992–1998
DAF	FAT 75.270	75	RS200L	272	1992–1998
DAF	FAT 75.300	75	RS222	302	1992–1997
DAF	FAT 75.300	75	RS222	302	1992–1997
DAF	FAT 75.300	75	RS222	302	1992–1997
DAF	FAT 75.300	75	RS222	302	1992–1997
DAF	FAT 85.300	85	WS222G	302	1992–1997
DAF	FAT 85.300	85	WS222G	302	1992–1997
DAF	FAT 85.300	85	WS222G	302	1992–1997
DAF	FAT 85.300	85	WS222G	302	1992–1997
DAF	FAT 85.330	85	WS242L	329	1992–1998
DAF	FAT 85.330	85	WS242M	329	1992–1998
DAF	FAT 85.360	85	WS268M	364	1992–1998
DAF	FAT 85.360	85	WS268L	364	1992–1998
DAF	FAT 85.400	85	WS295M	401	1995–1998
DAF	FAT 95 XF 430	95 XF	XE315C	428	1997–2002
DAF	FAT 95 XF 430	95 XF	XF315M	428	1997–2002
DAF	FAT 95.350	95	WS259	352	1987–1990
DAF	FAT 95.360	95	WS268L	364	1990–1998
DAF	FAT 95.360	95	WS268G	364	1990–1998
DAF	FAT 95.360	95	WS268M	364	1990–1998
DAF	FAT 95.360	95	WS268	364	1990–1998
DAF	FAT 95.380	95	WS282	384	1987–1990
DAF	FAT 95.400	95	WS295G	401	1990–1998
DAF	FAT 95.400	95	WS295M	401	1990–1998
DAF	FAT 95.400	95	WS295	401	1990–1998
DAF	FAT 95.400	95	WS295L	401	1990–1998
DAF	FAT 95.430	95	WS315L	428	1992–1998
DAF	FAT 95.430	95	WS315	428	1992–1998
DAF	FAT 95.430	95	WS315M	428	1992–1998
DAF	FAV 75.240	75	RS180L	245	1992–1998
DAF	FAV 75.240	75	RS180M	245	1992–1998
DAF	FAV 75.270	75	RS200M	272	1992–1998
DAF	FAV 75.270	75	RS200L	272	1992–1998
DAF	FAV 75.300	75	RS222	302	1992–1997
DAF	FAV 75.300	75	RS222	302	1992–1997
DAF	FAV 75.300	75	RS222	302	1992–1997
DAF	FAV 75.300	75	RS222	302	1992–1997
DAF	FT 75.240	75	RS180	245	1992–1998
DAF	FT 75.240	75	RS180M	245	1992–1998
DAF	FT 75.240	75	RS180L	245	1992–1998
DAF	FT 75.270	75	RS200M	272	1992–1998
DAF	FT 75.270	75	RS200L	272	1992–1998
DAF	FT 75.270	75	RS200	272	1992–1998
DAF	FT 75.300	75	RS222M	302	1992–1998
DAF	FT 75.300	75	RS222L	302	1992–1998
DAF	FT 75.300	75	RS222	302	1992–1998
DAF	FT 85.300	85	WS222G	302	1992–1997
DAF	FT 85.300	85	WS222G	302	1992–1997
DAF	FT 85.300	85	WS222G	302	1992–1997
DAF	FT 85.300	85	WS222G	302	1992–1997

Visar 200 av 291 fordon
