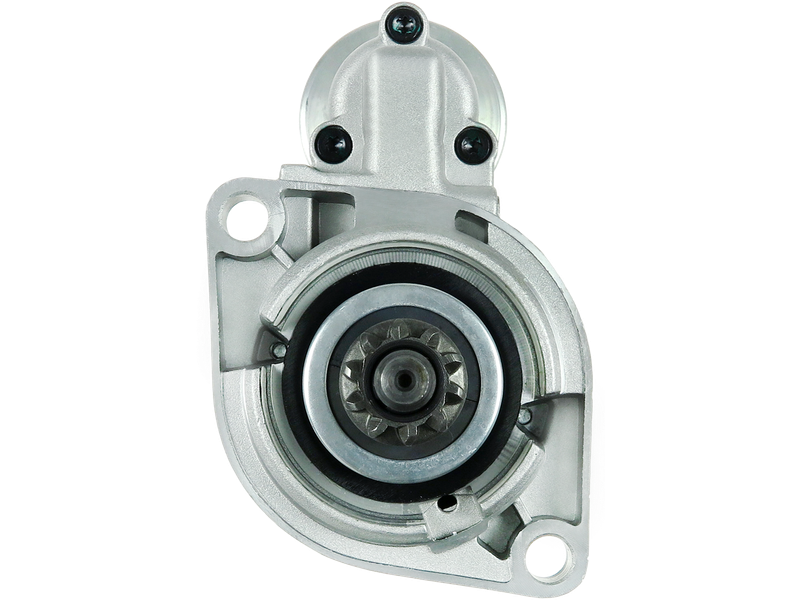

AS-PL S0033 Startmotor — VW, AUDI, FORD

AS-PL S0033 Startmotor — VW, AUDI, FORD

664,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation ACW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 53.50
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 245.00
O.1 [ mm ] 111.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5901259418804
ErsätterBOSCH
OE-nummer0001107022

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0033 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001107022

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation ACW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 53.50
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 245.00
O.1 [ mm ] 111.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
AUDI1.8A3 (8L1)AGN125Petrol1996–2003
AUDI1.8A3 (8L1)APG125Petrol1996–2003
AUDI1.8 TA3 (8L1)AQA150Petrol1996–2003
AUDI1.8 TA3 (8L1)APP180Petrol1998–2003
AUDI1.8 TA3 (8L1)AUM150Petrol1996–2003
AUDI1.8 TA3 (8L1)AGU150Petrol1996–2003
AUDI1.8 TA3 (8L1)AUQ180Petrol1998–2003
AUDI1.8 TA3 (8L1)AJQ180Petrol1998–2003
AUDI1.8 TA3 (8L1)ARZ150Petrol1996–2003
AUDI1.8 TA3 (8L1)ARY180Petrol1998–2003
AUDI1.8 TTT (8N3)ATC180Petrol1998–2006
AUDI1.8 TTT (8N3)AWP180Petrol1998–2006
AUDI1.8 TTT (8N3)APP180Petrol1998–2006
AUDI1.8 TTT (8N3)AUQ180Petrol1998–2006
AUDI1.8 TTT (8N3)AJQ180Petrol1998–2006
AUDI1.8 T quattroA3 (8L1)AQA150Petrol1996–2003
AUDI1.8 T quattroA3 (8L1)ARY180Petrol1998–2003
AUDI1.8 T quattroA3 (8L1)AGU150Petrol1996–2003
AUDI1.8 T quattroA3 (8L1)AJQ180Petrol1998–2003
AUDI1.8 T quattroA3 (8L1)ARX150Petrol1996–2003
AUDIS3 quattroA3 (8L1)AUL210Petrol1999–2002
AUDIS3 quattroA3 (8L1)APY210Petrol1999–2002
AUDIS3 quattroA3 (8L1)AMK210Petrol1999–2002
FORD1.9 TDIGALAXY I (WGR)1Z90Diesel1995–2006
FORD1.9 TDIGALAXY I (WGR)ANU90Diesel1995–2006
FORD1.9 TDIGALAXY I (WGR)AHU90Diesel1995–2006
FORD1.9 TDiGALAXY MK I VAN (WGR)AHU90Diesel1996–2006
FORD1.9 TDiGALAXY MK I VAN (WGR)ANU90Diesel1996–2006
FORD2.0GALAXY MK I VAN (WGR)NSE116Petrol1996–2006
FORD2.0GALAXY MK I VAN (WGR)ZVSA116Petrol1996–2006
FORD2.0 iGALAXY I (WGR)NSE116Petrol1995–2006
FORD2.0 iGALAXY I (WGR)ZVSA116Petrol1995–2006
FORD2.3 16VGALAXY I (WGR)E5SA146Petrol1997–2006
FORD2.3 16VGALAXY I (WGR)E5SB140Petrol2001–2006
FORD2.3 16VGALAXY I (WGR)Y5B146Petrol1997–2006
SEAT1.8 T 20VALHAMBRA (7V8, 7V9)AJH150Petrol1997–2010
SEAT1.8 T 20VALHAMBRA (7V8, 7V9)AWC150Petrol1997–2010
SEAT2.0ALHAMBRA VAN (7V8, 7V9)ATM116Petrol1996–2010
SEAT2.0ALHAMBRA VAN (7V8, 7V9)ADY116Petrol1996–2010
SEAT2.0 iALHAMBRA (7V8, 7V9)ATM115Petrol1996–2010
SEAT2.0 iALHAMBRA (7V8, 7V9)ADY115Petrol1996–2010
SEAT2.0 i 16VCORDOBA (6K1, 6K2)ABF150Petrol1996–1999
SEAT2.0 i 16VIBIZA II (6K1)ABF150Petrol1996–1999
SEAT2.0 i 16VTOLEDO I (1L2)ABF150Petrol1993–1999
SKODA1.8OCTAVIA I (1U2)AGN125Petrol1996–2000
SKODA1.8 20VOCTAVIA I Combi (1U5)AGN125Petrol1998–2000
VW1.6GOLF IV (1J1)AEH100Petrol1997–2004
VW1.6GOLF IV (1J1)APF100Petrol1997–2004
VW1.6GOLF IV (1J1)AKL100Petrol1997–2004
VW1.6PASSAT B3/B4 (3A2, 35I)AFT101Petrol1994–1996
VW1.6PASSAT B3/B4 (3A2, 35I)1F75Petrol1988–1992
VW1.6PASSAT B3/B4 (3A2, 35I)EZ75Petrol1988–1992
VW1.6PASSAT B3/B4 (3A2, 35I)AEK101Petrol1994–1996
VW1.6PASSAT B3/B4 (3A2, 35I)ABN75Petrol1988–1992
VW1.6PASSAT B3/B4 Variant (3A5, 35I)1F75Petrol1988–1991
VW1.6PASSAT B3/B4 Variant (3A5, 35I)EZ75Petrol1988–1991
VW1.6PASSAT B3/B4 Variant (3A5, 35I)AFT101Petrol1994–1995
VW1.6PASSAT B3/B4 Variant (3A5, 35I)RF72Petrol1988–1989
VW1.6PASSAT B3/B4 Variant (3A5, 35I)ABN75Petrol1988–1991
VW1.6PASSAT B3/B4 Variant (3A5, 35I)AEK101Petrol1994–1995
VW1.8GOLF III (1H1)ADZ90Petrol1991–1997
VW1.8GOLF III (1H1)ABS90Petrol1991–1997
VW1.8GOLF III (1H1)ADD90Petrol1991–1997
VW1.8GOLF III (1H1)ACC90Petrol1991–1997
VW1.8GOLF IV (1J1)AGN125Petrol1997–2005
VW1.8PASSAT B3/B4 (3A2, 35I)ABS90Petrol1988–1996
VW1.8PASSAT B3/B4 (3A2, 35I)RP90Petrol1988–1996
VW1.8PASSAT B3/B4 (3A2, 35I)AAM75Petrol1990–1996
VW1.8PASSAT B3/B4 (3A2, 35I)ADZ90Petrol1988–1996
VW1.8PASSAT B3/B4 Variant (3A5, 35I)ADZ90Petrol1988–1997
VW1.8PASSAT B3/B4 Variant (3A5, 35I)ABS90Petrol1988–1997
VW1.8PASSAT B3/B4 Variant (3A5, 35I)RP90Petrol1988–1997
VW1.8PASSAT B3/B4 Variant (3A5, 35I)AAM75Petrol1990–1997
VW1.8PASSAT B5 Variant (3B5)APT125Petrol1997–2000
VW1.8PASSAT B5 Variant (3B5)ADR125Petrol1997–2000
VW1.8PASSAT B5 Variant (3B5)ARG125Petrol1997–2000
VW1.8 16VCORRADO (53I)KR136Petrol1989–1992
VW1.8 G60CORRADO (53I)PG160Petrol1988–1993
VW1.8 SyncroGOLF III Variant (1H5)ADZ90Petrol1994–1999
VW1.8 Syncro (1HX1)GOLF III (1H1)ADZ90Petrol1993–1997
VW1.8 Syncro (1HX1)GOLF III (1H1)ABS90Petrol1993–1997
VW1.8 TGOLF IV (1J1)AUM150Petrol1997–2005
VW1.8 TGOLF IV (1J1)AWW150Petrol1997–2005
VW1.8 TGOLF IV (1J1)AGU150Petrol1997–2005
VW1.8 TGOLF IV (1J1)ARZ150Petrol1997–2005
VW1.8 TGOLF IV (1J1)AWD150Petrol1997–2005
VW1.8 TGOLF IV (1J1)AQA150Petrol1997–2005
VW1.8 T 20VSHARAN (7M8, 7M9, 7M6)AWC150Petrol1997–2010
VW1.8 T 20VSHARAN (7M8, 7M9, 7M6)AJH150Petrol1997–2010
VW1.8 T GTIGOLF IV (1J1)AUQ180Petrol2001–2005
VW1.8 T GTIGOLF IV (1J1)BEK180Petrol2001–2005
VW1.8 T GTIGOLF IV (1J1)AWP180Petrol2001–2005
VW2.0GOLF III (1H1)ADC115Petrol1991–1997
VW2.0GOLF III (1H1)AGG115Petrol1991–1997
VW2.0GOLF III (1H1)ABA115Petrol1991–1997
VW2.0GOLF III (1H1)ADY115Petrol1991–1997
VW2.0GOLF III (1H1)2E115Petrol1991–1997
VW2.0GOLF III (1H1)AKR115Petrol1991–1997
VW2.0GOLF III Cabriolet (1E7)ABA115Petrol1993–1998
VW2.0GOLF III Cabriolet (1E7)AGG115Petrol1993–1998
VW2.0GOLF III Cabriolet (1E7)2E115Petrol1993–1998
VW2.0GOLF III Cabriolet (1E7)ADY115Petrol1993–1998
VW2.0GOLF III Cabriolet (1E7)AKR115Petrol1993–1998
VW2.0GOLF III Variant (1H5)2E115Petrol1993–1999
VW2.0GOLF III Variant (1H5)AGG115Petrol1993–1999
VW2.0GOLF III Variant (1H5)ADY115Petrol1993–1999
VW2.0GOLF III Variant (1H5)AKR115Petrol1993–1999
VW2.0GOLF IV (1J1)AZJ115Petrol1998–2004
VW2.0GOLF IV (1J1)AEG115Petrol1998–2004
VW2.0GOLF IV (1J1)BER115Petrol1998–2004
VW2.0GOLF IV (1J1)AQY115Petrol1998–2004
VW2.0GOLF IV (1J1)AZG115Petrol1998–2004
VW2.0GOLF IV (1J1)BHP115Petrol1998–2004
VW2.0GOLF IV (1J1)BEJ115Petrol1998–2004
VW2.0GOLF IV (1J1)APK115Petrol1998–2004
VW2.0GOLF IV (1J1)BEV115Petrol1998–2004
VW2.0GOLF IV (1J1)AVH115Petrol1998–2004
VW2.0NEW BEETLE (9C1, 1C1)BEV115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)AVH115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)CBPA115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)AZJ115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)AEG115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)BER115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)AQY115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)BHP115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)AZG115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)BEJ115Petrol1998–2010
VW2.0NEW BEETLE (9C1, 1C1)APK115Petrol1998–2010
VW2.0PASSAT B3/B4 (3A2, 35I)2E115Petrol1990–1996
VW2.0PASSAT B3/B4 (3A2, 35I)ADY115Petrol1990–1996
VW2.0PASSAT B3/B4 (3A2, 35I)ABA115Petrol1990–1996
VW2.0PASSAT B3/B4 (3A2, 35I)AEP107Petrol1995–1996
VW2.0PASSAT B3/B4 (3A2, 35I)AGG115Petrol1990–1996
VW2.0PASSAT B3/B4 Variant (3A5, 35I)AGG115Petrol1990–1997
VW2.0PASSAT B3/B4 Variant (3A5, 35I)AGG116Petrol1993–1996
VW2.0PASSAT B3/B4 Variant (3A5, 35I)ADY115Petrol1990–1997
VW2.0PASSAT B3/B4 Variant (3A5, 35I)AEP107Petrol1995–1996
VW2.0PASSAT B3/B4 Variant (3A5, 35I)ADY116Petrol1993–1996
VW2.0PASSAT B3/B4 Variant (3A5, 35I)2E115Petrol1990–1997
VW2.0PASSAT B3/B4 Variant (3A5, 35I)2E116Petrol1993–1996
VW2.0SHARAN (7M8, 7M9, 7M6)ATM115Petrol1995–2010
VW2.0SHARAN (7M8, 7M9, 7M6)ADY115Petrol1995–2010
VW2.0 (7M8, 7M9)SHARAN VAN (7M_)ADY116Petrol1996–2002
VW2.0 (7M8, 7M9)SHARAN VAN (7M_)ATM116Petrol1996–2002
VW2.0 16VPASSAT B3/B4 (3A2, 35I)ABF150Petrol1994–1996
VW2.0 16VPASSAT B3/B4 (3A2, 35I)9A136Petrol1988–1993
VW2.0 16VPASSAT B3/B4 Variant (3A5, 35I)9A136Petrol1988–1993
VW2.0 16VPASSAT B3/B4 Variant (3A5, 35I)ABF150Petrol1994–1997
VW2.0 GTI 16VGOLF III (1H1)ABF150Petrol1992–1997
VW2.0 SyncroGOLF III Variant (1H5)AGG115Petrol1995–1999
VW2.0 SyncroPASSAT B3/B4 (3A2, 35I)2E115Petrol1990–1996
VW2.0 SyncroPASSAT B3/B4 (3A2, 35I)AGG115Petrol1990–1996
VW2.0 SyncroPASSAT B3/B4 (3A2, 35I)ADY115Petrol1990–1996
VW2.0 SyncroPASSAT B3/B4 Variant (3A5, 35I)2E115Petrol1990–1996
VW2.0 SyncroPASSAT B3/B4 Variant (3A5, 35I)AGG115Petrol1990–1996
VW2.0 SyncroPASSAT B3/B4 Variant (3A5, 35I)ADY115Petrol1990–1996
VW2.0 Syncro (1HX1)GOLF III (1H1)AGG115Petrol1995–1997
VW2.0 TSIGOLF VI Convertible (517)CULC220Petrol2013–2016
VW2.0 iCORRADO (53I)2E115Petrol1993–1995
VW2.0 iCORRADO (53I)ADY115Petrol1993–1995
VW2.0 i 16VCORRADO (53I)9A136Petrol1991–1995
VW2.8 VR6PASSAT B3/B4 (3A2, 35I)AAA174Petrol1991–1996
VW2.8 VR6PASSAT B3/B4 Variant (3A5, 35I)AAA174Petrol1991–1997
VW90 1.8POLO III CLASSIC (6V2)ABS90Petrol1997–2001
VW90 1.8POLO III CLASSIC (6V2)ADZ90Petrol1997–2001
VW90 1.8POLO III CLASSIC (6V2)ADD90Petrol1997–2001
