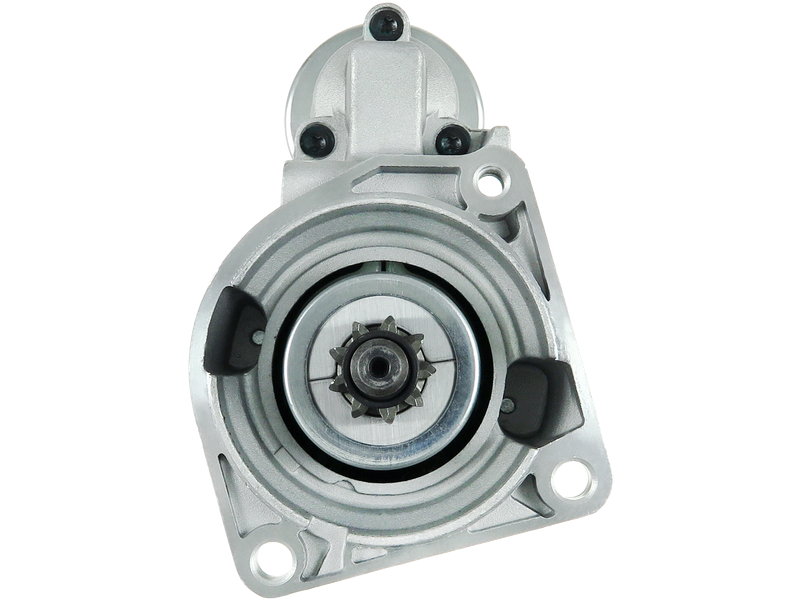

AS-PL S0038 Startmotor — VW, AUDI, NISSAN

AS-PL S0038 Startmotor — VW, AUDI, NISSAN

761,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 1.70
Startmotors rotation CW
A-storlek [ mm ] 82.00
B-storlek [ mm ] 15.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 1
L.1 [ mm ] 267.00
O.1 [ mm ] 74.00
O.2 [ mm ] 74.00
O.3 [ mm ] 106.00
C.1 [ mm ] M8x1.25
C.2 [ mm ] 9.00
C.3 [ mm ] 9.00
AS-PLSTANDARD LINE
EAN5901259418866
ErsätterBOSCH
OE-nummer0001110007

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0038 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001110007

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.70
Startmotors rotation CW
A-storlek [ mm ] 82.00
B-storlek [ mm ] 15.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 1
L.1 [ mm ] 267.00
O.1 [ mm ] 74.00
O.2 [ mm ] 74.00
O.3 [ mm ] 106.00
C.1 [ mm ] M8x1.25
C.2 [ mm ] 9.00
C.3 [ mm ] 9.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
AUDI1.6 D80 B2 Saloon (811, 813, 814, 819, 853)CR54Diesel1980–1986
AUDI1.6 D80 B2 Saloon (811, 813, 814, 819, 853)JK54Diesel1980–1986
AUDI1.6 TD80 B2 Saloon (811, 813, 814, 819, 853)CY70Diesel1981–1986
AUDI1.6 TD90 B2 (813, 814, 853)CY70Diesel1985–1987
NISSAN110.56, 120.56ATLEONBD-30Ti106-1202000–
NISSAN120.56ATLEONBD-30Ti1182003–
VW1.5 DPASSAT B1 (32)CK50Diesel1977–1980
VW1.5 DPASSAT B1 Variant (33)CK50Diesel1977–1980
VW1.6 DPASSAT B2 (32B)JK54Diesel1980–1988
VW1.6 DPASSAT B2 (32B)CR54Diesel1980–1988
VW1.6 DPASSAT B2 Saloon (32B)JK54Diesel1984–1988
VW1.6 DPASSAT B2 Variant (33B)JK54Diesel1980–1988
VW1.6 DPASSAT B2 Variant (33B)CR54Diesel1980–1988
VW1.6 DSANTANA (32B)JK54Diesel1981–1984
VW1.6 DSANTANA (32B)CR54Diesel1981–1984
VW1.6 TDPASSAT B2 (32B)CY70Diesel1982–1988
VW1.6 TDPASSAT B2 Saloon (32B)CY70Diesel1985–1988
VW1.6 TDPASSAT B2 Variant (33B)CY70Diesel1982–1988
VW1.6 TDSANTANA (32B)CY70Diesel1981–1984
VW1.8GOLF IV (1J1)AGN125Petrol1997–2005
VW1.9 DPOLO (6N2)AEF64Diesel1999–2001
VW1.9 SDIPOLO (6N2)ASX64Diesel1999–2001
VW1.9 SDIPOLO (6N2)AGD64Diesel1999–2001
VW2.4 DCALIFORNIA T4 Camper (7DJ, 7DK, 70J)AJA75Diesel1998–2002
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AUF102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)ACV102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)AYC102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DACV102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAYC102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7DAUF102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)ACV102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AYC102Diesel1995–2003
VW2.5 TDITRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)AUF102Diesel1995–2003
VW2.8 TDILT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)ATA130Diesel1999–2006
VW2.8 TDILT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)AGK125Diesel1997–2002
VW2.8 TDILT 28-46 II Van (2DA, 2DD, 2DH)AGK125Diesel1997–2002
VW2.8 TDILT 28-46 II Van (2DA, 2DD, 2DH)ATA130Diesel1999–2006
