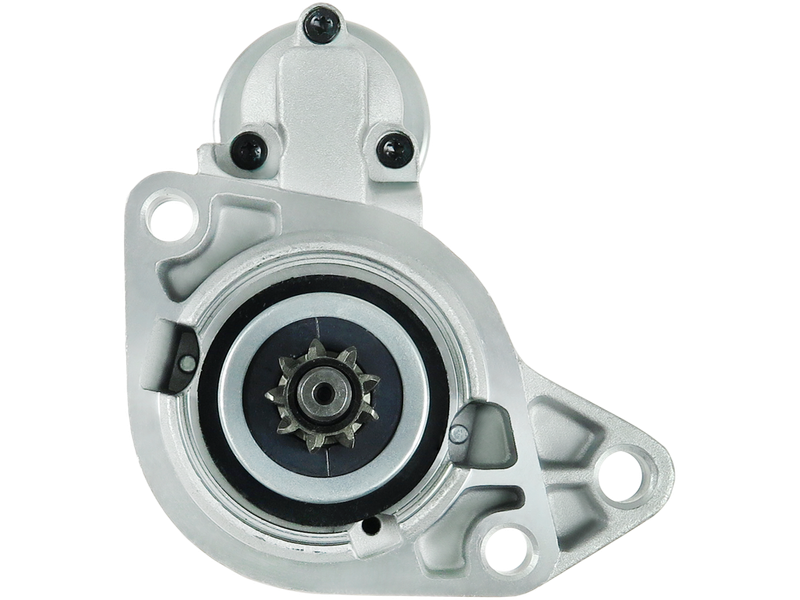

AS-PL S0045 Startmotor — VW

757,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	12
Effekt [ kW ]	1.70
Startmotors rotation	ACW
A-storlek [ mm ]	76.00
B-storlek [ mm ]	33.00
Antal kuggar [ qty. ]	9
Antal kuggar (passar in) [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	263.00
O.1 [ mm ]	123.00
O.2 [ mm ]	33.00
O.3 [ mm ]	112.00
C.1 [ mm ]	11.00
C.2 [ mm ]	12.00
C.3 [ mm ]	11.00

AS-PLSTANDARD LINE

EAN	5901259418965
Ersätter	BOSCH
OE-nummer	0001110001

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0045 Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001110001

Specifikationer

Spänning [ V ]	12
Effekt [ kW ]	1.70
Startmotors rotation	ACW
A-storlek [ mm ]	76.00
B-storlek [ mm ]	33.00
Antal kuggar [ qty. ]	9
Antal kuggar (passar in) [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	263.00
O.1 [ mm ]	123.00
O.2 [ mm ]	33.00
O.3 [ mm ]	112.00
C.1 [ mm ]	11.00
C.2 [ mm ]	12.00
C.3 [ mm ]	11.00

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	Bränsle	År
VW	1.5 D	GOLF I (17)	CK	50	Diesel	1976–1980
VW	1.5 D	JETTA I (16)	CK	50	Diesel	1978–1980
VW	1.6	GOLF II Van (19E, 1G1)		60	Diesel	1989–1991
VW	1.6 D	CADDY I (14)	CR	55	Diesel	1982–1992
VW	1.6 D	CADDY I (14)	ME	55	Diesel	1982–1992
VW	1.6 D	CADDY I (14)	JK	55	Diesel	1982–1992
VW	1.6 D	GOLF I (17)	JK	54	Diesel	1980–1983
VW	1.6 D	GOLF I (17)	CR	54	Diesel	1980–1983
VW	1.6 D	GOLF II (19E, 1G1)	ME	54	Diesel	1983–1991
VW	1.6 D	GOLF II (19E, 1G1)	JP	54	Diesel	1983–1991
VW	1.6 D	GOLF II (19E, 1G1)	ME	50	Diesel	1983–1991
VW	1.6 D	GOLF II Van (19E, 1G1)	JP	54	Diesel	1983–1991
VW	1.6 D	JETTA I (16)	JK	54	Diesel	1980–1984
VW	1.6 D	JETTA I (16)	CR	54	Diesel	1980–1984
VW	1.6 D	JETTA II (19E, 1G2, 165)	ME	54	Diesel	1984–1991
VW	1.6 D	JETTA II (19E, 1G2, 165)	JP	54	Diesel	1984–1991
VW	1.6 TD	GOLF I (17)	CY	70	Diesel	1982–1983
VW	1.6 TD	GOLF II (19E, 1G1)	MF	70	Diesel	1983–1991
VW	1.6 TD	GOLF II (19E, 1G1)	SB	80	Diesel	1989–1991
VW	1.6 TD	GOLF II (19E, 1G1)	JR	70	Diesel	1983–1991
VW	1.6 TD	GOLF II (19E, 1G1)	RA	80	Diesel	1989–1991
VW	1.6 TD	GOLF II (19E, 1G1)	1V	60	Diesel	1989–1991
VW	1.6 TD	JETTA I (16)	CY	70	Diesel	1982–1984
VW	1.6 TD	JETTA II (19E, 1G2, 165)	1V	60	Diesel	1990–1991
VW	1.6 TD	JETTA II (19E, 1G2, 165)	MF	70	Diesel	1984–1991
VW	1.6 TD	JETTA II (19E, 1G2, 165)	SB	80	Diesel	1989–1991
VW	1.6 TD	JETTA II (19E, 1G2, 165)	JR	70	Diesel	1984–1991
VW	1.6 TD	JETTA II (19E, 1G2, 165)	RA	80	Diesel	1989–1991
VW	1.6 TD	PASSAT B2 (32B)	RA	80	Diesel	1988–1989
VW	1.6 TD	PASSAT B3/B4 (3A2, 35I)	SB	80	Diesel	1988–1993
VW	1.6 TD	PASSAT B3/B4 (3A2, 35I)	RA	80	Diesel	1988–1993
VW	1.6 TD	PASSAT B3/B4 Variant (3A5, 35I)	SB	80	Diesel	1988–1993
VW	1.6 TD	PASSAT B3/B4 Variant (3A5, 35I)	RA	80	Diesel	1988–1993
VW	1.9	PASSAT B2 Variant (33B)	WN	115	Petrol	1981–1983
VW	1.9 TD	PASSAT B3/B4 (315, 3A5)	AAZ	75	Diesel	1993–1996
VW	1.9 TD	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	ABL	68	Diesel	1992–2003
VW	1.9 TD	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	ABL	68	Diesel	1992–2003
VW	2.4 D	CALIFORNIA T4 Camper (7DJ, 7DK, 70J)	AJA	75	Diesel	1998–2002
VW	2.4 D	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AJA	75	Diesel	1997–2003
VW	2.4 D	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AAB	78	Diesel	1990–1998
VW	2.4 D	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AAB	78	Diesel	1990–1998
VW	2.4 D	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AJA	75	Diesel	1997–2003
VW	2.4 D	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AJA	75	Diesel	1997–2003
VW	2.4 D	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AAB	78	Diesel	1990–1998
VW	2.5	CALIFORNIA T4 Camper (7DJ, 7DK, 70J)	AEU	110	Petrol	1998–2002
VW	2.5	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AEN	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	APL	115	Petrol	1996–2003
VW	2.5	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	ACU	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AEU	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AET	115	Petrol	1996–2003
VW	2.5	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AVT	115	Petrol	1996–2003
VW	2.5	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AAF	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AEU	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AAF	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AEN	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AET	115	Petrol	1996–2003
VW	2.5	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AVT	115	Petrol	1996–2003
VW	2.5	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	ACU	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	APL	115	Petrol	1996–2003
VW	2.5	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AVT	115	Petrol	1996–2003
VW	2.5	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AEU	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AAF	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	APL	115	Petrol	1996–2003
VW	2.5	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AEN	110	Petrol	1990–2003
VW	2.5	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AET	115	Petrol	1996–2003
VW	2.5	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	ACU	110	Petrol	1990–2003
VW	2.5 Syncro	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AVT	115	Petrol	1996–2003
VW	2.5 Syncro	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AAF	110	Petrol	1992–2003
VW	2.5 Syncro	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AEU	110	Petrol	1992–2003
VW	2.5 Syncro	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	APL	115	Petrol	1996–2003
VW	2.5 Syncro	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	ACU	110	Petrol	1992–2003
VW	2.5 Syncro	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AET	115	Petrol	1996–2003
VW	2.5 Syncro	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AET	115	Petrol	1996–2003
VW	2.5 Syncro	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	ACU	110	Petrol	1992–2001
VW	2.5 Syncro	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AVT	115	Petrol	1996–2003
VW	2.5 Syncro	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AAF	110	Petrol	1992–2001
VW	2.5 Syncro	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	APL	115	Petrol	1996–2003
VW	2.5 Syncro	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AEU	110	Petrol	1992–2001
VW	2.5 Syncro	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AEU	110	Petrol	1992–2001
VW	2.5 Syncro	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	APL	115	Petrol	1996–2003
VW	2.5 Syncro	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AAF	110	Petrol	1992–2001
VW	2.5 Syncro	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AVT	115	Petrol	1996–2003
VW	2.5 Syncro	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AEU	110	Petrol	1992–2001
VW	2.5 Syncro	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	APL	115	Petrol	1996–2003
VW	2.5 TDI	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	ACV	102	Diesel	1995–2003
VW	2.5 TDI	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AYC	102	Diesel	1995–2003
VW	2.5 TDI	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AYY	88	Diesel	1998–2003
VW	2.5 TDI	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AUF	102	Diesel	1995–2003
VW	2.5 TDI	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AJT	88	Diesel	1998–2003
VW	2.5 TDI	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AJT	88	Diesel	1998–2003
VW	2.5 TDI	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AYC	102	Diesel	1995–2003
VW	2.5 TDI	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AUF	102	Diesel	1995–2003
VW	2.5 TDI	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AYY	88	Diesel	1998–2003
VW	2.5 TDI	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	ACV	102	Diesel	1995–2003
VW	2.5 TDI	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AYY	88	Diesel	1998–2003
VW	2.5 TDI	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AUF	102	Diesel	1995–2003
VW	2.5 TDI	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AJT	88	Diesel	1998–2003
VW	2.5 TDI	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	ACV	102	Diesel	1995–2003
VW	2.5 TDI	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AYC	102	Diesel	1995–2003
VW	2.5 TDI Syncro	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AXL	102	Diesel	1996–2003
VW	2.5 TDI Syncro	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	ACV	102	Diesel	1996–2003
VW	2.5 TDI Syncro	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AXL	102	Diesel	1998–2003
VW	2.5 TDI Syncro	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	ACV	102	Diesel	1998–2003
VW	2.5 TDI Syncro	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	ACV	102	Diesel	1995–2003
VW	2.5 TDI Syncro	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AXL	102	Diesel	1995–2003
VW	2.8	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AES	140	Petrol	1996–2000
VW	2.8 VR 6	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AES	140	Petrol	1995–2000
VW	2.8 VR6	PASSAT B3/B4 Variant (3A5, 35I)	AAA	174	Petrol	1991–1997
VW	2.8 VR6	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AMV	204	Petrol	2000–2003
VW	2.8 VR6	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)	AXK	204	Petrol	2000–2003
VW	2.8 VR6	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D	AMV	204	Petrol	2000–2003
VW	2.8 VR6	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AES	140	Petrol	1996–2000
VW	2.8 VR6	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AXK	204	Petrol	2000–2003
VW	2.8 VR6	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH)	AMV	204	Petrol	2000–2003
