AS-PL S0049 Startmotor — VW

AS-PL S0049 Startmotor — VW

742,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 2.00
Startmotors rotation CW
A-storlek [ mm ] 82.50
B-storlek [ mm ] 21.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 235.00
O.1 [ mm ] 49.00
O.2 [ mm ] 92.00
O.3 [ mm ] 105.00
C.1 [ mm ] M12x1.75
C.2 [ mm ] M12x1.75
AS-PLSTANDARD LINE
EAN5901259419023
ErsätterBOSCH
OE-nummer0001125501

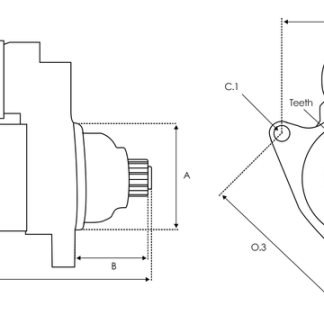

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0049 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001125501

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.00
Startmotors rotation CW
A-storlek [ mm ] 82.50
B-storlek [ mm ] 21.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 235.00
O.1 [ mm ] 49.00
O.2 [ mm ] 92.00
O.3 [ mm ] 105.00
C.1 [ mm ] M12x1.75
C.2 [ mm ] M12x1.75

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
VW1.9 TDIPASSAT B5 (3B2)AHU90Diesel1996–2000
VW1.9 TDIPASSAT B5 (3B2)AHH90Diesel1996–2000
VW2.5 TDILT 28-35 II Bus (2DB, 2DE, 2DK)ANJ109Diesel1999–2006
VW2.5 TDILT 28-35 II Bus (2DB, 2DE, 2DK)BBF95Diesel2001–2006
VW2.5 TDILT 28-35 II Bus (2DB, 2DE, 2DK)APA90Diesel1999–2006
VW2.5 TDILT 28-35 II Bus (2DB, 2DE, 2DK)AVR109Diesel1999–2006
VW2.5 TDILT 28-35 II Bus (2DB, 2DE, 2DK)AHD102Diesel1996–1999
VW2.5 TDILT 28-35 II Bus (2DB, 2DE, 2DK)BBE83Diesel2001–2006
VW2.5 TDILT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)APA90Diesel1999–2006
VW2.5 TDILT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)BBE83Diesel2001–2006
VW2.5 TDILT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)AVR109Diesel1999–2006
VW2.5 TDILT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)ANJ109Diesel1999–2006
VW2.5 TDILT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)BBF95Diesel2001–2006
VW2.5 TDILT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)AHD102Diesel1996–1999
VW2.5 TDILT 28-46 II Van (2DA, 2DD, 2DH)BBE83Diesel2001–2006
VW2.5 TDILT 28-46 II Van (2DA, 2DD, 2DH)APA90Diesel1999–2006
VW2.5 TDILT 28-46 II Van (2DA, 2DD, 2DH)AHD102Diesel1996–1999
VW2.5 TDILT 28-46 II Van (2DA, 2DD, 2DH)AVR109Diesel1999–2006
VW2.5 TDILT 28-46 II Van (2DA, 2DD, 2DH)BBF95Diesel2001–2006
VW2.5 TDILT 28-46 II Van (2DA, 2DD, 2DH)ANJ109Diesel1999–2006
