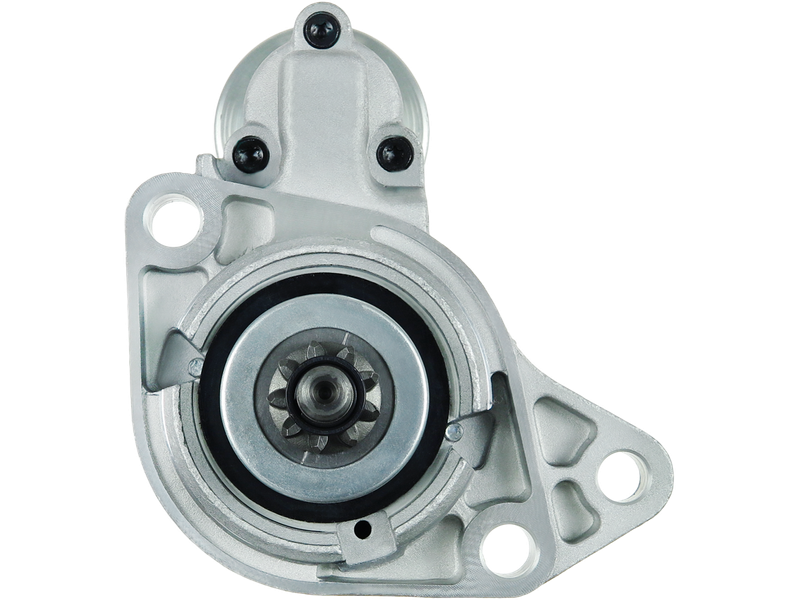

AS-PL S0062 Startmotor — VW, SEAT, SKODA

AS-PL S0062 Startmotor — VW, SEAT, SKODA

892,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation ACW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 32.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 218.00
O.1 [ mm ] 123.00
O.2 [ mm ] 32.00
O.3 [ mm ] 111.00
C.1 [ mm ] 12.50
C.2 [ mm ] 12.00
C.3 [ mm ] 12.50
AS-PLSTANDARD LINE
EAN5901259419177
ErsätterBOSCH
OE-nummer0001107020

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0062 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001107020

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation ACW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 32.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 218.00
O.1 [ mm ] 123.00
O.2 [ mm ] 32.00
O.3 [ mm ] 111.00
C.1 [ mm ] 12.50
C.2 [ mm ] 12.00
C.3 [ mm ] 12.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ARO1.6 D10F8M70054Diesel1986–1999
AUDI1.6A3 (8L1)AEH101Petrol1996–2003
AUDI1.6A3 (8L1)APF101Petrol1996–2003
AUDI1.6A3 (8L1)AKL101Petrol1996–2003
AUDI1.8A3 (8L1)AGN125Petrol1996–2003
AUDI1.8A3 (8L1)APG125Petrol1996–2003
AUDI1.8 TA3 (8L1)AUM150Petrol1996–2003
AUDI1.8 TA3 (8L1)AGU150Petrol1996–2003
AUDI1.8 TA3 (8L1)ARZ150Petrol1996–2003
AUDI1.8 TA3 (8L1)AQA150Petrol1996–2003
AUDI1.8 T quattroA3 (8L1)AQA150Petrol1996–2003
AUDI1.8 T quattroA3 (8L1)AGU150Petrol1996–2003
AUDI1.8 T quattroA3 (8L1)ARX150Petrol1996–2003
AUSTIN1.3MAESTRO Fastback (XC)12H63Petrol1983–1985
AUSTIN1.3MAESTRO Fastback (XC)12HC3263Petrol1983–1985
AUSTIN1.3MAESTRO Fastback (XC)12H999AA63Petrol1983–1985
AUSTIN1.3MONTEGO (XE)12HL68Petrol1984–1988
AUSTIN1.3 LSMAESTRO Fastback (XC)12H67Petrol1983–1990
AUSTIN1.6MAESTRO Fastback (XC)16H956AK80Petrol1983–1984
AUSTIN1.6 LSMONTEGO Estate (XE)16HC3783Petrol1984–1988
AUSTIN1.6 LS, HLMONTEGO (XE)16HC3783Petrol1984–1988
AUSTIN1.6 MGMAESTRO Fastback (XC)16HA35AL99Petrol1983–1990
AUSTIN1.6 MGMAESTRO Fastback (XC)16HA03AL98Petrol1983–1985
AUSTIN1.6 Mayfair HLSMAESTRO Fastback (XC)16HC3783Petrol1983–1990
FIAT1.8 i.e.TIPO (160_)159A4.000110Petrol1990–1993
FIAT1.8 i.e.TIPO (160_)835C4.00090Petrol1993–1995
FIAT1.8 i.e. (159.AM)TEMPRA S.W. (159_)159A4.000110Petrol1990–1996
FIAT1.8 i.e. (159.AN)TEMPRA (159_)159A4.046105Petrol1992–1996
FIAT1.8 i.e. (159.AN)TEMPRA (159_)159A4.000110Petrol1990–1996
FIAT1.8 i.e. (159.AN)TEMPRA S.W. (159_)159A4.046105Petrol1992–1993
FIAT1.8 i.e. (159.AV)TEMPRA (159_)835C2.000103Petrol1993–1996
FIAT1.8 i.e. (159.AV)TEMPRA S.W. (159_)835C2.000103Petrol1993–1996
FIAT1.8 i.e. (159.AZ)TEMPRA (159_)835C4.00090Petrol1993–1996
FIAT1.8 i.e. (159.AZ)TEMPRA S.W. (159_)835C4.00090Petrol1993–1996
FIAT1.8 i.e. (159.BY)TEMPRA (159_)836A5.000101Petrol1994–1996
FIAT1.8 i.e. (159.BY)TEMPRA S.W. (159_)836A5.000101Petrol1994–1996
FIAT1.8 i.e. (160.AY)TIPO (160_)159A4.046105Petrol1990–1993
FIAT2.0 16V (160.AV)TIPO (160_)160A8.046146Petrol1991–1995
FIAT2.0 i.e. (159.AP)TEMPRA (159_)159A6.046113Petrol1990–1996
FIAT2.0 i.e. (159.AP)TEMPRA S.W. (159_)159A6.046113Petrol1991–1995
FIAT2.0 i.e. (160.AJ, 1607571)TIPO (160_)159A5.046109Petrol1990–1992
FIAT2.0 i.e. (160.AT, 160.AJ)TIPO (160_)159A6.046113Petrol1990–1995
FIAT2.0 i.e. 4x4 (159.AP)TEMPRA S.W. (159_)159A6.046113Petrol1992–1995
FORD1.9 TDIGALAXY I (WGR)ANU90Diesel1995–2006
FORD1.9 TDIGALAXY I (WGR)AHU90Diesel1995–2006
FORD1.9 TDIGALAXY I (WGR)1Z90Diesel1995–2006
FORD1.9 TDiGALAXY MK I VAN (WGR)ANU90Diesel1996–2006
FORD1.9 TDiGALAXY MK I VAN (WGR)AHU90Diesel1996–2006
FORD2.0GALAXY MK I VAN (WGR)ZVSA116Petrol1996–2006
FORD2.0GALAXY MK I VAN (WGR)NSE116Petrol1996–2006
FORD2.0 iGALAXY I (WGR)ZVSA116Petrol1995–2006
FORD2.0 iGALAXY I (WGR)NSE116Petrol1995–2006
FORD2.3GALAXY MK I VAN (WGR)E5SA145Petrol2000–2002
FORD2.3GALAXY MK I VAN (WGR)E5SB140Petrol2002–2006
FORD2.3 16VGALAXY I (WGR)Y5B146Petrol1997–2006
FORD2.3 16VGALAXY I (WGR)E5SA146Petrol1997–2006
FORD2.3 16VGALAXY I (WGR)E5SB140Petrol2001–2006
LANCIA1.8 i.e. (835AC, 835BC)DEDRA (835_)835A2.000109Petrol1989–1994
LANCIA2.0 i.e. (835AI)DEDRA (835_)835A5.000117Petrol1989–1992
MG1600MAESTRO16H104Petrol1983–1984
ROVER1.3MAESTRO Hatchback12HE69Petrol1990–1995
ROVER1.3MAESTRO Hatchback12HE67Petrol1990–1995
ROVER1.3MONTEGO Estate (XE)12HL68Petrol1984–1988
ROVER1.6MAESTRO Hatchback16H86Petrol1990–1995
ROVER1.6MONTEGO Estate (XE)16HL83Petrol1990–1992
SEAT1.4 iCORDOBA (6K1, 6K2)ANW60Petrol1994–2002
SEAT1.4 iCORDOBA (6K1, 6K2)AEX60Petrol1994–2002
SEAT1.4 iCORDOBA (6K1, 6K2)AUD60Petrol1994–2002
SEAT1.4 iCORDOBA (6K1, 6K2)AKV60Petrol1994–2002
SEAT1.4 iCORDOBA (6K1, 6K2)ABD60Petrol1994–2002
SEAT1.4 iCORDOBA (6K1, 6K2)APQ60Petrol1994–2002
SEAT1.4 iCORDOBA (6K1, 6K2)AKK60Petrol1994–2002
SEAT1.6 iCORDOBA (6K1, 6K2)AFT101Petrol1996–2002
SEAT1.6 iCORDOBA (6K1, 6K2)ALM75Petrol1993–2002
SEAT1.6 iCORDOBA (6K1, 6K2)APF101Petrol1996–2002
SEAT1.6 iCORDOBA (6K1, 6K2)AEH101Petrol1996–2002
SEAT1.6 iCORDOBA (6K1, 6K2)AEE75Petrol1993–2002
SEAT1.6 iCORDOBA (6K1, 6K2)AKL101Petrol1996–2002
SEAT1.6 iCORDOBA (6K1, 6K2)1F75Petrol1994–1999
SEAT1.6 iCORDOBA (6K1, 6K2)AUR101Petrol1996–2002
SEAT1.6 iCORDOBA (6K1, 6K2)ABU75Petrol1993–2002
SEAT1.6 iCORDOBA Vario (6K5)AEE75Petrol1996–2002
SEAT1.6 iCORDOBA Vario (6K5)AFT101Petrol1996–2002
SEAT1.6 iCORDOBA Vario (6K5)1F75Petrol1997–1999
SEAT1.6 iCORDOBA Vario (6K5)APF101Petrol1996–2002
SEAT1.6 iCORDOBA Vario (6K5)ABU75Petrol1996–2002
SEAT1.6 iCORDOBA Vario (6K5)AEH101Petrol1996–2002
SEAT1.6 iCORDOBA Vario (6K5)ALM75Petrol1996–2002
SEAT1.6 iCORDOBA Vario (6K5)AKL101Petrol1996–2002
SEAT1.6 iCORDOBA Vario (6K5)AUR101Petrol1996–2002
SEAT1.6 iIBIZA II (6K1)ALM75Petrol1993–2002
SEAT1.6 iIBIZA II (6K1)APF101Petrol1996–2002
SEAT1.6 iIBIZA II (6K1)AEH101Petrol1996–2002
SEAT1.6 iIBIZA II (6K1)AEE75Petrol1993–2002
SEAT1.6 iIBIZA II (6K1)AKL101Petrol1996–2002
SEAT1.6 iIBIZA II (6K1)AUR101Petrol1996–2002
SEAT1.6 iIBIZA II (6K1)ABU75Petrol1993–2002
SEAT1.6 iIBIZA II (6K1)1F75Petrol1994–1999
SEAT1.6 iIBIZA II (6K1)AFT101Petrol1996–2002
SEAT1.6 iINCA (6K9)1F75Petrol1995–1998
SEAT1.6 iTOLEDO I (1L2)1F75Petrol1993–1999
SEAT1.6 iTOLEDO I (1L2)1F71Petrol1991–1993
SEAT1.6 iTOLEDO I (1L2)ABN73Petrol1991–1999
SEAT1.6 iTOLEDO I (1L2)EZ73Petrol1991–1999
SEAT1.6 iTOLEDO I (1L2)AFT101Petrol1996–1999
SEAT1.8 16VTOLEDO I (1L2)PL125Petrol1991–1999
SEAT1.8 16VTOLEDO I (1L2)KR133Petrol1991–1999
SEAT1.8 T 20VALHAMBRA (7V8, 7V9)AWC150Petrol1997–2010
SEAT1.8 T 20VALHAMBRA (7V8, 7V9)AJH150Petrol1997–2010
SEAT1.8 iCORDOBA (6K1, 6K2)ACC90Petrol1993–2002
SEAT1.8 iCORDOBA (6K1, 6K2)ABS90Petrol1993–2002
SEAT1.8 iCORDOBA (6K1, 6K2)ADZ90Petrol1993–2002
SEAT1.8 iIBIZA II (6K1)ACC90Petrol1993–1999
SEAT1.8 iIBIZA II (6K1)ABS90Petrol1993–1999
SEAT1.8 iIBIZA II (6K1)ADZ90Petrol1993–1999
SEAT1.8 iTOLEDO I (1L2)ACC90Petrol1993–1996
SEAT1.8 iTOLEDO I (1L2)ABS90Petrol1993–1996
SEAT1.8 iTOLEDO I (1L2)ADZ90Petrol1993–1996
SEAT1.8 iTOLEDO I (1L2)RP88Petrol1991–1996
SEAT1.8 i 16VCORDOBA (6K1, 6K2)ADL129Petrol1993–1996
SEAT1.8 i 16VIBIZA II (6K1)ADL129Petrol1993–1996
SEAT1.9 DCORDOBA (6K1, 6K2)1Y68Diesel1993–1996
SEAT1.9 DIBIZA II (6K1)1Y64Diesel1993–1999
SEAT1.9 DTOLEDO I (1L2)1Y68Diesel1991–1999
SEAT1.9 TDCORDOBA (6K1, 6K2)AAZ75Diesel1993–1996
SEAT1.9 TDIBIZA II (6K1)AAZ75Diesel1993–1996
SEAT1.9 TDTOLEDO I (1L2)AAZ75Diesel1991–1999
SEAT2.0ALHAMBRA VAN (7V8, 7V9)ATM116Petrol1996–2010
SEAT2.0ALHAMBRA VAN (7V8, 7V9)ADY116Petrol1996–2010
SEAT2.0 iALHAMBRA (7V8, 7V9)ADY115Petrol1996–2010
SEAT2.0 iALHAMBRA (7V8, 7V9)ATM115Petrol1996–2010
SEAT2.0 iCORDOBA (6K1, 6K2)AGG115Petrol1993–1999
SEAT2.0 iCORDOBA (6K1, 6K2)2E115Petrol1993–1999
SEAT2.0 iIBIZA II (6K1)AGG115Petrol1993–1999
SEAT2.0 iIBIZA II (6K1)2E115Petrol1993–1999
SEAT2.0 iTOLEDO I (1L2)2E115Petrol1991–1999
SEAT2.0 iTOLEDO I (1L2)AGG115Petrol1991–1999
SKODA1.6OCTAVIA I (1U2)AKL101Petrol1997–2007
SKODA1.6OCTAVIA I (1U2)AEE75Petrol1996–2004
SKODA1.6OCTAVIA I (1U2)AEH101Petrol1997–2007
SKODA1.6OCTAVIA I Combi (1U5)AEH101Petrol1998–2007
SKODA1.6OCTAVIA I Combi (1U5)AEE75Petrol1998–2004
SKODA1.6OCTAVIA I Combi (1U5)AKL101Petrol1998–2007
SKODA1.8OCTAVIA I (1U2)AGN125Petrol1996–2000
SKODA1.8 TOCTAVIA I Combi (1U5)AGU150Petrol1998–2010
SKODA1.8 TOCTAVIA I Combi (1U5)ARZ150Petrol1998–2010
SKODA1.8 TOCTAVIA I Combi (1U5)ARX150Petrol1998–2010
SKODA1.8 TOCTAVIA I Combi (1U5)AUM150Petrol1998–2010
SKODA1.9 SDIOCTAVIA I (1U2)AQM68Diesel1997–2003
SKODA1.9 SDIOCTAVIA I (1U2)AGP68Diesel1997–2003
SKODA1.9 SDIOCTAVIA I Combi (1U5)AQM68Diesel1998–2003
SKODA1.9 SDIOCTAVIA I Combi (1U5)AGP68Diesel1998–2003
SKODA1.9 TDIOCTAVIA I (1U2)AHF110Diesel1997–2006
SKODA1.9 TDIOCTAVIA I (1U2)ALH90Diesel1996–2010
SKODA1.9 TDIOCTAVIA I (1U2)AGR90Diesel1996–2010
SKODA1.9 TDIOCTAVIA I (1U2)ASV110Diesel1997–2006
SKODA1.9 TDIOCTAVIA I Combi (1U5)ALH90Diesel1998–2010
SKODA1.9 TDIOCTAVIA I Combi (1U5)ASV110Diesel1998–2006
SKODA1.9 TDIOCTAVIA I Combi (1U5)AGR90Diesel1998–2010
SKODA1.9 TDIOCTAVIA I Combi (1U5)AHF110Diesel1998–2006
SKODA1.9 TDI 4x4OCTAVIA I Combi (1U5)AGR90Diesel1999–2006
VW1.1GOLF I (17)FA50Petrol1974–1983
VW1.1GOLF I (17)GG50Petrol1974–1983
VW1.3GOLF I Cabriolet (155)HK54Petrol1983–1986
VW1.4GOLF III (1H1)AEX55Petrol1991–1997
VW1.4GOLF III (1H1)AEX60Petrol1991–1997
VW1.4GOLF III (1H1)ABD55Petrol1991–1997
VW1.4GOLF III (1H1)ABD60Petrol1991–1997
VW1.4GOLF III Variant (1H5)ABD55Petrol1993–1999
VW1.4GOLF III Variant (1H5)ABD60Petrol1993–1999
VW1.4GOLF III Variant (1H5)APQ60Petrol1993–1999
VW1.4GOLF III Variant (1H5)AEX55Petrol1993–1999
VW1.4GOLF III Variant (1H5)AEX60Petrol1993–1999
VW1.4VENTO (1H2)ABD55Petrol1991–1998
VW1.4VENTO (1H2)ABD60Petrol1991–1998
VW1.4VENTO (1H2)AEX55Petrol1991–1998
VW1.4VENTO (1H2)AEX60Petrol1991–1998
VW1.4 16VGOLF IV (1J1)AXP75Petrol1997–2004
VW1.4 16VGOLF IV (1J1)AHW75Petrol1997–2004
VW1.4 16VGOLF IV (1J1)APE75Petrol1997–2004
VW1.4 16VGOLF IV (1J1)BCA75Petrol1997–2004
VW1.4 16VGOLF IV (1J1)AKQ75Petrol1997–2004
VW1.4 16VGOLF IV Variant (1J5)AHW75Petrol1999–2006
VW1.4 16VGOLF IV Variant (1J5)APE75Petrol1999–2006
VW1.4 16VGOLF IV Variant (1J5)BCA75Petrol1999–2006
VW1.4 16VGOLF IV Variant (1J5)AKQ75Petrol1999–2006
VW1.4 16VGOLF IV Variant (1J5)AXP75Petrol1999–2006
VW1.5CADDY I (14)JB70Petrol1982–1983
VW1.5GOLF I (17)JB70Petrol1977–1983
VW1.5GOLF I (17)FH70Petrol1974–1975
VW1.5GOLF I Cabriolet (155)JB70Petrol1979–1983
VW1.5JETTA I (16)JB70Petrol1978–1984
VW1.5SCIROCCO (53)FC75Petrol1974–1975
VW1.5SCIROCCO (53)JB70Petrol1977–1980
VW1.5SCIROCCO (53)ZB75Petrol1974–1975
VW1.5SCIROCCO (53)YJ75Petrol1974–1975
VW1.5SCIROCCO (53B)JB70Petrol1980–1983
VW1.5 DGOLF I (17)CK50Diesel1976–1980
VW1.6CADDY I (14)EW75Petrol1983–1992
VW1.6CADDY I (14)EM75Petrol1982–1983

Visar 200 av 498 fordon
