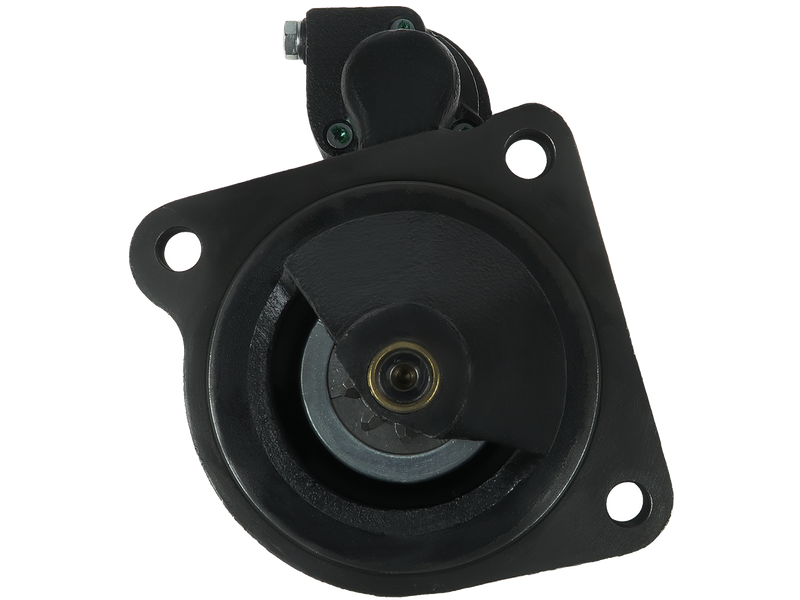

AS-PL S0092 Startmotor — SCANIA, IVECO, URSUS

AS-PL S0092 Startmotor — SCANIA, IVECO, URSUS

1 349,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 4.00
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 341.00
O.1 [ mm ] 104.00
O.2 [ mm ] 104.00
O.3 [ mm ] 146.00
C.1 [ mm ] 12.00
C.2 [ mm ] 12.00
C.3 [ mm ] 12.00
AS-PLSTANDARD LINE
EAN5901259419658
ErsätterBOSCH
OE-nummer0001368020

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0092 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001368020

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 4.00
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 341.00
O.1 [ mm ] 104.00
O.2 [ mm ] 104.00
O.3 [ mm ] 146.00
C.1 [ mm ] 12.00
C.2 [ mm ] 12.00
C.3 [ mm ] 12.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
IVECO100 E 15 KEUROCARGO I-III8060.25R.4200LTC1431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.25R.4200LTC1431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.45R.50011431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.45R.50051431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.45R.50001431991–2015
IVECO100 E 15, 100 E 15 PEUROCARGO I-III8060.45R.50031431991–2015
IVECO100 E 18 KEUROCARGO I-III8060.25V.40001771991–2015
IVECO100 E 18, 100 E 18 PEUROCARGO I-III8060.25V.40001771991–2015
IVECO100 E 21, 100 E 21 PEUROCARGO I-III8060.45.41802071991–2015
IVECO100 E 21, 100 E 21 PEUROCARGO I-III8060.45.4100TCA2071991–2015
IVECO109-14ZETA8060.05.289137-1391985–1991
IVECO109-14 HZETA8060.05.289137-1391985–1991
IVECO115-17M8060.25.6001771986–1991
IVECO115-17 HM8060.25.6001771986–1991
IVECO120 E 15EUROCARGO I-III8060.25R.42801431991–2015
IVECO120 E 15EUROCARGO I-III8060.25R.42001431991–2015
IVECO120 E 15 KEUROCARGO I-III8060.25R.42801431991–2015
IVECO120 E 18 KEUROCARGO I-III8060.25V.40801771991–2015
IVECO120 E 18, 120 E 18 P, 120 E 18 HEUROCARGO I-III8060.45B.51001771991–2015
IVECO120 E 18, 120 E 18 P, 120 E 18 HEUROCARGO I-III8060.25V.40801771991–2015
IVECO120 E 21 HEUROCARGO I-III8060.45B.51002071992–2015
IVECO120 E 23,120 E 23 P, 120 E 23 FP, 120 E 23 HEUROCARGO I-III8060.45S.68002271991–2015
IVECO120 E 23,120 E 23 P, 120 E 23 FP, 120 E 23 HEUROCARGO I-III8060.45.60902271991–2015
IVECO120 E 23,120 E 23 P, 120 E 23 FP, 120 E 23 HEUROCARGO I-III8060.45S.72002271991–2015
IVECO130 E 15EUROCARGO I-III8060.25R.42801431991–2015
IVECO130 E 15 KEUROCARGO I-III8060.25R.42801431991–2015
IVECO130 E 18EUROCARGO I-III8060.25V.40801771991–2015
IVECO130 E 18 KEUROCARGO I-III8060.25V.40801771991–2015
IVECO130 E 23EUROCARGO I-III8060.45S.60002271991–2015
IVECO130 E 23EUROCARGO I-III8060.45.60902271991–2015
IVECO130 E 24EUROFIRE I8060.45M2431991–2000
IVECO135 E 18 WEUROCARGO I-III8060.25V.48001771991–2015
IVECO135 E 18 WREUROCARGO I-III8060.25V.48001771991–2015
IVECO135 E 22 WEUROFIRE I8060.45L2181991–2000
IVECO135 E 23 WEUROCARGO I-III8060.45STCA2271991–2015
IVECO135 E 23 WREUROCARGO I-III8060.45STCA2271991–2015
IVECO135-17M8060.25.6001771986–1991
IVECO135-17 HM8060.25.6001771986–1992
IVECO135-17 TM8060.25.6001771986–1991
IVECO145-17M8060.25.6001771986–1991
IVECO150 E 15EUROCARGO I-III8060.25R.42801431991–2015
IVECO150 E 15 KEUROCARGO I-III8060.25R.42801431991–2015
IVECO150 E 18 KEUROCARGO I-III8060.25V.40801771991–2015
IVECO150 E 18 KEUROCARGO I-III8060.25V.40001771991–2015
IVECO150 E 18, 150 E 18 PEUROCARGO I-III8060.25V.4080175-1771991–2015
IVECO150 E 18, 150 E 18 PEUROCARGO I-III8060.25V.4000175-1771991–2015
IVECO150 E 18, 150 E 18 PEUROCARGO I-III8060.45B175-1771991–2015
IVECO150 E 23, 150 E 23 P, 150 E 23 FPEUROCARGO I-III8060.45S.68002271991–2015
IVECO150 E 23, 150 E 23 P, 150 E 23 FPEUROCARGO I-III8060.45.60902271991–2015
IVECO170 E 15 KEUROCARGO I-III8060.25R.42801431991–2000
IVECO170 E 18 K, 180 E 18 KEUROCARGO I-III8060.25V.48001771991–2015
IVECO170 E 18, 180 E 18EUROCARGO I-III8060.25V.48001771991–2015
IVECO170 E 23 K,180 E 23 KEUROCARGO I-III8060.45STCA2271991–2015
IVECO170 E 23,180 E 23EUROCARGO I-III8060.45STCA2271991–2015
IVECO175-17M8060.25.6001771986–1992
IVECO180 E 21 TEUROCARGO I-III8060.45.4100TCA2071991–2015
IVECO260 E 23 KEEUROCARGO I-III8060.45STCA2271992–2015
IVECO260 E 23 TEUROCARGO I-III8060.45STCA2271991–2015
IVECO260 E 23 TEUROCARGO I-III8060.45S.60002271991–2015
IVECO280 E 23 TEUROCARGO I-III8060.45S.60002271991–2015
IVECO50-10ZETA8340.04.2501011979–1986
IVECO50-10ZETA8340.04.3621011979–1986
IVECO50-10ZETA8340.04.2001011979–1986
IVECO50-10ZETA8340.04.3001011979–1986
IVECO50-10 HZETA8340.04.2001011979–1986
IVECO50-10 HZETA8340.04.3001011979–1986
IVECO50-10 HZETA8340.04.2501011979–1986
IVECO50-10 HZETA8340.04.3621011979–1986
IVECO50-10 VZETA8340.04.2501011979–1986
IVECO50-10 VZETA8340.04.3621011979–1986
IVECO50-10 VZETA8340.04.2001011979–1986
IVECO50-10 VZETA8340.04.3001011979–1986
IVECO50-8ZETA8040.04.200861983–1986
IVECO50-8 HZETA8040.04.200861983–1986
IVECO50-8 VZETA8040.04.200861983–1986
IVECO60 E 10EUROCARGO I-III8040.25B.42001021991–2015
IVECO60 E 12EUROCARGO I-III8040.25X.40001161991–2015
IVECO60 E 14 KEUROCARGO I-III8040.45.40001361991–2015
IVECO60 E 14, 60 E 14 PEUROCARGO I-III8040.45.40001361991–2015
IVECO60-10ZETA8340.04.2501011979–1986
IVECO60-10ZETA8340.04.2001011979–1986
IVECO60-10 HZETA8340.04.2001011979–1986
IVECO60-10 HZETA8340.04.2501011979–1986
IVECO60-10 VZETA8340.04.2501011979–1986
IVECO60-10 VZETA8340.04.2001011979–1986
IVECO60-8ZETA8040.04.200861979–1982
IVECO60-8ZETA8040.04.200861979–1983
IVECO60-8ZETA8040.04.200861979–1981
IVECO65 E 10EUROCARGO I-III8040.25B.42001021991–2015
IVECO65 E 10 KEUROCARGO I-III8040.25B.42001021991–2015
IVECO65 E 12 KEUROCARGO I-III8040.25X.40001161991–2015
IVECO65 E 12, 65 E 12 PEUROCARGO I-III8040.25X.40001161991–2015
IVECO65 E 14 KEUROCARGO I-III8040.45.40001361991–2015
IVECO65 E 14, 65 E 14 PEUROCARGO I-III8040.45.40001361991–2015
IVECO65-10ZETA8340.04.3001011979–1987
IVECO65-10ZETA8340.04.2501011979–1987
IVECO65-10ZETA8340.04.3501011979–1987
IVECO65-10ZETA8340.04.2001011979–1987
IVECO65-10 HZETA8340.04.2501011979–1987
IVECO65-10 HZETA8340.04.3501011979–1987
IVECO65-10 HZETA8340.04.2001011979–1987
IVECO65-10 HZETA8340.04.3001011979–1987
IVECO65-10 VZETA8340.04.3501011979–1987
IVECO65-10 VZETA8340.04.2001011979–1987
IVECO65-10 VZETA8340.04.3001011979–1987
IVECO65-10 VZETA8340.04.2501011979–1987
IVECO75 E 12, 75 E 12 PEUROCARGO I-III8040.25X.40001161991–2015
IVECO75 E 14, 75 E 14 PEUROCARGO I-III8040.45.40001361991–2015
IVECO75 E 14, 75 E 14 PEUROCARGO I-III8040.45.41801361991–2015
IVECO75 E 15 KEUROCARGO I-III8060.25R.4200LTC1431991–2015
IVECO75 E 15, 75 E 15 P, 80 E 15EUROCARGO I-III8060.25R.4200LTC1431991–2015
IVECO79-10ZETA8340.04.3001011983–1987
IVECO79-10ZETA8340.04.3001011983–1987
IVECO79-10ZETA8340.04.2001011983–1987
IVECO79-10ZETA8340.04.2001011983–1987
IVECO79-10 HZETA8340.04.3001011983–1987
IVECO79-10 HZETA8340.04.2001011983–1987
IVECO79-10 HZETA8340.04.2001011983–1987
IVECO79-10 HZETA8340.04.3001011983–1987
IVECO79-10 VZETA8340.04.3001011983–1987
IVECO79-10 VZETA8340.04.3001011983–1987
IVECO79-10 VZETA8340.04.2001011983–1987
IVECO79-10 VZETA8340.04.2001011983–1987
IVECO79-14ZETA8060.05.2801371985–1991
IVECO79-14ZETA8060.05.2801371985–1991
IVECO79-14 HZETA8060.05.2801371985–1991
IVECO79-14 HZETA8060.05.2801371985–1991
IVECO79-14 VZETA8060.05.2801371985–1991
IVECO79-14 VZETA8060.05.2801371985–1991
IVECO80 E 15 KEUROCARGO I-III8060.25R.4200LTC1431991–2015
IVECO80 E 15 KEUROCARGO I-III8060.25R.4200LTC1431991–2015
IVECO80 E 15, 80 E 15 PEUROCARGO I-III8060.25R.4200LTC1431991–2015
IVECO80 E 18 KEUROCARGO I-III8060.25V.40001771991–2015
IVECO80 E 18 KEUROCARGO I-III8060.25V.40001771991–2015
IVECO80 E 18, 80 E 18 P, 18 E 80 FPEUROCARGO I-III8060.25V.40001771991–2015
IVECO80 E 18, 80 E 18 P, 18 E 80 FPEUROCARGO I-III8060.25V.40001771991–2015
IVECO80 E 21, 80 E 21 P, 21 E 80 FPEUROCARGO I-III8060.45.4100TCA2071991–2015
IVECO80 E 21, 80 E 21 P, 21 E 80 FPEUROCARGO I-III8060.45.41802071991–2015
IVECO80 E 21, 80 E 21 P, 80 E 21 FPEUROCARGO I-III8060.45.4100TCA2071991–2015
IVECO80 E 21, 80 E 21 P, 80 E 21 FPEUROCARGO I-III8060.45.41802071991–2015
IVECO95 E 15 WEUROCARGO I-III8060.45R.50511431991–2015
IVECO95 E 15 WEUROCARGO I-III8060.25R.47501431991–2015
IVECO95 E 15 WEUROCARGO I-III8060.25R.47601431991–2015
IVECO95 E 15 WEUROCARGO I-III8060.45R.50501431991–2015
IVECO95 E 15 WEUROCARGO I-III8060.25R.47551431991–2015
IVECO95 E 15 WEUROCARGO I-III8060.25R.47641431991–2015
IVECO95 E 18 WEUROFIRE I8060.45B1771993–2000
IVECO95 E 21 WEUROCARGO I-III8060.45.47082071991–2015
IVECO95 E 21 WEUROCARGO I-III8060.45.52512071991–2015
IVECO95 E 21 WEUROCARGO I-III8060.45.47022071991–2015
IVECO95 E 21 WEUROCARGO I-III8060.45.47062071991–2015
IVECO95 E 21 WEUROCARGO I-III8060.45.52502071991–2015
IVECO95 E 21 WEUROCARGO I-III8060.45.47002071991–2015
IVECO95 E 21 WEUROCARGO I-III8060.45.52552071991–2015
IVECO95 E 21 WEUROCARGO I-III8060.45.47042071991–2015
IVECO95-14ZETA8060.05.2891371985–1991
IVECO95-14ZETA8060.05.2881371985–1991
IVECOA 60-10ZETA8340.04.040991979–1988
IVECOA 60-9ZETA8040.05.200881988–1992
IVECOA 60-9ZETA8040.05.203881988–1992
IVECOA 70-12ZETA8340.05.2001141983–1985
IVECOA 70-14ZETA8060.05.285137-1391988–1992
IVECOA 70-14ZETA8060.05.246137-1391988–1992
SCANIA82 H/2102 - seriesDS8.01B122111981–1986
SCANIA82 H/2102 - seriesDS8.012111981–1986
SCANIA82 H/2102 - seriesDS8.052111981–1986
SCANIA82 H/2102 - seriesDS82111981–1986
SCANIA82 H/2102 - seriesDS8.01B102111981–1986
SCANIA82 H/2102 - seriesDS8.01B112111981–1986
SCANIA82 H/2102 - seriesDS82111981–1986
SCANIA82 H/2102 - seriesDS8.01B122111981–1986
SCANIA82 H/2102 - seriesDS8.052111981–1986
SCANIA82 H/2102 - seriesDS8.012111981–1986
SCANIA82 H/2102 - seriesDS8.01B102111981–1986
SCANIA82 H/2102 - seriesDS8.01B112111981–1986
SCANIA82 M/1902 - seriesDS8.061901982–1988
SCANIA82 M/2102 - seriesDS8.052111981–1986
SCANIA82 M/2102 - seriesDS82111981–1986
SCANIA82 M/2102 - seriesDS8.012111981–1986
SCANIA82 M/2102 - seriesDS8.01B122111981–1986
SCANIA82 M/2102 - seriesDS8.01B122111981–1986
SCANIA82 M/2102 - seriesDS8.012111981–1986
SCANIA82 M/2102 - seriesDS8.01B102111981–1986
SCANIA82 M/2102 - seriesDS8.01B112111981–1986
SCANIA82 M/2102 - seriesDS8.012111981–1986
SCANIA82 M/2102 - seriesDS8.01B122111981–1986
SCANIA82 M/2102 - seriesDS8.052111981–1986
SCANIA82 M/2102 - seriesDS82111981–1986
SCANIA82 M/2102 - seriesDS8.01B112111981–1986
SCANIA82 M/2102 - seriesDS8.01B112111981–1986
SCANIA82 M/2102 - seriesDS82111981–1986
SCANIA82 M/2102 - seriesDS8.012111981–1986
SCANIA82 M/2102 - seriesDS8.01B102111981–1986
SCANIA82 M/2102 - seriesDS8.052111981–1986
SCANIA82 M/2102 - seriesDS82111981–1986
SCANIA82 M/2102 - seriesDS8.052111981–1986
SCANIA82 M/2102 - seriesDS8.01B102111981–1986
SCANIA82 M/2102 - seriesDS8.01B112111981–1986
SCANIA82 M/2102 - seriesDS8.01B122111981–1986
SCANIA82 M/2102 - seriesDS8.01B102111981–1986

Visar 200 av 356 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S0092 Startmotor — SCANIA, IVECO, URSUS”

Your email address will not be published. Required fields are marked *

Related products
