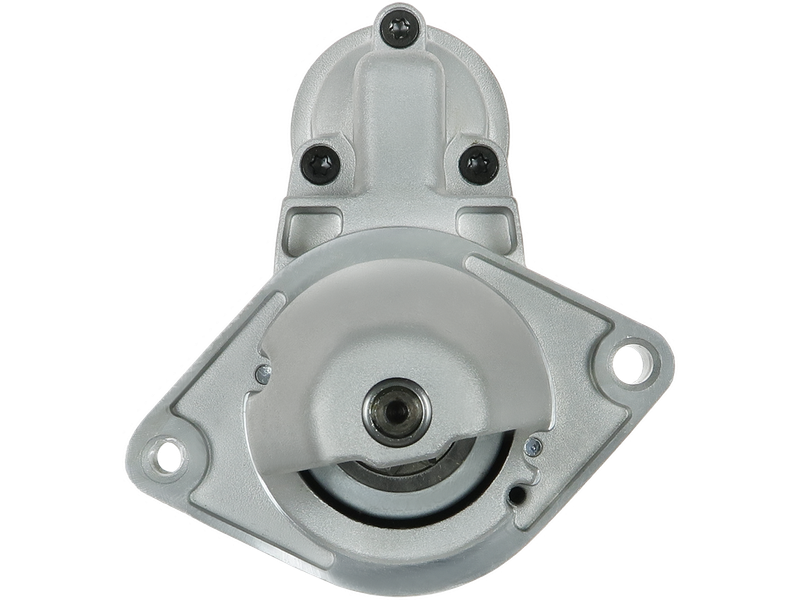

AS-PL S0100 Startmotor — FIAT, OPEL, VAUXHALL

AS-PL S0100 Startmotor — FIAT, OPEL, VAUXHALL

672,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation CW
A-storlek [ mm ] 64.00
B-storlek [ mm ] 24.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 1
L.1 [ mm ] 203.50
O.1 [ mm ] 102.00
C.1 [ mm ] 8.50
C.2 [ mm ] M8x1.25
AS-PLSTANDARD LINE
EAN5901259419788
ErsätterBOSCH
OE-nummer0001107437

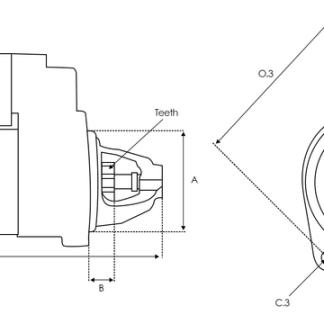

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0100 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001107437

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation CW
A-storlek [ mm ] 64.00
B-storlek [ mm ] 24.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 1
L.1 [ mm ] 203.50
O.1 [ mm ] 102.00
C.1 [ mm ] 8.50
C.2 [ mm ] M8x1.25

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ALFA ROMEO1.3 MultiJet (955AXH1B, 955AXT1A)MITO (955_)199A3.00090Diesel2008–2010
ALFA ROMEO1.3 MultiJet (955AXH1B, 955AXT1A)MITO (955_)955B2.00090Diesel2008–2010
CHEVROLET1.3 DAVEO Hatchback (T300)LSF95Diesel2011–2015
CHEVROLET1.3 DAVEO Hatchback (T300)LDV75Diesel2011–2015
CHEVROLET1.3 DAVEO Saloon (T300)LSF95Diesel2011–2015
CHEVROLET1.3 DAVEO Saloon (T300)LDV75Diesel2011–2015
FIAT1.3 D (356HXH1A)TIPO Hatchback (356_, 357_)5526696395Diesel2016–
FIAT1.3 D (356HXH1A)TIPO Hatchback (356_, 357_)4634526695Diesel2016–
FIAT1.3 D (356HXH1A)TIPO Hatchback (356_, 357_)5528377595Diesel2016–
FIAT1.3 D (356SXB1A, 356SXH1A, 356SXD1A)TIPO Saloon (356_, 357_)5526696395Diesel2015–2020
FIAT1.3 D (356SXB1A, 356SXH1A, 356SXD1A)TIPO Saloon (356_, 357_)4634526695Diesel2015–2020
FIAT1.3 D (356SXB1A, 356SXH1A, 356SXD1A)TIPO Saloon (356_, 357_)5528377595Diesel2015–2020
FIAT1.3 D (356SXB1A, 356SXH1A, 356SXD1A)TIPO Saloon (356_, 357_)199B1.00095Diesel2015–2020
FIAT1.3 D (356WXH1A)TIPO Estate (356_, 357_)4634526695Diesel2016–
FIAT1.3 D (356WXH1A)TIPO Estate (356_, 357_)5528377595Diesel2016–
FIAT1.3 D (356WXH1A)TIPO Estate (356_, 357_)5526696395Diesel2016–
FIAT1.3 D MultijetDOBLO Box Body/MPV (223_)199A2.00075Diesel2005–2010
FIAT1.3 D MultijetDOBLO Cargo (263_)263A6.00075Diesel2013–
FIAT1.3 D MultijetDOBLO Cargo (263_)199A3.00090Diesel2010–
FIAT1.3 D MultijetDOBLO Cargo (263_)263A2.00090Diesel2010–
FIAT1.3 D MultijetDOBLO MPV (119_, 223_)223A9.00084Diesel2005–
FIAT1.3 D MultijetDOBLO Platform/Chassis (263_)263A2.00090Diesel2010–
FIAT1.3 D MultijetDOBLO Platform/Chassis (263_)263A6.00075Diesel2013–
FIAT1.3 D MultijetDOBLO Platform/Chassis (263_)199A3.00090Diesel2010–
FIAT1.3 D MultijetGRANDE PUNTO (199_)223A9.00084Diesel2010–
FIAT1.3 D MultijetGRANDE PUNTO (199_)199B2.00069Diesel2008–
FIAT1.3 D MultijetGRANDE PUNTO (199_)199A2.00075Diesel2005–2013
FIAT1.3 D MultijetGRANDE PUNTO (199_)199B4.00084Diesel2010–
FIAT1.3 D MultijetGRANDE PUNTO (199_)199A9.00075Diesel2005–2013
FIAT1.3 D MultijetIDEA (350_)199A3.00090Diesel2005–
FIAT1.3 D MultijetIDEA (350_)188A9.00070Diesel2004–
FIAT1.3 D MultijetIDEA (350_)199B1.00095Diesel2008–2012
FIAT1.3 D MultijetPANDA Hatchback Van (169_)188A8.00070Diesel2004–
FIAT1.3 D MultijetPANDA Hatchback Van (169_)169A1.00075Diesel2006–
FIAT1.3 D MultijetPUNTO (199_)199A2.00075Diesel2012–
FIAT1.3 D MultijetPUNTO (199_)199B8.00080Diesel2013–
FIAT1.3 D MultijetPUNTO (199_)199A9.00075Diesel2012–
FIAT1.3 D MultijetPUNTO EVO (199_)199B2.00069Diesel2008–2012
FIAT1.3 D MultijetPUNTO EVO (199_)199B1.00095Diesel2009–2012
FIAT1.3 D MultijetPUNTO Hatchback Van (199_)199A2.00075Diesel2008–
FIAT1.3 D MultijetPUNTO Hatchback Van (199_)199A9.00075Diesel2008–
FIAT1.3 D MultijetPUNTO Hatchback Van (199_)199B1.00095Diesel2009–
FIAT1.3 D Multijet (169.AXC1A)PANDA (169_)188A8.00070Diesel2003–
FIAT1.3 D Multijet (169AXG1A, 169AXD1A)PANDA (169_)169A1.00075Diesel2006–2013
FIAT1.3 D Multijet (169AXG1A, 169AXD1A)PANDA (169_)169A5.00075Diesel2006–2013
FIAT1.3 D Multijet (199.AXD11, 199.AXD1A, 199.AXD1B,...GRANDE PUNTO (199_)199A3.00090Diesel2005–2010
FIAT1.3 D Multijet (199.AXT1A, 199.AXC1A)PUNTO EVO Hatchback Van (199_)199A9.00075Diesel2009–2012
FIAT1.3 D Multijet (199.AXT1A, 199.AXC1A)PUNTO EVO Hatchback Van (199_)199A2.00075Diesel2009–2012
FIAT1.3 D Multijet (199AXC1A, 199BXC1A, 199AXT1A, 199BXT1A)PUNTO EVO (199_)199A2.00075Diesel2009–2012
FIAT1.3 D Multijet (199AXC1A, 199BXC1A, 199AXT1A, 199BXT1A)PUNTO EVO (199_)199A9.00075Diesel2009–2012
FIAT1.3 D Multijet (199AXD1B, 199AXD1A, 199BXD1B, 199BXD1A,...PUNTO EVO (199_)199A3.00090Diesel2009–2012
FIAT1.3 D Multijet (199CXD1B, 199CXD1A)PUNTO EVO Hatchback Van (199_)199A3.00090Diesel2009–2012
FIAT1.3 D Multijet (225AXG1A, 225CXG1A, 225AXG11, 225CXG11)QUBO (225_)225A2.00080Diesel2015–
FIAT1.3 D Multijet (225BXD1A, 225BXB1A, 225BXB11)FIORINO Box Body/MPV (225_)199A9.00075Diesel2007–
FIAT1.3 D Multijet (225BXD1A, 225BXB1A, 225BXB11)FIORINO Box Body/MPV (225_)199A2.00075Diesel2007–
FIAT1.3 D Multijet (225CXB1A, 225AXB1A, 225CXB11, 225AXB11,...QUBO (225_)199A2.00075Diesel2008–
FIAT1.3 D Multijet (225CXB1A, 225AXB1A, 225CXB11, 225AXB11,...QUBO (225_)199A9.00075Diesel2008–
FIAT1.3 D Multijet (263AXC1A)DOBLO Bus (263_)263A2.00090Diesel2010–
FIAT1.3 D Multijet (263AXC1A)DOBLO Bus (263_)199A3.00090Diesel2010–
FIAT1.3 D Multijet (263AXU1A, 263AYB1A)DOBLO Bus (263_)330A1.00095Diesel2016–
FIAT1.3 D Multijet (263AXU1A, 263AYB1A)DOBLO Bus (263_)5528377595Diesel2016–
FIAT1.3 D Multijet (263HXT1A, 263YXT1A, 263YYA1A, 263HYA1A)DOBLO Platform/Chassis (263_)5528377580Diesel2016–
FIAT1.3 D Multijet (263HXT1A, 263YXT1A, 263YYA1A, 263HYA1A)DOBLO Platform/Chassis (263_)225A2.00080Diesel2016–
FIAT1.3 D Multijet (263HXU1A, 263YXU1A, 263HYB1A, 263YYB1A)DOBLO Platform/Chassis (263_)5528377595Diesel2016–
FIAT1.3 D Multijet (263HXU1A, 263YXU1A, 263HYB1A, 263YYB1A)DOBLO Platform/Chassis (263_)330A1.00095Diesel2016–
FIAT1.3 D Multijet (263WXU1A, 263ZXU1A, 263WYB1A, 263ZYB1A)DOBLO Cargo (263_)5528377595Diesel2016–
FIAT1.3 D Multijet (263WXU1A, 263ZXU1A, 263WYB1A, 263ZYB1A)DOBLO Cargo (263_)330A1.00095Diesel2016–
FIAT1.3 D Multijet (263ZXT1A, 263WXT1A, 263ZYA1A, 263WYA1A)DOBLO Cargo (263_)225A2.00080Diesel2016–
FIAT1.3 D Multijet (263ZXT1A, 263WXT1A, 263ZYA1A, 263WYA1A)DOBLO Cargo (263_)5528377580Diesel2016–
FIAT1.3 D Multijet (278AYR1A)STRADA Pickup (178_, 278_)199B1.00095Diesel2010–
FIAT1.3 D Multijet (312AXB1A)500 (312_)169A1.00075Diesel2007–
FIAT1.3 D Multijet (312AXE1A)500 (312_)312B1.00095Diesel2009–
FIAT1.3 D Multijet (312AXE1A)500 (312_)199B1.00095Diesel2009–
FIAT1.3 D Multijet (312CXB1A)500 C (312_)169A1.00075Diesel2009–
FIAT1.3 D Multijet (312CXE1A, 312AXE1A)500 C (312_)312B1.00095Diesel2009–
FIAT1.3 D Multijet (312CXE1A, 312AXE1A)500 C (312_)199B1.00095Diesel2009–
FIAT1.3 D Multijet (323AXB11, 323AXB1A)LINEA (323_, 110_)199A3.00090Diesel2007–
FIAT1.3 D Multijet 4x4PANDA Hatchback Van (169_)169A1.00075Diesel2006–
FIAT1.3 D Multijet 4x4 (169.AXC2A)PANDA (169_)188A8.00070Diesel2004–
FIAT1.3 JTDDOBLO MPV (119_, 223_)199A2.00075Diesel2005–
FIAT1.3 JTDPUNTO Hatchback Van (188_)188A9.00069Diesel2003–2005
FIAT1.3 JTD 16VDOBLO Box Body/MPV (223_)188A9.00070Diesel2004–2006
FIAT1.3 JTD 16VDOBLO Box Body/MPV (223_)188A8.00070Diesel2004–2006
FIAT1.3 JTD 16VDOBLO MPV (119_, 223_)188A9.00070Diesel2004–2005
FIAT1.3 JTD 16VPUNTO (188_)188A9.00070Diesel2003–2012
FIAT1.3 JTD 16V MultijetDOBLO Box Body/MPV (223_)223A9.00084Diesel2006–
FIAT1.3 JTD Multijet 4x4 (169AXG1A, 169AXG2A)PANDA (169_)169A1.00075Diesel2010–2013
FIAT1.3 JTD Multijet 4x4 (169AXG1A, 169AXG2A)PANDA (169_)169A5.00075Diesel2010–2013
FIAT1.4 T-Jet (323AXC1A)LINEA (323_, 110_)198A4.000120Petrol2007–
LANCIA1.3 D Multijet (350.AXB11, 350.AXB1A)MUSA (350_)188A9.00070Diesel2004–2012
LANCIA1.3 D Multijet (350.AXG11, 350.AXG1A)MUSA (350_)199A3.00090Diesel2006–2012
LANCIA1.3 D Multijet (843.AXE11, 843.AXE1A)YPSILON (843_)199A3.00090Diesel2006–2011
LANCIA1.3 D Multijet (843.AXF11, 843.AXF1A, 843.AXM11,...YPSILON (843_)199A9.00075Diesel2006–2011
LANCIA1.3 D Multijet (843.AXF11, 843.AXF1A, 843.AXM11,...YPSILON (843_)199A2.00075Diesel2006–2011
LANCIA1.3 D Multijet (843.AXH1A, 843.AXE1A)YPSILON (843_)199A3.000105Diesel2007–2011
LANCIA1.3 JTD (843.AXD11, 843.AXD1A)YPSILON (843_)188A9.00070Diesel2003–2011
OPEL1.3 CDTI (08)CORSA E Hatchback Van (X15)B13DTE95Diesel2014–
OPEL1.3 CDTI (08)CORSA E Hatchback Van (X15)B13DTN75Diesel2015–
OPEL1.3 CDTI (08)CORSA E Hatchback Van (X15)B13DTR95Diesel2014–
OPEL1.3 CDTI (08)CORSA E Hatchback Van (X15)B13DTC75Diesel2015–
OPEL1.3 CDTI (08, 68)CORSA E (X15)B13DTN75Diesel2014–
OPEL1.3 CDTI (08, 68)CORSA E (X15)B13DTR95Diesel2014–
OPEL1.3 CDTI (08, 68)CORSA E (X15)B13DTC75Diesel2014–
OPEL1.3 CDTI (08, 68)CORSA E (X15)B13DTE95Diesel2014–
OPEL1.3 CDTI (35)ASTRA J Sports Tourer (P10)A13DTE95Diesel2010–2014
OPEL1.3 CDTI (68)ASTRA J (P10)A13DTE95Diesel2009–2015
OPEL1.3 CDTI (69)ASTRA J SaloonA13DTE95Diesel2012–2015
OPEL1.3 CDTI (75)MERIVA B MPV (S10)A13DTE95Diesel2010–2014
OPEL1.3 CDTI (75)MERIVA B MPV (S10)A13DTC75Diesel2010–2013
OPEL1.3 CDTI (E75)MERIVA A MPV (X03)Z13DT69Diesel2005–2010
OPEL1.3 CDTI (E75)MERIVA A MPV (X03)Z13DTJ75Diesel2003–2010
OPEL1.3 CDTI (E75)MERIVA A MPV (X03)Y13DT69Diesel2005–2010
OPEL1.3 CDTI (F08, F68)CORSA C (X01)Z13DT70Diesel2003–2009
OPEL1.3 CDTI (F08, F68)CORSA C (X01)Y13DT70Diesel2003–2009
OPEL1.3 CDTI (F68)AGILA (A) (H00)Z13DT70Diesel2003–2007
OPEL1.3 CDTI (F68)AGILA (B) (H08)Z13DTJ75Diesel2008–2010
OPEL1.3 CDTI (F68)AGILA (B) (H08)D13A75Diesel2008–2010
OPEL1.3 CDTI (L08)ASTRA H GTC (A04)Z13DTH90Diesel2005–2010
OPEL1.3 CDTI (L08)CORSA D Hatchback Van (S07)Z13DTH90Diesel2006–2010
OPEL1.3 CDTI (L08)CORSA D Hatchback Van (S07)A13DTR95Diesel2009–2014
OPEL1.3 CDTI (L08)CORSA D Hatchback Van (S07)Z13DTJ75Diesel2006–2014
OPEL1.3 CDTI (L08)CORSA D Hatchback Van (S07)A13DTE95Diesel2009–2014
OPEL1.3 CDTI (L08)CORSA D Hatchback Van (S07)Z13DTE95Diesel2009–2014
OPEL1.3 CDTI (L08)CORSA D Hatchback Van (S07)A13DTC75Diesel2006–2014
OPEL1.3 CDTI (L08, L68)CORSA D (S07)Z13DTE95Diesel2009–2014
OPEL1.3 CDTI (L08, L68)CORSA D (S07)Z13DTJ75Diesel2006–2014
OPEL1.3 CDTI (L08, L68)CORSA D (S07)A13DTR95Diesel2009–2014
OPEL1.3 CDTI (L08, L68)CORSA D (S07)A13DTC75Diesel2006–2014
OPEL1.3 CDTI (L08, L68)CORSA D (S07)Z13DTH90Diesel2006–2011
OPEL1.3 CDTI (L08, L68)CORSA D (S07)A13DTE95Diesel2009–2014
OPEL1.3 CDTI (L35)ASTRA H Estate (A04)Z13DTH90Diesel2005–2010
OPEL1.3 CDTI (L48)ASTRA H (A04)Z13DTH90Diesel2005–2010
OPEL1.3 CDTI (L48)ASTRA H CLASSIC Hatchback (A04)Z13DTH90Diesel2009–
OPEL1.3 CDTI (L70)ASTRA H Estate Van (L70)Z13DTH90Diesel2005–2010
OPEL1.3 CDTI (R97)TIGRA TwinTop (X04)Z13DT69Diesel2004–2010
OPEL1.3 CDTI 16VCOMBO Box Body/MPVZ13DT69Diesel2005–
OPEL1.3 CDTI 16VCOMBO Box Body/MPVZ13DTJ75Diesel2005–2012
OPEL1.3 CDTI 16VCOMBO TourZ13DT69Diesel2004–2011
OPEL1.3 CDTI 16VCOMBO TourZ13DTJ75Diesel2005–2011
OPEL1.3 CDTI 16VCOMBO TourY13DT69Diesel2004–2011
OPEL1.3 CDTI 16V (F08, W5L)CORSA C Hatchback Van (X01)Z13DT69Diesel2005–2006
OPEL1.3 CDTi (35)ASTRA J Estate Van (P10)A13DTE95Diesel2012–2015
OPEL1.3 CDTi (68)ASTRA J Hatchback Van (P10)A13DTE95Diesel2013–2015
OPEL1.3 CDTi (75)MERIVA B VAN (S10)A13DTE95Diesel2013–2014
OPEL1.3 CDTi (L69)ASTRA H Saloon (A04)Z13DTH90Diesel2007–2010
SAAB1.9 TiD9-3 (YS3F, E79, D79, D75)Z19DT120Diesel2004–2015
SUBARU1.3 CDTiJUSTY III (G3X)Z13DT69Diesel2003–2007
SUZUKI1.3 CDTI (A5B413D)SPLASH (EX)D13A75Diesel2008–
SUZUKI1.3 CDTI (A5B413D)SPLASH (EX)Z13DTJ75Diesel2008–
SUZUKI1.3 DDiS (AZG413D, ZC02S, ZC92S)SWIFT IV (FZ, NZ)D13A75Diesel2010–
SUZUKI1.3 DDiS (AZG413D, ZC02S, ZC92S)SWIFT IV (FZ, NZ)D13AA75Diesel2010–
SUZUKI1.3 DDiS (RB413D)WAGON R+ (MA)Z13DT70Diesel2003–
SUZUKI1.3 DDiS (RM413D)IGNIS II (MH)Z13DT70Diesel2003–
SUZUKI1.3 DDiS (RS413D)SWIFT III (MZ, EZ)Z13DTJ75Diesel2005–2011
SUZUKI1.3 DDiS (RS413D)SWIFT III (MZ, EZ)D13A75Diesel2005–2011
SUZUKI1.3 DDiS (RS413D)SWIFT III (MZ, EZ)Z13DT69Diesel2005–
VAUXHALL1.3 CDTICORSAVAN Mk III (D) Hatchback Van (S07)Z13DTH90Diesel2006–
VAUXHALL1.3 CDTICORSAVAN Mk III (D) Hatchback Van (S07)Z13DTJ75Diesel2006–
VAUXHALL1.3 CDTIMERIVA A (X03)Y13DT69Diesel2005–2010
VAUXHALL1.3 CDTITIGRA TwinTop (X04)Z13DT69Diesel2004–2009
VAUXHALL1.3 CDTI (L08)CORSA Mk III (D) (S07)Z13DTJ75Diesel2006–2014
VAUXHALL1.3 CDTI 16VCOMBO Mk II (C) Box Body/MPV (F25)Z13DT69Diesel2004–2012
VAUXHALL1.3 CDTI 16VCOMBO TOUR Mk II (C) (F25)Z13DT69Diesel2004–2006
VAUXHALL1.3 CDTI 16V (F08)CORSAVAN Mk II (C) Hatchback Van (X01)Z13DT70Diesel2004–2006
VAUXHALL1.3 CDTI 16V (F08, F68)CORSA Mk II (C) (X01)Z13DT69Diesel2003–2007
VAUXHALL1.3 CDTiMerivaZ13DT02005–2010
VAUXHALL1.3 CDTi (L08)ASTRA Mk V (H) Sport Hatch (A04)Z13DTH90Diesel2005–2010
VAUXHALL1.3 CDTi 16VCorsaZ13DTJ02005–2006

Reviews

There are no reviews yet.

Be the first to review “AS-PL S0100 Startmotor — FIAT, OPEL, VAUXHALL”

Your email address will not be published. Required fields are marked *

Related products
