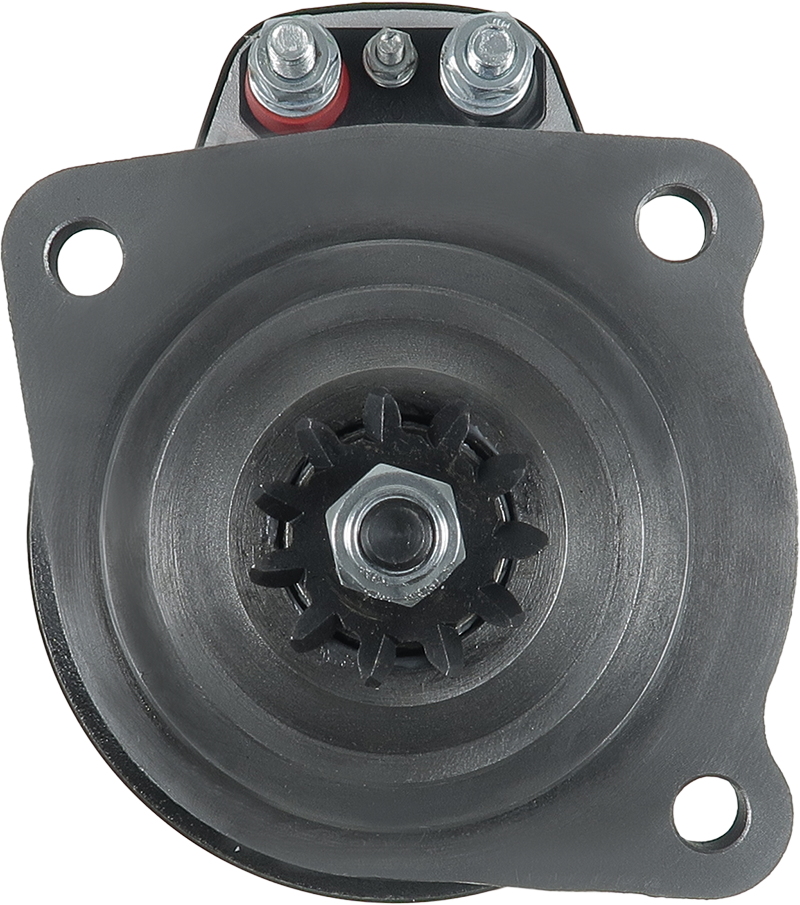

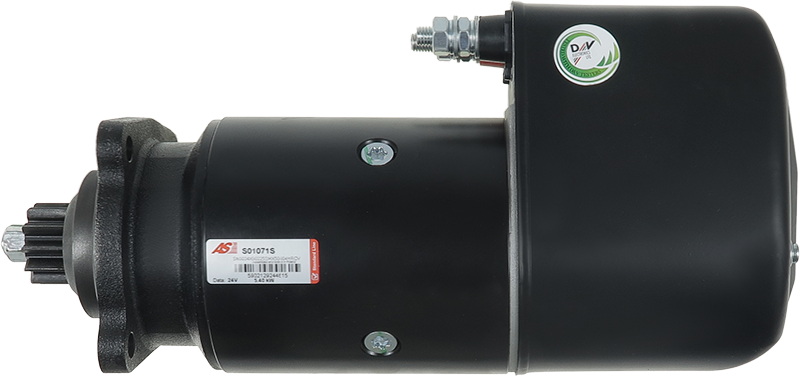

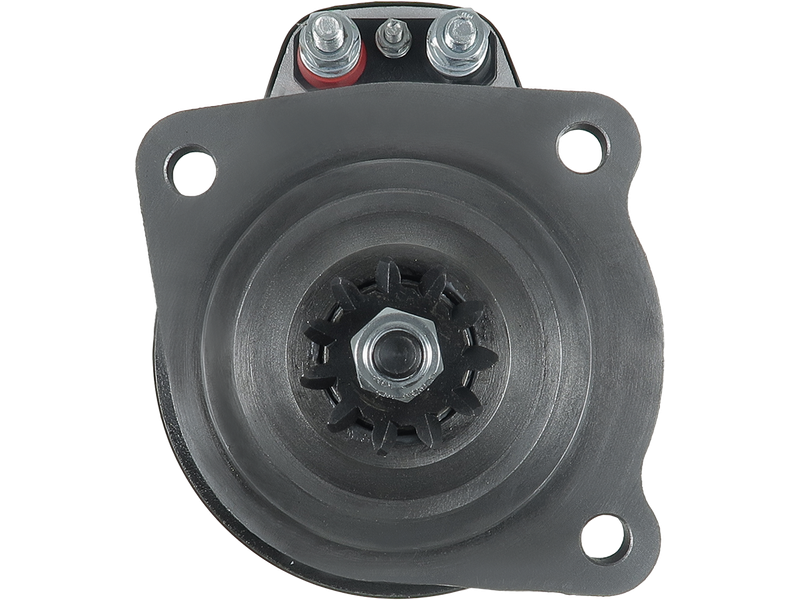

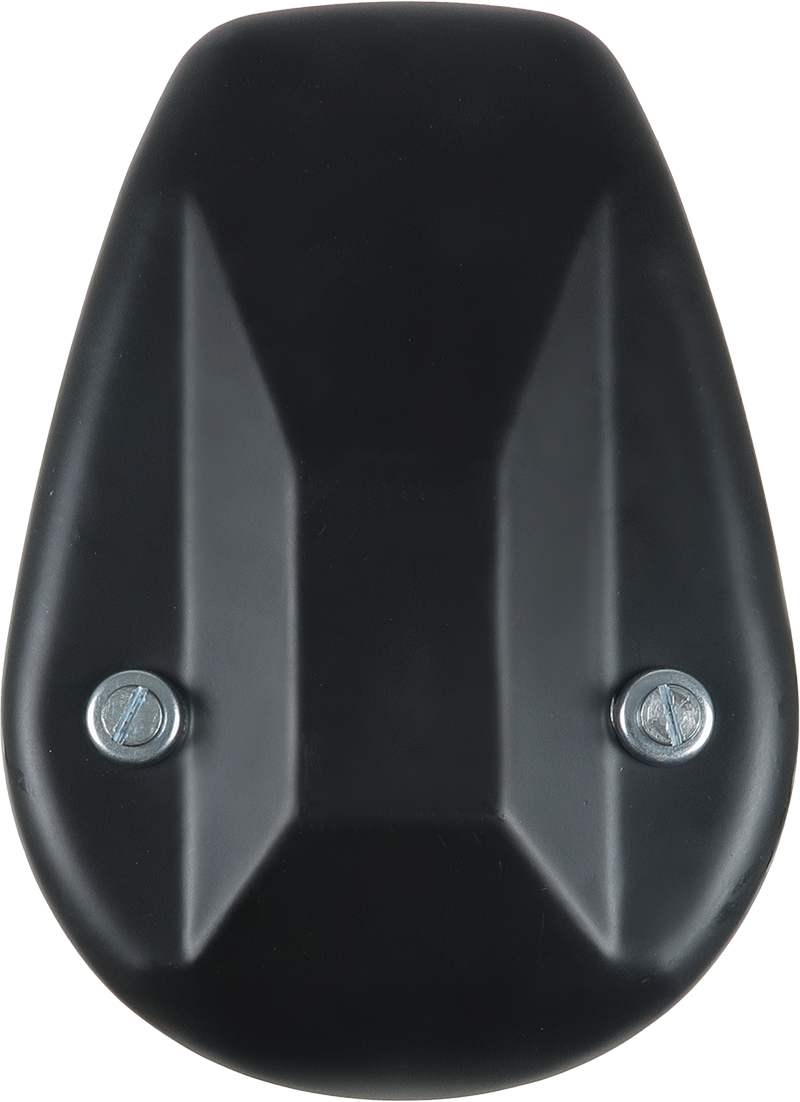

AS-PL S01071S Startmotor — VOLVO, DAF
AS-PL S01071S Startmotor — VOLVO, DAF - Image 2
AS-PL S01071S Startmotor — VOLVO, DAF - Image 3
AS-PL S01071S Startmotor — VOLVO, DAF - Image 4
AS-PL S01071S Startmotor — VOLVO, DAF - Image 5

AS-PL S01071S Startmotor — VOLVO, DAF

2 379,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 5.40
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 46.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 390.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5902129244615
ErsätterBOSCH
OE-nummer0001416007

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S01071S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001416007

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 5.40
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 46.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 390.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
DAFFA 2600 DKBF 2600DKB11603081972–1973
DAFFA 2700 HSF 2700HS8252721990–1993
DAFFA 2800 DKAF 2800DKA11602301974–1980
DAFFA 2800 DKSF 2800DKS11603101974–1986
DAFFA 2800 DKSEF 2800DKS1160E2801980–1986
DAFFA 2800 DKTF 2800DKT11602901974–1980
DAFFA 2800 DKTDF 2800DKTD11602561986–1991
DAFFA 2800 DKTDF 2800DKTD11602561974–1986
DAFFA 2805 DKSE,FA 2800 DKV,FA 2800 DKXEF 2800DKS1160E280-2881983–1991
DAFFA 2805 DKSE,FA 2800 DKV,FA 2800 DKXEF 2800DKXE1160280-2881983–1991
DAFFA 2805 DKSE,FA 2800 DKV,FA 2800 DKXEF 2800DKV1160280-2881983–1991
DAFFA 3300 DKX,FA 3305 DKXF 3300DKX1160ATi3541985–1991
DAFFA 3300 DKX,FA 3305 DKXF 3300DKX11603301981–1986
DAFFA 3605 DKZF 3600DKZ1160ATI3731985–1991
DAFFA 3605 DKZEF 3600DKZE11603071985–1991
DAFFAB 2700 HS, FAG 2700 HS, FAR 2700 HSF 2700HS8252721990–1993
DAFFAB 2805 DKS,FAR 2800 DKS,FAS 2800 DKSF 2800DKS11603101974–1986
DAFFAB 2805 DKTD,FAS 2800 DKTDF 2800DKTD11602561974–1986
DAFFAB 2805 DKTD,FAS 2800 DKTDF 2800DKTD11602561974–1986
DAFFAB 3305 DKX,FAG 3300 DKX,FAR 3300 DKX,FAS 3303 DKXF 3300DKX11603301981–1986
DAFFAB 3305 DKX,FAG 3300 DKX,FAR 3300 DKX,FAS 3303 DKXF 3300DKX11603301981–1986
DAFFAC 2803 DKSF 2800DKS11603101974–1986
DAFFAC 2803 DKSEF 2800DKS1160E2801980–1990
DAFFAC 2803 DKTDF 2800DKTD11602561974–1991
DAFFAC 3303 DKXF 3300DKX1160ATi3541985–1991
DAFFAC 3303 DKXF 3300DKX11603301981–1986
DAFFAC 3603 DKZF 3600DKZ1160ATI3731985–1991
DAFFAD 2805 DKSF 2800DKS11603101974–1986
DAFFAD 2805 DKTDF 2800DKTD11602561974–1986
DAFFAD 2825 DKTDF 2800DKTD11602561986–1991
DAFFAD 2825 DKTDF 2800DKTD11602561974–1991
DAFFAD 2825 DKVF 2800DKV11602881983–1991
DAFFAD 3325 DKXF 3300DKX1160ATi3541985–1991
DAFFAD 3325 DKXF 3300DKX11603301981–1986
DAFFAG 2800 DKV,FAR 2804 DKXE,FAS 2803 DKXE,DKSE,DKVF 2800DKV11602881983–1991
DAFFAG 2800 DKV,FAR 2804 DKXE,FAS 2803 DKXE,DKSE,DKVF 2800DKXE11602881983–1991
DAFFAG 3300 DKX,FAR 3304 DKX,FAS 3303 DKXF 3300DKX1160ATi3541985–1991
DAFFAG 3300 DKX,FAR 3304 DKX,FAS 3303 DKXF 3300DKX1160ATi3541985–1991
DAFFAG 3600 DKZ,FAR 3604 DKZ,FAS 3603 DKZF 3600DKZ1160ATI3731985–1991
DAFFAR 2804 DKSE,FAS 2800 DKTF 2800DKT1160280-2901980–1986
DAFFAR 2804 DKSE,FAS 2800 DKTF 2800DKS1160E280-2901980–1986
DAFFAR 3604 DKZE,FAS 3603 DKZEF 3600DKZE11603071985–1991
DAFFAS 2600 DKBF 2600DKB11603081972–1973
DAFFAS 2800 DKAF 2800DKA11602301974–1980
DAFFAS 2803 DKSF 2800DKS11603101986–1991
DAFFAS 2803 DKTDF 2800DKTD11602561986–1991
DAFFAT 2600 DKBF 2600DKB11603081972–1973
DAFFAT 2700 HSF 2700HS8252721990–1993
DAFFAT 2800 DKAF 2800DKA11602301974–1980
DAFFAT 2800 DKSF 2800DKS11603101974–1986
DAFFAT 2800 DKTF 2800DKT11602901974–1980
DAFFAT 2800 DKTDF 2800DKTD11602561974–1986
DAFFAT 2805 DKS,FAT 2825 DKSF 2800DKTD11602561986–1991
DAFFAT 2805 DKTD,FAT 2825 DKTDF 2800DKTD11602561986–1991
DAFFAT 3325 DKXF 3300DKX11603301981–1986
DAFFAT 3325 DKXF 3300DKX1160ATi3541985–1991
DAFFMD 2805 DKTD,FMD 2825 DKTDF 2800DKTD11602561986–1991
DAFFMD 2805 DKTD,FMD 2825 DKTDF 2800DKTD11602561974–1986
DAFFMD 2825 DKVF 2800DKV11602881983–1991
DAFFMT 2700 HSF 2700HS8252721990–1993
DAFFT 2600 DKBF 2600DKB11603081972–1973
DAFFT 2700 HSF 2700HS8252721990–1993
DAFFT 2800 DKAF 2800DKA11602301974–1980
DAFFT 2800 DKSF 2800DKS11603101974–1986
DAFFT 2800 DKSE,FT 2800DKXE,FT 2800 DKVF 2800DKV1160280-2881980–1991
DAFFT 2800 DKSE,FT 2800DKXE,FT 2800 DKVF 2800DKS1160E280-2881980–1991
DAFFT 2800 DKSE,FT 2800DKXE,FT 2800 DKVF 2800DKXE1160280-2881980–1991
DAFFT 2800 DKTF 2800DKT11602901974–1980
DAFFT 2800 DKTDF 2800DKTD11602561974–1986
DAFFT 2805 DKSF 2800DKS11603101986–1991
DAFFT 2805 DKTDF 2800DKTD11602561986–1991
DAFFT 3305 DKXF 3300DKX1160ATi3541985–1991
DAFFT 3305 DKXF 3300DKX11603301981–1986
DAFFT 3605 DKZF 3600DKZ1160ATI3731985–1991
DAFFT 3605 DKZEF 3600DKZE11603071985–1991
DAFFTG 3300 DKX,FTS 3300 DKXF 3300DKX11603301981–1986
DAFFTG 3300 DKX,FTS 3303 DKXF 3300DKX1160ATi3541985–1991
DAFFTG 3300 DKX,FTS 3303 DKXF 3300DKX1160ATi3541985–1991
DAFFTG 3600 DKZ,FTS 3603 DKZF 3600DKZ1160ATI3731985–1991
DAFFTG 3600 DKZ,FTS 3603 DKZF 3600DKZ1160ATI3731985–1991
DAFFTS 2800 DKAF 2800DKA11602301974–1980
DAFFTS 2800 DKSF 2800DKS11603101974–1986
DAFFTS 2800 DKTF 2800DKT11602901974–1980
DAFFTS 2800 DKTDF 2800DKTD11602561974–1986
DAFFTS 2803 DKSF 2800DKS11603101986–1991
DAFFTS 2803 DKTDF 2800DKTD11602561986–1991
DAFFTT 2600 DKBF 2600DKB11603081972–1973
DAFFTT 2800 DKAF 2800DKA11602301974–1980
DAFFTT 2800 DKSF 2800DKS11603101974–1986
DAFFTT 2800 DKTF 2800DKT11602901974–1980
DAFFTT 2800 DKTDF 2800DKTD11602561974–1986
DAFFTT 2805 DKS,FTT 2815 DKS,FTT2825 DKSF 2800DKS1160306-3101986–1991
DAFFTT 2805 DKTDF 2800DKTD11602561986–1991
DAFFTT 3325 DKXF 3300DKX11603301981–1986
DAFFTT 3325 DKXF 3300DKX1160ATi3541985–1991
DAFFTT 3625 DKZF 3600DKZ1160ATI3731985–1991
DAFNAT 2826 DKSN 2800DKS11603101981–1991
VOLVOB12B12D12D3803791991–2006
VOLVOB12B12TD122FH3561992–
VOLVOB12B12D12A4204201991–2006
VOLVOB12B12D12B3903851991–2006
VOLVOB12B12TD122FH3561991–2006
VOLVOB12B12D12B4304241991–2006
VOLVOB12B12D12A3703701991–2006
VOLVOB12B12D12D3803791991–2006
VOLVOB12B12D12B4304241991–2006
VOLVOB12B12TD122FL3961991–2006
VOLVOB12B12TD123EC3051991–2006
VOLVOB12B12D12A4204201992–
VOLVOB12B12D12A3703701991–2006
VOLVOB12B12TD123EC3051991–2006
VOLVOB12B12D12D3403401991–2006
VOLVOB12B12D12A3803791991–2006
VOLVOB12B12D12A4104151991–2006
VOLVOB12B12TD123ES396-4051992–
VOLVOB12B12D12D3403401991–2006
VOLVOB12B12D12C3903851991–2006
VOLVOB12B12D12A3803791991–2006
VOLVOB12B12D12D4204201991–2006
VOLVOB12B12D12C3903851991–2006
VOLVOB12B12TD123E3561991–2006
VOLVOB12B12D12C4304241991–2006
VOLVOB12B12D12A3403401991–2006
VOLVOB12B12D12C4304241991–2006
VOLVOB12B12TD123ES4051991–2006
VOLVOB12B124151991–2006
VOLVOB12B12TD122FL396-4051992–
VOLVOB12B12D12A3403401991–2006
VOLVOB12B12D12B3903851991–2006
VOLVOF 10/260F10TD100GA261-2721983–1985
VOLVOF 10/260F10TD100G261-2721982–1985
VOLVOF 10/260F10TD101G261-2721982–1985
VOLVOF 10/260F10TD100G261-2721982–1985
VOLVOF 10/260F10TD101G261-2721982–1985
VOLVOF 10/260F10TD100GA261-2721982–1985
VOLVOF 10/260F10TD101G261-2721982–1985
VOLVOF 10/260F10TD101G261-2721982–1985
VOLVOF 10/260F10TD100G261-2721982–1985
VOLVOF 10/260F10TD100G261-2721983–1985
VOLVOF 10/260F10TD100GA261-2721982–1985
VOLVOF 10/260F10TD100GA261-2721982–1985
VOLVOF 10/260F10TD101G261-2721982–1985
VOLVOF 10/260F10TD101G261-2721983–1985
VOLVOF 10/260F10TD100GA261-2721982–1985
VOLVOF 10/260F10TD100G261-2721982–1985
VOLVOF 10/260F10TD100GA261-2721982–1985
VOLVOF 10/260F10TD101G261-2721982–1985
VOLVOF 10/260F10TD100G261-2721982–1985
VOLVOF 10/260F10TD100G261-2721982–1985
VOLVOF 10/260F10TD100GA261-2721982–1985
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 10/300F10TD101FA292-2991984–1986
VOLVOF 10/300F10TD101F292-2991984–1986
VOLVOF 10/300F10TD101FA292-2991987–1987
VOLVOF 10/300F10TD101F292-2991984–1986
VOLVOF 10/300F10TD101F292-2991984–1986
VOLVOF 10/300F10TD101FA292-2991983–1986
VOLVOF 10/300F10TD101FA292-2991987–1987
VOLVOF 10/300F10TD101F292-2991987–1987
VOLVOF 10/300F10TD101FA292-2991984–1986
VOLVOF 10/300F10TD101F292-2991987–1987
VOLVOF 10/300F10TD101FA292-2991984–1986
VOLVOF 10/300F10TD101F292-2991983–1986
VOLVOF 10/310F10TD102FM3131987–1995
VOLVOF 10/310F10TD102F3131987–1995
VOLVOF 10/310F10TD102FM3131987–1995
VOLVOF 10/310F10TD102F3131987–1995
VOLVOF 10/310F10TD102F3131987–1995
VOLVOF 10/310F10TD102FM3131987–1995
VOLVOF 10/310F10TD102FM3131987–1995
VOLVOF 10/310F10TD102F3131987–1995
VOLVOF 10/310F10TD102F3131987–1995
VOLVOF 10/310F10TD102F3131987–1995
VOLVOF 10/310F10TD102FM3131987–1995
VOLVOF 10/310F10TD102FM3131987–1995
VOLVOF 10/310F10TD102F3131987–1995
VOLVOF 10/310F10TD102F3131987–1995
VOLVOF 10/310F10TD102FM3131987–1995
VOLVOF 10/310F10TD102FM3131987–1995
VOLVOF 10/310F10TD102F3131987–1995
VOLVOF 10/310F10TD102FM3131987–1995
VOLVOF 10/320F10TD102F310-3201987–1990
VOLVOF 10/320F10TD102FDQ310-3201987–1990
VOLVOF 10/320F10TD102FM310-3201990–1994
VOLVOF 10/320F10TD102FDQ310-3201990–1994
VOLVOF 10/320F10TD102FF310-3201987–1990
VOLVOF 10/320F10TD103E310-3201990–1994
VOLVOF 10/320F10TD103E310-3201987–1990
VOLVOF 10/320F10TD102FBQ310-3201990–1994
VOLVOF 10/320F10TD102FM310-3201990–1994
VOLVOF 10/320F10TD103E310-3201990–1994
VOLVOF 10/320F10TD102F310-3201990–1994
VOLVOF 10/320F10TD102FBQ310-3201987–1990
VOLVOF 10/320F10TD102FDQ310-3201990–1994
VOLVOF 10/320F10TD102FF3201987–1995
VOLVOF 10/320F10TD102FBQ310-3201990–1994

Visar 200 av 843 fordon
