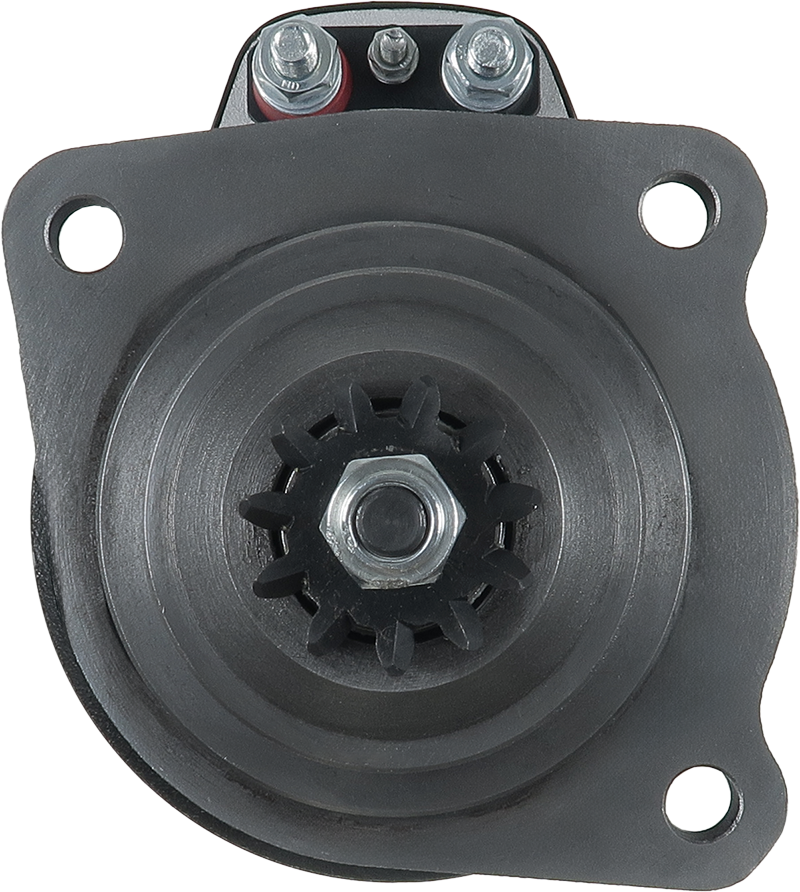

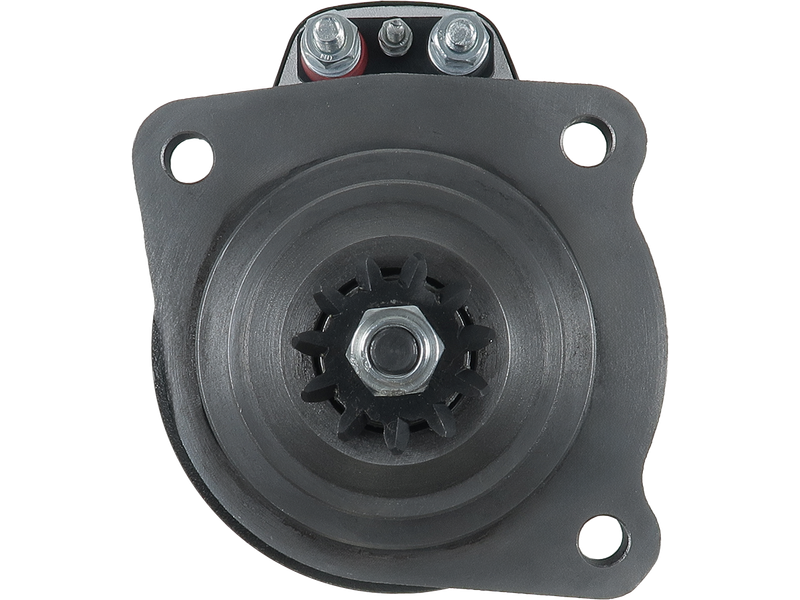

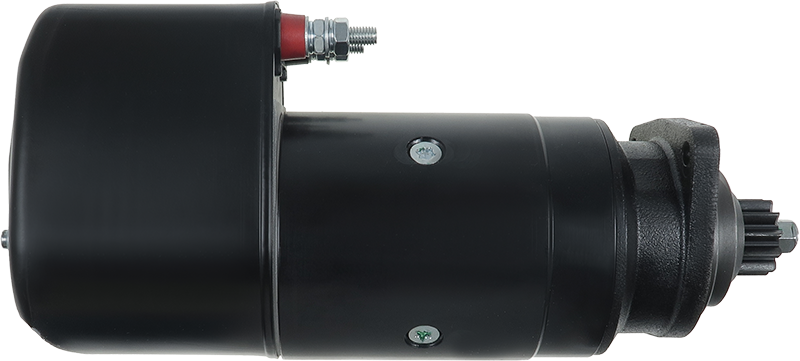

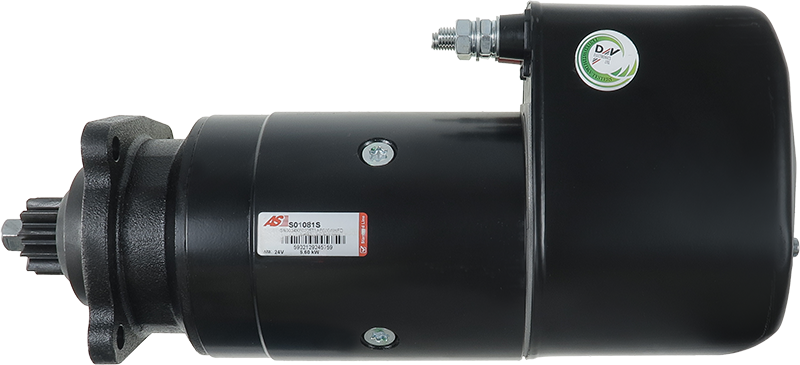

AS-PL S01081S Startmotor — VOLVO, LIEBHERR

AS-PL S01081S Startmotor — VOLVO, LIEBHERR - Image 2

AS-PL S01081S Startmotor — VOLVO, LIEBHERR - Image 3

AS-PL S01081S Startmotor — VOLVO, LIEBHERR

2 387,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	24
Effekt [ kW ]	6.60
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	405.00
O.1 [ mm ]	90.00
O.2 [ mm ]	90.00
O.3 [ mm ]	127.00
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00

AS-PLSTANDARD LINE

EAN	5902129245759
Ersätter	BOSCH
OE-nummer	0001417035

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S01081S Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001417035

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	6.60
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	405.00
O.1 [ mm ]	90.00
O.2 [ mm ]	90.00
O.3 [ mm ]	127.00
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	Bränsle	År
LIEBHERR	10.5	R944	D926 TI-E A2	245		2000–2004
LIEBHERR	10.5	R954	D926 TI-E A2	245		2000–2004
VOLVO	12	L180C	TD122KHE	269	diesel	1995–2001
VOLVO	12	0	TD122KHE	269	diesel	1995–2001
VOLVO	F 10/260	F10	TD101G	261-272		1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272		1982–1985
VOLVO	F 10/260	F10	TD101G	261-272		1982–1985
VOLVO	F 10/260	F10	TD101G	261-272		1982–1985
VOLVO	F 10/260	F10	TD100G	261-272		1982–1985
VOLVO	F 10/260	F10	TD100G	261-272		1983–1985
VOLVO	F 10/260	F10	TD100GA	261-272		1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272		1982–1985
VOLVO	F 10/260	F10	TD101G	261-272		1982–1985
VOLVO	F 10/260	F10	TD101G	261-272		1983–1985
VOLVO	F 10/260	F10	TD100GA	261-272		1982–1985
VOLVO	F 10/260	F10	TD100G	261-272		1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272		1982–1985
VOLVO	F 10/260	F10	TD101G	261-272		1982–1985
VOLVO	F 10/260	F10	TD100G	261-272		1982–1985
VOLVO	F 10/260	F10	TD100G	261-272		1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272		1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272		1983–1985
VOLVO	F 10/260	F10	TD100G	261-272		1982–1985
VOLVO	F 10/260	F10	TD101G	261-272		1982–1985
VOLVO	F 10/260	F10	TD100G	261-272		1982–1985
VOLVO	F 10/280	F10	TD100B	280-282		1977–1982
VOLVO	F 10/280	F10	TD100B	280-282		1977–1982
VOLVO	F 10/280	F10	TD100B	280-282		1977–1982
VOLVO	F 10/280	F10	TD100B	280-282		1977–1982
VOLVO	F 10/280	F10	TD100B	280-282		1977–1982
VOLVO	F 10/300	F10	TD101F	292-299		1984–1986
VOLVO	F 10/300	F10	TD101FA	292-299		1983–1986
VOLVO	F 10/300	F10	TD101FA	292-299		1987–1987
VOLVO	F 10/300	F10	TD101F	292-299		1987–1987
VOLVO	F 10/300	F10	TD101FA	292-299		1984–1986
VOLVO	F 10/300	F10	TD101F	292-299		1987–1987
VOLVO	F 10/300	F10	TD101FA	292-299		1984–1986
VOLVO	F 10/300	F10	TD101F	292-299		1983–1986
VOLVO	F 10/300	F10	TD101FA	292-299		1984–1986
VOLVO	F 10/300	F10	TD101F	292-299		1984–1986
VOLVO	F 10/300	F10	TD101FA	292-299		1987–1987
VOLVO	F 10/300	F10	TD101F	292-299		1984–1986
VOLVO	F 10/320	F10	TD102F	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320		1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320		1987–1990
VOLVO	F 10/320	F10	TD102F	310-320		1990–1994
VOLVO	F 10/320	F10	TD103E	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320		1990–1994
VOLVO	F 10/320	F10	TD103E	310-320		1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320		1987–1990
VOLVO	F 10/320	F10	TD103E	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320		1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320		1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320		1990–1994
VOLVO	F 10/320	F10	TD102F	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320		1987–1990
VOLVO	F 10/320	F10	TD102F	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320		1987–1990
VOLVO	F 10/320	F10	TD102F	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320		1987–1990
VOLVO	F 10/320	F10	TD103E	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320		1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD103E	310-320		1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320		1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320		1990–1994
VOLVO	F 10/320	F10	TD103E	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320		1987–1990
VOLVO	F 10/320	F10	TD102F	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320		1990–1994
VOLVO	F 10/320	F10	TD103E	310-320		1987–1990
VOLVO	F 10/320	F10	TD102F	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320		1990–1994
VOLVO	F 10/320	F10	TD102F	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320		1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320		1990–1994
VOLVO	F 10/320	F10	TD103E	310-320		1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320		1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320		1990–1994
VOLVO	F 10/320	F10	TD102F	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320		1987–1990
VOLVO	F 10/320	F10	TD102F	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320		1987–1990
VOLVO	F 10/320	F10	TD102F	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320		1987–1990
VOLVO	F 10/320	F10	TD103E	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320		1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320		1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD103E	310-320		1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320		1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320		1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320		1990–1994
VOLVO	F 12/320	F12	TD121G	320		1987–1987
VOLVO	F 12/320	F12	TD121G	320		1987–1987
VOLVO	F 12/320	F12	TD121G	320		1987–1987
VOLVO	F 12/320	F12	TD121G	320		1987–1987
VOLVO	F 12/320	F12	TD121G	320		1987–1987
VOLVO	F 12/320	F12	TD121G	320		1987–1987
VOLVO	F 12/320	F12	TD121G	320		1987–1987
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121GD	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD120G	320-330		1977–1986
VOLVO	F 12/320,F 12/330	F12	TD121G	320-330		1977–1986
VOLVO	F 12/360	F12	TD122FH	356		1988–1990
VOLVO	F 12/360	F12	TD122F	356		1990–1994
VOLVO	F 12/360	F12	TD122FH	356		1990–1994
VOLVO	F 12/360	F12	TD122F	356		1990–1994
VOLVO	F 12/360	F12	TD122FH	356		1988–1990
VOLVO	F 12/360	F12	TD122F	356		1988–1990
VOLVO	F 12/360	F12	TD122FH	356		1988–1990
VOLVO	F 12/360	F12	TD122F	356		1991–1994
VOLVO	F 12/360	F12	TD122FH	356		1990–1994
VOLVO	F 12/360	F12	TD122F	356		1990–1994
VOLVO	F 12/360	F12	TD122FH	356		1990–1994
VOLVO	F 12/360	F12	TD122F	356		1988–1990
VOLVO	F 12/360	F12	TD122FH	356		1988–1990
VOLVO	F 12/360	F12	TD122F	356		1988–1990
VOLVO	F 12/360	F12	TD122FH	356		1990–1994
VOLVO	F 12/360	F12	TD122FH	356		1990–1994
VOLVO	F 12/360	F12	TD122F	356		1988–1990
VOLVO	F 12/360	F12	TD122FH	356		1988–1990
VOLVO	F 12/360	F12	TD122F	356		1988–1990
VOLVO	F 12/360	F12	TD122FH	356		1990–1994
VOLVO	F 12/360	F12	TD122F	356		1990–1994
VOLVO	F 12/360	F12	TD122FH	356		1990–1994
VOLVO	F 12/360	F12	TD122F	356		1990–1994
VOLVO	F 12/360	F12	TD122FH	356		1988–1990
VOLVO	F 12/360	F12	TD122F	356		1988–1990
VOLVO	F 12/360	F12	TD122FH	356		1991–1994
VOLVO	F 12/360	F12	TD122F	356		1990–1994
VOLVO	F 12/360	F12	TD122F	356		1990–1994
VOLVO	F 12/360	F12	TD122FH	356		1988–1990
VOLVO	F 12/360	F12	TD122F	356		1988–1990
VOLVO	F 12/370	F12	TD121F	370		1977–1986
VOLVO	F 12/370	F12	TD121F	370		1977–1986
VOLVO	F 12/370	F12	TD121F	370		1987–1987
VOLVO	F 12/370	F12	TD121F	370		1987–1987
VOLVO	F 12/370	F12	TD121F	370		1977–1986
VOLVO	F 12/370	F12	TD121F	370		1977–1986
VOLVO	F 12/370	F12	TD121F	370		1987–1987
VOLVO	F 12/370	F12	TD121F	370		1987–1987
VOLVO	F 12/370	F12	TD121F	370		1987–1987
VOLVO	F 12/370	F12	TD121F	370		1977–1986
VOLVO	F 12/370	F12	TD121F	370		1977–1986
VOLVO	F 12/370	F12	TD121F	370		1987–1987
VOLVO	F 12/400	F12	TD122FS	396		1988–1990
VOLVO	F 12/400	F12	TD122FS	396		1988–1990
VOLVO	F 12/400	F12	TD122FL	396		1990–1994
VOLVO	F 12/400	F12	TD122FS	396		1988–1990

Visar 200 av 370 fordon
