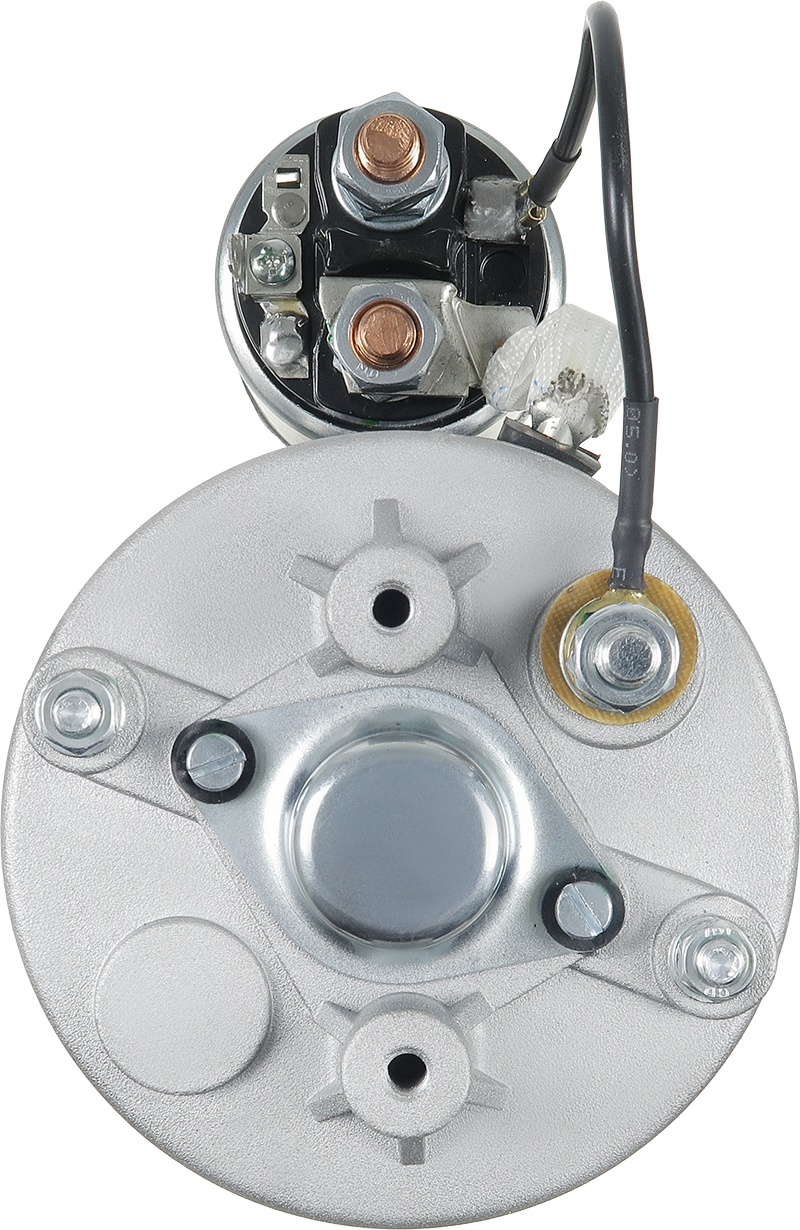

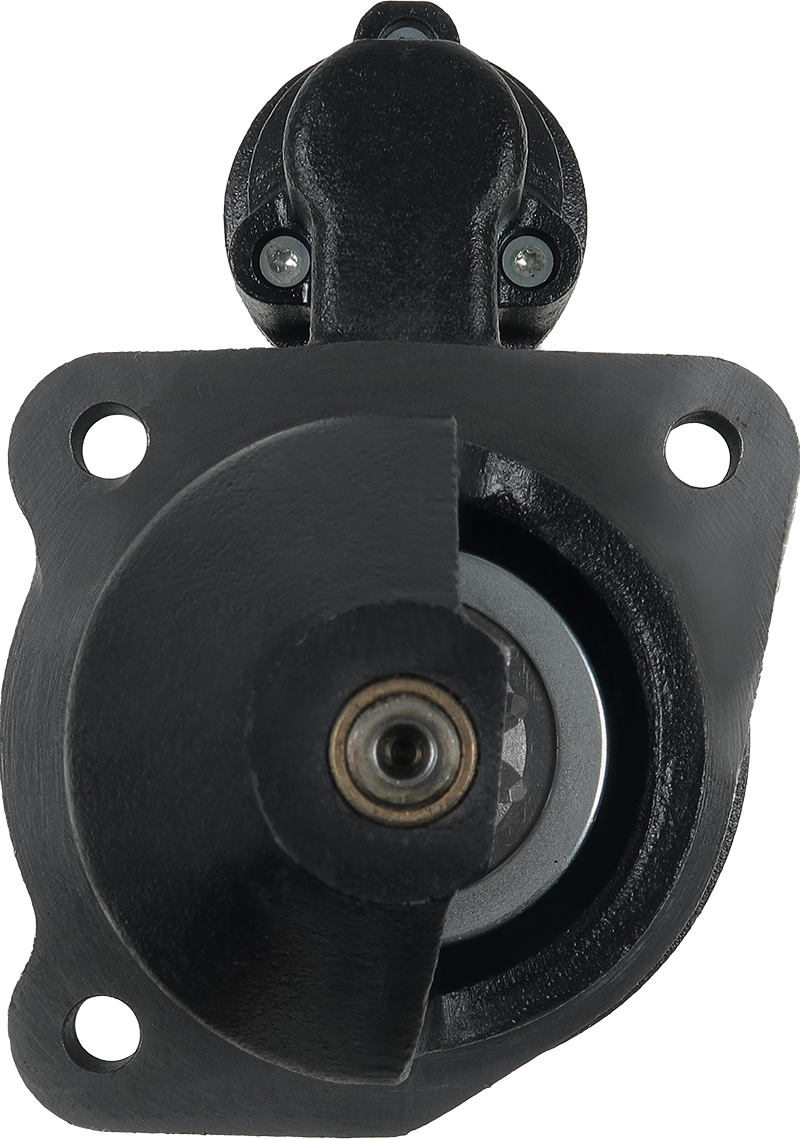

AS-PL S01100S Startmotor — SCANIA - Image 3

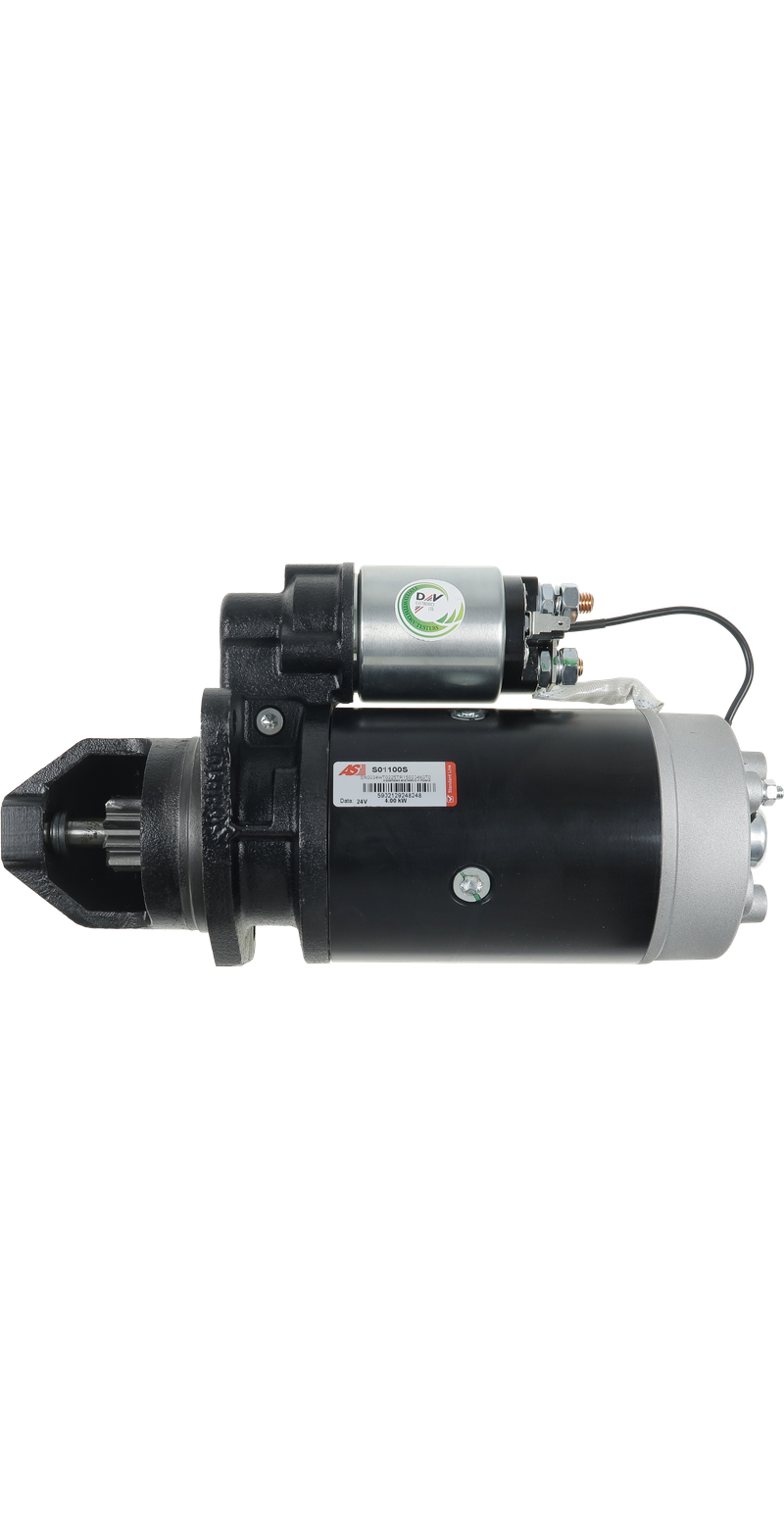

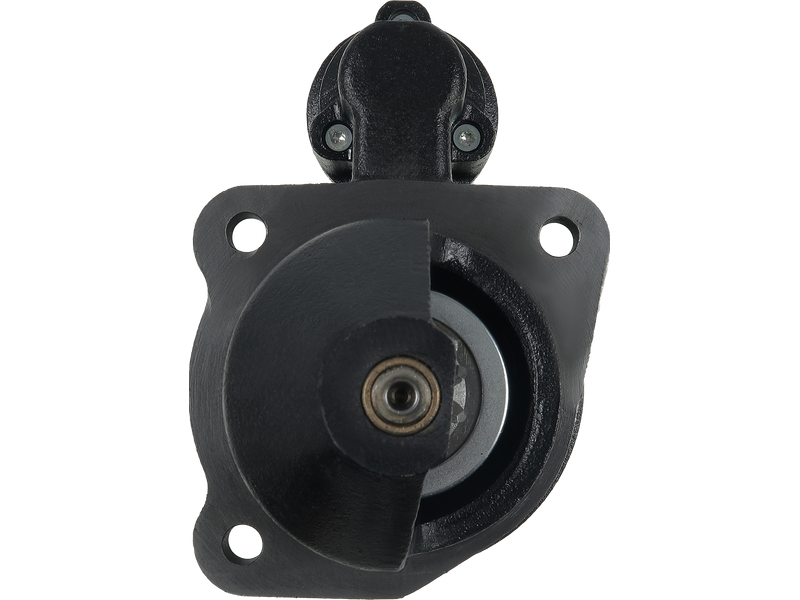

AS-PL S01100S Startmotor — SCANIA

1 429,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	24
Effekt [ kW ]	4.00
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	48.00
Antal kuggar [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	353.00
O.1 [ mm ]	90.00
O.2 [ mm ]	90.00
O.3 [ mm ]	127.00
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00

AS-PLSTANDARD LINE

EAN	5902129248248
Ersätter	BOSCH
OE-nummer	0001368011

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S01100S Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001368011

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	4.00
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	48.00
Antal kuggar [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	353.00
O.1 [ mm ]	90.00
O.2 [ mm ]	90.00
O.3 [ mm ]	127.00
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	År
SCANIA	113	3 - series bus	DSC11.23	362	1988–1997
SCANIA	113	3 - series bus	DSC11.32	320	1988–
SCANIA	113	3 - series bus	DSC11.23	362	1988–1997
SCANIA	113	3 - series bus	DSC11.36	363	1988–1997
SCANIA	113	3 - series bus	DSC11.81	415	1988–1997
SCANIA	113	3 - series bus	DSC11.21	320	1988–
SCANIA	113	3 - series bus	DSC11.08	310	1988–1997
SCANIA	113	3 - series bus	DSC11.18	363	1988–1997
SCANIA	113 E/320	3 - series	DSC11.17	320-325	1991–1996
SCANIA	113 E/320	3 - series	DSC11.17	320-325	1991–1996
SCANIA	113 E/320	3 - series	DSC11.16	320-325	1991–1996
SCANIA	113 E/320	3 - series	DSC11.21	320-325	1991–1996
SCANIA	113 E/320	3 - series	DSC11.16	320-325	1991–1996
SCANIA	113 E/320	3 - series	DSC11.21	320-325	1991–1996
SCANIA	113 E/340	3 - series	DSC11.10	340	1988–1996
SCANIA	113 E/360	3 - series	DSC11.18	363	1988–1996
SCANIA	113 E/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.13	363	1988–1996
SCANIA	113 E/360	3 - series	DSC11.36	363	1988–1996
SCANIA	113 E/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.23	362	1988–1996
SCANIA	113 E/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 E/380	3 - series	DSC11.70	381	1988–1996
SCANIA	113 E/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.22	381	1988–1996
SCANIA	113 E/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/310	3 - series	DS11.73	310-311	1988–1989
SCANIA	113 H/310	3 - series	DSC11.08	310	1988–1996
SCANIA	113 H/310	3 - series	DS11.73	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.73	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.73	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.08	310	1988–1996
SCANIA	113 H/310	3 - series	DS11.34	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.34	310-311	1988–1989
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.34	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.75	310	1988–1996
SCANIA	113 H/310	3 - series	DS11.34	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.34	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.73	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.73	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.73	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.34	310-311	1988–1989
SCANIA	113 H/310	3 - series	DSC11.08	310	1988–1996
SCANIA	113 H/310	3 - series	DS11.34	310-311	1988–1989
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.34	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.34	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.75	310	1988–1996
SCANIA	113 H/310	3 - series	DS11.34	310-311	1990–1991
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1989–1989
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.30	360	1988–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1989–1989
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 M/310	3 - series	DS11.73	313	1988–1996
SCANIA	113 M/310	3 - series	DS11.34	310	1988–1996
SCANIA	113 M/310	3 - series	DSC11.08	310	1988–1996
SCANIA	113 M/310	3 - series	DS11.34	310	1988–1996
SCANIA	113 M/310	3 - series	DS11.73	313	1988–1996
SCANIA	113 M/310	3 - series	DSC11.08	310	1988–1996
SCANIA	113 M/310	3 - series	DS11.75	310	1988–1996
SCANIA	113 M/310	3 - series	DS11.75	310	1988–1996
SCANIA	113 M/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 M/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 M/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 M/320	3 - series	DSC11.17	320-325	1990–1996

Visar 200 av 1461 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S01100S Startmotor — SCANIA”

AS-PL S01100S Startmotor — SCANIA

Description

Specifikationer

Fordonskompatibilitet

Reviews

Related products

AS-PL ARC4001 + dioder för växelströmsgenerators likriktare

AS-PL ARD9012 + dioder för växelströmsgenerators likriktare

AS-PL ARD9037 + dioder för växelströmsgenerators likriktare
