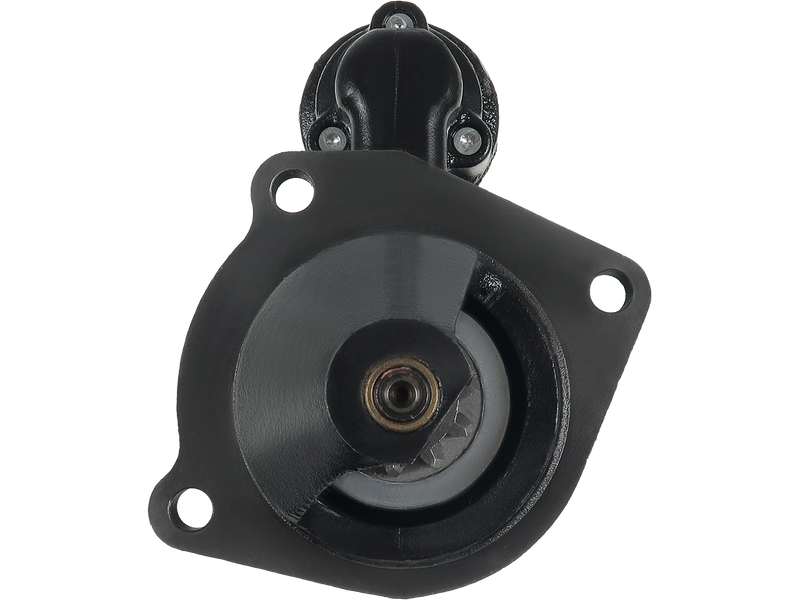

AS-PL S01103S Startmotor — RENAULT TRUCKS

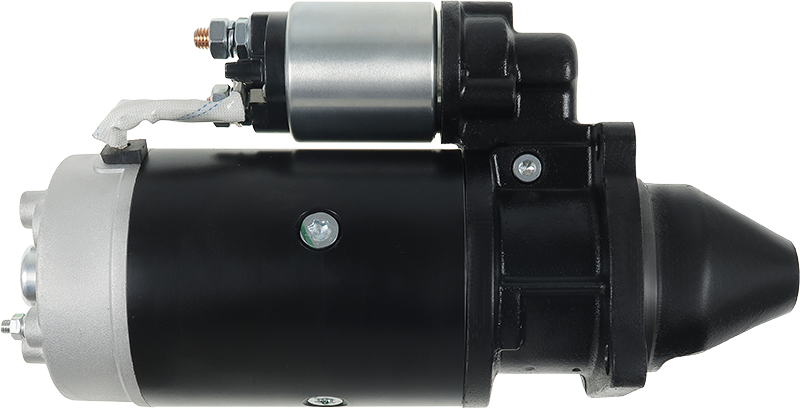

AS-PL S01103S Startmotor — RENAULT TRUCKS - Image 2

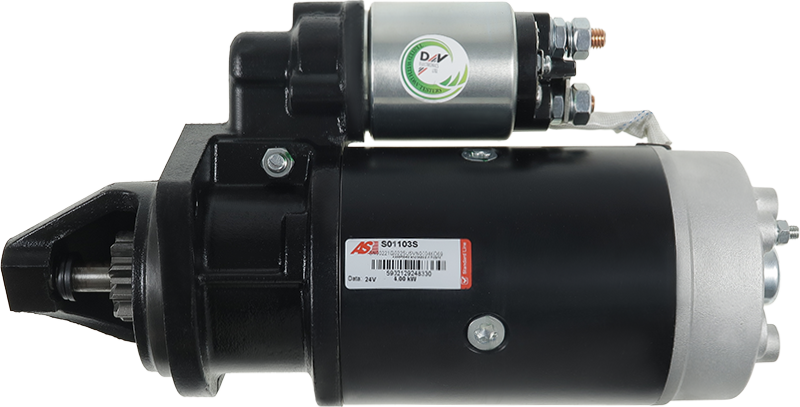

AS-PL S01103S Startmotor — RENAULT TRUCKS - Image 3

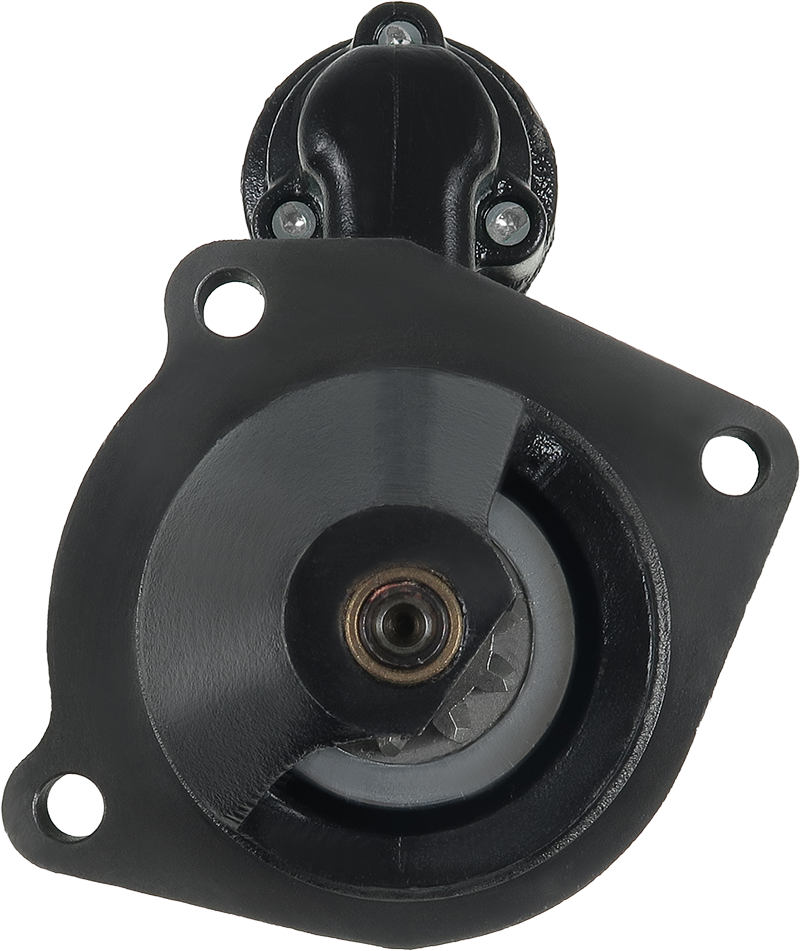

AS-PL S01103S Startmotor — RENAULT TRUCKS - Image 4

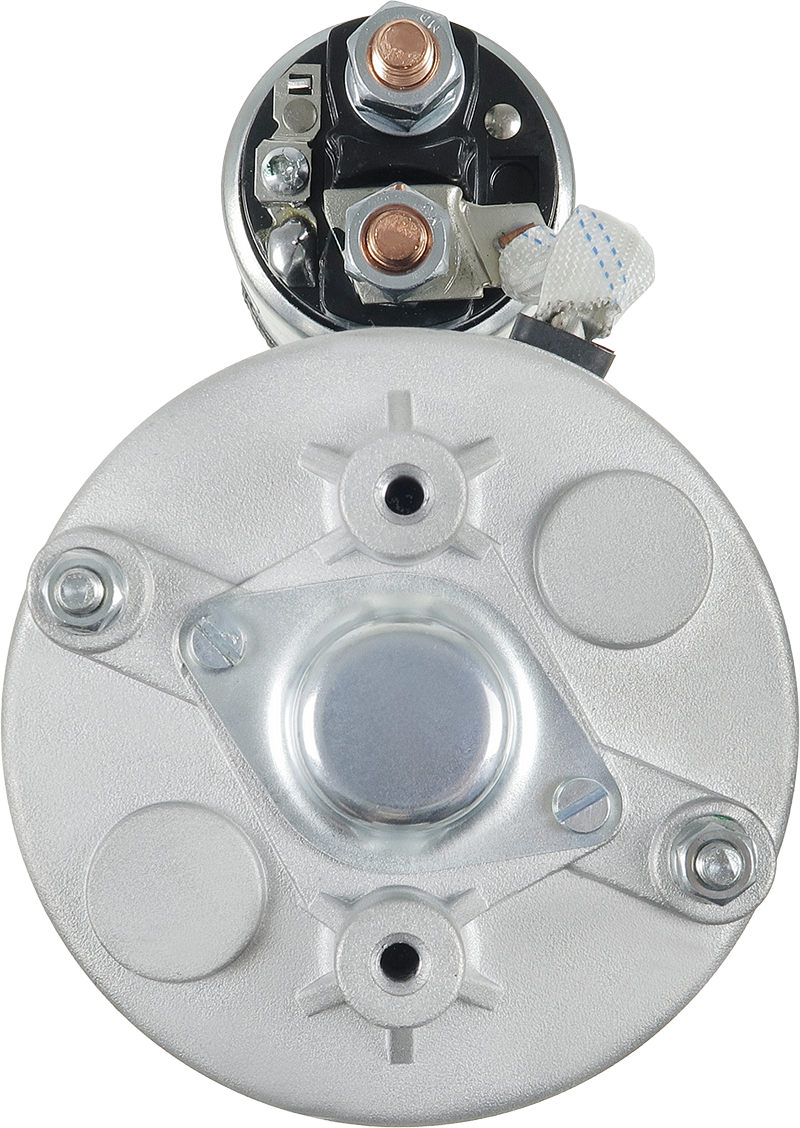

AS-PL S01103S Startmotor — RENAULT TRUCKS - Image 5

AS-PL S01103S Startmotor — RENAULT TRUCKS

1 343,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 4.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 30.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 340.00
O.1 [ mm ] 89.00
O.2 [ mm ] 127.00
O.3 [ mm ] 89.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5902129248330
ErsätterBOSCH
OE-nummer0001368066

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S01103S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001368066

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 4.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 30.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 340.00
O.1 [ mm ] 89.00
O.2 [ mm ] 127.00
O.3 [ mm ] 89.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
RENAULT TRUCKSS 100.06/AMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 100.06/AMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 100.07/AMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 100.07/AMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 100.08/AMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 100.08/AMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 100.08/AMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 100.08/AMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 100.09/A BOMMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 100.09/A CITMIDLINERT4.3894-981986–1990
RENAULT TRUCKSS 120.06/AMIDLINERT4.401121990–1992
RENAULT TRUCKSS 120.06/A,S 120.07/AMIDLINERT4.40A/31201992–1994
RENAULT TRUCKSS 120.06/A,S 120.07/AMIDLINERT4.401121990–1992
RENAULT TRUCKSS 120.06/A,S 120.07/AMIDLINERT4.40CC1201992–1994
RENAULT TRUCKSS 120.07/AMIDLINERT4.401121990–1992
RENAULT TRUCKSS 120.07/AMIDLINERT4.40A/31201992–1994
RENAULT TRUCKSS 120.07/AMIDLINERT4.401121990–1992
RENAULT TRUCKSS 120.07/AMIDLINERT4.401121990–1992
RENAULT TRUCKSS 120.07/AMIDLINERT4.40CC1201992–1994
RENAULT TRUCKSS 120.08/AMIDLINERT4.401121990–1992
RENAULT TRUCKSS 120.08/AMIDLINERT4.401121992–1992
RENAULT TRUCKSS 120.08/AMIDLINERT4.40CC1201992–1994
RENAULT TRUCKSS 120.08/AMIDLINERT4.401121990–1992
RENAULT TRUCKSS 120.08/AMIDLINERT4.40CC1201992–1994
RENAULT TRUCKSS 120.08/AMIDLINERT4.401121990–1992
RENAULT TRUCKSS 120.08/AMIDLINERT4.40A/31201992–1994
RENAULT TRUCKSS 120.08/AMIDLINERT4.40A/31201992–1994
RENAULT TRUCKSS 120.09/AMIDLINERT4.40CC1201992–1994
RENAULT TRUCKSS 120.09/AMIDLINERT4.40A/31201992–1994
RENAULT TRUCKSS 120.09/AMIDLINERT4.40A/31201992–1994
RENAULT TRUCKSS 120.09/AMIDLINERT4.40CC1201992–1994
RENAULT TRUCKSS 120.09/BMIDLINERT4.40A/31201992–1994
RENAULT TRUCKSS 120.09/BMIDLINERT4.40CC1201992–1994
RENAULT TRUCKSS 120.09/B BOMMIDLINERT4.401121990–1992
RENAULT TRUCKSS 120.09/B BOMMIDLINERT4.40A/31201992–1994
RENAULT TRUCKSS 120.09/B BOMMIDLINERT4.40CC1201992–1994
RENAULT TRUCKSS 120.09/B CITMIDLINERT4.401121990–1992
RENAULT TRUCKSS 135.08/AMIDLINERT4.40B/31391994–1996
RENAULT TRUCKSS 135.08/AMIDLINERT4.40B/31391994–1996
RENAULT TRUCKSS100.08BMIDLINERT4.381011986–1990
RENAULT TRUCKSS100.08BMIDLINERT4.381011986–1990
RENAULT TRUCKSS100.09BMIDLINERT4.381011986–1990
RENAULT TRUCKSS100.09BMIDLINERT4.381011986–1990
RENAULT TRUCKSS100.11BMIDLINERT4.381011986–1990
RENAULT TRUCKSS100.13BMIDLINERT4.381011986–1990
RENAULT TRUCKSS120.09AMIDLINERT4.401201990–1996
RENAULT TRUCKSS120.09BMIDLINERT4.401201990–1996
RENAULT TRUCKSS135.09BMIDLINERT4.40B/31351993–1996
RENAULT TRUCKSS135.09BMIDLINERT4.40B/31351993–1996
