SEG Automotive S01105(SEG) Startmotor — MERCEDES-BENZ, MAN, NEOPLAN

SEG Automotive S01105(SEG) Startmotor — MERCEDES-BENZ, MAN, NEOPLAN

4 735,00 kr inkl. moms

PREMIUM LINE | Tillverkare: SEG Automotive | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 8.40
Startmotors rotation CW

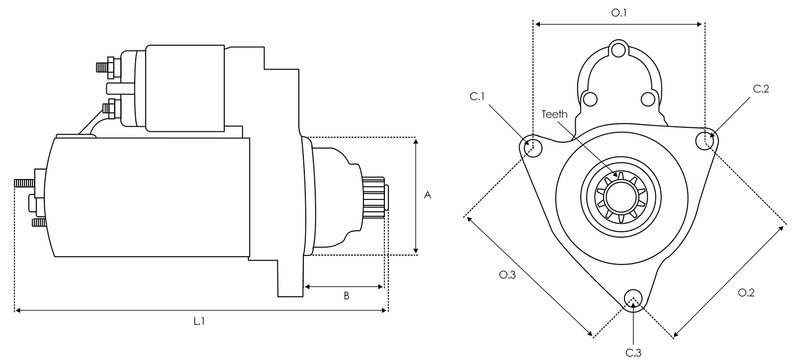

A-storlek [ mm ] 92.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 383.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
SEG AutomotivePREMIUM LINE
EAN5902129248712
ErsätterBOSCH
OE-nummer0001383020

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S01105(SEG) Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001383020

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 8.40
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 383.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
MAN17.272 FLSM90D2865LF022691991–1995
MAN18.260HOCLD2866LOH312602002–2006
MAN18.260HOCLD2866LOH352602002–2009
MAN18.310HOCLD2866LOH323102002–2013
MAN18.310HOCLD2866LOH253102003–2006
MAN18.310HOCLD2866LOH503102002–2013
MAN18.310HOCLD2866LOH273102002–2013
MAN18.310HOCLD2866LOH393102002–2013
MAN18.310 HOCL/RHOCLD2866LOH243101992–
MAN18.310 HOCL/RHOCLD2866LOH273101992–
MAN18.310 HOCL/RHOCLD2866LOH253101992–
MAN18.350HOCLD2866LOH263492002–2006
MAN18.360HOCLD2866LOH513602002–2013
MAN18.360HOCLD2866LOH333602004–2006
MAN18.360HOCLD2866LOH283602002–2013
MAN18.360HOCLD2866LOH513602004–2006
MAN18.360HOCLD2866LOH403602002–2013
MAN18.360HOCLD2866LOH283602004–2006
MAN18.360HOCLD2866LOH403602004–2006
MAN18.360HOCLD2866LOH333602002–2013
MAN18.400HOCLD2866LOH234002002–2009
MAN18.400HOCLD2866LOH304002002–2009
MAN18.410HOCLD2866LOH344092004–2006
MAN18.410HOCLD2866LOH294092002–2009
MAN18.410HOCLD2866LOH294092004–2006
MAN18.410HOCLD2866LOH344092002–2009
MAN18.460HOCLD2876LOH024602004–2006
MAN18.460HOCLD2876LOH034602002–2009
MAN18.460HOCLD2876LOH034602004–2006
MAN18.460HOCLD2876LOH024602002–2009
MAN19.262 F,19.262 FL,19.262 FLLF90D2865LF/2602601988–1990
MAN19.262 FAF90D2865LF/2602601989–1990
MAN19.262 FAKF90D2865LF/2602601989–1990
MAN19.262 FASF90D2865LF/2602601989–1990
MAN19.262 FKF90D2865LF/2602601988–1990
MAN19.262 FS,19.262 FLS,19.262 FLLSF90D2865LF/2602601988–1990
MAN19.272 F,19.272 FL,19.272 FLLF90D2865LF052691990–1995
MAN19.272 F,19.272 FL,19.272 FLLF90D2865LF022691990–1995
MAN19.272 FAF90D2865LF052691990–1995
MAN19.272 FAF90D2865LF022691990–1995
MAN19.272 FAKF90D2865LF052691990–1995
MAN19.272 FAKF90D2865LF022691990–1995
MAN19.272 FASF90D2865LF022691990–1995
MAN19.272 FASF90D2865LF052691990–1995
MAN19.272 FKF90D2865LF052691990–1995
MAN19.272 FKF90D2865LF022691990–1995
MAN19.272 FS,19.272 FLS,19.272 FLLSF90D2865LF022691990–1995
MAN19.272 FS,19.272 FLS,19.272 FLLSF90D2865LF052691990–1995
MAN19.322 F,19.322 FL,19.322 FLLF90D2865LF033201990–1995
MAN19.322 F,19.322 FL,19.322 FLLF90D2865LF063201990–1995
MAN19.322 FAF90D2865LF033201990–1996
MAN19.322 FAF90D2865LF063201990–1996
MAN19.322 FAKF90D2865LF063201990–1996
MAN19.322 FAKF90D2865LF033201990–1996
MAN19.322 FASF90D2865LF063201990–1996
MAN19.322 FASF90D2865LF033201990–1996
MAN19.322 FKF90D2865LF063201990–1995
MAN19.322 FKF90D2865LF033201990–1995
MAN19.322 FS,19.322 FLS,19.322 FLLSF90D2865LF033201990–1995
MAN19.322 FS,19.322 FLS,19.322 FLLSF90D2865LF063201990–1995
MAN19.322 U, 19.322 UL, 19.322 ULLF90 UnterflurD2865LF033201990–1994
MAN19.322 U, 19.322 UL, 19.322 ULLF90 UnterflurD2865LUH083201990–1994
MAN19.322 U, 19.322 UL, 19.322 ULLF90 UnterflurD2865LF063201990–1994
MAN19.342 F,19.342 FL,19.342 FLLF90D2865LF093401994–1995
MAN19.342 FAF90D2865LF093401994–1996
MAN19.342 FAKF90D2865LF093401994–1996
MAN19.342 FASF90D2865LF093401994–1996
MAN19.342 FKF90D2865LF093401994–1995
MAN19.342 FS,19.342 FLS,19.342 FLLSF90D2865LF093401994–1995
MAN19.462 F,19.462 FLF90D2840LF4604601987–1990
MAN19.462 FKF90D2840LF4604601987–1990
MAN19.462 FS,19.462 FLSF90D2840LF4604601987–1990
MAN19.502 F,19.502 FL,19.502 FLLF90D2840LF045001990–1996
MAN19.502 F,19.502 FL,19.502 FLLF90D2840LF015001990–1996
MAN19.502 F,19.502 FL,19.502 FLLF90D2840LF065001990–1996
MAN19.502 FS,19.502 FLS,19.502 FLLSF90D2840LF015001990–1996
MAN19.502 FS,19.502 FLS,19.502 FLLSF90D2840LF065001990–1996
MAN19.502 FS,19.502 FLS,19.502 FLLSF90D2840LF045001990–1996
MAN19.603 FLS, 19604 FLSF2000D2840LF206001996–
MAN230 CNGNLE2866DUH012311996–2000
MAN230 CNGNLE2866DUH022311993–1999
MAN230 CNGNLE2866DUH022311996–2000
MAN230 CNGNLE2866DUH012311993–1999
MAN24.262 DFF90D2865LF/2602601988–1990
MAN24.262 DFKF90D2865LF/2602601988–1990
MAN24.262 DFS,24.262 DFLSF90D2865LF/2602601988–1990
MAN24.262 FNL,24.262 FNLL,24.262 FVLF90D2865LF/2602601988–1990
MAN24.262 FNL,24.262 FNLL,24.262 FVLF90D2865LF/2602601988–1990
MAN24.272 DFF90D2865LF022691990–1990
MAN24.272 DFKF90D2865LF022691990–1990
MAN24.272 DFS,24.272 DFLSF90D2865LF022691990–1995
MAN24.272 FNL,24.272 FNLL,24.272 FVLF90D2865LF052691990–1995
MAN24.272 FNL,24.272 FNLL,24.272 FVLF90D2865LF052691990–1995
MAN24.272 FNL,24.272 FNLL,24.272 FVLF90D2865LF022691990–1995
MAN24.272 FNL,24.272 FNLL,24.272 FVLF90D2865LF022691990–1995
MAN24.272 FNLS,24.272 FVLSF90D2865LF052691990–1995
MAN24.272 FNLS,24.272 FVLSF90D2865LF052691990–1995
MAN24.272 FNLS,24.272 FVLSF90D2865LF022691990–1995
MAN24.272 FNLS,24.272 FVLSF90D2865LF022691990–1995
MAN24.310HOCLD2866LOH243131995–2006
MAN24.310HOCLD2866LOH253101995–2006
MAN24.322 DFF90D2865LF033201990–1990
MAN24.322 DFKF90D2865LF033201990–1990
MAN24.322 DFS,24.322 DFLSF90D2865LF033201990–1990
MAN24.322 FNL,24.322 FNLL,24.322 FVLF90D2865LF063201990–1995
MAN24.322 FNL,24.322 FNLL,24.322 FVLF90D2865LF063201990–1995
MAN24.322 FNL,24.322 FNLL,24.322 FVLF90D2865LF033201990–1995
MAN24.322 FNL,24.322 FNLL,24.322 FVLF90D2865LF033201990–1995
MAN24.322 FNLS,24.322 FVLSF90D2865LF033201990–1995
MAN24.322 FNLS,24.322 FVLSF90D2865LF063201990–1995
MAN24.322 FNLS,24.322 FVLSF90D2865LF063201990–1995
MAN24.322 FNLS,24.322 FVLSF90D2865LF033201990–1995
MAN24.322 UNL,24.322 UNLLF90 UnterflurD2865LF033201990–1990
MAN24.342 FNL,24.342 FNLLF90D2865LF093401994–1995
MAN24.370HOCLD2866LOH223701995–2006
MAN24.410HOCLD2866LOH344092000–2006
MAN24.410HOCLD2866LOH294092000–2006
MAN24.460HOCLD2876LOH014601997–2006
MAN24.460HOCLD2876LOH024602000–2006
MAN24.462 DFF90D2840LF4604601989–1990
MAN24.462 DFSF90D2840LF4604601989–1990
MAN24.462 FNLF90D2840LF4604601989–1990
MAN24.502 DFF90D2840LF015001990–1990
MAN24.502 DFKF90D2840LF015001990–1990
MAN24.502 DFSF90D2840LF015001990–1990
MAN24.502 FNLF90D2840LF015001990–1990
MAN25.272 DFF90D2865LF052691990–1992
MAN25.272 DFF90D2865LF022691990–1992
MAN25.272 DFKF90D2865LF022691990–1992
MAN25.272 DFKF90D2865LF052691990–1992
MAN25.272 DFS,25.272 DFLSF90D2865LF052691990–1992
MAN25.272 DFS,25.272 DFLSF90D2865LF022691990–1992
MAN25.272 FNL,25.272 FNLL,25.272 FVLF90D2865LF052691990–1993
MAN25.272 FNL,25.272 FNLL,25.272 FVLF90D2865LF052691990–1993
MAN25.272 FNL,25.272 FNLL,25.272 FVLF90D2865LF022691990–1993
MAN25.272 FNL,25.272 FNLL,25.272 FVLF90D2865LF022691990–1993
MAN25.322 DF, 25.322 DFLF90D2865LF063201990–1992
MAN25.322 DF, 25.322 DFLF90D2865LF033201990–1992
MAN25.322 DFKF90D2865LF063201990–1992
MAN25.322 DFKF90D2865LF033201990–1992
MAN25.322 DFS, 25.322 DFLSF90D2865LF063201990–1992
MAN25.322 DFS, 25.322 DFLSF90D2865LF033201990–1992
MAN25.322 FNL, 25.322 FNLL, 25.322 FVLF90D2865LF033201990–1992
MAN25.322 FNL, 25.322 FNLL, 25.322 FVLF90D2865LF063201990–1992
MAN25.322 FNLS,25.322 FVLSF90D2865LF033201990–1992
MAN25.322 FNLS,25.322 FVLSF90D2865LF033201990–1992
MAN25.322 FNLS,25.322 FVLSF90D2865LF063201990–1992
MAN25.322 FNLS,25.322 FVLSF90D2865LF063201990–1992
MAN25.322 UNL,25.322 UNLLF90 UnterflurD2865LF033201990–1992
MAN25.322 UNL,25.322 UNLLF90 UnterflurD2865LF063201990–1992
MAN25.502 DFF90D2840LF045001990–1992
MAN25.502 DFF90D2840LF015001990–1992
MAN25.502 DFSF90D2840LF045001990–1992
MAN25.502 DFSF90D2840LF015001990–1992
MAN25.502 FNLF90D2840LF015001990–1992
MAN25.502 FNLF90D2840LF045001990–1992
MAN26.262 DFF90D2865LF/2602601988–1990
MAN26.262 DFAF90D2865LF/2602601989–1990
MAN26.262 DFAKF90D2865LF/2602601989–1990
MAN26.262 DFASF90D2865LF/2602601989–1990
MAN26.262 DFKF90D2865LF/2602601988–1990
MAN26.262 DFSF90D2865LF/2602601988–1990
MAN26.272 DFF90D2865LF022691990–1996
MAN26.272 DFF90D2865LF052691990–1996
MAN26.272 DFAF90D2865LF052691990–1992
MAN26.272 DFAF90D2865LF022691990–1992
MAN26.272 DFAKF90D2865LF052691990–1992
MAN26.272 DFAKF90D2865LF022691990–1992
MAN26.272 DFASF90D2865LF052691990–1992
MAN26.272 DFASF90D2865LF022691990–1992
MAN26.272 DFKF90D2865LF052691990–1996
MAN26.272 DFKF90D2865LF022691990–1996
MAN26.272 DFS,26.272 DFLSF90D2865LF022691990–1996
MAN26.272 DFS,26.272 DFLSF90D2865LF052691990–1996
MAN26.272 FNL,26.272 FNLLF90D2865LF052691991–1995
MAN26.272 FNLS,26.272 FVLSF90D2865LF022691990–1995
MAN26.272 FNLS,26.272 FVLSF90D2865LF052691990–1995
MAN26.272 FNLS,26.272 FVLSF90D2865LF022691990–1995
MAN26.272 FNLS,26.272 FVLSF90D2865LF052691990–1995
MAN26.322 DFF90D2865LF063201990–1996
MAN26.322 DFF90D2865LF033201990–1996
MAN26.322 DFAF90D2865LF063201990–1992
MAN26.322 DFAF90D2865LF033201990–1992
MAN26.322 DFAKF90D2865LF033201990–1992
MAN26.322 DFAKF90D2865LF063201990–1992
MAN26.322 DFASF90D2865LF063201990–1992
MAN26.322 DFASF90D2865LF033201990–1992
MAN26.322 DFKF90D2865LF063201992–1996
MAN26.322 DFKF90D2865LF033201992–1996
MAN26.322 DFS,26.322 DFLSF90D2865LF033201990–1996
MAN26.322 DFS,26.322 DFLSF90D2865LF063201990–1996
MAN26.322 FNL,26.322 FNLLF90D2865LF033201991–1995
MAN26.322 FNL,26.322 FNLLF90D2865LF063201991–1995
MAN26.322 FNLS,26.322 FVLSF90D2865LF063201990–1995
MAN26.322 FNLS,26.322 FVLSF90D2865LF033201990–1995
MAN26.322 FNLS,26.322 FVLSF90D2865LF033201990–1995
MAN26.322 FNLS,26.322 FVLSF90D2865LF063201990–1995
MAN26.322 UNL,26.322 UNLLF90 UnterflurD2865LF033201990–1994
MAN26.322 UNL,26.322 UNLLF90 UnterflurD2865LF063201990–1994
MAN26.342 DF,26.342 DFLF90D2865LF093401994–1996

Visar 200 av 957 fordon
