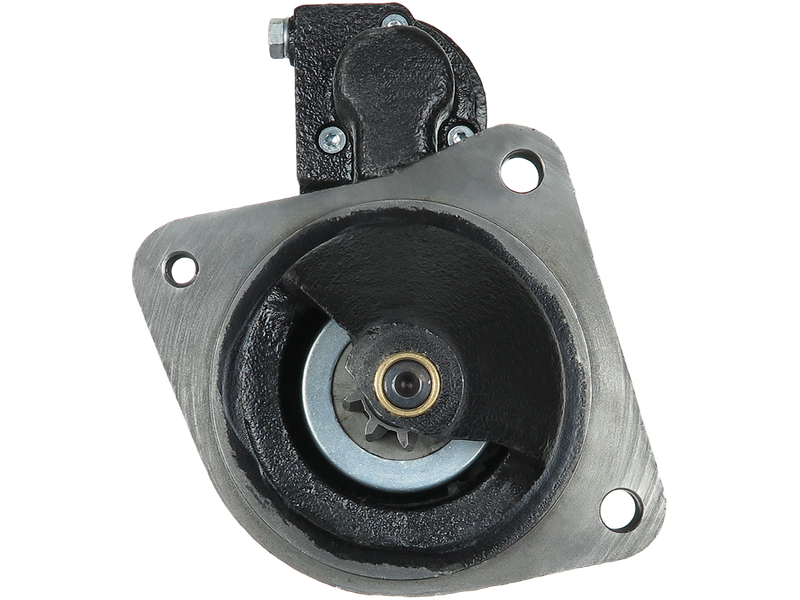

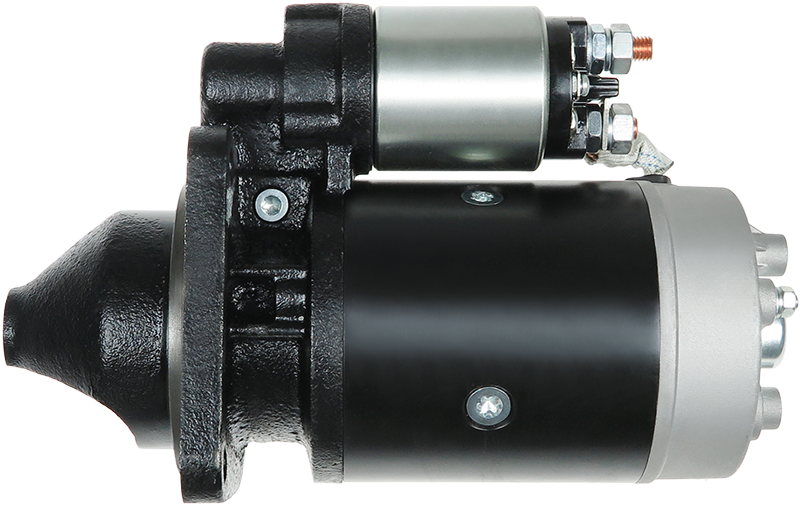

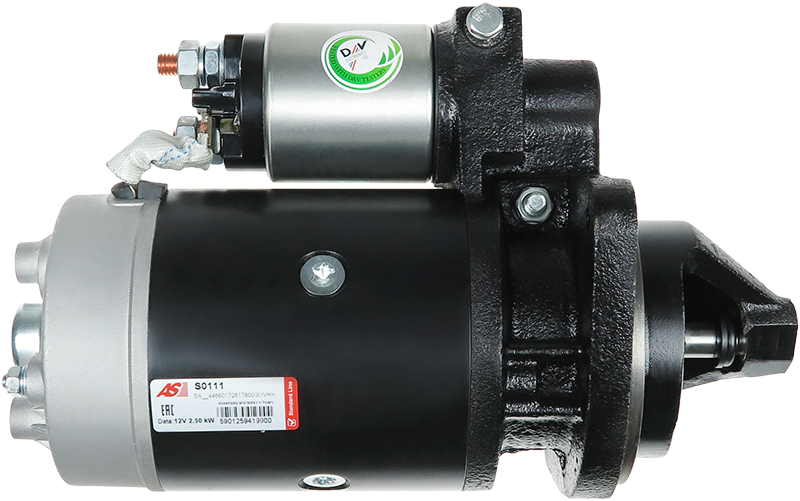

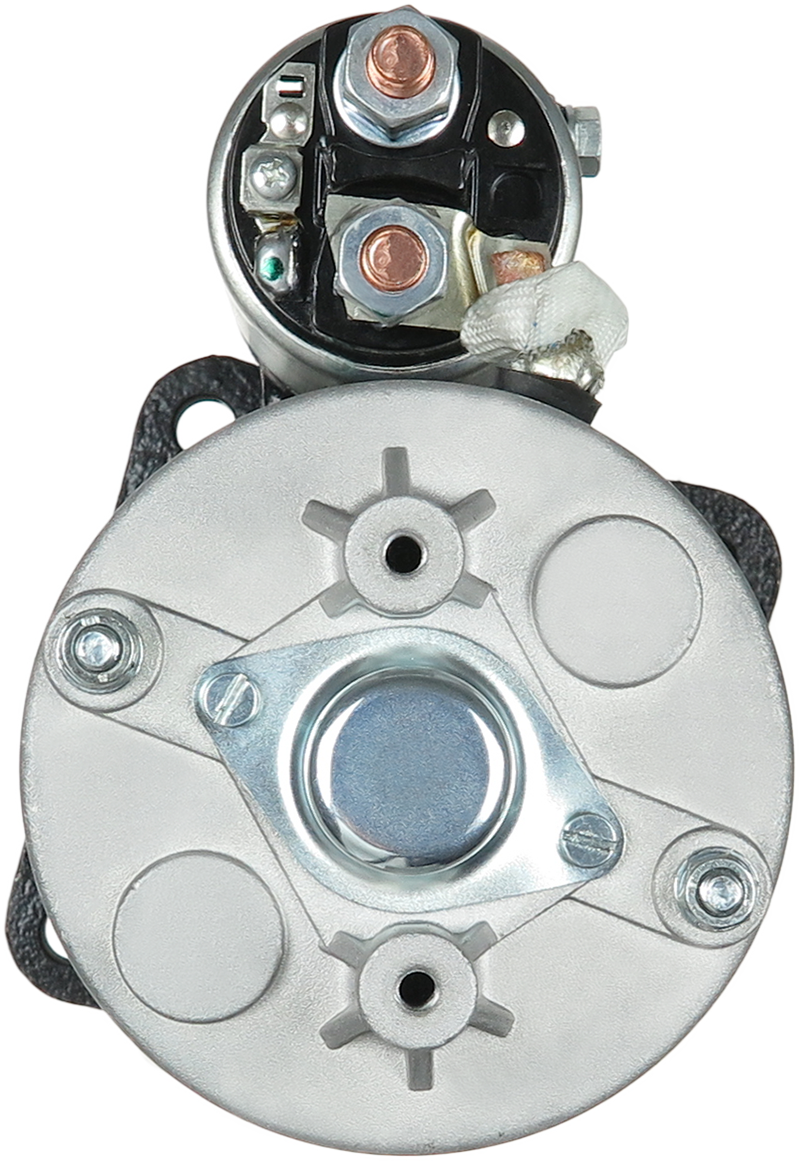

AS-PL S0111 Startmotor — IVECO, ALFA ROMEO, FIAT
AS-PL S0111 Startmotor — IVECO, ALFA ROMEO, FIAT - Image 2
AS-PL S0111 Startmotor — IVECO, ALFA ROMEO, FIAT - Image 3
AS-PL S0111 Startmotor — IVECO, ALFA ROMEO, FIAT - Image 4
AS-PL S0111 Startmotor — IVECO, ALFA ROMEO, FIAT - Image 5

AS-PL S0111 Startmotor — IVECO, ALFA ROMEO, FIAT

1 364,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 2.50
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 28.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 1
L.1 [ mm ] 293.00
O.1 [ mm ] 103.00
O.2 [ mm ] 146.00
O.3 [ mm ] 103.00
C.1 [ mm ] 12.00
C.2 [ mm ] 12.00
C.3 [ mm ] M10x1.5
AS-PLSTANDARD LINE
EAN5901259419900
ErsätterBOSCH
OE-nummer0001362102

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0111 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001362102

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.50
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 28.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 1
L.1 [ mm ] 293.00
O.1 [ mm ] 103.00
O.2 [ mm ] 146.00
O.3 [ mm ] 103.00
C.1 [ mm ] 12.00
C.2 [ mm ] 12.00
C.3 [ mm ] M10x1.5

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ALFA ROMEO2.4 D (280)AR 8 Platform/Chassis (280_)8140.61.20072Diesel1978–1986
ALFA ROMEO2.4 D (280)AR 8 Van (280_)8140.61.20072Diesel1978–1986
ALFA ROMEO2.4 TD (280)AR 8 Platform/Chassis (280_)8140.21.20092Diesel1985–1988
ALFA ROMEO2.4 TD (280)AR 8 Van (280_)8140.21.20092Diesel1985–1989
ALFA ROMEO2.5 D (280)AR 8 Platform/Chassis (280_)8144.67.22075Diesel1986–1989
ALFA ROMEO2.5 D (280)AR 8 Van (280_)8144.67.22075Diesel1986–1989
FIAT2.4 DCAMPAGNOLA (110_)8144.61.20072Diesel1974–1989
IVECO2.5 4x4DAILY II Van8140.27S103Diesel1989–1996
IVECO30-8 (10011131, 10011132, 10011231, 10011232, 10011237,...DAILY I Platform/Chassis8140.61.20072Diesel1978–1989
IVECO30-8 (12910211, 12911111, 12911112, 12911117, 12911131,...DAILY II Platform/Chassis8140.0775Diesel1992–1998
IVECO30-8 (12914111, 12914112, 12914117, 12914131, 12914137,...DAILY II Van8140.0775Diesel1989–1998
IVECO35-10 (10310311, 10311111, 10311112, 10311117, 10311211,...DAILY I Platform/Chassis8140.21.20092Diesel1985–1989
IVECO35-10 (10314204, 10314211, 10314212, 10314217, 10314411,...DAILY I Van8140.21.20092Diesel1985–1989
IVECO35-10 (12971112, 12971212, 12971312, 12971317, 12976112,...DAILY II Platform/Chassis8140.97103Diesel1989–1996
IVECO35-10 (12974212, 12974217, 13014111, 13014131, 13014204,...DAILY II Van8140.47R109Diesel1989–1998
IVECO35-10 (12974212, 12974217, 13014111, 13014131, 13014204,...DAILY II Van8140.97103Diesel1989–1998
IVECO35-10 (13810217, 13810312, 13810417, 13811112, 13811212,...DAILY II Platform/Chassis8140.47R109Diesel1989–1996
IVECO35-12 (13110131, 13110211, 13110231, 13110311, 13110312,...DAILY II Platform/Chassis8140.47116Diesel1990–1996
IVECO35-12 (13110131, 13110211, 13110231, 13110311, 13110312,...DAILY II Platform/Chassis8140.47S116Diesel1990–1996
IVECO35-12 (13114131, 13114204, 13114211, 13114212, 13114217,...DAILY II Van8140.47S116Diesel1990–1996
IVECO35-12 (13114131, 13114204, 13114211, 13114212, 13114217,...DAILY II Van8140.47116Diesel1990–1996
IVECO35-8 (10031131, 10031132, 10031137, 10031224, 10031231,...DAILY I Platform/Chassis8140.61.20072Diesel1978–1989
IVECO35-8 (10034131, 10034132, 10034137, 10034224, 10034231,...DAILY I Van8140.61.20072Diesel1978–1989
IVECO35-8 (12931102, 12931104, 12931111, 12931112, 12931117,...DAILY II Platform/Chassis8140.0775Diesel1989–1998
IVECO35-8 (12934104, 12934111, 12934112, 12934117, 12934124,...DAILY II Van8140.67F.82Diesel1991–1998
IVECO35-8 (12934104, 12934111, 12934112, 12934117, 12934124,...DAILY II Van8140.0775Diesel1991–1998
IVECO40-10 VDAILY II Van8140.27S103Diesel1990–1996
IVECO40-8DAILY I Platform/Chassis8140.61.20072Diesel1983–1989
IVECO40-8 (12950304, 12951112, 12951131, 12951135, 12951211,...DAILY II Platform/Chassis8140.0775Diesel1990–1996
IVECO40-8 (12954211, 12954212, 12954215, 12954231)DAILY II Van8140.0775Diesel1990–1996
IVECO40-8 VDAILY I Van8140.61.20072Diesel1983–1989
IVECO45-10 (10331211, 10331212, 10331217, 10331304, 10331311,...DAILY I Platform/Chassis8140.21.20092Diesel1985–1989
IVECO45-10 (13031204, 13031211, 13031212, 13031224, 13031231,...DAILY II Platform/Chassis8140.27S103Diesel1989–1996
IVECO45-10 V (10334204, 10334211, 10334212, 10334217,...DAILY I Van8140.21.20092Diesel1985–1989
IVECO45-10 V (13034204, 13034211, 13034212, 13034224,...DAILY II Van8140.27S103Diesel1989–1996
IVECO49-10 (10350211, 10350304, 10350311, 10350404, 10350411,...DAILY I Platform/Chassis8140.21.20092Diesel1985–1989
IVECO49-10 (13050211, 13050231, 13050304, 13050311, 13050331,...DAILY II Platform/Chassis8140.27S103Diesel1989–1996
IVECO49-10 V (10354204, 10354211, 10354212, 10354217,...DAILY I Van8140.21.20092Diesel1985–1989
IVECO49-10 V (13054204, 13054211, 13054212, 13054215,...DAILY II Van8140.27S103Diesel1989–1996
IVECO49-12 (13130211, 13130231, 13130304, 13130311, 13130312,...DAILY II Platform/Chassis8140.47S116Diesel1990–1996
IVECO49-12 (13130211, 13130231, 13130304, 13130311, 13130312,...DAILY II Platform/Chassis8140.47116Diesel1990–1996
IVECO49-12 V (13134124, 13134204, 13134211, 13134212,...DAILY II Van8140.47S116Diesel1990–1996
IVECO49-12 V (13134124, 13134204, 13134211, 13134212,...DAILY II Van8140.47116Diesel1990–1996
IVECO59-12 (13150204, 13150211, 13150231, 13150311, 13150312,...DAILY II Platform/Chassis8140.47S116Diesel1991–1996
IVECO59-12 (13150204, 13150211, 13150231, 13150311, 13150312,...DAILY II Platform/Chassis8140.47116Diesel1991–1996
IVECO59-12 V (13154404, 13154411, 13154412, 13154417,...DAILY II Van8140.47116Diesel1991–1996
IVECO59-12 V (13154404, 13154411, 13154412, 13154417,...DAILY II Van8140.47S116Diesel1991–1996
IVECOA 40-10 (94139111, 94139131, 94139311, 94139315,...DAILY II Bus8140.27S103Diesel1991–1996
IVECOA 45-10 (94159111, 94159131, 94159211, 94159311,...DAILY II Bus8140.27S103Diesel1991–1996
IVECOA 45-12 (94179211, 94179231, 94179311, 94179317,...DAILY II Bus8140.47S116Diesel1990–1996
IVECOA 45-12 (94179211, 94179231, 94179311, 94179317,...DAILY II Bus8140.47116Diesel1990–1996
