SEG Automotive S01205(SEG) Startmotor — MERCEDES-BENZ

SEG Automotive S01205(SEG) Startmotor — MERCEDES-BENZ

4 497,00 kr inkl. moms

PREMIUM LINE | Tillverkare: SEG Automotive | Ersätter: BOSCH

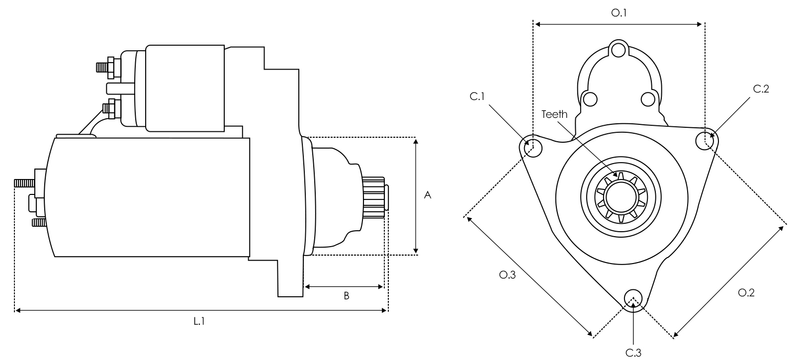

Spänning [ V ] 24
Effekt [ kW ] 7.80
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 381.00
O.1 [ mm ] 125.00
O.2 [ mm ] 125.00
O.3 [ mm ] 125.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
Insulated return Yes
SEG AutomotivePREMIUM LINE
EAN5902129269465
ErsätterBOSCH
OE-nummer0001383027

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S01205(SEG) Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001383027

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 7.80
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 381.00
O.1 [ mm ] 125.00
O.2 [ mm ] 125.00
O.3 [ mm ] 125.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
Insulated return Yes

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
MERCEDES-BENZ1831ACTROS MP2 / MP3OM541.9203132002–
MERCEDES-BENZ1831ACTROS MP2 / MP3OM541.9403132002–
MERCEDES-BENZ1831 AKACTROS MP2 / MP3OM541.9413132003–
MERCEDES-BENZ1831 AKACTROS MP2 / MP3OM541.9263132003–
MERCEDES-BENZ1831 KACTROS MP2 / MP3OM541.9403132003–
MERCEDES-BENZ1831 KACTROS MP2 / MP3OM541.9203132003–
MERCEDES-BENZ1831 LACTROS MP2 / MP3OM541.9403132002–
MERCEDES-BENZ1831 LACTROS MP2 / MP3OM541.9203132002–
MERCEDES-BENZ1831 LLACTROS MP2 / MP3OM541.9203132002–
MERCEDES-BENZ1831 LLACTROS MP2 / MP3OM541.9403132002–
MERCEDES-BENZ1831 LSACTROS MP2 / MP3OM541.9203132002–
MERCEDES-BENZ1831 LSACTROS MP2 / MP3OM541.9403132002–
MERCEDES-BENZ1832 AKACTROS MP2 / MP3OM541.9713202003–
MERCEDES-BENZ1832 AKACTROS MP2 / MP3OM541.9403202003–
MERCEDES-BENZ1832 AKACTROS MP2 / MP3OM541.9973202003–
MERCEDES-BENZ1832 KACTROS MP2 / MP3OM541.9703202003–
MERCEDES-BENZ1832 KACTROS MP2 / MP3OM541.9403202003–
MERCEDES-BENZ1832 KACTROS MP2 / MP3OM541.9963202003–
MERCEDES-BENZ1832, L, LLACTROS MP2 / MP3OM541.9403202003–
MERCEDES-BENZ1832, L, LLACTROS MP2 / MP3OM541.9703202003–
MERCEDES-BENZ1832, LS, LLSACTROS MP2 / MP3OM541.9703202003–
MERCEDES-BENZ1832, LS, LLSACTROS MP2 / MP3OM541.9403202003–
MERCEDES-BENZ1835ACTROS MP2 / MP3OM541.9423542002–
MERCEDES-BENZ1835ACTROS MP2 / MP3OM541.9223542002–
MERCEDES-BENZ1835 AKACTROS MP2 / MP3OM541.9433542003–
MERCEDES-BENZ1835 AKACTROS MP2 / MP3OM541.9273542003–
MERCEDES-BENZ1835 KACTROS MP2 / MP3OM541.9423542003–
MERCEDES-BENZ1835 KACTROS MP2 / MP3OM541.9223542003–
MERCEDES-BENZ1835 LACTROS MP2 / MP3OM541.9223542002–
MERCEDES-BENZ1835 LACTROS MP2 / MP3OM541.9423542002–
MERCEDES-BENZ1835 LLACTROS MP2 / MP3OM541.9423542002–
MERCEDES-BENZ1835 LLACTROS MP2 / MP3OM541.9223542002–
MERCEDES-BENZ1835 LSACTROS MP2 / MP3OM541.9423542002–
MERCEDES-BENZ1835 LSACTROS MP2 / MP3OM541.9223542002–
MERCEDES-BENZ1836 AKACTROS MP2 / MP3OM541.9993602003–
MERCEDES-BENZ1836 AKACTROS MP2 / MP3OM541.9423602003–
MERCEDES-BENZ1836 KACTROS MP2 / MP3OM541.9723602003–
MERCEDES-BENZ1836 KACTROS MP2 / MP3OM541.9423602003–
MERCEDES-BENZ1836 KACTROS MP2 / MP3OM541.9983602003–
MERCEDES-BENZ1836 LS, LLSACTROS MP2 / MP3OM541.9423602003–
MERCEDES-BENZ1836, L, LLACTROS MP2 / MP3OM541.9423602003–
MERCEDES-BENZ1840ACTROS MP2 / MP3OM541.9233942002–
MERCEDES-BENZ1840ACTROS MP2 / MP3OM541.9443942002–
MERCEDES-BENZ1840 AKACTROS MP2 / MP3OM541.9243942003–
MERCEDES-BENZ1840 AKACTROS MP2 / MP3OM541.9453942003–
MERCEDES-BENZ1840 KACTROS MP2 / MP3OM541.9443942003–
MERCEDES-BENZ1840 KACTROS MP2 / MP3OM541.9233942003–
MERCEDES-BENZ1840 LACTROS MP2 / MP3OM541.9443942002–
MERCEDES-BENZ1840 LACTROS MP2 / MP3OM541.9233942002–
MERCEDES-BENZ1840 LLACTROS MP2 / MP3OM541.9233942002–
MERCEDES-BENZ1840 LLACTROS MP2 / MP3OM541.9443942002–
MERCEDES-BENZ1840 LSACTROS MP2 / MP3OM541.9233942002–
MERCEDES-BENZ1840 LSACTROS MP2 / MP3OM541.9443942002–
MERCEDES-BENZ1841 AKACTROS MP2 / MP3OM541.9914082003–
MERCEDES-BENZ1841 KACTROS MP2 / MP3OM541.9444082003–
MERCEDES-BENZ1841 KACTROS MP2 / MP3OM541.9904082003–
MERCEDES-BENZ1841 KACTROS MP2 / MP3OM541.9744082003–
MERCEDES-BENZ1841 LS, LLSACTROS MP2 / MP3OM541.9444082003–
MERCEDES-BENZ1841 LS, LLSACTROS MP2 / MP3OM541.9904082003–
MERCEDES-BENZ1841 LS, LLSACTROS MP2 / MP3OM541.9744082003–
MERCEDES-BENZ1841, L, LLACTROS MP2 / MP3OM541.9744082003–
MERCEDES-BENZ1841, L, LLACTROS MP2 / MP3OM541.9444082003–
MERCEDES-BENZ1841, L, LLACTROS MP2 / MP3OM541.9904082003–
MERCEDES-BENZ1843ACTROS MP2 / MP3OM541.9254282002–
MERCEDES-BENZ1843ACTROS MP2 / MP3OM541.9464282002–
MERCEDES-BENZ1843 AKACTROS MP2 / MP3OM541.9214282002–
MERCEDES-BENZ1843 AKACTROS MP2 / MP3OM541.9474282002–
MERCEDES-BENZ1843 KACTROS MP2 / MP3OM541.9464282002–
MERCEDES-BENZ1843 KACTROS MP2 / MP3OM541.9254282002–
MERCEDES-BENZ1843 LACTROS MP2 / MP3OM541.9254282002–
MERCEDES-BENZ1843 LACTROS MP2 / MP3OM541.9464282002–
MERCEDES-BENZ1843 LLACTROS MP2 / MP3OM541.9464282002–
MERCEDES-BENZ1843 LLACTROS MP2 / MP3OM541.9254282002–
MERCEDES-BENZ1843 LSACTROS MP2 / MP3OM541.9464282002–
MERCEDES-BENZ1843 LSACTROS MP2 / MP3OM541.9254282002–
MERCEDES-BENZ1844 AKACTROS MP2 / MP3OM541.947428-4352003–
MERCEDES-BENZ1844 AKACTROS MP2 / MP3OM541.946428-4352003–
MERCEDES-BENZ1844 AKACTROS MP2 / MP3OM541.993428-4352003–
MERCEDES-BENZ1844 AKACTROS MP2 / MP3OM541.921428-4352003–
MERCEDES-BENZ1844 KACTROS MP2 / MP3OM541.946428-4352003–
MERCEDES-BENZ1844 KACTROS MP2 / MP3OM541.992428-4352003–
MERCEDES-BENZ1844 KACTROS MP2 / MP3OM541.925428-4352003–
MERCEDES-BENZ1844 KACTROS MP2 / MP3OM541.976428-4352003–
MERCEDES-BENZ1844 LS, LLSACTROS MP2 / MP3OM541.9764352003–
MERCEDES-BENZ1844 LS, LLSACTROS MP2 / MP3OM541.9464352003–
MERCEDES-BENZ1844 LS, LLSACTROS MP2 / MP3OM541.9924352003–
MERCEDES-BENZ1844, L, LLACTROS MP2 / MP3OM541.9924352003–
MERCEDES-BENZ1844, L, LLACTROS MP2 / MP3OM541.9764352003–
MERCEDES-BENZ1844, L, LLACTROS MP2 / MP3OM541.9464352003–
MERCEDES-BENZ1846 AKACTROS MP2 / MP3OM541.9494562003–
MERCEDES-BENZ1846 AKACTROS MP2 / MP3OM541.9954562003–
MERCEDES-BENZ1846 AKACTROS MP2 / MP3OM541.9484562003–
MERCEDES-BENZ1846 AKACTROS MP2 / MP3OM541.9814562003–
MERCEDES-BENZ1846 KACTROS MP2 / MP3OM541.9944562003–
MERCEDES-BENZ1846 KACTROS MP2 / MP3OM541.9804562003–
MERCEDES-BENZ1846 KACTROS MP2 / MP3OM541.9484562003–
MERCEDES-BENZ1846 LS, LLSACTROS MP2 / MP3OM541.9804562003–
MERCEDES-BENZ1846 LS, LLSACTROS MP2 / MP3OM541.9484562003–
MERCEDES-BENZ1846, L, LLACTROS MP2 / MP3OM541.9484562003–
MERCEDES-BENZ1846, L, LLACTROS MP2 / MP3OM541.9804562003–
MERCEDES-BENZ1848 AKACTROS MP2 / MP3OM541.9484762003–
MERCEDES-BENZ1848 AKACTROS MP2 / MP3OM542.9254762003–
MERCEDES-BENZ1848 KACTROS MP2 / MP3OM542.9214762003–
MERCEDES-BENZ1848 KACTROS MP2 / MP3OM541.9784762003–
MERCEDES-BENZ1848 KACTROS MP2 / MP3OM541.9484762003–
MERCEDES-BENZ1848 KACTROS MP2 / MP3OM542.9404762003–
MERCEDES-BENZ1848 S, LSACTROS MP2 / MP3OM542.9214762003–
MERCEDES-BENZ1848, L, LLACTROS MP2 / MP3OM541.9784762003–
MERCEDES-BENZ1848, L, LLACTROS MP2 / MP3OM542.9214762003–
MERCEDES-BENZ1848, L, LLACTROS MP2 / MP3OM541.9484762003–
MERCEDES-BENZ1848, LS, LLSACTROS MP2 / MP3OM541.9784762003–
MERCEDES-BENZ1848, LS, LLSACTROS MP2 / MP3OM541.9484762003–
MERCEDES-BENZ1850 AK, 1851 AKACTROS MP2 / MP3OM542.941503-5102003–
MERCEDES-BENZ1850 AK, 1851 AKACTROS MP2 / MP3OM542.961503-5102003–
MERCEDES-BENZ1850 AK, 1851 AKACTROS MP2 / MP3OM542.940503-5102003–
MERCEDES-BENZ1850 AK, 1851 AKACTROS MP2 / MP3OM542.960503-5102003–
MERCEDES-BENZ1850, 1851 KACTROS MP2 / MP3OM542.940503-5102003–
MERCEDES-BENZ1850, 1851 KACTROS MP2 / MP3OM542.960503-5102003–
MERCEDES-BENZ1850, 1851 LS, LLSACTROS MP2 / MP3OM542.940503-5102003–
MERCEDES-BENZ1850, 1851 LS, LLSACTROS MP2 / MP3OM542.960503-5102003–
MERCEDES-BENZ1850, 1851, L, LLACTROS MP2 / MP3OM542.960503-5102003–
MERCEDES-BENZ1850, 1851, L, LLACTROS MP2 / MP3OM542.940503-5102003–
MERCEDES-BENZ1853 LACTROS MP2 / MP3OM542.9205302002–
MERCEDES-BENZ1853 LSACTROS MP2 / MP3OM542.9425302002–
MERCEDES-BENZ1853 LSACTROS MP2 / MP3OM542.9205302002–
MERCEDES-BENZ1854ACTROS MP2 / MP3OM542.9205302002–
MERCEDES-BENZ1854 LLACTROS MP2 / MP3OM542.9425372002–
MERCEDES-BENZ1854 LSACTROS MP2 / MP3OM542.9425372003–
MERCEDES-BENZ1854, LACTROS MP2 / MP3OM542.962537-5512003–
MERCEDES-BENZ1854, LACTROS MP2 / MP3OM542.942537-5512003–
MERCEDES-BENZ1855 LS, LLSACTROS MP2 / MP3OM542.9625512008–
MERCEDES-BENZ1855, L, LLACTROS MP2 / MP3OM542.9625512008–
MERCEDES-BENZ1858 LLACTROS MP2 / MP3OM542.9445782002–
MERCEDES-BENZ1858 LSACTROS MP2 / MP3OM542.9445782002–
MERCEDES-BENZ1858, LACTROS MP2 / MP3OM542.9445782003–
MERCEDES-BENZ1860 L, LLACTROS MP2 / MP3OM542.9645982005–
MERCEDES-BENZ1860 LSACTROS MP2 / MP3OM542.9645982008–
MERCEDES-BENZ1861 LSACTROS MP2 / MP3OM542.9586122005–
MERCEDES-BENZ2031ACTROS MP2 / MP3OM541.9203132002–
MERCEDES-BENZ2031ACTROS MP2 / MP3OM541.9403132002–
MERCEDES-BENZ2031 AACTROS MP2 / MP3OM541.9413132002–
MERCEDES-BENZ2031 AACTROS MP2 / MP3OM541.9263132002–
MERCEDES-BENZ2031 AKACTROS MP2 / MP3OM541.9413132002–
MERCEDES-BENZ2031 AKACTROS MP2 / MP3OM541.9263132002–
MERCEDES-BENZ2031 ASACTROS MP2 / MP3OM541.9263132002–
MERCEDES-BENZ2031 ASACTROS MP2 / MP3OM541.9413132002–
MERCEDES-BENZ2031 KACTROS MP2 / MP3OM541.9203132002–
MERCEDES-BENZ2031 KACTROS MP2 / MP3OM541.9403132002–
MERCEDES-BENZ2031 SACTROS MP2 / MP3OM541.9403132002–
MERCEDES-BENZ2031 SACTROS MP2 / MP3OM541.9203132002–
MERCEDES-BENZ2032ACTROS MP2 / MP3OM541.940313-3202003–
MERCEDES-BENZ2032ACTROS MP2 / MP3OM541.920313-3202003–
MERCEDES-BENZ2032 A, AEACTROS MP2 / MP3OM541.940313-3202003–
MERCEDES-BENZ2032 A, AEACTROS MP2 / MP3OM541.926313-3202003–
MERCEDES-BENZ2032 A, AEACTROS MP2 / MP3OM541.941313-3202003–
MERCEDES-BENZ2032 AKACTROS MP2 / MP3OM541.997313-3202003–
MERCEDES-BENZ2032 AKACTROS MP2 / MP3OM541.926313-3202003–
MERCEDES-BENZ2032 AKACTROS MP2 / MP3OM541.941313-3202003–
MERCEDES-BENZ2032 AKACTROS MP2 / MP3OM541.920313-3202003–
MERCEDES-BENZ2032 AKACTROS MP2 / MP3OM541.940313-3202003–
MERCEDES-BENZ2032 ASACTROS MP2 / MP3OM541.941313-3202003–
MERCEDES-BENZ2032 ASACTROS MP2 / MP3OM541.926313-3202003–
MERCEDES-BENZ2032 KACTROS MP2 / MP3OM541.996313-3202003–
MERCEDES-BENZ2032 KACTROS MP2 / MP3OM541.920313-3202003–
MERCEDES-BENZ2032 KACTROS MP2 / MP3OM541.970313-3202003–
MERCEDES-BENZ2032 KACTROS MP2 / MP3OM541.940313-3202003–
MERCEDES-BENZ2032 SACTROS MP2 / MP3OM541.940313-3202003–
MERCEDES-BENZ2032 SACTROS MP2 / MP3OM541.920313-3202003–
MERCEDES-BENZ2035ACTROS MP2 / MP3OM541.9223542002–
MERCEDES-BENZ2035ACTROS MP2 / MP3OM541.9423542002–
MERCEDES-BENZ2035 AACTROS MP2 / MP3OM541.9273542002–
MERCEDES-BENZ2035 AACTROS MP2 / MP3OM541.9433542002–
MERCEDES-BENZ2035 AKACTROS MP2 / MP3OM541.9273542002–
MERCEDES-BENZ2035 AKACTROS MP2 / MP3OM541.9433542002–
MERCEDES-BENZ2035 ASACTROS MP2 / MP3OM541.9433542002–
MERCEDES-BENZ2035 ASACTROS MP2 / MP3OM541.9273542002–
MERCEDES-BENZ2035 KACTROS MP2 / MP3OM541.9423542002–
MERCEDES-BENZ2035 KACTROS MP2 / MP3OM541.9223542002–
MERCEDES-BENZ2036ACTROS MP2 / MP3OM541.942354-3602003–
MERCEDES-BENZ2036ACTROS MP2 / MP3OM541.922354-3602003–
MERCEDES-BENZ2036 A, AEACTROS MP2 / MP3OM541.942354-3602003–
MERCEDES-BENZ2036 A, AEACTROS MP2 / MP3OM541.927354-3602003–
MERCEDES-BENZ2036 A, AEACTROS MP2 / MP3OM541.943354-3602003–
MERCEDES-BENZ2036 AKACTROS MP2 / MP3OM541.999354-3602003–
MERCEDES-BENZ2036 AKACTROS MP2 / MP3OM541.927354-3602003–
MERCEDES-BENZ2036 AKACTROS MP2 / MP3OM541.943354-3602003–
MERCEDES-BENZ2036 AKACTROS MP2 / MP3OM541.942354-3602003–
MERCEDES-BENZ2036 ASACTROS MP2 / MP3OM541.943354-3602003–
MERCEDES-BENZ2036 ASACTROS MP2 / MP3OM541.927354-3602003–
MERCEDES-BENZ2036 KACTROS MP2 / MP3OM541.972354-3602003–
MERCEDES-BENZ2036 KACTROS MP2 / MP3OM541.942354-3602003–
MERCEDES-BENZ2036 KACTROS MP2 / MP3OM541.998354-3602003–
MERCEDES-BENZ2036 KACTROS MP2 / MP3OM541.922354-3602003–
MERCEDES-BENZ2036 SACTROS MP2 / MP3OM541.972354-3602003–
MERCEDES-BENZ2036 SACTROS MP2 / MP3OM541.942354-3602003–
MERCEDES-BENZ2040ACTROS MP2 / MP3OM541.9233942002–
MERCEDES-BENZ2040ACTROS MP2 / MP3OM541.9443942002–
MERCEDES-BENZ2040 AKACTROS MP2 / MP3OM541.9453942002–
MERCEDES-BENZ2040 AKACTROS MP2 / MP3OM541.9243942002–
MERCEDES-BENZ2040 ASACTROS MP2 / MP3OM541.9243942002–

Visar 200 av 1068 fordon

Reviews

There are no reviews yet.

Be the first to review “SEG Automotive S01205(SEG) Startmotor — MERCEDES-BENZ”

Your email address will not be published. Required fields are marked *

Related products
