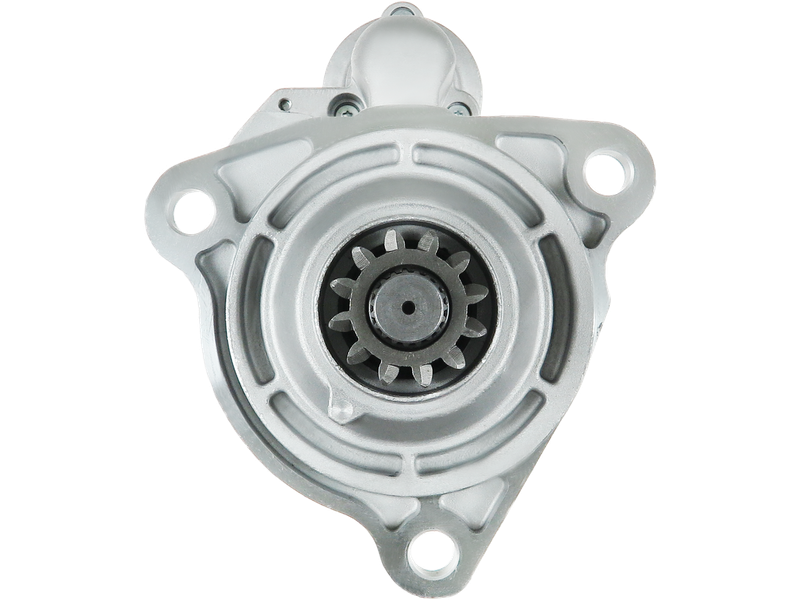

AS-PL S0137 Startmotor — DAF, MERCEDES-BENZ, BOVA

AS-PL S0137 Startmotor — DAF, MERCEDES-BENZ, BOVA

2 162,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 5.50
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 12
Antal kuggar (passar in) [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 321.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
Oil sealed Yes
AS-PLSTANDARD LINE
EAN5901259420197
ErsätterBOSCH
OE-nummer0001241007

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0137 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001241007

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 5.50
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 12
Antal kuggar (passar in) [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 321.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
Oil sealed Yes

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
BOVADD 130, DD 138SynergyXE315C4282004–
BOVADD 130, DD 138SynergyXE355C4832004–
BOVAFHD 10, FHD 12, FHD 13, FLD 12, FLD 13FuturaXE250C3402001–2006
BOVAHD 120, HD 122MagiqXE280C3811999–
BOVAHD 120, HD 122MagiqXE250C3401999–
DAFFA 105.410XF 105MX3004082005–
DAFFA 105.460XF 105MX3404622005–
DAFFA 105.510XF 105MX3755102005–
DAFFA 85 CF 34085 CFXF250M3401998–2000
DAFFA 85 CF 38085 CFXF280M3811998–2000
DAFFA 85 CF 43085 CFXF315M4281998–2000
DAFFA 85.340CF 85XE250C3402001–2013
DAFFA 85.360CF 85MX2653602006–2013
DAFFA 85.360CF 85MX2653602006–2013
DAFFA 85.380CF 85XE280C3812001–2013
DAFFA 85.410CF 85MX3004082006–2013
DAFFA 85.410CF 85MX3004082006–2013
DAFFA 85.430CF 85XE315C4282001–2013
DAFFA 85.460CF 85MX3404622006–2013
DAFFA 85.460CF 85MX3404622006–2013
DAFFA 85.480CF 85XE355C4832001–2013
DAFFA 85.510CF 85MX3755102006–2013
DAFFA 85.510CF 85MX3755102006–2013
DAFFA 95 XF 38095 XFXE280C3811997–2002
DAFFA 95 XF 38095 XFXF280M3811997–2002
DAFFA 95 XF 43095 XFXF315M4281997–2002
DAFFA 95 XF 43095 XFXE315C4281997–2002
DAFFA 95 XF 48095 XFXF355M4831997–2002
DAFFA 95 XF 48095 XFXE355C4831997–2002
DAFFA 95 XF 53095 XFXE390C5301997–2002
DAFFA 95 XF 53095 XFVF390M5301997–2002
DAFFA 95.380XF 95XE280C3812002–2006
DAFFA 95.430XF 95XE315C4282002–2006
DAFFA 95.480XF 95XE355C4832002–2006
DAFFA 95.530XF 95XE390C5302002–2006
DAFFAC 85 CF 34085 CFXF250M3401998–2000
DAFFAC 85 CF 38085 CFXF280M3811998–2000
DAFFAC 85 CF 43085 CFXF315M4281998–2000
DAFFAC 85.340CF 85XE250C3402005–2013
DAFFAC 85.360CF 85MX2653602006–2013
DAFFAC 85.380CF 85XE280C3802005–2013
DAFFAC 85.410CF 85MX3004082005–2013
DAFFAC 85.430CF 85XE315C4282005–2013
DAFFAC 85.460CF 85MX3404622005–2013
DAFFAC 85.480CF 85XE355C4832005–2013
DAFFAC 85.510CF 85MX3755102005–2013
DAFFAC 95 XF 38095 XFXE280C3811997–2002
DAFFAC 95 XF 38095 XFXF280M3811997–2002
DAFFAC 95 XF 43095 XFXF315M4281997–2002
DAFFAC 95 XF 43095 XFXE315C4281997–2002
DAFFAC 95 XF 48095 XFXE355C4831997–2002
DAFFAC 95 XF 48095 XFXF355M4831997–2002
DAFFAC 95 XF 53095 XFVF390M5301997–2002
DAFFAC 95 XF 53095 XFXE390C5301997–2002
DAFFAD 105.410XF 105MX3004082005–
DAFFAD 105.460XF 105MX3404622005–
DAFFAD 105.510XF 105MX3755102005–
DAFFAD 85 CF 34085 CFXF250M3401998–2000
DAFFAD 85 CF 38085 CFXF280M3811998–2000
DAFFAD 85 CF 43085 CFXF315M4281998–2000
DAFFAD 85.340CF 85XE250C3402001–2013
DAFFAD 85.360CF 85MX2653602006–2013
DAFFAD 85.360CF 85MX2653602006–2013
DAFFAD 85.360CF 85MX2653602006–2013
DAFFAD 85.380CF 85XE280C3812001–2013
DAFFAD 85.410CF 85MX3004082006–2013
DAFFAD 85.410CF 85MX3004082006–2013
DAFFAD 85.410CF 85MX3004082006–2013
DAFFAD 85.430CF 85XE315C4282001–2013
DAFFAD 85.460CF 85MX3404622006–2013
DAFFAD 85.460CF 85MX3404622006–2013
DAFFAD 85.460CF 85MX3404622006–2013
DAFFAD 85.480CF 85XE355C4832001–2013
DAFFAD 85.510CF 85MX3755102006–2013
DAFFAD 85.510CF 85MX3755102006–2013
DAFFAD 85.510CF 85MX3755102006–2013
DAFFAD 95 XF 38095 XFXF280M3811997–2002
DAFFAD 95 XF 43095 XFXF315M4281997–2002
DAFFAD 95 XF 48095 XFXF355M4831997–2002
DAFFAD 95 XF 48095 XFXE355C4831997–2002
DAFFAD 95 XF 53095 XFVF390M5301997–2002
DAFFAD 95 XF 53095 XFXE390C5301997–2002
DAFFAD 95.380XF 95XE280C3812002–2006
DAFFAD 95.430XF 95XE315C4282002–2006
DAFFAD 95.480XF 95XE355C4832002–2006
DAFFAD 95.530XF 95XE390C5302002–2006
DAFFAG 85 CF 340,FAN 85 CF 34085 CFXF250M3401998–2000
DAFFAG 85 CF 380,FAN 85 CF 38085 CFXF280M3811998–2000
DAFFAG 85 CF 430,FAN 85 CF 43085 CFXF315M4281998–2000
DAFFAG 85.340, FAN 85.340CF 85XE250C3402001–2013
DAFFAG 85.360, FAN 85.360CF 85MX2653602006–2013
DAFFAG 85.360, FAN 85.360CF 85MX2653602006–2013
DAFFAG 85.380, FAN 85.380CF 85XE280C3812001–2013
DAFFAG 85.410, FAN 85.410CF 85MX3004082005–2013
DAFFAG 85.410, FAN 85.410CF 85MX3004082006–2013
DAFFAG 85.430, FAN 85.430CF 85XE315C4282001–2013
DAFFAG 85.460, FAN 85.460CF 85MX3404622006–2013
DAFFAG 85.460, FAN 85.460CF 85MX3404622005–2013
DAFFAG 85.480, FAN 85.480CF 85XE355C4832001–2013
DAFFAG 85.510, FAN 85.510CF 85MX3755102005–2013
DAFFAG 85.510, FAN 85.510CF 85MX3755102006–2013
DAFFAK 105.410XF 105MX3004082005–
DAFFAK 105.460XF 105MX3404622005–
DAFFAK 105.510XF 105MX3755102005–
DAFFAK 95.380XF 95XE280C3812002–2006
DAFFAK 95.380XF 95XF280M3812002–2006
DAFFAK 95.430XF 95XE315C4302002–2006
DAFFAK 95.430XF 95XF315M4302002–2006
DAFFAK 95.480XF 95XF355M4802002–2006
DAFFAK 95.480XF 95XE355C4802002–2006
DAFFAK 95.530XF 95XE390C5302002–2006
DAFFAN 105.410XF 105MX3004082005–
DAFFAN 105.460XF 105MX3404622005–
DAFFAN 85.360CF 85MX2653602006–2013
DAFFAN 85.410CF 85MX3004082006–2013
DAFFAN 85.460CF 85MX3404622006–2013
DAFFAN 85.510CF 85MX3755102006–2013
DAFFAN 95.380XF 95XE280C3812002–2006
DAFFAN 95.430XF 95XE315C4302002–2006
DAFFAN 95.480XF 95XE355C4802002–2006
DAFFAN 95.530XF 95XE390C5302002–2006
DAFFAQ 85.360CF 85MX2653602006–2013
DAFFAQ 85.410CF 85MX3004082006–2013
DAFFAQ 85.460CF 85MX3404622006–2013
DAFFAQ 85.510CF 85MX3755102006–2013
DAFFAR 105.410XF 105MX3004082005–
DAFFAR 105.460XF 105MX3404622005–
DAFFAR 105.510XF 105MX3755102005–
DAFFAR 85 CF 34085 CFXF250M3401998–2000
DAFFAR 85 CF 38085 CFXF280M3811998–2000
DAFFAR 85 CF 43085 CFXF315M4281998–2000
DAFFAR 85.340, FAS 85.340CF 85XE250C3402001–2013
DAFFAR 85.360CF 85MX2653602006–2013
DAFFAR 85.360, FAS 85.360CF 85MX2653602006–2013
DAFFAR 85.360, FAS 85.360CF 85MX2653602006–2013
DAFFAR 85.380, FAS 85.380CF 85XE280C3812001–2013
DAFFAR 85.410CF 85MX3004082005–2013
DAFFAR 85.410, FAS 85.410CF 85MX3004082005–2013
DAFFAR 85.410, FAS 85.410CF 85MX3004082005–2013
DAFFAR 85.430, FAS 85.430CF 85XE315C4282001–2013
DAFFAR 85.460CF 85MX3404622005–2013
DAFFAR 85.460, FAS 85.460CF 85MX3404622005–2013
DAFFAR 85.460, FAS 85.460CF 85MX3404622005–2013
DAFFAR 85.480, FAS 85.480CF 85XE355C4832001–2013
DAFFAR 85.510CF 85MX3755102005–2013
DAFFAR 85.510, FAS 85.510CF 85MX3755102005–2013
DAFFAR 85.510, FAS 85.510CF 85MX3755102005–2013
DAFFAR 95 XF 38095 XFXF280M3811997–2002
DAFFAR 95 XF 38095 XFXE280C3811997–2002
DAFFAR 95 XF 43095 XFXE315C4281997–2002
DAFFAR 95 XF 43095 XFXF315M4281997–2002
DAFFAR 95 XF 48095 XFXF355M4831997–2002
DAFFAR 95 XF 48095 XFXE355C4831997–2002
DAFFAR 95 XF 53095 XFXE390C5301997–2002
DAFFAR 95 XF 53095 XFVF390M5301997–2002
DAFFAR 95.380XF 95XE280C3812002–2006
DAFFAR 95.430XF 95XE315C4282002–2006
DAFFAR 95.480XF 95XE355C4832002–2006
DAFFAR 95.530XF 95XE390C5302002–2006
DAFFAS 105.410, FAR 105.410XF 105MX3004082005–
DAFFAS 105.460, FAR 105.460XF 105MX3404622005–
DAFFAS 105.510, FAR 105.510XF 105MX3755102005–
DAFFAS 85 CF 34085 CFXF250M3401998–2000
DAFFAS 85 CF 38085 CFXF280M3811998–2000
DAFFAS 85 CF 43085 CFXF315M4281998–2000
DAFFAS 95 XF 38095 XFXF280M3811997–2002
DAFFAS 95 XF 38095 XFXE280C3811997–2002
DAFFAS 95 XF 43095 XFXE315C4281997–2002
DAFFAS 95 XF 43095 XFXF315M4281997–2002
DAFFAS 95 XF 48095 XFXE355C4831997–2002
DAFFAS 95 XF 48095 XFXF355M4831997–2002
DAFFAS 95 XF 53095 XFVF390M5301997–2002
DAFFAS 95 XF 53095 XFXE390C5301997–2002
DAFFAS 95.380XF 95XE280C3812002–2006
DAFFAS 95.430XF 95XE315C4302002–2006
DAFFAS 95.480XF 95XE355C480-4842002–2006
DAFFAS 95.530XF 95XE390C5302002–2006
DAFFAT 105.410XF 105MX3004082005–
DAFFAT 105.460XF 105MX3404622005–
DAFFAT 105.510XF 105MX3755102005–
DAFFAT 85 CF 34085 CFXF250M3401998–2000
DAFFAT 85 CF 38085 CFXF280M3811998–2000
DAFFAT 85 CF 43085 CFXF315M4281998–2000
DAFFAT 85.340CF 85XE250C3402001–2013
DAFFAT 85.360CF 85MX2653602006–2013
DAFFAT 85.360CF 85MX2653602006–2013
DAFFAT 85.380CF 85XE280C3812001–2013
DAFFAT 85.410CF 85MX3004082005–2013
DAFFAT 85.410CF 85MX3004082005–2013
DAFFAT 85.430CF 85XE315C4282001–2013
DAFFAT 85.460CF 85MX3404622005–2013
DAFFAT 85.460CF 85MX3404622005–2013
DAFFAT 85.480CF 85XE355C4832001–2013
DAFFAT 85.510CF 85MX3755102005–2013
DAFFAT 85.510CF 85MX3755102005–2013
DAFFAT 95 XF 38095 XFXF280M3811997–2002
DAFFAT 95 XF 38095 XFXE280C3811997–2002
DAFFAT 95 XF 43095 XFXF315M4281997–2002
DAFFAT 95 XF 43095 XFXE315C4281997–2002
DAFFAT 95 XF 48095 XFXE355C4831997–2002

Visar 200 av 522 fordon
