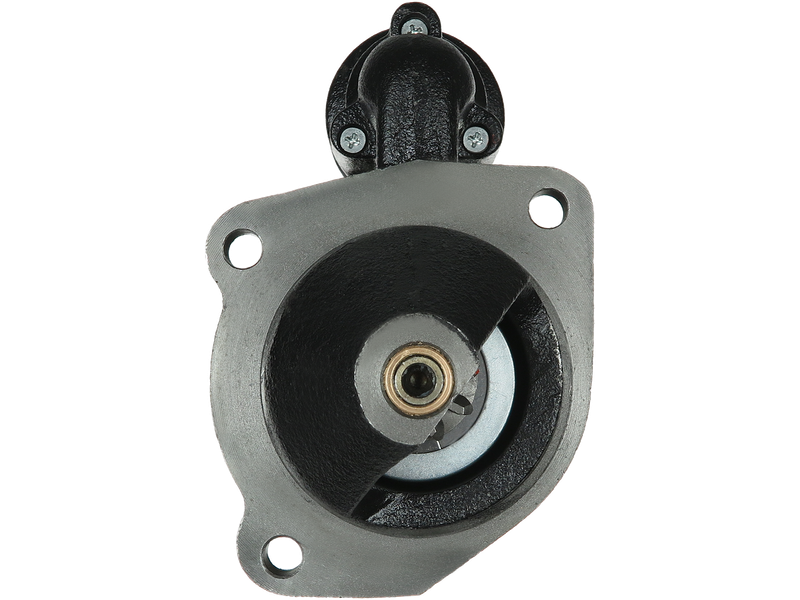

AS-PL S0145 Startmotor — MAN, MERCEDES-BENZ, IVECO

AS-PL S0145 Startmotor — MAN, MERCEDES-BENZ, IVECO

1 525,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 4.80
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 28.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 359.00
O.1 [ mm ] 91.00
O.2 [ mm ] 127.00
O.3 [ mm ] 91.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5901259420296
ErsätterBOSCH
OE-nummer0001364301

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0145 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001364301

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 4.80
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 28.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 359.00
O.1 [ mm ] 91.00
O.2 [ mm ] 127.00
O.3 [ mm ] 91.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
IVECO110-13 AMKBF6L913T131-1351983–1991
IVECO110-13 AMKF6L913131-1351983–1991
IVECO110-16 AMKBF6L913160-1691983–1991
IVECO110-16 AHMKBF6L913160-1691983–1991
IVECO120-13 ANWP/PA-HaubenfahrzeugeF6L913131-1351983–1990
IVECO120-13 ANWP/PA-HaubenfahrzeugeBF6L913T131-1351983–1990
IVECO130-13 AMKF6L913131-1351983–1991
IVECO130-13 AMKBF6L913T131-1351983–1991
IVECO130-13 AHMKF6L913131-1351983–1991
IVECO130-13 AHMKBF6L913T131-1351983–1991
IVECO130-16 AMKBF6L913160-1691983–1991
IVECO130-16 AHMKBF6L913160-1691983–1991
IVECO160-17 ANP/PA-HaubenfahrzeugeBF6L9131691989–1993
IVECO160-17 ANWP/PA-HaubenfahrzeugeBF6L913/U1691989–1993
IVECO170-23 AHP/PAF8L5132371988–1990
IVECO170-23 AH,180-23 AHP/PAF8L5132371991–1993
IVECO170-23 AHWP/PAF8L5132371988–1990
IVECO170-23 AHW,180-23 AHWP/PAF8L5132371991–1993
IVECO170-25 AHP/PAF8L5132641989–1990
IVECO170-25 AH,180-25 AHP/PAF8L5132641991–1993
IVECO170-25 AHWP/PAF8L5132641989–1990
IVECO170-25 AHW,180-25 AHWP/PAF8L5132641991–1993
IVECO170-34 AHP/PABF8L5133401989–1990
IVECO170-34 AHP/PABF8L5133401991–1993
IVECO170-34 AHP/PABF8L5133401989–1990
IVECO170-34 AH,180-34 AHP/PABF8L5133401991–1993
IVECO170-34 AHWP/PABF8L5133401989–1990
IVECO170-34 AHW,180-34 AHWP/PABF8L5133401991–1993
IVECO190-25 AHP/PAF8L413F2561983–1986
IVECO190-25 AHP/PAF8L413F2561983–1986
IVECO190-25 AHP/PAF8L413F2561983–1986
IVECO190-25 ANP/PA-HaubenfahrzeugeF8L413F2561983–1987
IVECO190-25 ANP/PA-HaubenfahrzeugeF8L413F2561986–1990
IVECO190-25 ANP/PA-HaubenfahrzeugeF8L413F2561983–1986
IVECO190-25 ANTP/PA-HaubenfahrzeugeF8L413F2561986–1987
IVECO190-25 ANTP/PA-HaubenfahrzeugeF8L413F2561983–1986
IVECO260-25 AHP/PAF8L5132641989–1992
IVECO260-25 AHP/PAF8L5132641989–1992
IVECO260-25 ANP/PA-HaubenfahrzeugeF8L413F2561983–1986
IVECO260-25 ANP/PA-HaubenfahrzeugeF8L413F2561983–1986
IVECO260-34 AHP/PABF8L5133401989–1990
IVECO260-34 AHP/PABF8L5133401989–1990
IVECO260-34 AHP/PABF8L5133401991–1992
IVECO260-34 AHP/PABF8L5133401989–1990
IVECO260-34 AHP/PABF8L5133401991–1992
IVECO260-34 AHTP/PABF8L5133401991–1992
IVECO260-34 AHTP/PABF8L5133401989–1990
IVECO260-34 AHTP/PABF8L5133401989–1990
IVECO330-30 ANP/PA-HaubenfahrzeugeBF8L5133061986–1990
IVECO330-30 ANP/PA-HaubenfahrzeugeBF8L5133061986–1990
IVECO330-30 ANP/PA-HaubenfahrzeugeBF8L5133061986–1990
IVECO330-30 ANWP/PA-HaubenfahrzeugeBF8L5133061986–1990
IVECO330-30 ANWP/PA-HaubenfahrzeugeBF8L5133061986–1990
IVECO330-30 ANWP/PA-HaubenfahrzeugeBF8L5133061986–1990
IVECO340-34 AHP/PABF8L5133401989–1992
IVECO75-9 AMKBF4L913T871983–1989
IVECO75-9 AMKF4L913871983–1989
IVECO80-13 AMKBF6L913T131-1351983–1991
IVECO80-13 AMKF6L913131-1351983–1991
IVECO80-13 AMKBF6L913T131-1351983–1991
IVECO80-13 AMKF6L913131-1351983–1991
IVECO80-13 AHMKF6L913131-1351983–1991
IVECO80-13 AHMKBF6L913T131-1351983–1991
IVECO80-13 ATMKF6L913131-1351983–1991
IVECO80-13 ATMKBF6L913T131-1351983–1991
IVECO80-13 AWMKBF6L913T131-1351983–1991
IVECO80-13 AWMKBF6L913T131-1351983–1989
IVECO80-13 AWMKF6L913131-1351983–1991
IVECO80-13 AWMKF6L913131-1351983–1989
IVECO80-16 AMKBF6L913160-1691983–1991
IVECO80-16 AMKBF6L913160-1691983–1991
IVECO80-16 AWMKBF6L913160-1691986–1989
IVECO80-16 AWMKBF6L913160-1691986–1989
IVECO90-13 AMKBF6L913T131-1351983–1991
IVECO90-13 AHMKBF6L913T131-1351983–1991
KHD5.7 DieselEngineF6L91201990–1991
KHD6.1 DieselEngineF6L91301992–
MAN17.272 FLSM90D2865LF022691991–1995
MAN18.310TGAD2866LF263102000–
MAN18.310TGAD2866LF363102000–
MAN18.310, 18.320TGAD2866LF26310-3202000–
MAN18.310, 18.320TGAD2866LF36310-3202000–
MAN18.310, 18.320TGAD2866LF26310-3202000–
MAN18.310, 18.320TGAD2866LF36310-3202000–
MAN18.360TGAD2866LF373602000–
MAN18.360TGAD2866LF373602000–
MAN18.360TGAD2866LF273602000–
MAN18.360TGAD2866LF373602000–
MAN18.360TGAD2866LF273602000–
MAN18.360TGAD2866LF273602000–
MAN18.410TGAD2866LF284102000–
MAN18.410TGAD2866LF324102000–
MAN18.410, 18.420TGAD2866LF28410-4202000–
MAN18.410, 18.420TGAD2866LF28410-4202000–
MAN18.410, 18.420TGAD2866LF32410-4202000–
MAN18.410, 18.420TGAD2866LF32410-4202000–
MAN18.460TGAD2876LF074602000–
MAN18.460TGAD2876LF044602000–
MAN18.460TGAD2876LF074602000–
MAN18.460TGAD2876LF074602000–
MAN18.460TGAD2876LF044602000–
MAN18.460TGAD2876LF044602000–
MAN18.510TGAD2876LF055102000–
MAN18.510TGAD2876LF055102000–
MAN19.242 F,19.242 FL,19.242 FLLF90D2866F/2402411988–1989
MAN19.242 FKF90D2866F/2402411988–1989
MAN19.242 FS,19.242 FLS,19.242 FLLSF90D2866F/2402411988–1989
MAN19.262 F,19.262 FL,19.262 FLLF90D2865LF/2602601988–1990
MAN19.262 FAF90D2865LF/2602601989–1990
MAN19.262 FAKF90D2865LF/2602601989–1990
MAN19.262 FASF90D2865LF/2602601989–1990
MAN19.262 FKF90D2865LF/2602601988–1990
MAN19.262 FS,19.262 FLS,19.262 FLLSF90D2865LF/2602601988–1990
MAN19.272 F,19.272 FL,19.272 FLLF90D2865LF022691990–1995
MAN19.272 F,19.272 FL,19.272 FLLF90D2865LF052691990–1995
MAN19.272 FAF90D2865LF052691990–1995
MAN19.272 FAF90D2865LF022691990–1995
MAN19.272 FAKF90D2865LF022691990–1995
MAN19.272 FAKF90D2865LF052691990–1995
MAN19.272 FASF90D2865LF052691990–1995
MAN19.272 FASF90D2865LF022691990–1995
MAN19.272 FKF90D2865LF022691990–1995
MAN19.272 FKF90D2865LF052691990–1995
MAN19.272 FS,19.272 FLS,19.272 FLLSF90D2865LF052691990–1995
MAN19.272 FS,19.272 FLS,19.272 FLLSF90D2865LF022691990–1995
MAN19.273 F, FL, FLLF2000D2865LF222691994–
MAN19.273 FAF2000D2865LF222691994–
MAN19.273 FAKF2000D2865LF222691994–
MAN19.273 FKF2000D2865LF222691994–
MAN19.273 FS,19.273 FLSF2000D2865LF222691994–1995
MAN19.292 F,19.292 FL,19.292 FLLF90D2866LF/2902901986–1990
MAN19.292 FAF90D2866LF/2902901988–1990
MAN19.292 FAKF90D2866LF/2902901988–1990
MAN19.292 FASF90D2866LF/2902901988–1990
MAN19.292 FKF90D2866LF/2902901986–1990
MAN19.292 FS,19.292 FLS,19.292 FLLSF90D2866LF/2902901986–1990
MAN19.293 FACF2000D2865LF202901994–
MAN19.293 FACF2000D2865LF242901994–
MAN19.293 FAKF2000D2865LF242901994–
MAN19.293 FAKF2000D2865LF202901994–
MAN19.293 FASF2000D2865LF242901994–
MAN19.293 FASF2000D2865LF202901994–
MAN19.293 FC,19.293 FLC,19.293 FLLCF2000D2865LF242901994–
MAN19.293 FC,19.293 FLC,19.293 FLLCF2000D2865LF202901994–
MAN19.293 FK,19.293 FLKF2000D2865LF202901994–
MAN19.293 FK,19.293 FLKF2000D2865LF242901994–
MAN19.293 FS,19.293 FLS,19.293 FLLSF2000D2865LF202901994–
MAN19.293 FS,19.293 FLS,19.293 FLLSF2000D2865LF242901994–
MAN19.322 F,19.322 FL,19.322 FLLF90D2865LF033201990–1995
MAN19.322 F,19.322 FL,19.322 FLLF90D2865LF063201990–1995
MAN19.322 FKF90D2865LF063201990–1995
MAN19.322 FKF90D2865LF033201990–1995
MAN19.322 FS,19.322 FLS,19.322 FLLSF90D2865LF033201990–1995
MAN19.322 FS,19.322 FLS,19.322 FLLSF90D2865LF063201990–1995
MAN19.322 U, 19.322 UL, 19.322 ULLF90 UnterflurD2865LF063201990–1994
MAN19.322 U, 19.322 UL, 19.322 ULLF90 UnterflurD2865LF033201990–1994
MAN19.322 U, 19.322 UL, 19.322 ULLF90 UnterflurD2865LUH083201990–1994
MAN19.323 FACF2000D2865LF233201994–1995
MAN19.323 FAKF2000D2865LF233201994–1995
MAN19.323 FASF2000D2865LF233201994–1995
MAN19.323 FC,19.323 FLC,19.323 FLLCF2000D2865LF233201994–1995
MAN19.323 FK,19.323 FLKF2000D2865LF233201994–1995
MAN19.323 FS,19.323 FLS,19.323 FLLSF2000D2865LF233201994–1995
MAN19.332 F,19.332 FL,19.332 FLLF90D2866LF3303301986–1990
MAN19.332 FAF90D2866LF3303301988–1990
MAN19.332 FAKF90D2866LF3303301988–1990
MAN19.332 FASF90D2866LF3303301988–1990
MAN19.332 FS,19.332 FLS,19.332 FLLSF90D2866LF3303301986–1990
MAN19.342 F,19.342 FL,19.342 FLLF90D2865LF093401994–1995
MAN19.342 FKF90D2865LF093401994–1995
MAN19.342 FS,19.342 FLS,19.342 FLLSF90D2865LF093401994–1995
MAN19.343 FACF2000D2865LF213401994–
MAN19.343 FAKF2000D2865LF213401994–
MAN19.343 FASF2000D2865LF213401994–
MAN19.343 FC,19.343 FLC,19.343 FLLCF2000D2865LF213401994–
MAN19.343 FK,19.343 FLKF2000D2865LF213401994–
MAN19.343 FS,19.343 FLS,19.343 FLLSF2000D2865LF213401994–
MAN19.362 F,19.362 FL,19.362 FLLF90D2866KF3601986–1990
MAN19.362 F,19.362 FL,19.362 FLLF90D2866LXF3601986–1990
MAN19.362 FAKF90D2866LXF3601988–1990
MAN19.362 FASF90D2866LXF3601988–1990
MAN19.362 FKF90D2866KF3601986–1990
MAN19.362 FKF90D2866LXF3601986–1990
MAN19.362 FS,19.362 FLS,19.362 FLLSF90D2866LXF3601986–1990
MAN19.362 FS,19.362 FLS,19.362 FLLSF90D2866KF3601986–1990
MAN19.372 F,19.372 FL,19.372 FLLF90D2866LF033701990–1995
MAN19.372 F,19.372 FL,19.372 FLLF90D2866LF153701990–1995
MAN19.372 F,19.372 FL,19.372 FLLF90D2866LXF3391990–1995
MAN19.372 F,19.372 FL,19.372 FLLF90D2866LF053701990–1995
MAN19.372 FKF90D2866LF153701990–1995
MAN19.372 FKF90D2866LF053701990–1995
MAN19.372 FKF90D2866LXF3391990–1995
MAN19.372 FKF90D2866LF033701990–1995
MAN19.372 FS,19.372 FLS,19.372 FLLSF90D2866LF153701990–1995
MAN19.372 FS,19.372 FLS,19.372 FLLSF90D2866LXF3391990–1995
MAN19.372 FS,19.372 FLS,19.372 FLLSF90D2866LF053701990–1995
MAN19.372 FS,19.372 FLS,19.372 FLLSF90D2866LF033701990–1995
MAN19.372 U,19.372 ULLF90 UnterflurD2866LF033701990–1994
MAN19.372 U,19.372 ULLF90 UnterflurD2866LF053701990–1994
MAN19.373 FACF2000D2866LF213701994–

Visar 200 av 1668 fordon
