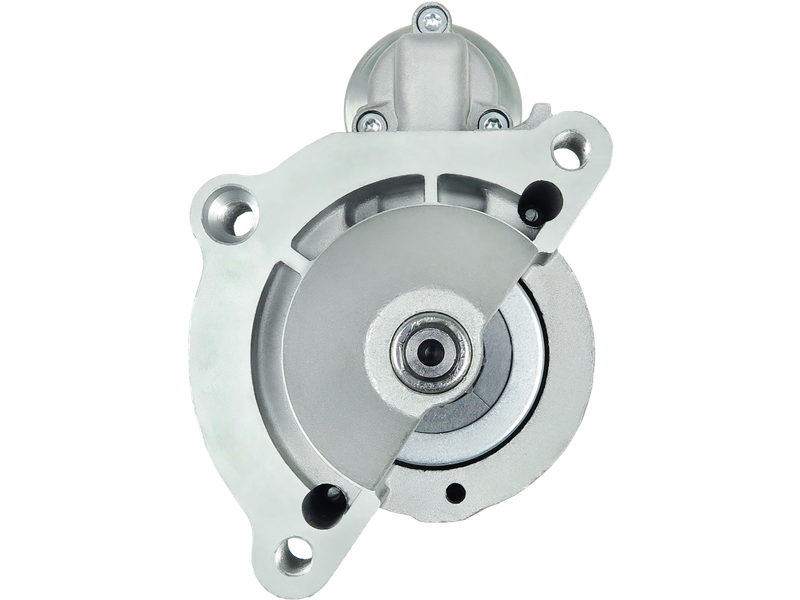

AS-PL S0163 Startmotor — PEUGEOT, CITROËN, FIAT

AS-PL S0163 Startmotor — PEUGEOT, CITROËN, FIAT

1 263,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 2.30
Startmotors rotation CW
A-storlek [ mm ] 72.00
B-storlek [ mm ] -6.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 3
L.1 [ mm ] 247.00
O.1 [ mm ] 85.00
O.2 [ mm ] 121.00
O.3 [ mm ] 85.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
AS-PLSTANDARD LINE
EAN5901259420494
ErsätterBOSCH
OE-nummer0001223014

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0163 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001223014

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.30
Startmotors rotation CW
A-storlek [ mm ] 72.00
B-storlek [ mm ] -6.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 3
L.1 [ mm ] 247.00
O.1 [ mm ] 85.00
O.2 [ mm ] 121.00
O.3 [ mm ] 85.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CITROËN2.0 HDiC5 I (DC_)RHZ(DW10ATED)107Diesel2001–2004
CITROËN2.0 HDiC5 I (DC_)RHS(DW10ATED)107Diesel2001–2004
CITROËN2.0 HDiC8 (EA_, EB_)RHT(DW10ATED4)110Diesel2002–
CITROËN2.0 HDiC8 (EA_, EB_)RHK(DW10UTED4)120Diesel2006–
CITROËN2.0 HDiC8 (EA_, EB_)RHM(DW10ATED4)107Diesel2002–
CITROËN2.0 HDiC8 (EA_, EB_)RHW(DW10ATED4)109Diesel2002–
CITROËN2.0 HDiC8 (EA_, EB_)RHT(DW10ATED4)107Diesel2002–
CITROËN2.0 HDi (DCRHYB)C5 I (DC_)RHY(DW10TD)90Diesel2001–2004
CITROËN2.0 HDi (DCRHZB, DCRHZE)C5 I (DC_)RHZ(DW10ATED)109Diesel2001–2004
CITROËN2.0 HDi (DERHSB, DERHSE)C5 I Break (DE_)RHS(DW10ATED)107Diesel2001–2004
CITROËN2.0 HDi (DERHSE, DERHSB)C5 I Estate Van (DE_)RHS(DW10ATED)107Diesel2002–2004
CITROËN2.0 HDi (DERHYB)C5 I Break (DE_)RHY(DW10TD)90Diesel2001–2004
CITROËN2.0 HDi (DERHYB)C5 I Estate Van (DE_)RHY(DW10TD)90Diesel2002–2004
CITROËN2.0 HDi (DERHZB, DERHZE)C5 I Break (DE_)RHZ(DW10ATED)109Diesel2001–2004
CITROËN2.0 HDi (DERHZB, DERHZE)C5 I Estate Van (DE_)RHZ(DW10ATED)109Diesel2002–2004
CITROËN2.0 HDi 135C8 (EA_, EB_)RHD(DW10CTED4)136Diesel2006–
CITROËN2.0 HDi 135C8 (EA_, EB_)RHD(DW10CB)136Diesel2006–
CITROËN2.0 HDi 135C8 (EA_, EB_)RHR(DW10BTED4)136Diesel2006–
CITROËN2.2 HDiC8 (EA_, EB_)4HW(DW12TED4)128Diesel2002–
CITROËN2.2 HDiJUMPER I Bus (244, Z_)4HY(DW12UTED)101Diesel2002–2006
CITROËN2.2 HDiJUMPER I Platform/Chassis (244)4HY(DW12UTED)101Diesel2002–2006
CITROËN2.2 HDiJUMPER I Van (244)4HY(DW12UTED)101Diesel2002–2006
CITROËN2.2 HDi (DC4HXB, DC4HXE)C5 I (DC_)4HX(DW12TED4)133Diesel2001–2004
CITROËN2.2 HDi (DE4HXB, DE4HXE)C5 I Break (DE_)4HX(DW12TED4)133Diesel2001–2004
CITROËN2.2 HDi (DE4HXB, DE4HXF)C5 I Estate Van (DE_)133Diesel2002–2004
CITROËNHDi (EB4HWB)C8 Van (EA_, EB_)4HW(DW12TED4)128Diesel2003–2006
CITROËNHDi 110 (EBRHTB)C8 Van (EA_, EB_)RHT(DW10ATED4)110Diesel2003–2009
FIAT2.0 D MultijetSCUDO Bus (270_, 272_)RHR136Diesel2007–2016
FIAT2.0 D MultijetSCUDO Bus (270_, 272_)RHK120Diesel2007–2016
FIAT2.0 D MultijetSCUDO Bus (270_, 272_)RHG120Diesel2007–2016
FIAT2.0 D MultijetSCUDO Platform/Chassis (270_, 272_)RHK120Diesel2007–2016
FIAT2.0 D MultijetSCUDO Platform/Chassis (270_, 272_)RHR136Diesel2007–2016
FIAT2.0 D MultijetSCUDO Platform/Chassis (270_, 272_)RHG120Diesel2007–2016
FIAT2.0 D MultijetSCUDO Platform/Chassis (270_, 272_)DW10BTED4136Diesel2007–2016
FIAT2.0 D MultijetSCUDO Van (270_, 272_)RHK120Diesel2007–2016
FIAT2.0 D MultijetSCUDO Van (270_, 272_)RHG120Diesel2007–2016
FIAT2.0 D MultijetSCUDO Van (270_, 272_)RHR136Diesel2007–2016
FIAT2.0 D MultijetULYSSE (179_)RHR136Diesel2006–2011
FIAT2.0 D MultijetULYSSE (179_)RHK120Diesel2006–2011
FIAT2.0 D Multijet 4x4SCUDO Bus (270_, 272_)RHK120Diesel2007–2016
FIAT2.0 D Multijet 4x4SCUDO Bus (270_, 272_)RHR136Diesel2007–2016
FIAT2.0 D Multijet 4x4SCUDO Van (270_, 272_)RHR136Diesel2007–2016
FIAT2.0 D Multijet 4x4SCUDO Van (270_, 272_)RHK120Diesel2007–2016
FIAT2.0 D Multijet 4x4SCUDO Van (270_, 272_)RHG120Diesel2007–2016
FIAT2.0 JTDULYSSE (179_)RHW(DW10ATED4)109Diesel2002–2006
FIAT2.0 JTDULYSSE (179_)RHM(DW10ATED4)107Diesel2003–2006
FIAT2.2 JTDULYSSE (179_)4HW(DW12ATED4)128Diesel2002–2006
LANCIA2.0 D Multijet (179.AXL1B, 179.BXL1B)PHEDRA (179_)RHR(DW10BTED4)136Diesel2006–2010
LANCIA2.0 JTD (179.AXE1A)PHEDRA (179_)RHM(DW10ATED4)107Diesel2003–2010
LANCIA2.0 JTD (179.AXH1B, 179.BXH1B)PHEDRA (179_)RHK(DW10UTED4)120Diesel2006–2010
LANCIA2.0 JTD (179AXB1A)PHEDRA (179_)RHW(DW10ATED4)109Diesel2002–2010
LANCIA2.2 JTD (179AXC1A)PHEDRA (179_)4HW(DW12ATED4)128Diesel2002–2010
PEUGEOT2.0 HDI607 (9D, 9U)RHZ(DW10ATED)109Diesel2000–2005
PEUGEOT2.0 HDI807 (EB_)RHR(DW10BTED4)136Diesel2006–
PEUGEOT2.0 HDI807 (EB_)RHD(DW10CTED4)136Diesel2006–
PEUGEOT2.0 HDI807 (EB_)RHR(DW10CB)136Diesel2006–
PEUGEOT2.0 HDIBOXER Van (230L)RHV(DW10TD)84Diesel2001–2002
PEUGEOT2.0 HDIBOXER Van (230L)RHV(DW10UTD)84Diesel2001–2002
PEUGEOT2.0 HDi407 Coupe (6C_)RHR(DW10BTED4)136Diesel2005–
PEUGEOT2.0 HDi407 SW (6E_, 6D_)RHL(DW10BTED4)126Diesel2004–2007
PEUGEOT2.0 HDi407 SW (6E_, 6D_)RHR(DW10BTED4)140Diesel2008–2010
PEUGEOT2.0 HDi407 SW Estate Van (6E_)RHR(DW10BTED4)140Diesel2009–2010
PEUGEOT2.0 HDi607 (9D, 9U)RHS(DW10ATED)107Diesel2001–2004
PEUGEOT2.0 HDi807 (EB_)RHT(DW10ATED4)107Diesel2002–2006
PEUGEOT2.0 HDi807 (EB_)RHW(DW10ATED4)109Diesel2004–
PEUGEOT2.0 HDi807 (EB_)RHK(DW10UTED4)120Diesel2006–
PEUGEOT2.0 HDi807 (EB_)RHM(DW10ATED4)107Diesel2002–2006
PEUGEOT2.0 HDi807 (EB_)RHW(DW10ATED4)107Diesel2002–2006
PEUGEOT2.0 HDiBOXER Bus (244, Z_)RHV(DW10UTD)84Diesel2001–2006
PEUGEOT2.0 HDiBOXER Bus (244, Z_)RHV(DW10TD)84Diesel2001–2006
PEUGEOT2.0 HDiBOXER Platform/Chassis (244)RHV(DW10UTD)84Diesel2001–2006
PEUGEOT2.0 HDiBOXER Platform/Chassis (244)RHV(DW10TD)84Diesel2001–2006
PEUGEOT2.0 HDiBOXER Van (244)RHV(DW10UTD)84Diesel2002–2006
PEUGEOT2.0 HDiBOXER Van (244)RHV(DW10TD)84Diesel2002–2006
PEUGEOT2.0 HDi (6DRHLG, 6DRHLE)407 (6D_)RHL(DW10BTED4)126Diesel2004–2007
PEUGEOT2.0 HDi (6DRHRH)407 (6D_)RHR(DW10BTED4)140Diesel2009–2010
PEUGEOT2.0 HDi (EBRHTBF, EBRHWBF)807 Van (EB_)RHT(DW10ATED4)109Diesel2004–2006
PEUGEOT2.0 HDi (EBRHTBF, EBRHWBF)807 Van (EB_)RHW(DW10ATED4)109Diesel2004–2006
PEUGEOT2.0 HDi 120EXPERT Platform/ChassisRHK(DW10UTED4)120Diesel2007–
PEUGEOT2.0 HDi 120EXPERT TEPEE (VF3X_)RHK(DW10UTED4)120Diesel2007–2016
PEUGEOT2.0 HDi 135407 SW (6E_, 6D_)RHR(DW10BTED4)136Diesel2004–2010
PEUGEOT2.0 HDi 135 (6DRHRH, 6DRHRE, 6DRHRG, 6DRHRJ)407 (6D_)RHR(DW10BTED4)136Diesel2004–2010
PEUGEOT2.0 HDi 140EXPERT Platform/ChassisRHR(DW10BTED4)136Diesel2007–
PEUGEOT2.2 HDI406 Coupe (8C)4HX(DW12TED4)133Diesel2000–2004
PEUGEOT2.2 HDi406 (8B)4HX(DW12TED4)133Diesel2000–2004
PEUGEOT2.2 HDi406 Break (8E/F)4HX(DW12TED4)133Diesel2000–2004
PEUGEOT2.2 HDi607 (9D, 9U)4HX(DW12TED4)133Diesel2000–2006
PEUGEOT2.2 HDi807 (EB_)4HW(DW12TED4)128Diesel2002–
PEUGEOT2.2 HDi807 (EB_)4HW(DW12TED4)136Diesel2004–2006
PEUGEOT2.2 HDiBOXER Bus (244, Z_)4HY(DW12UTED)101Diesel2001–2006
PEUGEOT2.2 HDiBOXER Platform/Chassis (244)4HY(DW12UTED)101Diesel2001–2006
PEUGEOT2.2 HDiBOXER Van (244)4HY(DW12UTED)101Diesel2001–2006
PEUGEOTHDi (EB4HWGF)807 Van (EB_)4HW(DW12TED4)128Diesel2004–2006
