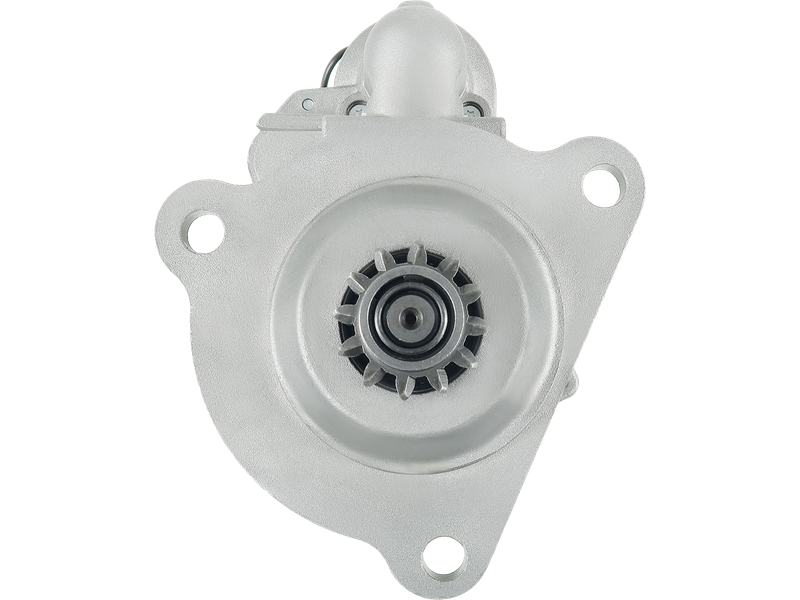

AS-PL S0173SR Startmotor — SCANIA

3 149,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	24
Effekt [ kW ]	6.00
Startmotors rotation	CW
A-storlek [ mm ]	92.00
B-storlek [ mm ]	48.00
Antal kuggar [ qty. ]	12
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	358.00
O.1 [ mm ]	126.00
O.2 [ mm ]	126.00
O.3 [ mm ]	126.00
C.1 [ mm ]	13.50
C.2 [ mm ]	13.50
C.3 [ mm ]	13.50

AS-PLSTANDARD LINE

EAN	5902129261025
Ersätter	BOSCH

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0173SR Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	6.00
Startmotors rotation	CW
A-storlek [ mm ]	92.00
B-storlek [ mm ]	48.00
Antal kuggar [ qty. ]	12
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	358.00
O.1 [ mm ]	126.00
O.2 [ mm ]	126.00
O.3 [ mm ]	126.00
C.1 [ mm ]	13.50
C.2 [ mm ]	13.50
C.3 [ mm ]	13.50

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	År
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	1996–2004
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 C/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 C/580	4 - series	DC16.01	581	1996–2004
SCANIA	164 C/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 C/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 C/580	4 - series	DC16.01	581	1996–2004
SCANIA	164 C/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 G/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 G/480	4 - series	DC16.02	480	1996–2004
SCANIA	164 G/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 G/480	4 - series	DC16.02	480	1996–2004
SCANIA	164 G/480	4 - series	DC16.02	480	1996–2004
SCANIA	164 G/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 G/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 G/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 G/580	4 - series	DC16.01	581	1996–2004
SCANIA	164 G/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 G/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 G/580	4 - series	DC16.01	579-581	2000–2008
SCANIA	164 G/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 L/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 L/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 L/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 L/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 L/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 L/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 L/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 L/480	4 - series	DC16.02	480	1996–2004
SCANIA	164 L/480	4 - series	DC16.02	480	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	579-581	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	579-581	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	580	2000–2008
SCANIA	164 L/580	4 - series	DC16.01	581	1996–2004
SCANIA	P500	P I	DC16.09	500	2004–2019
SCANIA	P500	P I	DC16.19	500	2004–2019
SCANIA	P500	P I	DC16.19	500	2004–2019
SCANIA	P500	P I	DC16.06	500	2009–2019
SCANIA	P500	P I	DC16.04	500	2004–2019
SCANIA	P500	P I	DC16.04	500	2004–2019
SCANIA	P500	P I	DC16.06	500	2004–2019
SCANIA	P500	P I	DC16.09	500	2004–2019
SCANIA	P500	P I	DC16.09	500	2004–2019
SCANIA	P500	P I	DC16.22	500	2004–2019
SCANIA	P500	P I	DC16.06	500	2009–2019
SCANIA	P500	P I	DC16.06	500	2004–2019
SCANIA	P500	P I	DC16.06	500	2004–2019
SCANIA	P560	P I	DC16.18	560	2004–2019
SCANIA	P560	P I	DC16.05	560	2006–2019
SCANIA	P560	P I	DC16.05	560	2004–2019
SCANIA	P560	P I	DC16.18	560	2006–2019
SCANIA	P560	P I	DC16.05	560	2009–2019
SCANIA	P560	P I	DC16.18	560	2006–2019
SCANIA	P560	P I	DC16.05	560	2006–2019
SCANIA	P560	P I	DC16.05	560	2009–2019
SCANIA	P620	P I	DC16.08	620	2006–2019
SCANIA	P620	P I	DC16.17	620	2006–2019
SCANIA	P620	P I	DC16.17	620	2006–2019
SCANIA	P620	P I	DC16.08	620	2006–2019
SCANIA	P620	P I	DC16.17	620	2006–2019
SCANIA	P620	P I	DC16.08	620	2006–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.22	500	2004–2019
SCANIA	R500	R I	DC16.22	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2008–2019
SCANIA	R500	R I	DC16.22	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.22	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.22	500	2004–2019
SCANIA	R500	R I	DC16.22	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2009–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.22	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.22	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2009–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2008–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2009–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2009–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.06	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.04	500	2004–2019
SCANIA	R500	R I	DC16.22	500	2004–2019
SCANIA	R500	R I	DC16.09	500	2004–2019
SCANIA	R500	R I	DC16.19	500	2004–2019
SCANIA	R520	R I	DC16.101	519	2012–2019
SCANIA	R520	R I	DC16.101	519	2012–2019
SCANIA	R520	R I	DC16.101	520	2012–2019
SCANIA	R520	R I	DC16.101	520	2013–2019
SCANIA	R520	R I	DC16.101	519	2012–2019
SCANIA	R520	R I	DC16.101	519	2012–2019
SCANIA	R520	R I	DC16.101	519	2012–2019
SCANIA	R520	R I	DC16.101	520	2013–2019
SCANIA	R520	R I	DC16.101	519	2012–2019
SCANIA	R520	R I	DC16.101	519	2012–2019
SCANIA	R520	R I	DC16.101	519	2012–2019
SCANIA	R520	R I	DC16.101	519	2012–2019
SCANIA	R520	R I	DC16.101	520	2013–2019
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.116	519	2016–
SCANIA	R520	R II	DC16.116	520	2016–
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.105	519	2016–
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.116	519	2016–
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.116	519	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.105	519	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.101	520	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.116	519	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.105	519	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.116	519	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.105	519	2016–
SCANIA	R520	R II	DC16.114	520	2016–
SCANIA	R520	R II	DC16.105	520	2016–
SCANIA	R520	R II	DC16.116	519	2016–
SCANIA	R520	R II	DC16.105	519	2016–
SCANIA	R520	R II	DC16.105	520	2016–
SCANIA	R520	R II	DC16.116	519	2016–
SCANIA	R520	R II	DC16.105	520	2016–
SCANIA	R520	R II	DC16.105	520	2016–
SCANIA	R520	R II	DC16.105	519	2016–
SCANIA	R520	R II	DC16.105	520	2016–

Visar 200 av 754 fordon
