AS-PL S0189 Startmotor — LDV, LTI, VM MOTORI

AS-PL S0189 Startmotor — LDV, LTI, VM MOTORI

796,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 2.20
Startmotors rotation CW
A-storlek [ mm ] 82.00
B-storlek [ mm ] -1.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 240.00
O.1 [ mm ] 82.00
O.2 [ mm ] 82.00
O.3 [ mm ] 116.00
C.1 [ mm ] 8.50
C.2 [ mm ] 9.00
C.3 [ mm ] 9.00
AS-PLSTANDARD LINE
EAN5901259420791
ErsätterBOSCH
OE-nummer0001109267

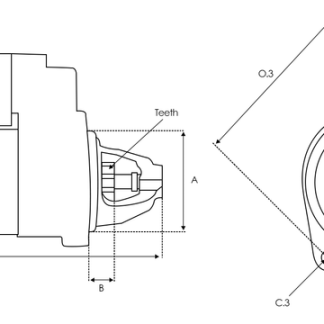

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0189 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001109267

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.20
Startmotors rotation CW
A-storlek [ mm ] 82.00
B-storlek [ mm ] -1.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 240.00
O.1 [ mm ] 82.00
O.2 [ mm ] 82.00
O.3 [ mm ] 116.00
C.1 [ mm ] 8.50
C.2 [ mm ] 9.00
C.3 [ mm ] 9.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
LDV2.5 DMAXUS BusVM39C120Diesel2005–2009
LDV2.5 DMAXUS BusVM40C95Diesel2005–2008
LDV2.5 DMAXUS BusVM39C95Diesel2005–2008
LDV2.5 DMAXUS BusBS582VM135Diesel2006–2009
LDV2.5 DMAXUS Platform/ChassisVMR42595Diesel2005–2008
LDV2.5 DMAXUS Platform/ChassisVMR425120Diesel2005–2009
LDV2.5 DMAXUS Platform/ChassisVM39C95Diesel2005–2008
LDV2.5 DMAXUS Platform/ChassisBS580VM120Diesel2005–2009
LDV2.5 DMAXUS Platform/ChassisBS582VM135Diesel2006–2009
LDV2.5 DMAXUS VanVM40C95Diesel2005–2008
LDV2.5 DMAXUS VanBS582VM135Diesel2006–2009
LDV2.5 DMAXUS VanVM39C95Diesel2005–2008
LDV2.5 DMAXUS VanBS580VM120Diesel2005–2009
LTI2.5 TDTXR425DOHC102Diesel2006–
VM MOTORI2.5EngineR425DOHC143diesel–
