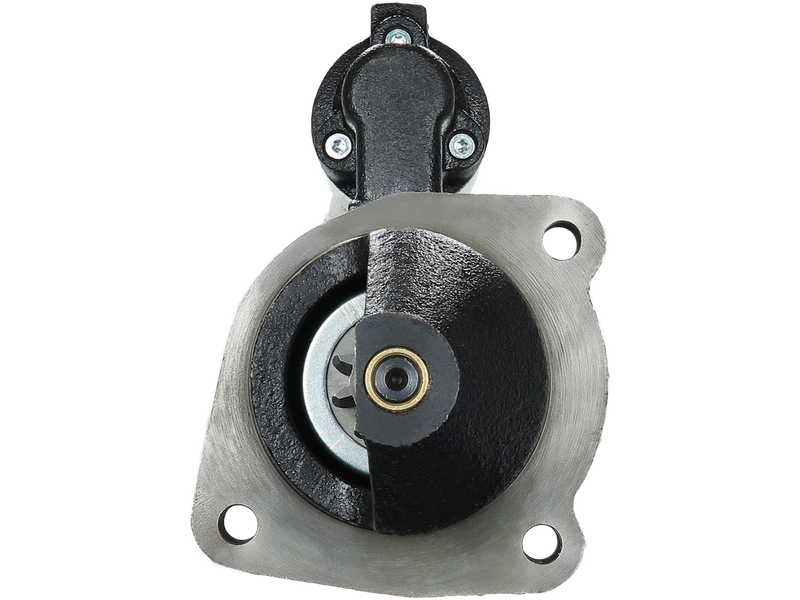

AS-PL S0249 Startmotor — IVECO

AS-PL S0249 Startmotor — IVECO

1 365,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 4.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 22.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 340.00
O.1 [ mm ] 89.50
O.2 [ mm ] 89.50
O.3 [ mm ] 127.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5902129065593
ErsätterBOSCH
OE-nummer0001368082

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0249 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001368082

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 4.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 22.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 340.00
O.1 [ mm ] 89.50
O.2 [ mm ] 89.50
O.3 [ mm ] 127.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
IVECO150 E 27EUROFIRE II8360.462672006–2007
IVECO150 E 27, 150 E 27 P, 150 E27FP, 150 E 27 REUROCARGO I-III8360.46.417TCA2671991–2015
IVECO170 E 27,180 E 27EUROCARGO I-III8360.46.417TCA2671991–2015
IVECO180 E 24EUROTECH MT8360.46R.416TCA2391992–1996
IVECO180 E 24 KEUROTECH MT8360.46R.416TCA2391993–1996
IVECO180 E 27EUROTECH MT8360.46.417TCA2671992–1996
IVECO180 E 27 KEUROTECH MT8360.46.417TCA2671992–1996
IVECO190 E 24EUROTECH MT8360.46R.416TCA2391997–1998
IVECO190 E 24 KEUROTECH MT8360.46R.416TCA2391997–1998
IVECO190 E 27EUROTECH MT8360.46.417TCA2671997–1998
IVECO190 E 27 KEUROTECH MT8360.46.417TCA2671997–1998
IVECO260 E 27 KEEUROCARGO I-III8360.46.417TCA2672000–2015
IVECO260 E 27 KEEUROCARGO I-III8360.46.4172672000–2015
IVECO320 E 27 TEUROCARGO I-III8360.46.4172671991–2015
