SEG Automotive S0272(SEG) Startmotor — VW, SKODA, SEAT

SEG Automotive S0272(SEG) Startmotor — VW, SKODA, SEAT

1 599,00 kr inkl. moms

PREMIUM LINE | Tillverkare: SEG Automotive | Ersätter: BOSCH

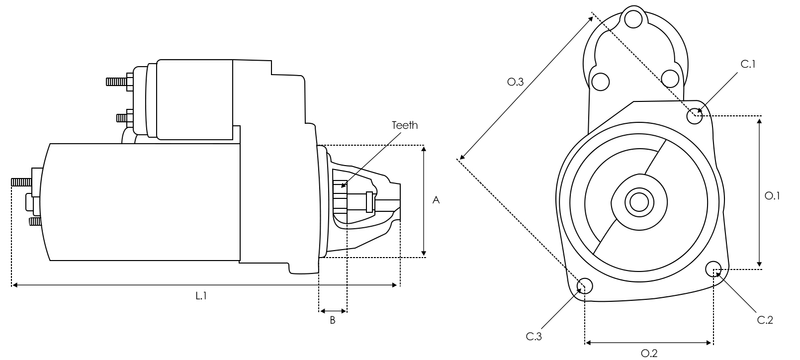

Spänning [ V ] 12
Effekt [ kW ] 2.00
Startmotors rotation ACW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 53.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 232.00
O.1 [ mm ] 126.00
O.2 [ mm ] 18.00
O.3 [ mm ] 110.00
C.1 [ mm ] 12.50
C.2 [ mm ] 12.50
C.3 [ mm ] 12.50
SEG AutomotivePREMIUM LINE
EAN5902129228202
ErsätterBOSCH
OE-nummer0001123028

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0272(SEG) Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001123028

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.00
Startmotors rotation ACW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 53.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 232.00
O.1 [ mm ] 126.00
O.2 [ mm ] 18.00
O.3 [ mm ] 110.00
C.1 [ mm ] 12.50
C.2 [ mm ] 12.50
C.3 [ mm ] 12.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
AUDI1.6 TDIA1 (8X1, 8XK)CAYC105Diesel2010–2015
AUDI1.6 TDIA1 (8X1, 8XK)CAYB90Diesel2011–2015
AUDI1.6 TDIA1 Sportback (8XA, 8XF)CAYC105Diesel2011–2015
AUDI1.6 TDIA1 Sportback (8XA, 8XF)CAYB90Diesel2011–2015
AUDI1.6 TDIA3 (8P1)CAYB90Diesel2009–2012
AUDI1.6 TDIA3 (8P1)CAYC105Diesel2009–2012
AUDI1.6 TDIA3 Convertible (8P7)CAYC105Diesel2009–2013
AUDI1.6 TDIA3 Sportback (8PA)CAYB90Diesel2009–2013
AUDI1.6 TDIA3 Sportback (8PA)CAYC105Diesel2009–2013
SEAT1.2 TDIIBIZA IV (6J5, 6P1)CFWA75Diesel2010–2015
SEAT1.2 TDIIBIZA IV Hatchback Van (6J1)CFWA75Diesel2010–2015
SEAT1.2 TDIIBIZA IV SC (6J1, 6P5)CFWA75Diesel2010–2015
SEAT1.2 TDIIBIZA IV ST (6J8, 6P8)CFWA75Diesel2010–2015
SEAT1.6 TDIALTEA (5P1)CAYC105Diesel2009–2015
SEAT1.6 TDIALTEA (5P1)CAYB90Diesel2010–2015
SEAT1.6 TDIALTEA XL (5P5, 5P8)CAYC105Diesel2009–2015
SEAT1.6 TDIALTEA XL (5P5, 5P8)CAYB90Diesel2010–2015
SEAT1.6 TDIARONA (KJ7, KJP)DGTA115Diesel2017–
SEAT1.6 TDIIBIZA IV (6J5, 6P1)CLNA105Diesel2009–2015
SEAT1.6 TDIIBIZA IV (6J5, 6P1)CAYB90Diesel2009–2015
SEAT1.6 TDIIBIZA IV (6J5, 6P1)CAYC105Diesel2009–2015
SEAT1.6 TDIIBIZA IV Hatchback Van (6J1)CAYB90Diesel2009–2015
SEAT1.6 TDIIBIZA IV SC (6J1, 6P5)CAYC105Diesel2009–2015
SEAT1.6 TDIIBIZA IV SC (6J1, 6P5)CAYB90Diesel2009–2015
SEAT1.6 TDIIBIZA IV ST (6J8, 6P8)CAYB90Diesel2010–2015
SEAT1.6 TDIIBIZA IV ST (6J8, 6P8)CLNA105Diesel2010–2015
SEAT1.6 TDIIBIZA IV ST (6J8, 6P8)CAYC105Diesel2010–2015
SEAT1.6 TDILEON (1P1)CAYC105Diesel2010–2012
SEAT1.6 TDILEON (1P1)CAYB90Diesel2010–2012
SEAT1.6 TDITOLEDO IV (KG3)CLNA105Diesel2012–2015
SEAT1.6 TDITOLEDO IV (KG3)CAYB90Diesel2013–2015
SEAT1.6 TDITOLEDO IV (KG3)CAYC105Diesel2012–2015
SEAT2.0 TDI 16VALTEA (5P1)BKD140Diesel2004–2015
SEAT2.0 TDI 16VALTEA (5P1)CFHC140Diesel2004–2015
SEAT2.0 TDI 16VALTEA XL (5P5, 5P8)BKD140Diesel2006–2015
SEAT2.0 TDI 16VALTEA XL (5P5, 5P8)CFHC140Diesel2006–2015
SEAT2.0 TDI 16V 4x4ALTEA XL (5P5, 5P8)CFHC140Diesel2010–2015
SEAT2.0 TDI 4x4ALTEA XL (5P5, 5P8)CEGA170Diesel2007–2013
SEAT2.0 TDI 4x4ALTEA XL (5P5, 5P8)BMN170Diesel2007–2013
SEAT2.0 TDI 4x4ALTEA XL (5P5, 5P8)CFJA170Diesel2007–2013
SKODA1.2 TDIFABIA II (542)CFWA75Diesel2010–2014
SKODA1.2 TDIFABIA II Combi (545)CFWA75Diesel2010–2014
SKODA1.2 TDIROOMSTER (5J7)CFWA75Diesel2010–2015
SKODA1.2 TDIROOMSTER Praktik (5J)CFWA75Diesel2010–2015
SKODA1.2 TSIRAPID (NH3, NK3, NK6)CJZD110Petrol2015–2019
SKODA1.2 TSIRAPID (NH3, NK3, NK6)CJZC90Petrol2015–2019
SKODA1.2 TSIRAPID Spaceback (NH1)CJZC90Petrol2015–2019
SKODA1.2 TSIRAPID Spaceback (NH1)CJZD110Petrol2015–2019
SKODA1.4 TDIRAPID (NH3, NK3, NK6)CUSB90Diesel2015–2019
SKODA1.4 TDIRAPID Spaceback (NH1)CUSB90Diesel2015–2019
SKODA1.6RAPID (NH3, NK3, NK6)CFNA105Petrol2012–2015
SKODA1.6RAPID Spaceback (NH1)CFNA105Petrol2012–2015
SKODA1.6 SRERAPID (NH3, NK3, NK6)CWVB90Petrol2015–2022
SKODA1.6 TDIFABIA II (542)CAYC105Diesel2010–2014
SKODA1.6 TDIFABIA II (542)CAYA75Diesel2010–2014
SKODA1.6 TDIFABIA II (542)CAYB90Diesel2010–2014
SKODA1.6 TDIFABIA II Combi (545)CAYC105Diesel2010–2014
SKODA1.6 TDIFABIA II Combi (545)CAYB90Diesel2010–2014
SKODA1.6 TDIFABIA II Combi (545)CAYA75Diesel2010–2014
SKODA1.6 TDIOCTAVIA II (1Z3)CAYC105Diesel2009–2013
SKODA1.6 TDIOCTAVIA II Combi (1Z5)CAYC105Diesel2009–2013
SKODA1.6 TDIRAPID (NH3, NK3, NK6)CXMA115Diesel2015–2019
SKODA1.6 TDIRAPID (NH3, NK3, NK6)CLNA105Diesel2012–2019
SKODA1.6 TDIRAPID (NH3, NK3, NK6)CAYC105Diesel2012–2019
SKODA1.6 TDIRAPID (NH3, NK3, NK6)CAYB90Diesel2013–2015
SKODA1.6 TDIRAPID Spaceback (NH1)CLNA105Diesel2012–2019
SKODA1.6 TDIRAPID Spaceback (NH1)CAYC105Diesel2012–2019
SKODA1.6 TDIRAPID Spaceback (NH1)CXMA115Diesel2015–2019
SKODA1.6 TDIRAPID Spaceback (NH1)CAYB90Diesel2013–2015
SKODA1.6 TDIROOMSTER (5J7)CAYB90Diesel2010–2015
SKODA1.6 TDIROOMSTER (5J7)CAYC105Diesel2010–2015
SKODA1.6 TDIROOMSTER Praktik (5J)CAYB90Diesel2010–2015
SKODA1.6 TDISUPERB II (3T4)CAYC105Diesel2010–2015
SKODA1.6 TDISUPERB II Estate (3T5)CAYC105Diesel2010–2015
SKODA1.6 TDI 4x4OCTAVIA II Combi (1Z5)CAYC105Diesel2009–2013
SKODA2.0 TDIOCTAVIA II (1Z3)CLCA110Diesel2010–2013
SKODA2.0 TDIOCTAVIA II (1Z3)CFHF110Diesel2010–2013
SKODA2.0 TDIOCTAVIA II Combi (1Z5)CLCA110Diesel2010–2013
SKODA2.0 TDIOCTAVIA II Combi (1Z5)CFHF110Diesel2010–2013
SKODA2.0 TDIYETI (5L)CLCA110Diesel2009–2017
SKODA2.0 TDIYETI (5L)DFSA110Diesel2009–2017
SKODA2.0 TDIYETI (5L)CFHA110Diesel2009–2017
SKODA2.0 TDIYETI (5L)CUUA110Diesel2009–2017
SKODA2.0 TDI 4x4YETI (5L)DFSA110Diesel2009–2017
SKODA2.0 TDI 4x4YETI (5L)CUUA110Diesel2009–2017
SKODA2.0 TDI 4x4YETI (5L)CFHF110Diesel2009–2017
SKODATDIFABIA II Praktik (545)CAYA75Diesel2013–2014
VW1.2 TDIPOLO V (6R1, 6C1)CFWA75Diesel2009–2014
VW1.2 TDi BlueMotionPOLO Van (6R)CFWA75Diesel2009–2014
VW1.2 TSIJETTA IV (162, 163, AV3, AV2)CBZB105Petrol2010–2017
VW1.6 TDIBEETLE (5C1, 5C2)CAYC105Diesel2011–2016
VW1.6 TDIBEETLE Convertible (5C7, 5C8)CAYC105Diesel2011–2016
VW1.6 TDICADDY ALLTRACK IV Box Body/MPV (SAA)CAYD102Diesel2015–
VW1.6 TDICADDY ALLTRACK IV Box Body/MPV (SAA)CAYE75Diesel2015–2017
VW1.6 TDICADDY ALLTRACK IV MPV (SAB)CAYD102Diesel2015–
VW1.6 TDICADDY ALLTRACK IV MPV (SAB)CAYE75Diesel2015–2017
VW1.6 TDICADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH)CAYD102Diesel2010–2015
VW1.6 TDICADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH)CAYE75Diesel2010–2015
VW1.6 TDICADDY III MPV (2KB, 2KJ, 2CB, 2CJ)CAYD102Diesel2010–2015
VW1.6 TDICADDY III MPV (2KB, 2KJ, 2CB, 2CJ)CAYE75Diesel2010–2015
VW1.6 TDICADDY IV Box Body/MPV (SAA, SAH)CAYD102Diesel2015–2020
VW1.6 TDICADDY IV Box Body/MPV (SAA, SAH)CAYE75Diesel2015–2017
VW1.6 TDICADDY IV MPV (SAB, SAJ)CAYE75Diesel2015–2017
VW1.6 TDICADDY IV MPV (SAB, SAJ)CAYD102Diesel2015–2020
VW1.6 TDIGOLF PLUS V (5M1, 521)CAYB90Diesel2009–2013
VW1.6 TDIGOLF PLUS V (5M1, 521)CAYC105Diesel2009–2013
VW1.6 TDIGOLF VI (5K1)CAYB90Diesel2009–2012
VW1.6 TDIGOLF VI (5K1)CAYC105Diesel2009–2012
VW1.6 TDIGOLF VI Convertible (517)CAYC105Diesel2011–2016
VW1.6 TDIGOLF VI Variant (AJ5)CAYB90Diesel2009–2013
VW1.6 TDIGOLF VI Variant (AJ5)CAYC105Diesel2009–2013
VW1.6 TDIJETTA III (1K2)CAYC105Diesel2009–2010
VW1.6 TDIJETTA IV (162, 163, AV3, AV2)CAYC105Diesel2010–2015
VW1.6 TDIPASSAT B7 (362)CAYC105Diesel2010–2014
VW1.6 TDIPASSAT B7 Variant (365)CAYC105Diesel2010–2014
VW1.6 TDIPOLO V (6R1, 6C1)CLNA105Diesel2009–2015
VW1.6 TDIPOLO V (6R1, 6C1)CAYC105Diesel2009–2015
VW1.6 TDIPOLO V (6R1, 6C1)CAYA75Diesel2009–2014
VW1.6 TDIPOLO V (6R1, 6C1)CAYB90Diesel2009–2014
VW1.6 TDITOURAN (1T3)CAYC105Diesel2010–2015
VW1.6 TDITOURAN (1T3)CAYB90Diesel2010–2015
VW1.6 TDITOURAN VAN (1T3)CAYC105Diesel2010–2015
VW1.6 TDITOURAN VAN (1T3)CAYB90Diesel2010–2015
VW1.6 TDI 4motionGOLF VI Variant (AJ5)CAYC105Diesel2009–2013
VW1.6 TDiGOLF PLUS Van (521)CAYC105Diesel2009–2014
VW1.6 TDiGOLF PLUS Van (521)CAYB90Diesel2009–2014
VW1.6 TDiGOLF VAN VI Variant (AJ5)CAYB90Diesel2009–2012
VW1.6 TDiGOLF VI Van (5K1)CAYB90Diesel2009–2012
VW1.6 TDiPOLO Van (6R)CAYA75Diesel2009–2014
VW1.6 TDiPOLO Van (6R)CAYC105Diesel2009–2014
VW1.6 TDi BlueMotionGOLF VAN VI Variant (AJ5)CAYC105Diesel2009–2014
VW1.6 TDi BlueMotionGOLF VI Van (5K1)CAYC105Diesel2009–2012
VW1.6 TDi BlueMotionPOLO Van (6R)CAYB90Diesel2009–2014
VW2.0 BiTDIMULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)CFCA180Diesel2009–2015
VW2.0 BiTDITRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CFCA180Diesel2009–2015
VW2.0 BiTDITRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7FCFCA180Diesel2009–2015
VW2.0 BiTDITRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH)CFCA180Diesel2009–2015
VW2.0 BiTDI 4motionMULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)CFCA180Diesel2009–2015
VW2.0 BiTDI 4motionTRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CFCA180Diesel2009–2015
VW2.0 BiTDI 4motionTRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7FCFCA180Diesel2009–2015
VW2.0 BiTDI 4motionTRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH)CFCA180Diesel2009–2015
VW2.0 SDICADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH)BST70Diesel2004–2010
VW2.0 SDICADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH)BDJ70Diesel2004–2010
VW2.0 SDICADDY III MPV (2KB, 2KJ, 2CB, 2CJ)BDJ70Diesel2004–2010
VW2.0 SDICADDY III MPV (2KB, 2KJ, 2CB, 2CJ)BST70Diesel2004–2010
VW2.0 TDICADDY ALLTRACK IV Box Body/MPV (SAA)CLCA110Diesel2015–2020
VW2.0 TDICADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH)CLCA110Diesel2010–2015
VW2.0 TDICADDY III MPV (2KB, 2KJ, 2CB, 2CJ)CLCA110Diesel2010–2015
VW2.0 TDICALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)CFCA180Diesel2009–2015
VW2.0 TDICALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)CCHA140Diesel2009–2015
VW2.0 TDICALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)CAAA84Diesel2009–2015
VW2.0 TDICALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)CAAC140Diesel2009–2015
VW2.0 TDICALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)CCHB136Diesel2010–2015
VW2.0 TDICALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)CAAB102Diesel2009–2015
VW2.0 TDICALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)CAAE136Diesel2010–2015
VW2.0 TDICALIFORNIA T6 Camper (SGC, SGG, SHC)CXGA84Diesel2015–2019
VW2.0 TDICALIFORNIA T6 Camper (SGC, SGG, SHC)CXGB102Diesel2015–2019
VW2.0 TDICALIFORNIA T6 Camper (SGC, SGG, SHC)CAAB102Diesel2015–2019
VW2.0 TDIGOLF PLUS V (5M1, 521)CLCA110Diesel2009–2013
VW2.0 TDIGOLF PLUS V (5M1, 521)CBDC110Diesel2009–2013
VW2.0 TDIGOLF VI (5K1)CLCA110Diesel2008–2012
VW2.0 TDIGOLF VI (5K1)CBDC110Diesel2008–2012
VW2.0 TDIGOLF VI Variant (AJ5)CJAA140Diesel2009–2013
VW2.0 TDIGOLF VI Variant (AJ5)CFHC140Diesel2009–2013
VW2.0 TDIGOLF VI Variant (AJ5)CLCA110Diesel2010–2013
VW2.0 TDIGOLF VI Variant (AJ5)CBDB140Diesel2009–2013
VW2.0 TDIJETTA IV (162, 163, AV3, AV2)CFFB140Diesel2011–2017
VW2.0 TDIJETTA IV (162, 163, AV3, AV2)CLCA110Diesel2010–2017
VW2.0 TDIJETTA IV (162, 163, AV3, AV2)CJAA140Diesel2011–2017
VW2.0 TDIJETTA IV (162, 163, AV3, AV2)CFHC140Diesel2011–2017
VW2.0 TDIJETTA IV (162, 163, AV3, AV2)CUUA110Diesel2010–2017
VW2.0 TDIJETTA IV (162, 163, AV3, AV2)CLCB140Diesel2011–2017
VW2.0 TDIMULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)CCHA140Diesel2009–2015
VW2.0 TDIMULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)CCHB136Diesel2010–2015
VW2.0 TDIMULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)CAAC140Diesel2009–2015
VW2.0 TDIMULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)CAAD114Diesel2011–2015
VW2.0 TDIMULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)CAAA84Diesel2009–2015
VW2.0 TDIMULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)CAAE136Diesel2010–2015
VW2.0 TDIMULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)CAAB102Diesel2009–2015
VW2.0 TDIMULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)CAAA84Diesel2015–2019
VW2.0 TDIMULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)CAAB102Diesel2015–2019
VW2.0 TDIMULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)CXGA84Diesel2015–2019
VW2.0 TDIMULTIVAN T6 (SGF, SGM, SGN, SHM, SHN)CXGB102Diesel2015–2019
VW2.0 TDIPASSAT B6 (3C2)CBDC110Diesel2008–2010
VW2.0 TDIPASSAT B6 Variant (3C5)CBDC110Diesel2008–2010
VW2.0 TDIPASSAT CC B6 (357)CFFB140Diesel2008–2012
VW2.0 TDIPASSAT CC B6 (357)CBAB140Diesel2008–2012
VW2.0 TDITOURAN (1T3)CFHF110Diesel2010–2015
VW2.0 TDITOURAN (1T3)CLCA110Diesel2010–2015
VW2.0 TDITRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CSDA116Diesel2011–2015
VW2.0 TDITRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CCHB136Diesel2010–2015
VW2.0 TDITRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CAAC140Diesel2009–2015
VW2.0 TDITRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CAAB102Diesel2009–2015
VW2.0 TDITRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CAAA84Diesel2009–2015
VW2.0 TDITRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CAAE136Diesel2010–2015
VW2.0 TDITRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CAAD114Diesel2011–2015
VW2.0 TDITRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ)CCHA140Diesel2009–2015
VW2.0 TDITRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7FCAAB102Diesel2009–2015
VW2.0 TDITRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7FCCHA140Diesel2009–2015
VW2.0 TDITRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7FCAAA84Diesel2009–2015

Visar 200 av 244 fordon

Reviews

There are no reviews yet.

Be the first to review “SEG Automotive S0272(SEG) Startmotor — VW, SKODA, SEAT”

Your email address will not be published. Required fields are marked *

Related products
