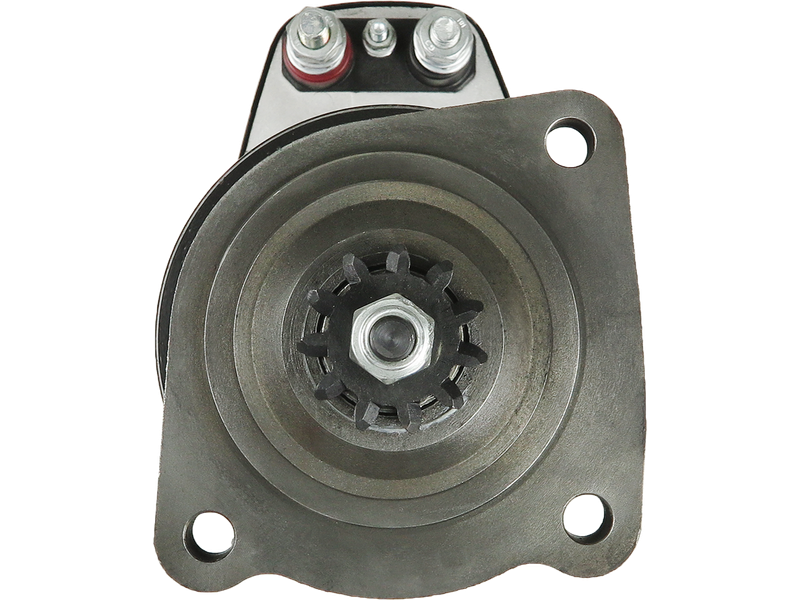

AS-PL S0279 Startmotor — STEYR

AS-PL S0279 Startmotor — STEYR

2 243,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 5.40
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 47.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 386.00
O.1 [ mm ] 91.00
O.2 [ mm ] 91.00
O.3 [ mm ] 128.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
Oil sealed Yes
AS-PLSTANDARD LINE
EAN5901259453522
ErsätterBOSCH
OE-nummer0001416003

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0279 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001416003

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 5.40
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 47.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 386.00
O.1 [ mm ] 91.00
O.2 [ mm ] 91.00
O.3 [ mm ] 128.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
Oil sealed Yes

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
STEYR1291.2601291-SerieWD615.712601978–1986
STEYR1291.2601291-SerieWD615.602601978–1986
STEYR1291.2601291-SerieWD615.702601978–1986
STEYR1291.2601291-SerieWD615.612601978–1986
STEYR1291.2801291-SerieWD615.772801978–1986
STEYR1291.2801291-SerieWD615.672801978–1986
STEYR1291.2801291-SerieWD615.752801978–1986
STEYR1291.2801291-SerieWD615.652801978–1986
STEYR1291.2801291-SerieWD615.692801978–1986
STEYR1491.2601491-SerieWD615.612601978–1986
STEYR1491.2601491-SerieWD615.712601978–1986
STEYR1491.2601491-SerieWD615.602601978–1986
STEYR1491.2601491-SerieWD615.702601978–1986
STEYR1491.2801491-SerieWD615.692801978–1986
STEYR1491.2801491-SerieWD615.772801978–1986
STEYR1491.2801491-SerieWD615.672801978–1986
STEYR1491.2801491-SerieWD615.752801978–1986
STEYR1491.2801491-SerieWD615.652801978–1986
