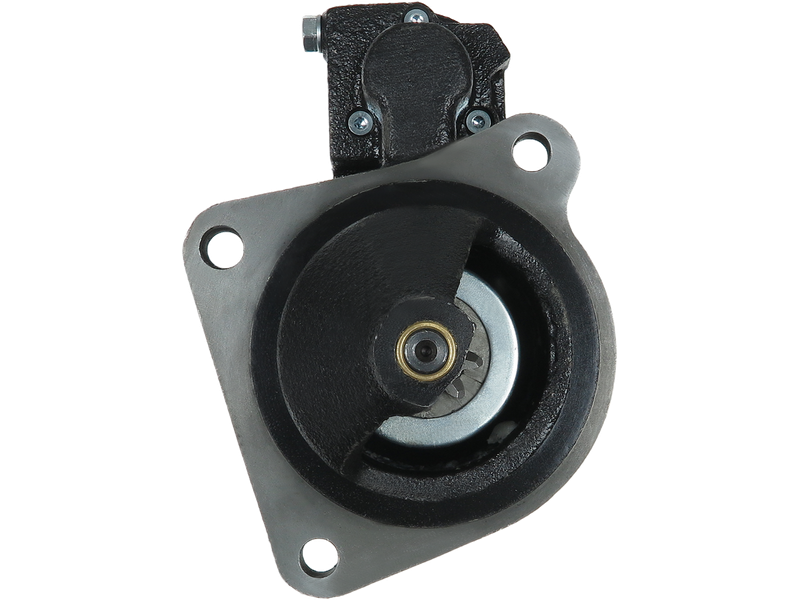

AS-PL S0317 Startmotor — IVECO, FIAT

AS-PL S0317 Startmotor — IVECO, FIAT

1 324,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 29.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 294.00
O.1 [ mm ] 147.00
O.2 [ mm ] 104.00
O.3 [ mm ] 104.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
C.3 [ mm ] 11.50
AS-PLSTANDARD LINE
EAN5901259464214
ErsätterBOSCH
OE-nummer0001363101

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0317 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001363101

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 29.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 294.00
O.1 [ mm ] 147.00
O.2 [ mm ] 104.00
O.3 [ mm ] 104.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
C.3 [ mm ] 11.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
FIAT50N, 50NCSeries 508040.02821972–1976
FIAT55NSeries 558040.02821972–1976
FIAT65PSeries 658040.02821975–1977
FIAT65PSeries 658040.02821977–1979
FIAT65PSeries 658040.02821975–1979
IVECO50-8ZETA8040.04.200861983–1986
IVECO50-8 HZETA8040.04.200861983–1986
IVECO50-8 VZETA8040.04.200861983–1986
IVECO50-9ZETA8040.05.230881987–1991
IVECO50-9 HZETA8040.05.230881987–1991
IVECO50-9 VZETA8040.05.230881987–1991
IVECO60 E 10EUROCARGO I-III8040.25B.42001021991–2015
IVECO60 E 12EUROCARGO I-III8040.25X.40001161991–2015
IVECO60 E 14 KEUROCARGO I-III8040.45.40001361991–2015
IVECO60 E 14, 60 E 14 PEUROCARGO I-III8040.45.40001361991–2015
IVECO60-11ZETA8040.25.230R1011987–1991
IVECO60-11 VZETA8040.25.230R1011987–1991
IVECO60-8ZETA8040.04.200861979–1982
IVECO60-8ZETA8040.04.200861979–1983
IVECO60-8ZETA8040.04.200861979–1981
IVECO65 E 10EUROCARGO I-III8040.25B.42001021991–2015
IVECO65 E 10 KEUROCARGO I-III8040.25B.42001021991–2015
IVECO65 E 12 KEUROCARGO I-III8040.25X.40001161991–2015
IVECO65 E 12, 65 E 12 PEUROCARGO I-III8040.25X.40001161991–2015
IVECO65 E 14 KEUROCARGO I-III8040.45.40001361991–2015
IVECO65 E 14, 65 E 14 PEUROCARGO I-III8040.45.40001361991–2015
IVECO65-12ZETA8040.25.2001161987–1991
IVECO65-12 HZETA8040.25.2001161987–1991
IVECO65-12 VZETA8040.25.2001161987–1991
IVECO65-9ZETA8040.05.230881987–1991
IVECO75 E 12 KEUROCARGO I-III8040.25X.40001161991–2015
IVECO75 E 12, 75 E 12 PEUROCARGO I-III8040.25X.40001161991–2015
IVECO75 E 14EUROFIRE I8040.451361991–2000
IVECO75 E 14 KEUROCARGO I-III8040.45.41801361991–2015
IVECO75 E 14 KEUROCARGO I-III8040.45.40001361991–2015
IVECO75 E 14, 75 E 14 PEUROCARGO I-III8040.45.41801361991–2015
IVECO75 E 14, 75 E 14 PEUROCARGO I-III8040.45.40001361991–2015
IVECO79-12ZETA8040.25.2001161987–1991
IVECO79-12ZETA8040.25.2201161987–1991
IVECO79-12ZETA8040.25.2201161987–1991
IVECO79-12ZETA8040.25.2001161987–1991
IVECO79-12 HZETA8040.25.2201161987–1991
IVECO79-12 HZETA8040.25.2201161987–1991
IVECO79-12 HZETA8040.25.2001161987–1991
IVECO79-12 HZETA8040.25.2001161987–1991
IVECO79-12 VZETA8040.25.2201161987–1991
IVECO79-12 VZETA8040.25.2001161987–1991
IVECO79-12 VZETA8040.25.2001161987–1991
IVECO79-12 VZETA8040.25.2201161987–1991
IVECOAD 180T27 W, AT 180T27 WTRAKKER IF2BE0681F2722005–2007
IVECOAD 190S27, AT 190S27STRALIS IF2BE0681C2722003–
IVECOAD 190S27, AT 190S27STRALIS IF2BE0681F2722004–
IVECOAD 190S27, AT 190S27STRALIS IF2BE0681F2722003–
IVECOAD 190S31, AT 190S31STRALIS IF2BE3681C3102004–
IVECOAD 190S33, AT 190S33STRALIS IF2BE3681B3302007–
IVECOAD 190S35STRALIS IF2BE0681A3522004–
IVECOAD 190S36, AT 190S36STRALIS IF2BE3681A3602007–
IVECOAD 190T27, AT 190T27TRAKKER IF2BE0681F2722005–2007
IVECOAD 190T31 W, AT 190T31 WTRAKKER IF2BE3681C3102005–2007
IVECOAD 190T31 W, AT 190T31 WTRAKKER IF2BE0681B3102004–2012
IVECOAD 190T31 W, AT 190T31 WTRAKKER IF2BE0681B3102005–2007
IVECOAD 190T31, AT 190T31TRAKKER IF2BE0681B3102004–2007
IVECOAD 190T31, AT 190T31TRAKKER IF2BE0681B3102004–2007
IVECOAD 190T33 W, AT 190T33 WTRAKKER IF2BE3681B3302006–2012
IVECOAD 190T33, AT 190T33TRAKKER IF2BE3681B3302006–2012
IVECOAD 190T35 W, AD 190T36 W, AT 190T35 W, AT 190T36 WTRAKKER IF2BE0681A352-3602004–2007
IVECOAD 190T35 W, AD 190T36 W, AT 190T35 W, AT 190T36 WTRAKKER IF2BE3681A352-3602004–2007
IVECOAD 190T35 W, AT 190T35 W, AD 190T36 W, AT 190T36 WTRAKKER IF2BE3681A352-3602005–2007
IVECOAD 190T35 W, AT 190T35 W, AD 190T36 W, AT 190T36 WTRAKKER IF2BE0681A352-3602005–2007
IVECOAD 190T35, AD 190T36, AT 190T35, AT 190T36TRAKKER IF2BE3681A352-3602004–2012
IVECOAD 190T35, AD 190T36, AT 190T35, AT 190T36TRAKKER IF2BE0681A352-3602004–2012
IVECOAD 190T35, AT 190T35, AD 190T36, AT 190T36TRAKKER IF2BE0681A3522005–2007
IVECOAD 260S27 CNG, AT 260S27 CNGSTRALIS IF2BE06412722008–
IVECOAD 260S27, AT 260S27STRALIS IF2BE0681F2722004–
IVECOAD 260S27, AT 260S27STRALIS IF2BE0681F2722004–
IVECOAD 260S30 CNGSTRALIS IF2BE0641299-3012013–
IVECOAD 260S30, AT 260S30STRALIS IF2BE0681E2962005–
IVECOAD 260S31, AT 260S31STRALIS IF2BE0681B3102003–
IVECOAD 260S31, AT 260S31STRALIS IF2BE3681C3102004–
IVECOAD 260S31, AT 260S31STRALIS IF2BE3681C3102003–
IVECOAD 260S31, AT 260S31STRALIS IF2BE3681C3102004–
IVECOAD 260S31, AT 260S31STRALIS IF2BE3681C3102003–
IVECOAD 260S31, AT 260S31STRALIS IF2BE0681B3102003–
IVECOAD 260S33, AT 260S33STRALIS IF2BE3681B3302006–
IVECOAD 260S33, AT 260S33STRALIS IF2BE3681B3302006–
IVECOAD 260S33, AT 260S33STRALIS IF2BE3681B3302007–
IVECOAD 260S33, AT 260S33STRALIS IF2BE3681B3302007–
IVECOAD 260S35, AT 260S35, AD 260S36, AT 260S36STRALIS IF2BE3681A352-3602003–
IVECOAD 260S35, AT 260S35, AD 260S36, AT 260S36STRALIS IF2BE0681A352-3602003–
IVECOAD 260S35, AT 260S35, AD 260S36, AT 260S36STRALIS IF2BE0681A352-3602003–
IVECOAD 260S35, AT 260S35, AD 260S36, AT 260S36STRALIS IF2BE3681A352-3602003–
IVECOAD 260S36, AT 260S36STRALIS IF2BE3681A3602007–
IVECOAD 260S36, AT 260S36STRALIS IF2BE3681A3602007–
IVECOAD 260T31 BTRAKKER IF2BE0681B3102005–2007
IVECOAD 260T31, AT 260T31TRAKKER IF2BE0681B3102004–
IVECOAD 260T31, AT 260T31TRAKKER IF2BE0681B3102004–2007
IVECOAD 260T33 BTRAKKER IF2BE3681B3302004–2012
IVECOAD 260T33, AD 380T33, AT 260T33, AT 380T33TRAKKER IF2BE3681B3302006–2012
IVECOAD 260T35 BTRAKKER IF2BE0681A3522005–2007
IVECOAD 260T35 W, AT 260T35 WTRAKKER IF2BE0681A3522005–2007
IVECOAD 260T35, 260T36, 380T36, AT 260T35, 260T36, 380T36TRAKKER IF2BE3681A352-3602004–2012
IVECOAD 260T35, 260T36, 380T36, AT 260T35, 260T36, 380T36TRAKKER IF2BE0681A352-3602004–2012
IVECOAD 260T35, AT 260T35TRAKKER IF2BE0681A352-3602004–2007
IVECOAD 260T36 BTRAKKER IF2BE3681A3602007–2012
IVECOAD 260T36 W, AD 380T36 W, AT 260T36 W, AT 380T36 WTRAKKER IF2BE3681A3602004–2012
IVECOAD 260T36, AT 260T36TRAKKER IF2BE3681A3602006–2007
IVECOAD 340T35 B, AT 340T35 BTRAKKER IF2BE0681A3522005–2007
IVECOAD 340T35, AT 340T35TRAKKER IF2BE0681A3522005–2007
IVECOAD 340T36 BTRAKKER IF2BE3681A3602006–2012
IVECOAD 340T36, AT 340T36TRAKKER IF2BE3681A3602007–2012
IVECOAD 340T36, AT 340T36TRAKKER IF2BE3681A3602006–2012
IVECOAD 380T35TRAKKER IF2BE0681A3522005–2007
IVECOAD 380T36 W, AT 380T36 WTRAKKER IF2BE3681A3602006–2007
IVECOAD 400T35 T, AT 400T35 TTRAKKER IF2BE0681A3522005–2007
IVECOAD 400T36 T, AT 400T36 TTRAKKER IF2BE3681A3602004–2012
IVECOAD 410T35TRAKKER IF2BE0681A3522005–2007
IVECOAD 410T36, AT 410T36TRAKKER IF2BE3681A3602006–
IVECOAD 440S31, AT 440S31STRALIS IF2BE0681B3102003–
IVECOAD 440S33, AT 440S33STRALIS IF2BE3681B3302006–
IVECOAD 440S35, AT 440S35, AD 440S36, AT 440S36STRALIS IF2BE3681A352-3602003–
IVECOAD 440S35, AT 440S35, AD 440S36, AT 440S36STRALIS IF2BE0681A352-3602003–
IVECOAT 440S33 CNGSTRALIS IF2BE06413302013–
IVECOMP 180 E 24 W CursorEUROTRAKKERF2BE0681D2451999–2004
IVECOMP 190 E 24 H CursorEUROTRAKKERF2BE0681D2451999–2004
IVECOMP 190 E 31 H CursorEUROTRAKKERF2BE0681B3101999–2004
IVECOMP 190 E 31 H CursorEUROTRAKKERF2BE0681B3101999–2004
IVECOMP 190 E 31 W CursorEUROTRAKKERF2BE0681B3101999–2004
IVECOMP 190 E 31 W CursorEUROTRAKKERF2BE0681B3101999–2004
IVECOMP 190 E 35 H CursorEUROTRAKKERF2BE0681A3521999–2004
IVECOMP 190 E 35 H CursorEUROTRAKKERF2BE0681A3521999–2004
IVECOMP 190 E 35 W CursorEUROTRAKKERF2BE0681A3521999–2004
IVECOMP 190 E 35 W CursorEUROTRAKKERF2BE0681A3521999–2004
IVECOMP 260 E 31 H CursorEUROTRAKKERF2BE0681B3101999–2004
IVECOMP 260 E 31 H CursorEUROTRAKKERF2BE0681B3101999–2004
IVECOMP 260 E 31 HB CursorEUROTRAKKERF2BE0681B3101999–2004
IVECOMP 260 E 35 H CursorEUROTRAKKERF2BE0681A3522000–2004
IVECOMP 260 E 35 H CursorEUROTRAKKERF2BE0681A3522000–2004
IVECOMP 260 E 35 W CursorEUROTRAKKERF2BE0681A3521999–2004
IVECOMP 260 E 35 W CursorEUROTRAKKERF2BE0681A3521999–2004
IVECOMP 340 E 35 H CursorEUROTRAKKERF2BE0681A3521999–2004
IVECOMP 340 E 35 H CursorEUROTRAKKERF2BE0681A3521999–2004
IVECOMP 340 E 35 HB CursorEUROTRAKKERF2BE0681A3522001–2004
IVECOMP 380 E 35 H CursorEUROTRAKKERF2BE0681A3522000–2004
IVECOMP 380 E 35 W CursorEUROTRAKKERF2BE0681A3522000–2004
IVECOMP 400 E 35 HT CursorEUROTRAKKERF2BE0681A3522000–2004
IVECOMP 410 E 35 H CursorEUROTRAKKERF2BE0681A3522000–2004
