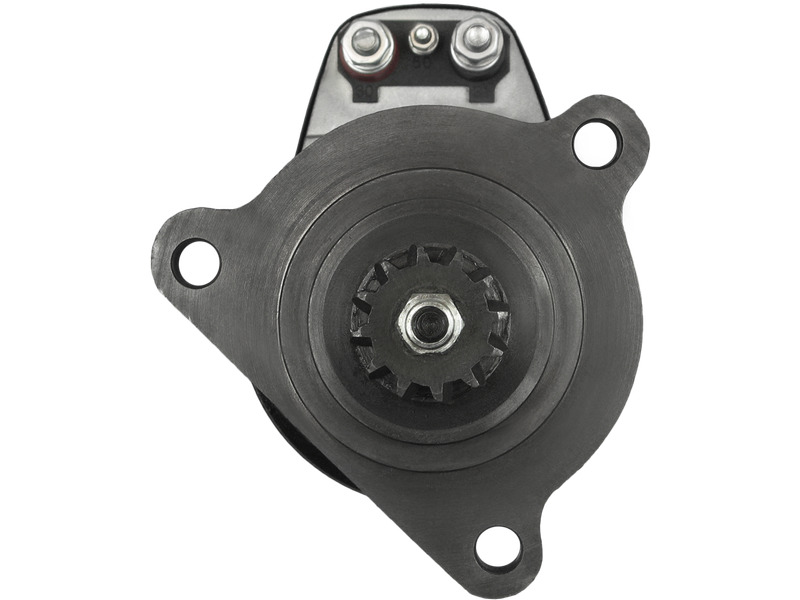

AS-PL S0355 Startmotor — VOLVO

AS-PL S0355 Startmotor — VOLVO

2 258,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 5.40
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 47.00
Antal kuggar [ qty. ] 12
Antal kuggar (passar in) [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 386.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
Oil sealed Yes
AS-PLSTANDARD LINE
EAN5901259467871
ErsätterBOSCH
OE-nummer0001416061

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0355 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001416061

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 5.40
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 47.00
Antal kuggar [ qty. ] 12
Antal kuggar (passar in) [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 386.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
Oil sealed Yes

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
VOLVOFL7D7B2302301993–1999
VOLVOFL7D7A2302301993–1999
VOLVOFL7D7B2602601993–1999
VOLVOFL7D7A2602601993–1999
VOLVOFL7D7B2602601993–1999
VOLVOFL7D7B2302301993–1999
VOLVOFL7D7A2302301993–1999
VOLVOFL7D7B2602601993–1999
VOLVOFL7D7A2602601993–1999
VOLVOFL7D7B2302301993–1999
VOLVOFL7D7A2602601993–1999
VOLVOFL7D7B2302301993–1999
VOLVOFL7D7B2602601993–1999
VOLVOFL7D7A2602601993–1999
VOLVOFL7D7B2602601993–1999
VOLVOFL7D7B2602601993–1999
VOLVOFL7D7A2602601993–1999
VOLVOFL7D7B2302301993–1999
VOLVOFL7D7A2302301993–1999
VOLVOFL7D7B2302301993–1999
VOLVOFL7D7A2602601993–1999
VOLVOFL7D7B2602601993–1999
VOLVOFL7D7A2602601993–1999
VOLVOFL7D7A2302301993–1999
VOLVOFL7D7A2302301993–1999
VOLVOFL7D7A2602601993–1999
VOLVOFL7D7B2602601993–1999
VOLVOFL7D7A2602601993–1999
VOLVOFL7D7B2602601993–1999
VOLVOFL7D7A2302301993–1999
VOLVOFL 7/230FL7D7B2302301985–1999
VOLVOFL 7/230FL7D7B230230-2351985–1998
VOLVOFL 7/230FL7TD71FQ230-2351985–1998
VOLVOFL 7/230FL7TD71F230-2351985–1998
VOLVOFL 7/230FL7TD71F230-2351985–1998
VOLVOFL 7/230FL7TD71F230-2351985–1998
VOLVOFL 7/230FL7TD73E230-2351985–1998
VOLVOFL 7/230FL7D7B230230-2351985–1998
VOLVOFL 7/230FL7TD71FQ2301985–1999
VOLVOFL 7/230FL7TD71FQ230-2351985–1998
VOLVOFL 7/230FL7TD73E230-2351985–1998
VOLVOFL 7/230FL7TD73E230-2351985–1998
VOLVOFL 7/230FL7TD71F2301985–1999
VOLVOFL 7/230FL7TD71FQ230-2351985–1998
VOLVOFL 7/230FL7D7B230230-2351985–1998
VOLVOFL 7/230FL7D7A2302301985–1999
VOLVOFL 7/230FL7D7B230230-2351985–1998
VOLVOFL 7/230FL7TD71F230-2351985–1998
VOLVOFL 7/230FL7TD73E230-2351985–1998
VOLVOFL 7/230FL7D7B230230-2351985–1998
VOLVOFL 7/230FL7TD73E2301985–1999
VOLVOFL 7/230FL7D7B230230-2351985–1998
VOLVOFL 7/230FL7TD71FQ230-2351985–1998
VOLVOFL 7/230FL7TD71F2301985–1999
VOLVOFL 7/230FL7TD71F230-2351985–1998
VOLVOFL 7/230FL7TD73E230-2351985–1998
VOLVOFL 7/230FL7TD71FQ230-2351985–1998
VOLVOFL 7/230FL7TD71FQ230-2351985–1998
VOLVOFL 7/230FL7TD71FQ230-2351985–1998
VOLVOFL 7/230FL7D7B2302301985–1999
VOLVOFL 7/230FL7TD73E2301985–1999
VOLVOFL 7/230FL7TD71F230-2351985–1998
VOLVOFL 7/230FL7TD73E230-2351985–1998
VOLVOFL 7/230FL7D7B230230-2351985–1998
VOLVOFL 7/230FL7TD71FQ2301985–1999
VOLVOFL 7/230FL7D7A2302301985–1999
VOLVOFL 7/230FL7TD73E230-2351985–1998
VOLVOFL 7/230FL7TD71F230-2351985–1998
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FD2451985–1994
VOLVOFL 7/245FL7TD71FS2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/245FL7TD71FSQ2451985–1994
VOLVOFL 7/260FL7TD73ES2601991–1998
VOLVOFL 7/260FL7D7B2602601991–1998
VOLVOFL 7/260FL7D7B2602601991–1999
VOLVOFL 7/260FL7D7B2602601991–1998
VOLVOFL 7/260FL7TD73ES2601991–1998
VOLVOFL 7/260FL7TD73ES2601991–1998
VOLVOFL 7/260FL7D7B2602601991–1998
VOLVOFL 7/260FL7TD73ES2601991–1998
VOLVOFL 7/260FL7TD73ES2601991–1998
VOLVOFL 7/260FL7D7A2602601991–1999
VOLVOFL 7/260FL7TD73ES2601991–1998
VOLVOFL 7/260FL7D7B2602601991–1998
VOLVOFL 7/260FL7D7B2602601991–1998
VOLVOFL 7/260FL7TD73ES2601991–1999
VOLVOFL 7/260FL7TD73ES2601991–1998
VOLVOFL 7/260FL7D7B2602601991–1998
VOLVOFL 7/260FL7D7B2602601991–1998
VOLVOFL 7/285FL7D7A2852861993–1999
VOLVOFL 7/285FL7D7A2852861993–1999
VOLVOFL 7/285FL7D7A2852861993–1999
VOLVOFL 7/285FL7D7A2852861993–1999
VOLVOFL 7/290FL7D7A2852861993–1998
VOLVOFL 7/290FL7D7A2852861993–1998
VOLVOFL 7/290FL7D7A2852861993–1998
VOLVOFL 7/290FL7D7A2852861993–1998
VOLVOFL 7/290FL7D7A2852861993–1998
VOLVOFL 7/290FL7D7A2852861993–1998
VOLVOFL 7/290FL7D7A2852861993–1998
VOLVOFL 7/290FL7D7A2852861993–1998
VOLVOFM 7/250FM7D7C2502501998–2001
VOLVOFM 7/250FM7D7C2502501998–2001
VOLVOFM 7/250FM7D7C2502501998–2001
VOLVOFM 7/250FM7D7C2502501998–2001
VOLVOFM 7/250FM7D7C2502501998–2001
VOLVOFM 7/250FM7D7C2502501998–2001
VOLVOFM 7/290FM7D7C2902901998–2001
VOLVOFM 7/290FM7D7C2902901998–2001
VOLVOFM 7/290FM7D7C2902901998–2001
VOLVOFM 7/290FM7D7C2902901998–2001
VOLVOFM 7/290FM7D7C2902901998–2001
VOLVOFM 7/290FM7D7C2902901998–2001
VOLVOFM 7/290FM7D7C2902901998–2001
VOLVOFM 7/290FM7D7C2902901998–2001
VOLVOFS 718/230FS7D7B2302301994–1996
VOLVOFS 718/260FS7D7B2602601994–1996
