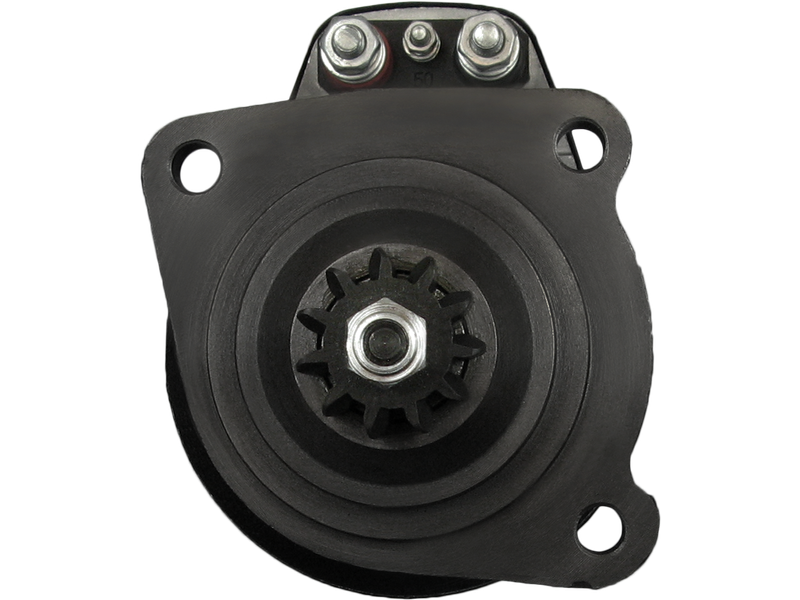

AS-PL S0367 Startmotor — VOLVO

AS-PL S0367 Startmotor — VOLVO

2 286,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 6.60
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 47.50
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 410.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
Oil sealed Yes
Waterproof Yes
AS-PLSTANDARD LINE
EAN5901259467994
ErsätterBOSCH
OE-nummer0001417041

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0367 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001417041

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 6.60
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 47.50
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 410.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
Oil sealed Yes
Waterproof Yes

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 10/280F10TD100B280-2821977–1982
VOLVOF 12/310F12TD120GA3091976–1983
VOLVOF 12/310F12TD120GA3091976–1983
VOLVOF 12/310F12TD120G3061976–1983
VOLVOF 12/310F12TD120G3061976–1983
VOLVOF 12/320F12TD121G3201987–1987
VOLVOF 12/320F12TD121G3201984–1986
VOLVOF 12/320F12TD121G3201987–1987
VOLVOF 12/320F12TD121G3201987–1987
VOLVOF 12/320F12TD121G3201987–1987
VOLVOF 12/320F12TD121G3201987–1987
VOLVOF 12/320F12TD121G3201987–1987
VOLVOF 12/320F12TD121G3201987–1987
VOLVOF 12/320,F 12/330F12TD121G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121GD320-3301977–1986
VOLVOF 12/320,F 12/330F12TD120G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD120G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD120G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121GD320-3301977–1986
VOLVOF 12/320,F 12/330F12TD120G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121GD320-3301977–1986
VOLVOF 12/320,F 12/330F12TD120G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121GD320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121GD320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121GD320-3301977–1986
VOLVOF 12/320,F 12/330F12TD120G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121GD320-3301977–1986
VOLVOF 12/320,F 12/330F12TD120G320-3301977–1986
VOLVOF 12/320,F 12/330F12TD121G320-3301977–1986
VOLVOF 12/330F12TD120E3261976–1983
VOLVOF 12/330F12TD121GD3301984–1986
VOLVOF 12/330F12TD120E3261976–1983
VOLVOF 12/360F12TD120FC3601976–1983
VOLVOF 12/360F12TD120FC3601976–1983
VOLVOF 12/360F12TD120F3601976–1983
VOLVOF 12/360F12TD120F3601976–1983
VOLVOF 12/370F12TD121F3701987–1987
VOLVOF 12/370F12TD121F3701977–1986
VOLVOF 12/370F12TD121F3701977–1986
VOLVOF 12/370F12TD121F3701987–1987
VOLVOF 12/370F12TD121F3701977–1986
VOLVOF 12/370F12TD120D3711976–1983
VOLVOF 12/370F12TD121F3701987–1987
VOLVOF 12/370F12TD121F3701977–1986
VOLVOF 12/370F12TD121F3701987–1987
VOLVOF 12/370F12TD121F3701977–1986
VOLVOF 12/370F12TD121F3701984–1986
VOLVOF 12/370F12TD121F3701987–1987
VOLVOF 12/370F12TD121F3701987–1987
VOLVOF 12/370F12TD121F3701977–1986
VOLVOF 12/370F12TD120D3711976–1983
VOLVOF 12/380F12TD121FD3851984–1986
VOLVOF 12/380F12TD121FD3851984–1986
VOLVOF 12/380F12TD121FD3851984–1986
VOLVOF 89/330F80TD120A3301970–1977
VOLVOF 89/330F80TD120A3301970–1977
VOLVON 12/290N12TD121G2921981–1989
VOLVON 12/290N12TD121G2921981–1989
VOLVON 12/290N12TD121G2921981–1989
VOLVON 12/290N12TD121G2921981–1989
VOLVON 12/290N12TD121G2921981–1989
VOLVON 12/290N12TD121G2921981–1989
VOLVON 12/330N12TD121G3301981–1989
VOLVON 12/330N12TD120GA3301981–1989
VOLVON 12/330N12TD121G3301981–1989
VOLVON 12/330N12TD121G3301981–1989
VOLVON 12/385N12TD121F3851981–1989
VOLVON 12/385N12TD121F3851981–1989
VOLVON 12/385N12TD121F3851981–1989
