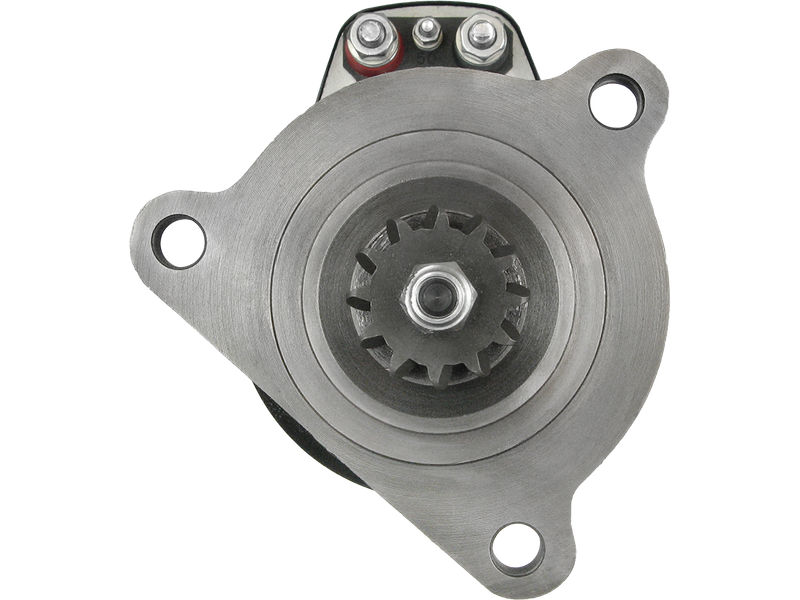

AS-PL S0373 Startmotor — SCANIA, VOLVO, IVECO

2 354,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	24
Effekt [ kW ]	6.60
Startmotors rotation	CW
A-storlek [ mm ]	92.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	12
Antal kuggar (passar in) [ qty. ]	12
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	405.00
O.1 [ mm ]	127.00
O.2 [ mm ]	127.00
O.3 [ mm ]	127.00
C.1 [ mm ]	14.00
C.2 [ mm ]	14.00
C.3 [ mm ]	14.00
Oil sealed	Yes
Insulated return	Yes

AS-PLSTANDARD LINE

EAN	5901259468052
Ersätter	BOSCH
OE-nummer	0001417063

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0373 Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001417063

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	6.60
Startmotors rotation	CW
A-storlek [ mm ]	92.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	12
Antal kuggar (passar in) [ qty. ]	12
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	405.00
O.1 [ mm ]	127.00
O.2 [ mm ]	127.00
O.3 [ mm ]	127.00
C.1 [ mm ]	14.00
C.2 [ mm ]	14.00
C.3 [ mm ]	14.00
Oil sealed	Yes
Insulated return	Yes

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	År
IVECO	330-30 H	P/PA	8210.22X.235	305	1984–1990
IVECO	330-30 H	P/PA	8210.22X.235	305	1991–1992
IVECO	330-30 H	P/PA	8210.22X.235	305	1984–1992
IVECO	330-30 H	P/PA	8210.22X.523	305	1988–1990
IVECO	330-30 H	P/PA	8210.22X.523	305	1984–1990
IVECO	330-30 H	P/PA	8210.22X.523	305	1991–1992
IVECO	330-30 H	P/PA	8210.22X.523	305	1984–1992
IVECO	330-30 H	P/PA	8210.22X.235	305	1988–1990
IVECO	330-30 HT	P/PA	8210.22X.235	305	1988–1992
IVECO	330-30 HT	P/PA	8210.22X.523	305	1988–1990
IVECO	330-30 HT	P/PA	8210.22X.235	305	1991–1992
IVECO	330-30 HT	P/PA	8210.22X.523	305	1988–1990
IVECO	330-30 HT	P/PA	8210.22X.523	305	1988–1992
IVECO	330-30 HT	P/PA	8210.22X.235	305	1988–1990
IVECO	330-30 HT	P/PA	8210.22X.235	305	1988–1990
IVECO	330-30 HT	P/PA	8210.22X.523	305	1991–1992
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1990
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1992
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.575	305	1991–1992
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1990
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1990
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.069	305	1991–1992
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1992
IVECO	330-30 N	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.575	305	1987–1992
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.575	305	1991–1992
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1990
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.069	305	1987–1992
IVECO	330-30 NW	P/PA-Haubenfahrzeuge	8210.22X.069	305	1991–1992
SCANIA	113 E/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 E/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 E/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 E/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.34	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.34	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.34	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.34	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.75	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.75	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.73	310-311	1988–1989
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.75	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.08	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.08	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.73	310-311	1988–1989
SCANIA	113 H/310	3 - series	DSC11.08	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.73	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.73	310-311	1990–1991
SCANIA	113 H/310	3 - series	DS11.34	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.73	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.73	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1990–1991
SCANIA	113 H/310	3 - series	DSC11.06	310-311	1988–1989
SCANIA	113 H/310	3 - series	DS11.34	310-311	1988–1989
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.21	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	325	1988–1989
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.16	320-325	1990–1996
SCANIA	113 H/320	3 - series	DSC11.17	320-325	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1989–1989
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1989–1989
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	363	1988–1989
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.30	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.23	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.18	360-363	1990–1996
SCANIA	113 H/360	3 - series	DSC11.13	360-363	1990–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.70	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996
SCANIA	113 H/380	3 - series	DSC11.22	381	1991–1996

Visar 200 av 1106 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S0373 Startmotor — SCANIA, VOLVO, IVECO”

AS-PL S0373 Startmotor — SCANIA, VOLVO, IVECO

Description

Specifikationer

Fordonskompatibilitet

Reviews

Related products

AS-PL ARD9006 + dioder för växelströmsgenerators likriktare

AS-PL ARD9043 + dioder för växelströmsgenerators likriktare

AS-PL ARD9037 + dioder för växelströmsgenerators likriktare
