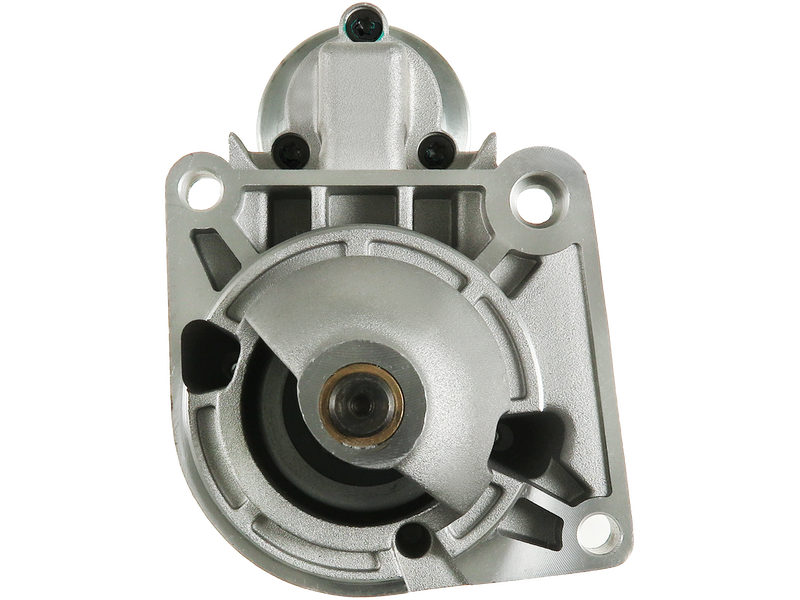

AS-PL S0388 Startmotor — ALFA ROMEO, LANCIA, FIAT

AS-PL S0388 Startmotor — ALFA ROMEO, LANCIA, FIAT

704,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation CW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 10.50
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 243.00
O.1 [ mm ] 73.00
O.2 [ mm ] 114.00
O.3 [ mm ] 73.00
C.1 [ mm ] 8.50
C.2 [ mm ] 8.50
C.3 [ mm ] 8.50
AS-PLSTANDARD LINE
EAN5901259468410
ErsätterBOSCH
OE-nummer0001108159

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0388 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001108159

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation CW
A-storlek [ mm ] 76.00
B-storlek [ mm ] 10.50
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 243.00
O.1 [ mm ] 73.00
O.2 [ mm ] 114.00
O.3 [ mm ] 73.00
C.1 [ mm ] 8.50
C.2 [ mm ] 8.50
C.3 [ mm ] 8.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ALFA ROMEO1.7 T.S. (167.A4D, 167.A4H)155 (167_)AR67105115Petrol1993–1996
ALFA ROMEO1.7 T.S. (167.A4G)155 (167_)AR67103113Petrol1993–1996
ALFA ROMEO1.8 T.S. (167.A4C, 167.A)155 (167_)AR67402105Petrol1992–1997
ALFA ROMEO1.8 T.S. (167A4)155 (167_)AR67102129Petrol1992–1994
ALFA ROMEO1.8 T.S. (167A4)155 (167_)AR67101129Petrol1992–1994
ALFA ROMEO1.8 T.S. Sport (167.A4A, 167.A4C, 167.A4E)155 (167_)AR67102127Petrol1992–1996
ALFA ROMEO1.8 T.S. Sport (167.A4A, 167.A4C, 167.A4E)155 (167_)AR67101127Petrol1992–1996
ALFA ROMEO2.0 (164A2C)164 (164_)AR06416138Petrol1987–1998
ALFA ROMEO2.0 T.S. (167.A2A, 167.A2D)155 (167_)AR67202141Petrol1992–1995
ALFA ROMEO2.0 T.S. (167.A2A, 167.A2D)155 (167_)AR67201141Petrol1992–1995
ALFA ROMEO2.0 T.S. (167.A2D)155 (167_)AR67201144Petrol1992–1995
ALFA ROMEO2.0 T.S. (167.A2D)155 (167_)AR67202144Petrol1992–1995
ALFA ROMEO2.0 Twin Spark (164.A2C, 164.A2L, 164A2H)164 (164_)AR06416143Petrol1987–1992
ALFA ROMEO2.0 Twin Spark (164.A2C, 164.A2L, 164A2H)164 (164_)AR06420143Petrol1987–1992
ALFA ROMEO2.0 Twin Spark (164.A2H, 164.A2)164 (164_)AR06420148Petrol1987–1992
ALFA ROMEO2.0 Twin Spark (164.H3)164 (164_)AR64103144Petrol1992–1998
ALFA ROMEO2.0 V6 (936A3___)166 (936_)AR34102205Petrol1998–2000
ALFA ROMEO2.0 V6 Turbo (164.A2G, 164.A2F)164 (164_)AR64101204Petrol1991–1992
ALFA ROMEO2.0 V6 Turbo (164.K3)164 (164_)AR64102201Petrol1992–1998
ALFA ROMEO2.0 V6 Turbo (916.C2A)GTV (916_)AR16202202Petrol1995–1998
ALFA ROMEO2.0 V6 Turbo (916S2A)SPIDER (916_)AR16202202Petrol1998–2005
ALFA ROMEO2.5 V6 (164A1C)164 (164_)AR66201163Petrol1992–1998
ALFA ROMEO2.5 V6 (167.A1C, 167.A1)155 (167_)AR67301165Petrol1992–1995
ALFA ROMEO2.5 V6 (167.A1C, 167.A1E)155 (167_)AR67302163Petrol1992–1997
ALFA ROMEO2.5 V6 (167.A1C, 167.A1E)155 (167_)AR67303163Petrol1992–1997
ALFA ROMEO2.5 V6 24V (932A1)156 (932_)AR32402190Petrol1997–2002
ALFA ROMEO2.5 V6 24V (932A1)156 (932_)AR32401190Petrol1997–2002
ALFA ROMEO2.5 V6 24V (932A1)156 Sportwagon (932_)AR32401190Petrol1997–2003
ALFA ROMEO2.5 V6 24V (932A11_)156 (932_)AR32405192Petrol2000–2005
ALFA ROMEO2.5 V6 24V (932B1100)156 Sportwagon (932_)AR32405192Petrol1997–2006
ALFA ROMEO2.5 V6 24V (936A21__)166 (936_)AR36201188Petrol2000–2007
ALFA ROMEO2.5 V6 24V (936A2___)166 (936_)AR34201190Petrol1998–2006
ALFA ROMEO3.0 (164A)164 (164_)AR06410188Petrol1987–1991
ALFA ROMEO3.0 (164AG)164 (164_)AR06410185Petrol1990–1993
ALFA ROMEO3.0 (164H1)164 (164_)AR64304228Petrol1993–1995
ALFA ROMEO3.0 24V (164.K1)164 (164_)AR64306211Petrol1992–1998
ALFA ROMEO3.0 24V (164.K1)164 (164_)AR66302211Petrol1992–1998
ALFA ROMEO3.0 24V (164.K1)164 (164_)AR66301211Petrol1992–1998
ALFA ROMEO3.0 24V (164K1G, 164K1F)164 (164_)AR66302209Petrol1995–1997
ALFA ROMEO3.0 24V Q4 (164.K1M, 164.K1C)164 (164_)AR64308231Petrol1994–1998
ALFA ROMEO3.0 24V Q4 (164.K1M, 164.K1C)164 (164_)AR64307231Petrol1994–1998
ALFA ROMEO3.0 24V QV (164.H1)164 (164_)AR64304233Petrol1992–1998
ALFA ROMEO3.0 24V QV All-wheel Drive (164K1H)164 (164_)AR64307233Petrol1992–1997
ALFA ROMEO3.0 24V QV All-wheel Drive (164K1H)164 (164_)AR64304233Petrol1992–1997
ALFA ROMEO3.0 V6 (164.A)164 (164_)AR06410192Petrol1987–1992
ALFA ROMEO3.0 V6 (164.AD, 164.AH, 164.AB)164 (164_)AR06412184Petrol1987–1992
ALFA ROMEO3.0 V6 (164.H1A, 164.H1B, 164.K1P)164 (164_)AR64399180Petrol1992–1998
ALFA ROMEO3.0 V6 (164.H1A, 164.H1B, 164.K1P)164 (164_)AR64305180Petrol1992–1998
ALFA ROMEO3.0 V6 (164.H1A, 164.H1B, 164.K1P)164 (164_)AR66303180Petrol1992–1998
ALFA ROMEO3.0 V6 (164.H1A, 164.H1B, 164.K1P)164 (164_)AR64303180Petrol1992–1998
ALFA ROMEO3.0 V6 (916S1)SPIDER (916_)AR16199192Petrol1995–1998
ALFA ROMEO3.0 V6 (916S1)SPIDER (916_)AR16101192Petrol1995–2005
ALFA ROMEO3.0 V6 (916S1B00)SPIDER (916_)AR16105218Petrol1994–2005
ALFA ROMEO3.0 V6 24V (916.C1)GTV (916_)AR16102220Petrol1996–2000
ALFA ROMEO3.0 V6 24V (916.C1B__)GTV (916_)AR16105218Petrol2000–2005
ALFA ROMEO3.0 V6 24V (916S1)SPIDER (916_)AR16102220Petrol1999–2003
ALFA ROMEO3.0 V6 24V (936A1000, 936A1001)166 (936_)AR34301226Petrol1998–2007
ALFA ROMEO3.0 V6 24V (936A1000, 936A1001)166 (936_)AR34302226Petrol1998–2007
ALFA ROMEO3.0 V6 24V (936A11__)166 (936_)AR36101220Petrol2000–2007
ALFA ROMEO3.0 i.e. QV (164.AG)164 (164_)AR64301200Petrol1990–1992
ALFA ROMEO3.0 i.e. QV (164.AG)164 (164_)AR06430200Petrol1990–1992
ALFA ROMEO3.2 GTA (932.BXB00)156 Sportwagon (932_)932A.000250Petrol2002–2006
ALFA ROMEO3.2 GTA (932AXB)156 (932_)932A.000250Petrol2002–2005
ALFA ROMEO3.2 GTA (937.AXL1)147 (937_)932A.000250Petrol2003–2010
ALFA ROMEO3.2 GTA (937CXP1B)GT (937_)936A.000240Petrol2003–2010
ALFA ROMEO3.2 V6 24V (916CXB00)GTV (916_)936A6.000240Petrol2003–2005
ALFA ROMEO3.2 V6 24V (916SXB00)SPIDER (916_)936A6.000240Petrol2003–2005
ALFA ROMEO3.2 V6 24V (936AXB00, 936AXA00)166 (936_)936A.000240Petrol2003–2007
FIAT2500 V6CROMA (154_)834G.000162Petrol1993–1996
LANCIA3.0 24V (838AD1AA, 838AD11A, 838XD1AA, 838ZD1AA)KAPPA (838_)838B.000204Petrol1994–2001
LANCIA3.0 24V (838BD11A)KAPPA SW (838_)838B.000204Petrol1996–2001
LANCIA3.0 24V (838CD, 838CD11A)KAPPA Coupe (838_)838B.000204Petrol1996–2001
LANCIA3.0 V6 (841AXC1101)THESIS (841_)841A.000215Petrol2002–2009
LANCIA3.2 V6 (841.AXF110)THESIS (841_)841L.000230Petrol2003–2009
LANCIA3000 V6 (834GD, 834FD)THEMA (834_)834F.000171Petrol1992–1994
LANCIA3000 V6 (834GD, 834FD)THEMA SW (834_)834F.000171Petrol1992–1994
