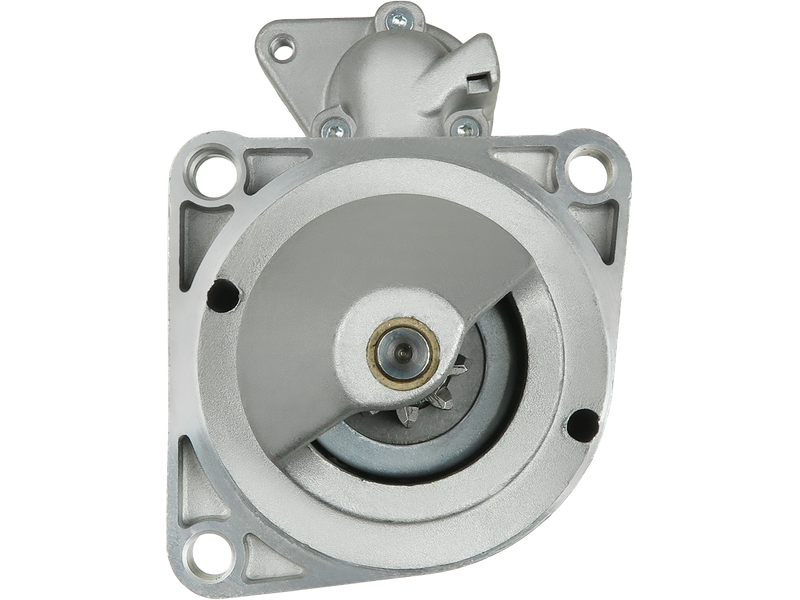

AS-PL S0425 Startmotor — IVECO, FIAT

AS-PL S0425 Startmotor — IVECO, FIAT

1 511,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 4.00
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 316.00
O.1 [ mm ] 147.00
O.2 [ mm ] 104.00
O.3 [ mm ] 104.00
AS-PLSTANDARD LINE
EAN5901259470000
ErsätterBOSCH
OE-nummer0001231010

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0425 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001231010

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 4.00
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 316.00
O.1 [ mm ] 147.00
O.2 [ mm ] 104.00
O.3 [ mm ] 104.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
FIAT110NCSeries 1101221973–1980
FIAT110NCSeries 1108060.02.0001221973–1983
FIAT90PSeries 901301979–1983
FIAT90PSeries 901301979–1983
IVECO109-14ZETA8060.04.6891351983–1985
IVECO109-14 HZETA8060.05.289137-1391985–1991
IVECO109-14 HZETA8060.04.6891351983–1985
IVECO79-13ZETA8060.04.6601311979–1983
IVECO79-13ZETA8060.04.6601311979–1983
IVECO79-13ZETA8060.04.0601311979–1983
IVECO79-13ZETA8060.04.0601311979–1983
IVECO79-13ZETA8060.04.0601311979–1983
IVECO79-13ZETA8060.04.6601311979–1983
IVECO79-14ZETA8060.05.2801371985–1991
IVECO79-14ZETA8060.05.2801371985–1991
IVECO79-14ZETA8060.04.6601351983–1985
IVECO79-14ZETA8060.04.6601351983–1985
IVECO79-14 HZETA8060.04.6601351983–1985
IVECO79-14 HZETA8060.05.2801371985–1991
IVECO79-14 HZETA8060.05.2801371985–1991
IVECO79-14 HZETA8060.04.6601351983–1985
IVECO79-14 VZETA8060.04.6601351983–1985
IVECO79-14 VZETA8060.05.2801371985–1991
IVECO79-14 VZETA8060.05.2801371985–1991
IVECO79-14 VZETA8060.04.6601351983–1985
IVECO95-14ZETA8060.04.6691351983–1985
IVECO95-14 HZETA8060.04.6691351983–1985
