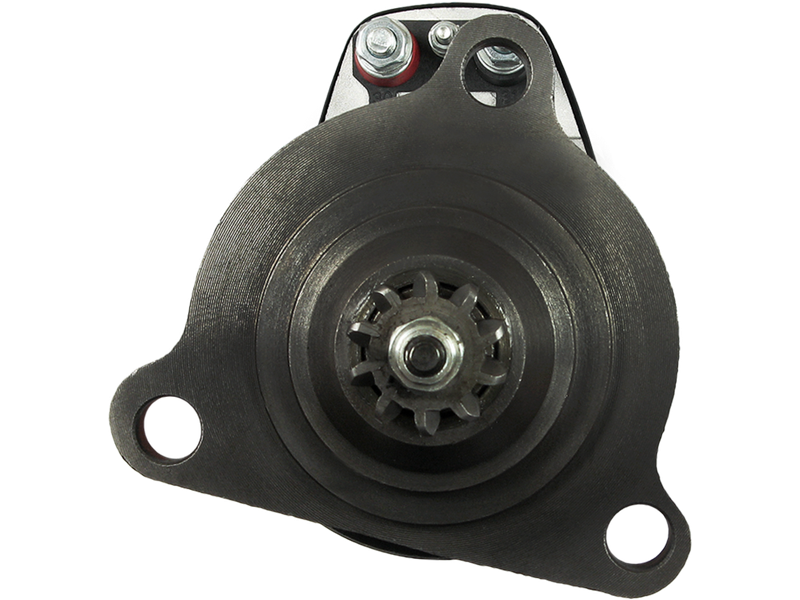

AS-PL S0437 Startmotor — VOLVO, IVECO, FIAT

2 257,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	24
Effekt [ kW ]	5.40
Startmotors rotation	CW
A-storlek [ mm ]	91.50
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	10
Antal kuggar (passar in) [ qty. ]	10
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	385.00
O.1 [ mm ]	125.00
O.2 [ mm ]	125.00
O.3 [ mm ]	125.00
C.1 [ mm ]	17.00
C.2 [ mm ]	17.00
C.3 [ mm ]	17.00
Oil sealed	Yes

AS-PLSTANDARD LINE

EAN	5901259472950
Ersätter	BOSCH
OE-nummer	0001416029

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0437 Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001416029

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	5.40
Startmotors rotation	CW
A-storlek [ mm ]	91.50
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	10
Antal kuggar (passar in) [ qty. ]	10
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	385.00
O.1 [ mm ]	125.00
O.2 [ mm ]	125.00
O.3 [ mm ]	125.00
C.1 [ mm ]	17.00
C.2 [ mm ]	17.00
C.3 [ mm ]	17.00
Oil sealed	Yes

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	År
FIAT	3.7	FB 7	8045.04.293	0	1984–1985
FIAT	5.5	FA 120	8065.25.096	0	1984–1992
FIAT	5.5	FD 9	8065.25.095	0	1984–
FIAT	5.5	FE 18	8065.04.097	0	1982–1985
FIAT	5.5	FE 18 R	8065.24.098	0	1983–1985
FIAT	5.5	FL 7	8065.04.095	0	1982–1986
FIAT	5.9	FD 10 E	8065.25.099	0	1990–1992
FIAT	5.9	FL 10 E	8065.25.097	0	1988–1992
FIAT	5.9	FR 10 B	8065.05.290	0	1985–1990
FIAT	5.9	FR 10 C	8065.05.290	0	1990–
IVECO	170-23 AH,180-23 AH	P/PA	F8L513	237	1991–1993
IVECO	170-23 AHW,180-23 AHW	P/PA	F8L513	237	1991–1993
IVECO	170-23 ANW	P/PA-Haubenfahrzeuge	F8L513	237	1991–1993
IVECO	170-23 ANW	P/PA-Haubenfahrzeuge	F8L513	237	1990–1990
IVECO	170-23 ANW	P/PA-Haubenfahrzeuge	F8L513	237	1988–1990
IVECO	170-23 ANW	P/PA-Haubenfahrzeuge	F8L513	237	1991–1993
IVECO	190-32 AHW	P/PA	F10L413F	320	1983–1985
IVECO	190-32 AHW	P/PA	F10L413F	320	1983–1985
IVECO	260-25 AH	P/PA	F8L413F	256	1984–1986
IVECO	260-25 AH	P/PA	F8L413F	256	1984–1986
IVECO	260-25 AH	P/PA	F8L413F	256	1984–1986
IVECO	260-25 AHB	P/PA	F8L413F	256	1984–1986
IVECO	260-25 AHB	P/PA	F8L413F	256	1984–1986
VOLVO	F 10/260	F10	TD101G	261-272	1982–1985
VOLVO	F 10/260	F10	TD101G	261-272	1983–1985
VOLVO	F 10/260	F10	TD100GA	261-272	1982–1985
VOLVO	F 10/260	F10	TD100GA	261-272	1983–1985
VOLVO	F 10/260	F10	TD100G	261-272	1982–1985
VOLVO	F 10/260	F10	TD100G	261-272	1983–1985
VOLVO	F 10/300	F10	TD101FA	292-299	1984–1986
VOLVO	F 10/300	F10	TD101FA	292-299	1987–1987
VOLVO	F 10/300	F10	TD101F	292-299	1984–1986
VOLVO	F 10/300	F10	TD101F	292-299	1987–1987
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FDQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FM	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FBQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102F	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FBQ	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FL	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD103ES	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FDQ	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 10/320	F10	TD102F	310-320	1987–1990
VOLVO	F 10/320	F10	TD102FF	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FM	310-320	1990–1994
VOLVO	F 10/320	F10	TD103E	310-320	1990–1994
VOLVO	F 10/320	F10	TD102FF	310-320	1987–1990
VOLVO	F 12/320	F12	TD121G	320	1987–1987
VOLVO	F 12/320	F12	TD121G	320	1987–1987
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1988–1990
VOLVO	F 12/360	F12	TD122FH	356	1991–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1988–1990
VOLVO	F 12/360	F12	TD122F	356	1991–1994
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1988–1990
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1988–1990
VOLVO	F 12/360	F12	TD122FH	356	1988–1990
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/360	F12	TD122FH	356	1990–1994
VOLVO	F 12/360	F12	TD122F	356	1990–1994
VOLVO	F 12/370	F12	TD121F	370	1987–1987
VOLVO	F 12/400	F12	TD122FL	396	1990–1994
VOLVO	F 12/400	F12	TD122FS	396	1988–1990
VOLVO	F 12/400	F12	TD122FS	396	1988–1990
VOLVO	F 12/400	F12	TD122FS	396	1988–1990
VOLVO	F 12/400	F12	TD122FS	396	1990–1994
VOLVO	F 12/400	F12	TD122FS	396	1990–1994
VOLVO	F 12/400	F12	TD122FL	396	1988–1990
VOLVO	F 12/400	F12	TD122FL	396	1988–1990
VOLVO	F 12/400	F12	TD122FL	396	1988–1990
VOLVO	F 12/400	F12	TD122FL	396	1990–1994
VOLVO	F 12/400,F 12/410	F12	TD122FL	396-405	1988–1994
VOLVO	F 12/400,F 12/410	F12	TD122FL	396-405	1990–1994
VOLVO	F 12/400,F 12/410	F12	TD122FL	396-405	1990–1994
VOLVO	F 12/400,F 12/410	F12	TD122FL	396-405	1990–1994
VOLVO	F 12/400,F 12/410	F12	TD123ES	396-405	1988–1994
VOLVO	F 12/400,F 12/410	F12	TD123ES	396-405	1990–1994
VOLVO	F 12/400,F 12/410	F12	TD123ES	396-405	1990–1994
VOLVO	F 12/400,F 12/410	F12	TD123ES	396-405	1990–1994
VOLVO	F 12/400,F 12/410	F12	TD122FS	396-405	1988–1994
VOLVO	F 12/400,F 12/410	F12	TD122FS	396-405	1990–1994
VOLVO	F 12/400,F 12/410	F12	TD122FS	396-405	1990–1994
VOLVO	F 12/400,F 12/410	F12	TD122FS	396-405	1990–1994
VOLVO	F 88/260	F80	TD100A	258	1965–1977
VOLVO	FL 10/280	FL10	TD101G	275-284	1985–1990
VOLVO	FL 10/280	FL10	TD101G	275-284	1985–1990
VOLVO	FL 10/280	FL10	TD101G	275-284	1985–1990
VOLVO	FL 10/320	FL10	D10A320	320	1995–1998
VOLVO	FL 10/320	FL10	D10A320	320	1995–1998
VOLVO	FL 10/320	FL10	D10A320	320	1995–1998
VOLVO	FL 10/320	FL10	D10A320	320	1995–1998
VOLVO	FL 10/320	FL10	D10A320	320	1995–1998
VOLVO	FL 10/360	FL10	D10A360	360	1995–1998
VOLVO	FL 10/360	FL10	D10A360	360	1995–1998
VOLVO	FL 10/360	FL10	D10A360	360	1995–1998
VOLVO	FL 10/360	FL10	D10A360	360	1995–1998
VOLVO	FL 10H/320	FL10	D10A320	320	1995–1998
VOLVO	FL 10H/320	FL10	D10A320	320	1995–1998
VOLVO	FL 10H/320	FL10	D10A320	320	1995–1998
VOLVO	FL 10H/360	FL10	D10A360	360	1995–1998
VOLVO	FL 10H/360	FL10	D10A360	360	1995–1998
VOLVO	FL 10H/360	FL10	D10A360	360	1995–1998
VOLVO	N 10/300	N10	TD101F	299	1973–1989
VOLVO	N 10/300	N10	TD100B	299	1973–1989
VOLVO	N 10/300	N10	TD101F	299	1973–1989
VOLVO	N 10/300	N10	TD101F	299	1973–1989
VOLVO	N 10/300	N10	TD101F	299	1973–1989
VOLVO	N 10/300	N10	TD100B	299	1973–1989
VOLVO	N 10/300	N10	TD101F	299	1973–1989
VOLVO	N 10/300	N10	TD100B	299	1973–1989
VOLVO	N 10/300	N10	TD101F	299	1973–1989
VOLVO	N 10/300	N10	TD100B	299	1973–1989

Visar 200 av 206 fordon
