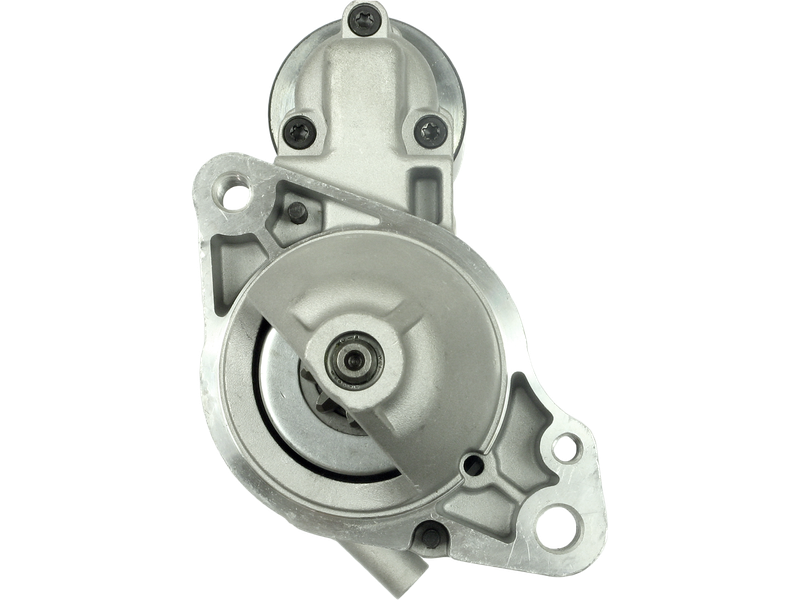

AS-PL S0454 Startmotor — AUDI, VW

AS-PL S0454 Startmotor — AUDI, VW

1 255,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 2.30
Startmotors rotation CW
A-storlek [ mm ] 74.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 247.00
O.1 [ mm ] 21.50
O.2 [ mm ] 121.50
O.3 [ mm ] 108.50
C.1 [ mm ] 11.00
C.2 [ mm ] M8x1.25
C.3 [ mm ] M10x1.5
AS-PLSTANDARD LINE
EAN5901259479980
ErsätterBOSCH
OE-nummer0001223019

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0454 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001223019

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.30
Startmotors rotation CW
A-storlek [ mm ] 74.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 247.00
O.1 [ mm ] 21.50
O.2 [ mm ] 121.50
O.3 [ mm ] 108.50
C.1 [ mm ] 11.00
C.2 [ mm ] M8x1.25
C.3 [ mm ] M10x1.5

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
AUDI4.0 TDI quattroA8 D3 (4E2, 4E8)ASE275Diesel2003–2005
AUDI4.2 TDI quattroA8 D3 (4E2, 4E8)BVN326Diesel2005–2010
AUDI4.2 TDI quattroA8 D3 (4E2, 4E8)BMC320Diesel2005–2005
AUDI4.2 TDI quattroQ7 (4LB)BTR326Diesel2007–2009
AUDI4.2 TDI quattroQ7 (4LB)CCFC340Diesel2009–2015
AUDI4.2 TDI quattroQ7 (4LB)CCFA340Diesel2009–2015
AUDI4.2 TDI quattroQ7 Van (4LB)CCFC340Diesel2007–2015
AUDI4.2 TDI quattroQ7 Van (4LB)CCFA340Diesel2007–2015
AUDI4.2 TDI quattroQ7 Van (4LB)BTR326Diesel2007–2009
VW4.2 V8 TDITOUAREG (7P5, 7P6)CKDA340Diesel2010–2018
