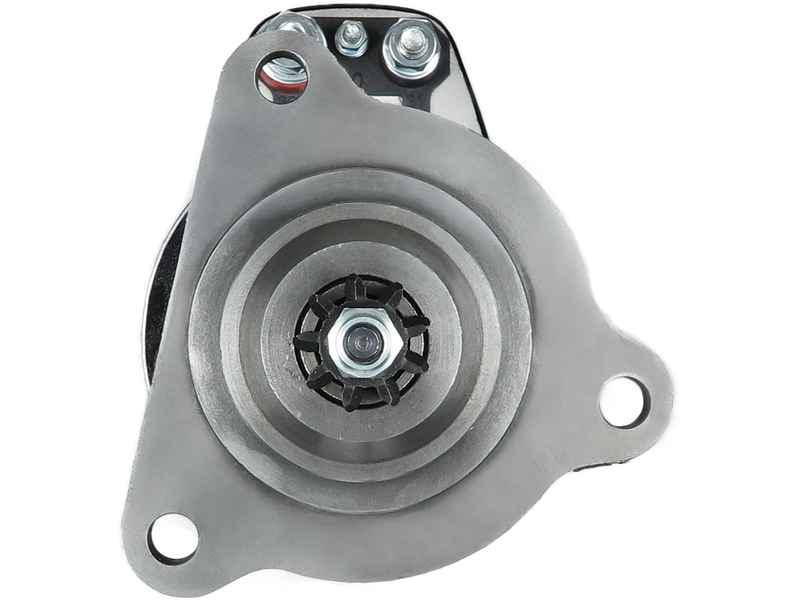

AS-PL S0727S Startmotor — MAN, MERCEDES-BENZ, KÄSSBOHRER

AS-PL S0727S Startmotor — MAN, MERCEDES-BENZ, KÄSSBOHRER

2 386,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 5.40
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 47.50
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 387.00
O.1 [ mm ] 126.50
O.2 [ mm ] 126.50
O.3 [ mm ] 126.50
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
Oil sealed Yes
AS-PLSTANDARD LINE
EAN5902129105640
ErsätterBOSCH
OE-nummer0001415001

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0727S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001415001

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 5.40
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 47.50
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 387.00
O.1 [ mm ] 126.50
O.2 [ mm ] 126.50
O.3 [ mm ] 126.50
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
Oil sealed Yes

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CLAAS14.6690OM42201974–1989
KÄSSBOHRER11.0S309HDOM441LA01992–
KÄSSBOHRER11.0S315GTOM441LA01994–
KÄSSBOHRER11.0S315GT-HDOM441LA01996–
KÄSSBOHRER11.0S315GT-HDOM442LA01996–
KÄSSBOHRER11.0S315HOM441LA01994–
KÄSSBOHRER11.0S315HD-HDHOM441LA01991–
KÄSSBOHRER11.0S315HD, HDHOM441LA01991–
KÄSSBOHRER11.0S319GT-HDOM442LA01998–
KÄSSBOHRER12.0S250D2866LOH2301996–2001
KÄSSBOHRER12.0S250 SpezialD2866LOH2301996–2001
KÄSSBOHRER12.0S315HDD2866LOH2301995–
KÄSSBOHRER14.6S217HDHOM422LA01989–1996
KÄSSBOHRER14.6S228DTOM442LA01989–1996
KÄSSBOHRER14.6S315GTOM442LA01994–
KÄSSBOHRER14.6S315HD-HDHOM442LA01991–
KÄSSBOHRER14.6S315HD, HDHOM442LA01991–
KÄSSBOHRER14.6S316HDSOM442LA01997–
KÄSSBOHRER14.6S317HDHOM442LA01997–
KÄSSBOHRER14.6S328DTOM442LA01993–
MAN10.223 F, 10.223 FLL2000D0826LFL062201993–2002
MAN10.223 FAL2000D0826LFL062201994–2002
MAN10.223 LAECL2000D0826LFL062201995–1996
MAN10.223 LC,10.223 LLCL2000D0826LFL06220-2301993–1996
MAN10.223 LC,10.223 LLCL2000D0826LFL02220-2301993–1996
MAN10.223 LKL2000D0826LFL06220-2301993–1996
MAN10.223 LKL2000D0826LFL02220-2301993–1996
MAN10.223 LLSL2000D0826LFL02220-2301993–1996
MAN10.223 LLSL2000D0826LFL06220-2301993–1996
MAN10.224 F, 10.224 FLL2000D0826LFL032201993–2002
MAN10.224 FAL2000D0826LFL032201994–2002
MAN10.224 LAC, LAEC, LARC, LAERCL2000D0826LFL102201995–
MAN10.224 LAC, LAEC, LARC, LAERCL2000D0826LFL032201995–
MAN10.224 LAEK, LAEK-L, LAERK, LAERK-L, LAK, LAK-L, LARKL2000D0826LFL032201995–
MAN10.224 LC,10.224 LLC, LRC, LLRCL2000D0826LFL102201994–
MAN10.224 LC,10.224 LLC, LRC, LLRCL2000D0826LFL032201994–
MAN10.224 LK, L-KI, LRK, LR-KI, LRK-L, LK-LL2000D0826LFL032201994–
MAN10.224 LLS, LLRSL2000D0826LFL032201994–
MAN10.225 LAC, LAEC, LARC, LAERC (LE220C)L2000D0836LFL022202000–
MAN10.225 LAE-GT, LAE-LFL2000D0836LFL022202000–
MAN10.225 LAEK, LAEK-L, LAERK, LAERK-L, LAK, LAK-L, LARKL2000D0836LFL022202000–
MAN10.225 LC, 10.225 LLC, LRC, LLRCL2000D0836LFL022202000–
MAN10.225 LC, 10.225 LLC, LRC, LLRC (LE220C)L2000D0836LFL022202000–
MAN10.225 LK, L-KI, LRK, LR-KI, LRK-L, LK-L (LE220C)L2000D0836LFL022202000–
MAN10.225 LLS, LLRS (LE220C)L2000D0836LFL022202000–
MAN11.190HOCLD0826LOH061901988–1997
MAN11.190HOCLD0826LOH021901988–1997
MAN11.190 HOCLHOCLD0826TOH180-1861987–2004
MAN12.220 HOCL/R-NLHOCLD0826LOH172201999–2009
MAN12.220 HOCL/R-NLHOCLD0826LOH152201999–2009
MAN12.224 LC, LLC, LRC, LLRCM 2000 LD0826LFL032201995–
MAN12.224 LC, LLC, LRC, LLRCM 2000 LD0826LFL102201995–
MAN12.224 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0826LF152202003–2005
MAN12.224 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0836LF042202003–2005
MAN12.224 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0826LF182202003–2005
MAN12.224 MLS, MLRSM 2000 MD0826LF152202003–2005
MAN12.224 MLS, MLRSM 2000 MD0836LF042202003–2005
MAN12.224 MLS, MLRSM 2000 MD0826LF182202003–2005
MAN12.224, 12.225, LK, LRKM 2000 LD0826LFL102201995–
MAN12.224, 12.225, LK, LRKM 2000 LD0826LFL032201995–
MAN12.225 LC, LLC, LLLC, LRC, LLRCM 2000 LD0836LFL022202001–
MAN12.225 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0836LF042202003–2005
MAN12.225 MLS, MLRSM 2000 MD0836LF042202003–2005
MAN12.264 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0826LF172602003–2005
MAN12.264 MLS, MLRSM 2000 MD0826LF172602003–2005
MAN13.220 HOCL/RHOCLD0826LOH17220-2302001–2004
MAN13.220 HOCL/RHOCLD0826LOH04220-2302001–2004
MAN13.220 HOCL/RHOCLD0826LOH15220-2302001–2004
MAN13.220 HOCL/RHOCLD0826LOH03220-2302001–2004
MAN13.220 HOCL/RHOCLD0826LOH05220-2302001–2004
MAN14.220 HOCL/R-NLHOCLD0826LOH172201998–
MAN14.220 HOCL/R-NLHOCLD0826LOH152201998–
MAN14.220 HOCL/R-NLHOCLD0826LUH112201998–
MAN14.224 LAC, LARCM 2000 LD0826LFL102201995–
MAN14.224 LAC, LARCM 2000 LD0826LFL032201995–
MAN14.224 LAK, LARK, LAK-LM 2000 LD0826LFL102201995–
MAN14.224 LAK, LARK, LAK-LM 2000 LD0826LFL032201995–
MAN14.224 LC, LLC, LLLC, LRC, LLRC, LLLRCM 2000 LD0826LFL102201995–
MAN14.224 LC, LLC, LLLC, LRC, LLRC, LLLRCM 2000 LD0826LFL032201995–
MAN14.224 LK, LRKM 2000 LD0826LFL032201995–
MAN14.224 LK, LRKM 2000 LD0826LFL102201995–
MAN14.224 MA-KO, MA-LFM 2000 MD0826LF152202002–2005
MAN14.224 MA-KO, MA-LFM 2000 MD0836LF042202002–2005
MAN14.224 MA-KO, MA-LFM 2000 MD0826LF182202002–2005
MAN14.224 MAK, MAK-L, MARKM 2000 MD0826LF152201995–2005
MAN14.224 MAK, MAK-L, MARKM 2000 MD0826LF182201995–2005
MAN14.224 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0826LF102201995–2005
MAN14.224 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0826LF182201995–2005
MAN14.224 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0826LF152201995–2005
MAN14.224 MKM 2000 MD0826LF152201995–2005
MAN14.224 MKM 2000 MD0826LF182201995–2005
MAN14.224 MLS, MLRSM 2000 MD0826LF182201995–2005
MAN14.224 MLS, MLRSM 2000 MD0826LF152201995–2005
MAN14.224, 14.225, LA-LFM 2000 LD0826LFL032202003–
MAN14.224, 14.225, LA-LFM 2000 LD0836LFL022202003–
MAN14.224, 14.225, LA-LFM 2000 LD0826LFL102202003–
MAN14.225 LAC, LARC, (LE220B)M 2000 LD0836LFL022202000–
MAN14.225 LAK, LARK, LAK-L, (LE220B)M 2000 LD0836LFL022202000–
MAN14.225 LC, LLC, LLLC, LRC, LLRC, LLLRC (LE220B)M 2000 LD0836LFL022202000–
MAN14.225 LK, LRK (LE220B)M 2000 LD0836LFL022202000–
MAN14.225 MA-KO, MA-LFM 2000 MD0836LF042202003–2005
MAN14.225 MA-KO, MA-LFM 2000 MD0826LF182202003–2005
MAN14.225 MA-KO, MA-LFM 2000 MD0826LF152202003–2005
MAN14.225 MAK, MAK-L, MARKM 2000 MD0826LF152201995–2005
MAN14.225 MAK, MAK-L, MARKM 2000 MD0836LF042201995–2005
MAN14.225 MAK, MAK-L, MARKM 2000 MD0826LF182201995–2005
MAN14.225 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0836LF042202000–2005
MAN14.225 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0836LF022202000–2005
MAN14.225 MLS, MLRSM 2000 MD0836LF042202003–2005
MAN14.263, 14.264 LAC, LARCM 2000 LD0826LFL092601995–
MAN14.263, 14.264 LAK, LARK, LAK-LM 2000 LD0826LFL092601995–
MAN14.263, 14.264 LC, LLC, LLLC, LRC, LLRC, LLLRCM 2000 LD0826LFL092601995–
MAN14.263, 14.264 LK, LRKM 2000 LD0826LFL092601995–
MAN14.264 LA-LFM 2000 LD0826LFL092602003–
MAN14.264 MA-KO, MA-LFM 2000 MD0826LF172602002–2005
MAN14.264 MAK, MAK-L, MARKM 2000 MD0826LF172602002–2005
MAN14.264 MC, MLC, MLLC, MLRC, MRC, MLLRCM 2000 MD0826LF172601995–2005
MAN14.264 MLS, MLRSM 2000 MD0826LF172601995–2005
MAN15.192 F, 15.192 FLF9D2565MF1921983–1986
MAN15.192 FSF9D2565MF1921983–1986
MAN15.224 LC, LLC, LLLC, LRC, LLRC, LLLRCM 2000 LD0826LFL032201995–
MAN15.224 LC, LLC, LLLC, LRC, LLRC, LLLRCM 2000 LD0826LFL102201995–
MAN15.224 LK, LRK, LK-LM 2000 LD0826LFL032201995–
MAN15.224 LK, LRK, LK-LM 2000 LD0826LFL102201995–
MAN15.225 LC, LLC, LLLC, LRC, LLRC, LLLRC, (LE220B)M 2000 LD0836LFL022201999–
MAN15.225 LK, LRK, LK-L, (LE220B)M 2000 LD0836LFL022201999–
MAN15.263, 15.264 LC, LLC, LLLC, LRC,LLRC, LLLRCM 2000 LD0826LFL092601995–
MAN15.263, 15.264 LK, LRK, LK-LM 2000 LD0826LFL092601995–
MAN16.240 HOC, HOCL/RHOCLD2866OH2411979–1996
MAN16.290HOCLD2866TUH/2902901985–1996
MAN16.290 HOC, HOCL/RHOCLD2866TOH/2902901981–1996
MAN16.360 HOCL/RHOCLD2866LXOH3601985–1996
MAN16.372 HOCLHOCLD2866LOH073701985–1996
MAN17.272 FLSM90D2865LF022691991–1995
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH05220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH17220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH04220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH15220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0836LOH03220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH03220-2301998–2001
MAN18.224 M-KO, MR-KOM 2000 MD0836LF042202000–2005
MAN18.224 M-KO, MR-KOM 2000 MD0826LF152202000–2005
MAN18.224 MAC, MARCM 2000 MD0826LF182201995–2005
MAN18.224 MAC, MARCM 2000 MD0826LF152201995–2005
MAN18.224 MAK, MAK-L, MARKM 2000 MD0826LF182201995–2005
MAN18.224 MAK, MAK-L, MARKM 2000 MD0826LF152201995–2005
MAN18.224 MC, MLC, MLLC, MRC, MLRC, MLLRCM 2000 MD0826LF182201995–2005
MAN18.224 MC, MLC, MLLC, MRC, MLRC, MLLRCM 2000 MD0826LF152201995–2005
MAN18.224 MK, MK-L, MLK, MLRK, MRKM 2000 MD0826LF182201995–2005
MAN18.224 MK, MK-L, MLK, MLRK, MRKM 2000 MD0826LF152201995–2005
MAN18.224 MLS, MLRSM 2000 MD0826LF152201995–2005
MAN18.224 MLS, MLRSM 2000 MD0826LF182201995–2005
MAN18.224, 18.225, L-KO, LR-KOM 2000 LD0826LFL062202001–
MAN18.224, 18.225, L-KO, LR-KOM 2000 LD0826LFL102202001–
MAN18.224, 18.225, L-KO, LR-KOM 2000 LD0826LFL032202001–
MAN18.224, 18.225, L-KO, LR-KOM 2000 LD0826LFL082202001–
MAN18.224, 18.225, L-KO, LR-KOM 2000 LD0836LFL022202001–
MAN18.224, 18.225, LAC, LARCM 2000 LD0826LFL102201995–
MAN18.224, 18.225, LAC, LARCM 2000 LD0826LFL032201995–
MAN18.224, 18.225, LAC, LARCM 2000 LD0836LFL022201995–
MAN18.224, 18.225, LAK, LARK, LAK-LM 2000 LD0826LFL102201995–
MAN18.224, 18.225, LAK, LARK, LAK-LM 2000 LD0826LFL032201995–
MAN18.224, 18.225, LC, LLC, LLLC, LRC, LLRC, LLLRCM 2000 LD0826LFL102201995–
MAN18.224, 18.225, LC, LLC, LLLC, LRC, LLRC, LLLRCM 2000 LD0826LFL032201995–
MAN18.224, 18.225, LC, LLC, LLLC, LRC, LLRC, LLLRCM 2000 LD0836LFL022201995–
MAN18.224, 18.225, LK, LK-L, LLK, LLK-L, LLRK, LRKM 2000 LD0826LFL032201995–
MAN18.224, 18.225, LK, LK-L, LLK, LLK-L, LLRK, LRKM 2000 LD0826LFL102201995–
MAN18.225 M-KO, MR-KOM 2000 MD0826LF182202003–2005
MAN18.225 M-KO, MR-KOM 2000 MD0826LF152202003–2005
MAN18.225 M-KO, MR-KOM 2000 MD0836LF042202003–2005
MAN18.225 MAC, MARCM 2000 MD0836LF042202003–2005
MAN18.225 MAK, MAK-L, MARKM 2000 MD0826LF152201996–2005
MAN18.225 MAK, MAK-L, MARKM 2000 MD0836LF042201996–2005
MAN18.225 MAK, MAK-L, MARKM 2000 MD0826LF182201996–2005
MAN18.225 MC, MLC, MLLC, MRC, MLRC, MLLRCM 2000 MD0836LF042202000–2005
MAN18.225 MK, MK-L, MLK, MLRK, MRKM 2000 MD0826LF182202000–2005
MAN18.225 MK, MK-L, MLK, MLRK, MRKM 2000 MD0826LF152202000–2005
MAN18.225 MK, MK-L, MLK, MLRK, MRKM 2000 MD0836LF042202000–2005
MAN18.225 MLS, MLRSM 2000 MD0836LF042202003–2005
MAN18.225 MLS, MLRSM 2000 MD0826LF182202003–2005
MAN18.225 MLS, MLRSM 2000 MD0826LF152202003–2005
MAN18.260HOCLD2866LOH312602002–2006
MAN18.260HOCLD2866LOH352602002–2009
MAN18.263, 18.264, L-KO, LR-KOM 2000 LD0826LFL092602001–
MAN18.263, 18.264, LAC, LARCM 2000 LD0826LFL092601995–
MAN18.263, 18.264, LAK, LARK, LAK-LM 2000 LD0826LFL092601995–
MAN18.263, 18.264, LC, LLC, LLLC, LRC, LLRC, LLLRCM 2000 LD0826LFL092601995–
MAN18.263, 18.264, LK, LK-L, LLK, LLK-L,LLRK, LRKM 2000 LD0826LFL092601995–
MAN18.264 M-KO, MR-KOM 2000 MD0826LF172602000–2005
MAN18.264 MAC, MARCM 2000 MD0826LF172601995–2005
MAN18.264 MAK, MAK-L, MARKM 2000 MD0826LF172601995–2005
MAN18.264 MC, MLC, MLLC, MRC, MLRC, MLLRCM 2000 MD0826LF172601995–2005
MAN18.264 MK, MK-L, MLK, MLRK, MRKM 2000 MD0826LF172601995–2005
MAN18.264 MLS, MLRSM 2000 MD0826LF172601995–2005
MAN18.273 F, FL, FLLF2000D2865LF222691994–
MAN18.280 HOCL-NLHOCLD0836LOH512802002–2008
MAN18.280 HOCL-NLHOCLD0836LOH022802002–2008
MAN18.280 HOCL-NLHOCLD0836LOH552802002–2008
MAN18.280 HOCL-NLHOCLD0836LOH012802002–2008
MAN18.310HOCLD2866LUH283102000–2006

Visar 200 av 5043 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S0727S Startmotor — MAN, MERCEDES-BENZ, KÄSSBOHRER”

Your email address will not be published. Required fields are marked *

Related products
