SEG Automotive S0786(SEG) Startmotor — CASE IH, NEW HOLLAND, LANDINI

SEG Automotive S0786(SEG) Startmotor — CASE IH, NEW HOLLAND, LANDINI

3 052,00 kr inkl. moms

PREMIUM LINE | Tillverkare: SEG Automotive | Ersätter: BOSCH

Spänning [ V ] 12
Effekt [ kW ] 3.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 315.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
SEG AutomotivePREMIUM LINE
EAN5902129226765
ErsätterBOSCH
OE-nummer0001262022

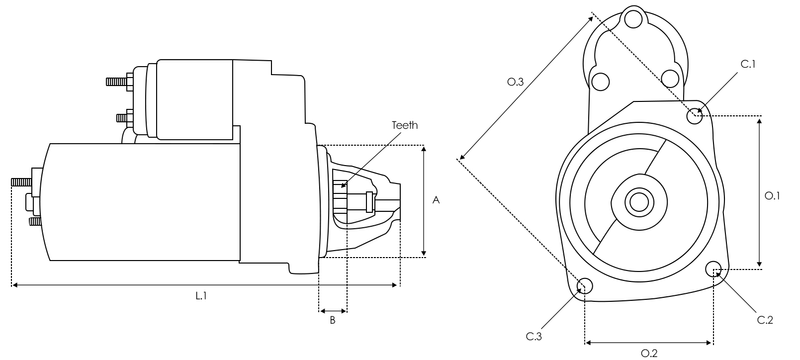

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0786(SEG) Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001262022

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 3.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 315.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CARRARO3.2Agricube 7002010–
CARRARO3.2Agricube 8002010–
CARRARO3.2Agricube 9002010–
CARRARO4.5Agricube 10002010–
CASE IH121E Series 3432T/M302008–2015
CASE IH420 Series 3432T/M302008–2012
CASE IH420CT Series 3432T/M302008–2012
CASE IH435 Series 3432T/M302008–2012
CASE IHJX1080U4-27402004–2008
CASE IHJX1085C4-27402005–2008
CASE IHJX1090U4-27402004–2008
CASE IHJX1095C4-27402005–2008
CASE IHJX1100U4-27402004–2008
CASE IHVarious Models117HK0–
CASE IH3.2Farmall 65AF3202010–2015
CASE IH3.2Farmall 75AF3202010–2015
CASE IH3.2Farmall 85CF3202007–2012
CASE IH3.2Farmall 95CF3202007–2012
CASE IH3.2SR200432T/M302011–2015
CASE IH3.2SR250F5CE545402013–2020
CASE IH3.2SV250F5CE545402013–2020
CASE IH3.2SV250432T/M302011–2012
CASE IH3.2SV300432T/M302011–2015
CASE IH3.2TR270432T/M302011–2015
CASE IH3.2TR320432T/M302011–2013
CASE IH3.2TV380432T/M302011–2013
CASE IH3.4570NXTF5HFL413B02012–2014
CASE IH3.4586HF5H02012–2023
CASE IH3.4588HF5H02012–2023
CASE IH3.4SR200F5HFL46302013–2019
CASE IH3.4SR210F5HFL46302013–2019
CASE IH3.4SR220F5HFL41302013–2019
CASE IH3.4SR240F5HFL46302015–2019
CASE IH3.4SR250F5HFL41302011–2017
CASE IH3.4SR270F5BFL41302015–2017
CASE IH3.4SV250F5HFL41302013–2015
CASE IH3.4SV280F5HFL46302015–2019
CASE IH3.4SV300F5HFL41302012–2019
CASE IH3.4SV340F5BFL41302016–2019
CASE IH3.4TR270F5HFL46302013–2019
CASE IH3.4TR310F5HFL46302017–2019
CASE IH3.4TR320F5HFL41302011–2019
CASE IH3.4TR340F5BFL41302015–2019
CASE IH3.4TV370F5HFL46302017–2019
CASE IH3.4TV380F5HFL41302012–2019
CASE IH3.4TV450F5BFL41302018–2019
CASE IH4.5Farmall 105UN4502008–2012
CASE IH4.5Farmall 85UN4502008–2014
CASE IH4.5Farmall 90N4502007–2014
CASE IH4.5Farmall 95N4502007–2015
CASE IH4.5Farmall 95NN4502008–2015
CASE IH4.5Farmall 95UN4502008–2015
CASE IH4.5JX1070U4-27402004–2008
CASE IH4.5TX1055F4BE02008–2015
CASE IH4.5TX742F4BE02007–2015
CASE IH4.5TX842F4BE02006–2016
CASE IH4.5TX945F4BE02006–2016
CASE IH6.7140 MaxxumIvecoNEF667TA02007–2011
CASE IH6.7210 PumaIvecoNEF02007–2011
CASE IH6.7225 PumaIvecoNEF02007–2011
CASE IH6.7MX110NEF01997–
CASE IH6.7MX135NEF01997–
DIECI40170–
KOMATSU4.5WB97S-5F4GE9894F02006–2013
LANDINI6.7Landpower DT 125NEF2V02008–
LANDINI6.7Landpower DT 135NEF2V02008–
LANDINI6.7Landpower DT 145NEF2V02008–
LANDINI6.7Landpower DT 165NEF2V02008–
LANDINI6.7Landpower DT 180NEF2V02008–
LANDINI6.7Landpower DT 185NEF2V02008–
MCCORMICK6.8MTX1356Cyl02004–2007
MCCORMICK6.8MTX1506Cyl02004–2007
MCCORMICK6.8TTX190M02008–2013
MCCORMICK6.8XTX14502006–2008
NEW HOLLAND65, 75WORKMASTER65-752009–
NEW HOLLAND65, 75WORKMASTER65-752009–
NEW HOLLANDT6.120T61212012–
NEW HOLLANDT6.120T61212012–
NEW HOLLANDT6.140T61432012–
NEW HOLLANDT6.140T61432012–
NEW HOLLANDT6.140T61432012–
NEW HOLLANDT6.140T61432012–
NEW HOLLANDT6.150T61542012–
NEW HOLLANDT6.150T61542012–
NEW HOLLANDT6.150T61542012–
NEW HOLLANDT6.150T61542012–
NEW HOLLANDT6.155T61542012–
NEW HOLLANDT6.155T61542012–
NEW HOLLANDT6.160T61632012–
NEW HOLLANDT6.160T61632012–
NEW HOLLANDT6.160T61632012–
NEW HOLLANDT6.160T61632012–
NEW HOLLANDT6.165T61652012–
NEW HOLLANDT6.165T61652012–
NEW HOLLANDT6.175T61752012–
NEW HOLLANDT6.175T61752012–
NEW HOLLANDT7.170T71712010–
NEW HOLLANDT7.170T71712010–
NEW HOLLANDT7.185T71882010–
NEW HOLLANDT7.185T71882010–
NEW HOLLANDT7.200T72032010–
NEW HOLLANDT7.200T72032010–
NEW HOLLANDT7.210T72122010–
NEW HOLLANDT7.220T72182010–
NEW HOLLANDT7.220T72182010–
NEW HOLLANDT7.235T72342010–
NEW HOLLANDT7.235T72342010–
NEW HOLLANDT7.250T72502010–
NEW HOLLANDT7.250T72502010–
NEW HOLLANDT7.260T72602010–
NEW HOLLANDT7.260T72602010–
NEW HOLLANDT7.270T72692010–
NEW HOLLANDT7.270T72692010–
NEW HOLLANDTS100ATS-A1022003–2006
NEW HOLLANDTS100ATS-A1022003–2006
NEW HOLLANDTS110ATS-A1162003–
NEW HOLLANDTS115ATS-A1172003–2006
NEW HOLLANDTS115ATS-A1172003–2006
NEW HOLLANDTS125ATS-A1262003–2006
NEW HOLLANDTS125ATS-A1262003–2006
NEW HOLLANDTS135ATS-A1362003–2006
NEW HOLLANDTS135ATS-A1362003–2006
REDROCKTH280S0–
