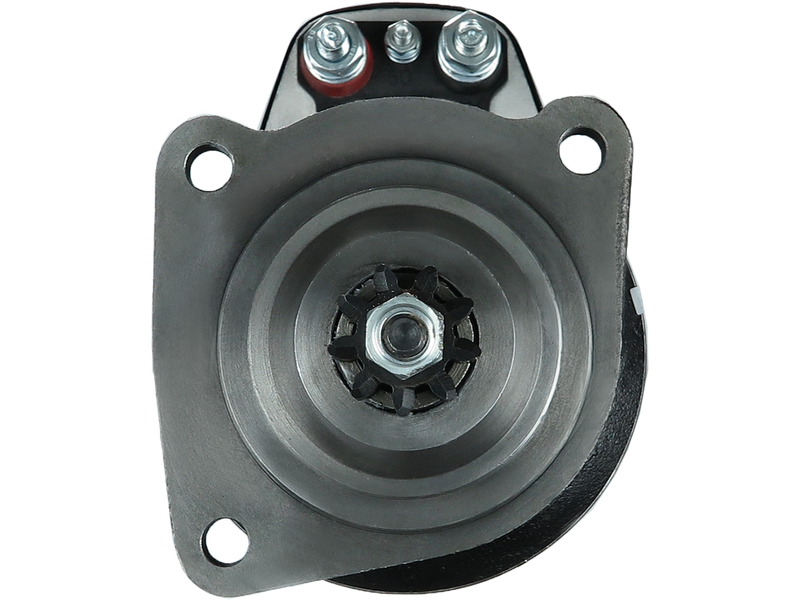

AS-PL S0816S Startmotor — SCANIA, IVECO

2 335,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ]	24
Effekt [ kW ]	6.60
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	407.00
O.1 [ mm ]	90.00
O.2 [ mm ]	127.00
O.3 [ mm ]	90.00
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00
Oil sealed	Yes
Insulated return	Yes

AS-PLSTANDARD LINE

EAN	5902129112327
Ersätter	BOSCH
OE-nummer	0001417028

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0816S Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001417028

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	6.60
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	407.00
O.1 [ mm ]	90.00
O.2 [ mm ]	127.00
O.3 [ mm ]	90.00
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00
Oil sealed	Yes
Insulated return	Yes

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	År
IVECO	170-23 ANW	P/PA-Haubenfahrzeuge	F8L513	237	1990–1990
IVECO	170-23 ANW	P/PA-Haubenfahrzeuge	F8L513	237	1988–1990
IVECO	170-23 ANW	P/PA-Haubenfahrzeuge	F8L513	237	1991–1993
IVECO	170-23 ANW	P/PA-Haubenfahrzeuge	F8L513	237	1991–1993
IVECO	190-32 AHW	P/PA	F10L413F	320	1983–1985
IVECO	190-32 AHW	P/PA	F10L413F	320	1983–1985
IVECO	260-25 AH	P/PA	F8L413F	256	1984–1986
IVECO	260-25 AH	P/PA	F8L413F	256	1984–1986
IVECO	260-25 AH	P/PA	F8L413F	256	1984–1986
IVECO	260-25 AHB	P/PA	F8L413F	256	1984–1986
IVECO	260-25 AHB	P/PA	F8L413F	256	1984–1986
SCANIA	114 C/330	4 - series	DC11.07	322-330	1996–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 C/340	4 - series	DSC11.07	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 C/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 C/360	4 - series		360	2000–2008
SCANIA	114 C/380	4 - series	DC11.02	380	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	380-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	380	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	380-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 C/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 C/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 G/330	4 - series	DSC11.06	311	2004–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.07	340	1996–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 G/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 G/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.04	380-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 G/380	4 - series	DC12.07	381	2005–2008
SCANIA	114 G/380	4 - series	DC11.02	380-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 G/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 G/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 L/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.03	340	1996–2004
SCANIA	114 L/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 L/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 L/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 L/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 L/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 L/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 L/340	4 - series	DC11.01	340	1996–2004
SCANIA	114 L/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 L/340	4 - series	DSC11.79	340	1996–2006
SCANIA	114 L/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 L/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 L/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 L/340	4 - series	DSC11.79	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.03	340	1996–2008
SCANIA	114 L/340	4 - series	DSC11.07	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.01	340	1996–2008
SCANIA	114 L/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 L/340	4 - series	DC11.01	340	1998–2008
SCANIA	114 L/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 L/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.02	380-381	1998–2008
SCANIA	114 L/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 L/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.04	379	1996–2004
SCANIA	114 L/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 L/380	4 - series	DC12.07	380-381	2005–2008
SCANIA	114 L/380	4 - series	DC11.02	379-381	1998–2008
SCANIA	114 L/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.04	380-381	1998–2008
SCANIA	114 L/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.02	379	1996–2004
SCANIA	114 L/380	4 - series	DC11.04	379-381	1998–2008
SCANIA	114 L/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 L/380	4 - series	DC12.07	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.04	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.02	381	1998–2008
SCANIA	114 L/380	4 - series	DC11.02	381	1998–2008
SCANIA	114C 260 CNG	4 - series	OSC11.03	260	2000–2005
SCANIA	114C 260 CNG	4 - series	OSC11.03	260	2000–2005
SCANIA	114C 260 CNG	4 - series	OSC11.03	260	2000–2005
SCANIA	114C 260 CNG	4 - series	OSC11.03	260	2000–2005
SCANIA	114C 260 CNG	4 - series	OSC11.03	260	2000–2005

Visar 200 av 843 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S0816S Startmotor — SCANIA, IVECO”

AS-PL S0816S Startmotor — SCANIA, IVECO

Description

Specifikationer

Fordonskompatibilitet

Reviews

Related products

AS-PL ARD9014 – dioder för växelströmsgenerators likriktare

AS-PL ARD9012 + dioder för växelströmsgenerators likriktare

AS-PL ARD9049 + dioder för växelströmsgenerators likriktare
