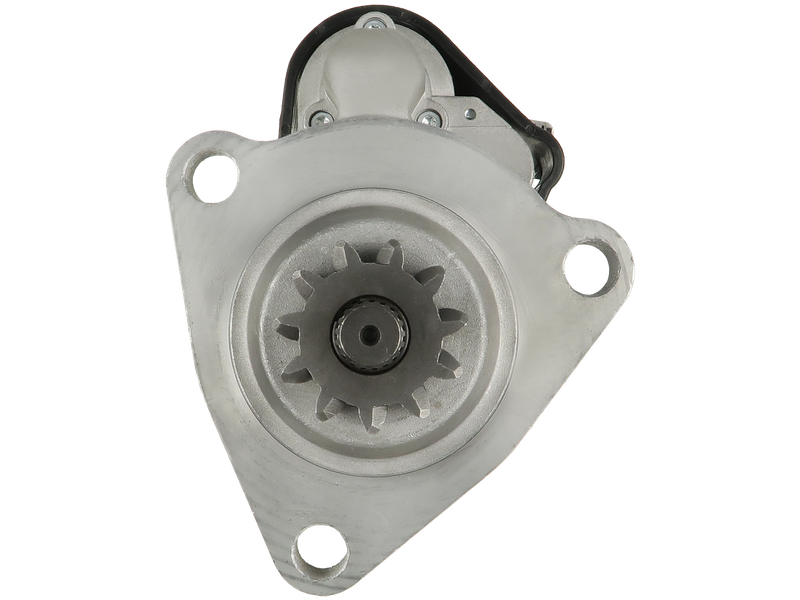

AS-PL S0983S Startmotor — CATERPILLAR

AS-PL S0983S Startmotor — CATERPILLAR

5 804,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: BOSCH

Spänning [ V ] 24
Effekt [ kW ] 10.00
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 49.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 400.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 17.00
C.2 [ mm ] 17.00
C.3 [ mm ] 17.00
AS-PLSTANDARD LINE
EAN5902129227984
ErsätterBOSCH
OE-nummer0001350012

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S0983S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från BOSCH.

OE-nummer: 0001350012

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 10.00
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 49.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 400.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 17.00
C.2 [ mm ] 17.00
C.3 [ mm ] 17.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CATERPILLAR14001970–1974
CATERPILLAR140-AWD0–
CATERPILLAR140GC0–
CATERPILLAR140GC-AWD0–
CATERPILLAR14M30–
CATERPILLAR16M30–
CATERPILLAR18M30–
CATERPILLAR3360–
CATERPILLAR631K0–
CATERPILLAR631K-OEM0–
CATERPILLAR637K0–
CATERPILLAR824K0–
CATERPILLAR825K0–
CATERPILLAR826K0–
CATERPILLARPM8200–
CATERPILLARPM8220–
CATERPILLARR1700K0–
CATERPILLARR290001999–2007
CATERPILLARR2900G02004–2008
CATERPILLAR12.5EngineC130–
CATERPILLAR15.2EngineC150–
CATERPILLAR18.1EngineC1802008–
CATERPILLAR7.0EngineC7.10–
CATERPILLAR9.3EngineC9.3B0–
