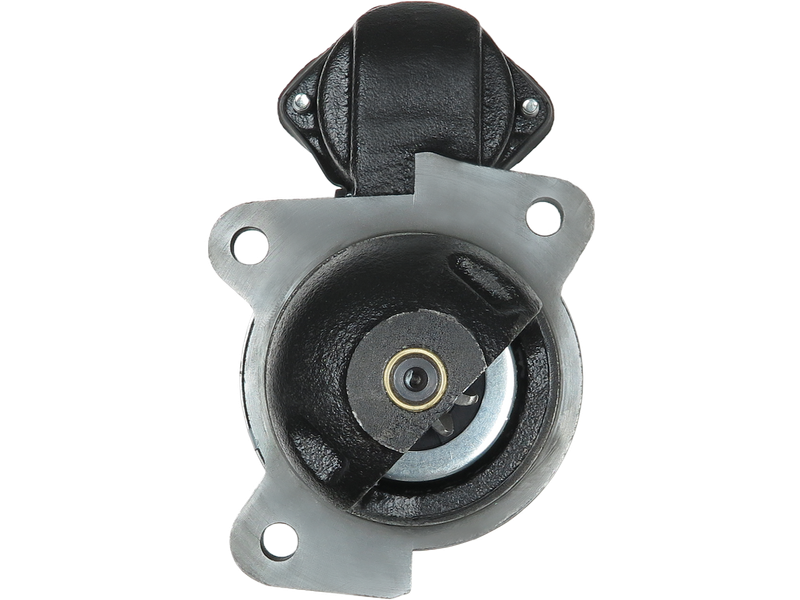

AS-PL S1190S Startmotor — HYSTER

AS-PL S1190S Startmotor — HYSTER

1 391,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DELCO

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 47.50
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 306.00
O.1 [ mm ] 127.00
O.2 [ mm ] 90.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
Oil sealed Yes
AS-PLSTANDARD LINE
EAN5902129110453
ErsätterDELCO
OE-nummer1107204

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S1190S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DELCO.

OE-nummer: 1107204

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 47.50
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 306.00
O.1 [ mm ] 127.00
O.2 [ mm ] 90.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
Oil sealed Yes

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
HYSTERC450F-24501966–1970
HYSTERC500F-24501963–1970
HYSTERC500F-24401967–1976
HYSTERC550F-24501967–1970
HYSTERC70C01963–1967
HYSTERC70CP01963–1967
HYSTERH 2001963–1977
HYSTERH 2501970–1976
HYSTERH 7001971–1977
HYSTERH100B01999–2006
HYSTERH100C01962–1970
HYSTERH110-150F01985–2001
HYSTERH120B01999–2006
HYSTERH120C01960–1970
HYSTERH150-275F01985–2001
HYSTERH20E01963–1977
HYSTERH25E01970–1976
HYSTERH30-60H (D3)01971–1977
HYSTERH30H01980–1999
HYSTERH40H01968–1988
HYSTERH50H01967–1970
HYSTERH60F-16301970–1976
HYSTERH60B01960–1963
HYSTERH60C01960–1970
HYSTERH60CP01963–1970
HYSTERH60H01963–1970
HYSTERH70B01960–1962
HYSTERH70C01966–1970
HYSTERH70CP01962–1966
HYSTERH8001971–1978
HYSTERH80B01960–1962
HYSTERH80C01960–1970
HYSTERH80CP01963–1970
HYSTERKEF-16301963–1969
HYSTERKE01960–1962
HYSTERKEF-24501965–1985
HYSTERKE100F-24501965–1985
HYSTERKE10001970–1976
HYSTERP6001967–1980
HYSTERP60-80A01966–1970
HYSTERP60A01970–1976
HYSTERP8001970–1977
HYSTERS 7001971–1976
HYSTERS10001971–1976
HYSTERS10001963–1966
HYSTERS100A01971–1976
HYSTERS100A-P01961–1966
HYSTERS100B01961–1966
HYSTERS100PS01967–1970
HYSTERS12501970–1977
HYSTERS125-150A01970–1977
HYSTERS15001971–1977
HYSTERS3001985–2001
HYSTERS3001963–1970
HYSTERS30-50C01985–2001
HYSTERS30B01963–1970
HYSTERS4001985–2001
HYSTERS4001963–1970
HYSTERS40B01985–2001
HYSTERS40C01963–1970
HYSTERS5001963–1966
HYSTERS50B01963–1970
HYSTERS50C01965–1970
HYSTERS50F01985–2001
HYSTERS6001967–1976
HYSTERS60B01963–1984
HYSTERS60ES01985–2001
HYSTERS70B01963–1969
HYSTERS70B01971–1976
HYSTERS70PS01967–1970
HYSTERS8001971–1976
HYSTERS8001996–2006
HYSTERS80B01971–1976
HYSTERS80BS80B01967–1970
HYSTERS80PS01967–1970
HYSTERSB30B01960–1963
HYSTERSB30BP01960–1963
HYSTERSB40B01960–1963
HYSTERSSB50B01960–1963
HYSTERVarious ModelsF-24401961–1962
HYSTER2.5H10-150F01963–1967
HYSTER2.5H40-60JS01985–2001
HYSTER4.1H10-150F01985–1986
HYSTER4.1H160-110E01985–1986
