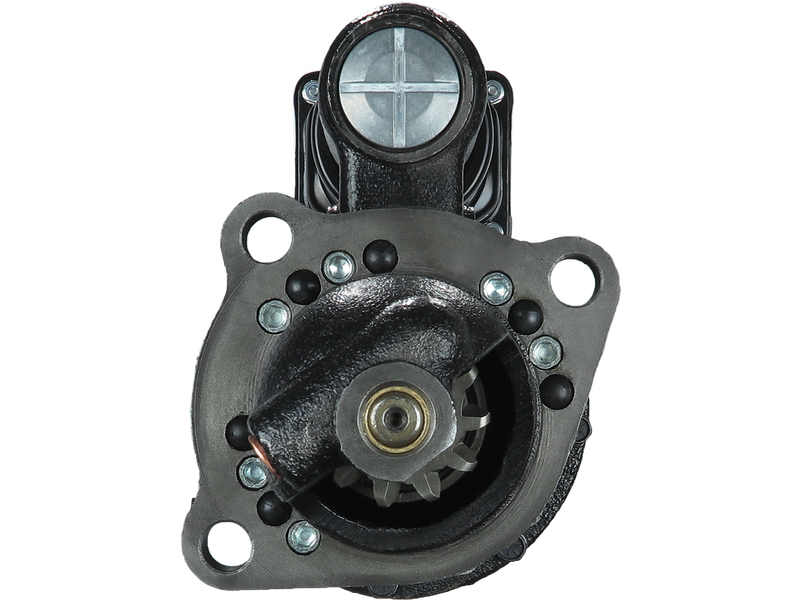

AS-PL S1202S Startmotor — CATERPILLAR

AS-PL S1202S Startmotor — CATERPILLAR

4 770,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DELCO

Spänning [ V ] 24
Effekt [ kW ] 9.00
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 47.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 521.00
O.1 [ mm ] 146.50
O.2 [ mm ] 104.00
O.3 [ mm ] 104.00
C.1 [ mm ] 16.50
C.2 [ mm ] 16.50
C.3 [ mm ] 16.50
AS-PLSTANDARD LINE
EAN5902129112884
ErsätterDELCO

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S1202S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DELCO.

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 9.00
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 47.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 521.00
O.1 [ mm ] 146.50
O.2 [ mm ] 104.00
O.3 [ mm ] 104.00
C.1 [ mm ] 16.50
C.2 [ mm ] 16.50
C.3 [ mm ] 16.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CATERPILLAR3508350801986–1993
CATERPILLAR3512351201986–1993
CATERPILLAR3516351601986–1993
CATERPILLAR5130350801992–1997
CATERPILLAR5130350802006–2015
CATERPILLAR5130B3508B01997–2004
CATERPILLAR5130B3508B02006–2015
CATERPILLAR583KD34201974–1989
CATERPILLAR589340801983–1992
CATERPILLAR591341201983–1992
CATERPILLAR594HD35301974–1985
CATERPILLAR776B350801984–1992
CATERPILLAR776C350801992–1997
CATERPILLAR777B350801984–1992
CATERPILLAR777C350801992–2000
CATERPILLARD10D34801978–1986
CATERPILLARD10N341201986–1993
CATERPILLARD10R341201995–2005
CATERPILLARD11N340801986–1993
CATERPILLARD8KD34201974–1982
CATERPILLARD8L340801982–1992
CATERPILLARD9L341201980–1986
CATERPILLARD9N340801986–1995
CATERPILLARD9R340802000–2015
