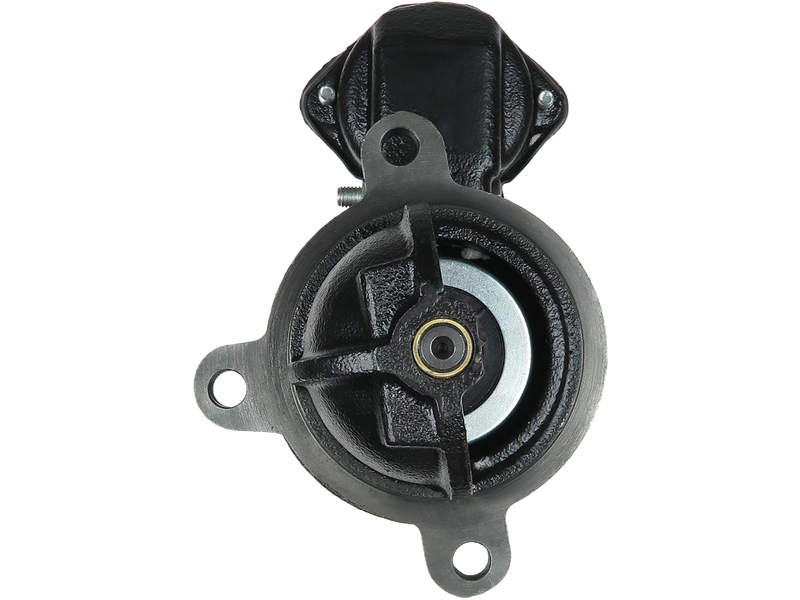

AS-PL S1211S Startmotor — CLARK, WHITE, CONTINENTAL

1 414,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DELCO

Spänning [ V ]	12
Effekt [ kW ]	2.70
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	21.00
Antal kuggar [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	306.00
O.1 [ mm ]	127.00
O.2 [ mm ]	90.00
O.3 [ mm ]	90.00
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00

AS-PLSTANDARD LINE

EAN	5902129120018
Ersätter	DELCO
OE-nummer	1107377

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S1211S Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från DELCO.

OE-nummer: 1107377

Specifikationer

Spänning [ V ]	12
Effekt [ kW ]	2.70
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	21.00
Antal kuggar [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	306.00
O.1 [ mm ]	127.00
O.2 [ mm ]	90.00
O.3 [ mm ]	90.00
C.1 [ mm ]	11.00
C.2 [ mm ]	11.00
C.3 [ mm ]	11.00

Fordonskompatibilitet

Märke	Typ	Motor	År
ALLIS CHALMERS	Engine	9427	1974–1986
BOBCAT	970	F-227	1970–1975
CLARK	35	F-227	1967–1968
CLARK	C 120	F-245	1967–1971
CLARK	C100	F-245	1967–1971
CLARK	C20	Y-112	1967–1971
CLARK	C20SU	Y-112	1967–1970
CLARK	C300-30	F-163	1977–1982
CLARK	C300-40	F-163	1975–1986
CLARK	C300-50	F-163	1975–1982
CLARK	C300-Y40	F-163	1977–1982
CLARK	C300-Y50	F-163	1977–1978
CLARK	C30B	F-163	1967–1970
CLARK	C30C	155	1967–1968
CLARK	C40B	F-163	1967–1970
CLARK	C40C	155	1967–1968
CLARK	C500-100	F-245	1972–1986
CLARK	C500-120	F-245	1979–1981
CLARK	C500-20	Y-112	1972–1986
CLARK	C500-200	F-245	1972–1978
CLARK	C500-20P	Y-112	1972–1976
CLARK	C500-25	Y-112	1972–1982
CLARK	C500-25P	Y-112	1972–1976
CLARK	C500-30	Y-112	1972–1982
CLARK	C500-30	176	1975–1986
CLARK	C500-30	155	1969–1986
CLARK	C500-35	176	1975–1976
CLARK	C500-35	155	1969–1982
CLARK	C500-40	176	1975–1986
CLARK	C500-40	155	1969–1982
CLARK	C500-45	155	1969–1982
CLARK	C500-45	176	1975–1976
CLARK	C500-50	155	1969–1982
CLARK	C500-50	176	1975–1976
CLARK	C500-55	176	1975–1981
CLARK	C500-55	155	1969–1976
CLARK	C500-60	F-245	1983–1986
CLARK	C500-60	F-227	1977–1982
CLARK	C500-70	F-227	1977–1982
CLARK	C500-80	F-227	1977–1982
CLARK	C500-F20	Y-112	1972–1976
CLARK	C500-F25P	Y-112	1972–1976
CLARK	C500-H40	155	1969–1976
CLARK	C500-H40	176	1975–1976
CLARK	C500-H45	176	1975–1976
CLARK	C500-H45	155	1969–1976
CLARK	C500-H50	176	1975–1976
CLARK	C500-H50	155	1969–1976
CLARK	C500-H55	155	1969–1976
CLARK	C500-H55	176	1975–1976
CLARK	C500-H60	F-227	1972–1976
CLARK	C500-H60	F-245	1975–1976
CLARK	C500-H70	F-227	1972–1976
CLARK	C500-H70	F-245	1975–1976
CLARK	C500-H80	F-245	1975–1976
CLARK	C500-H80	F-227	1972–1976
CLARK	C500-HY40	176	1975–1976
CLARK	C500-HY40	155	1972–1976
CLARK	C500-HY45	176	1975–1976
CLARK	C500-HY45	155	1972–1976
CLARK	C500-HY50	155	1972–1976
CLARK	C500-HY50	176	1975–1976
CLARK	C500-HY55	155	1972–1976
CLARK	C500-HY55	176	1975–1976
CLARK	C500-HY60	F-245	1972–1974
CLARK	C500-HY70	F-245	1972–1974
CLARK	C500-HY80	F-245	1972–1974
CLARK	C500-S60	176	1977–1981
CLARK	C500-Y100	F-245	1972–1982
CLARK	C500-Y120	F-245	1982–1982
CLARK	C500-Y130	F-245	1972–1981
CLARK	C500-Y150	F-245	1972–1981
CLARK	C500-Y20	F-163	1972–1986
CLARK	C500-Y25	F-163	1972–1982
CLARK	C500-Y30	F-163	1972–1982
CLARK	C500-Y40	176	1977–1982
CLARK	C500-Y45	176	1977–1982
CLARK	C500-Y50	176	1977–1982
CLARK	C500-Y55	176	1982–1982
CLARK	C500-Y60	F-245	1977–1986
CLARK	C500-Y70	F-245	1977–1982
CLARK	C500-Y80	F-245	1977–1982
CLARK	C500-YF20	F-163	1972–1976
CLARK	C500-YF25	F-163	1972–1976
CLARK	C500-YF30	F-163	1972–1976
CLARK	C500-YS60	176	1977–1982
CLARK	C50B	F-163	1967–1970
CLARK	C50C	155	1967–1968
CLARK	C60	F-227	1967–1970
CLARK	C70	F-227	1967–1970
CLARK	C80	F-227	1967–1970
CLARK	CF20	Y-112	1967–1971
CLARK	CF30B	F-163	1967–1970
CLARK	CF40B	F-163	1967–1970
CLARK	CF50B	F-163	1967–1970
CLARK	CF60	F-227	1967–1970
CLARK	CF70	F-227	1967–1970
CLARK	CF80	F-227	1967–1970
CLARK	CH30C	155	1967–1968
CLARK	CH40C	155	1967–1968
CLARK	CH60	F-227	1967–1970
CLARK	CH70	F-227	1967–1970
CLARK	CH80	F-227	1967–1970
CLARK	CK30	Y-112	1982–1987
CLARK	Clarkat	Y-112	1972–1981
CLARK	Clarkette	Y-112	1967–1971
CLARK	CY(F)20	F-163	1971–1971
CLARK	CY(F)25	F-163	1971–1971
CLARK	CY100	F-245	1967–1971
CLARK	CY120	F-245	1967–1971
CLARK	CY20	F-162	1966–1966
CLARK	CY20	F-163	1967–1971
CLARK	CY25	F-163	1967–1971
CLARK	CY30B	F-163	1969–1970
CLARK	CY40B	F-163	1969–1970
CLARK	CY50B	F-163	1969–1970
CLARK	CY60	F-245	1967–1970
CLARK	CY70	F-245	1967–1970
CLARK	CY80	F-245	1967–1970
CLARK	IT30	F-163	1967–1971
CLARK	IT40	F-163	1967–1971
CLARK	IT40B	F-163	1972–1974
CLARK	Y40	155	1969–1971
CLARK	Y45	155	1969–1971
CLARK	Y50	155	1969–1971
CLARK	Y55	155	1969–1971
CONTINENTAL	Engine	F4	1969–1980
CONTINENTAL	Engine	TC56	1983–2001
CONTINENTAL	Engine	F163	1981–1999
CONTINENTAL	Engine	Y4	1969–1980
CONTINENTAL	Engine	F245	1981–1999
CONTINENTAL	Engine	F6	1969–1980
CONTINENTAL	Engine	Y112	1981–1999
CONTINENTAL	Engine	F227	1981–1999
HYSTER	S40	3.152	1963–1964
LISTER PETTER	Engine	HR2	1986–1988
LISTER PETTER	Engine	HR3	1986–1988
WHITE	MA-20	Y-112	1981–1981
WHITE	MA-25	Y-112	1981–1981
WHITE	MA-30	Y-112	1981–1981
WHITE	MA-30	F-163	1969–1974
WHITE	MA-30H	F-163	1975–1981
WHITE	MA-35	F-163	1975–1981
WHITE	MA-40	F-163	1969–1981
WHITE	MA-45	F-163	1975–1981
WHITE	MA-50	F-163	1969–1981
WHITE	MA-55	F-163	1975–1981
WHITE	MA-60	F-163	1969–1974
WHITE	MA-60S	F-163	1975–1981
WHITE	WC-30	F-163	1969–1974
WHITE	WC-40	F-163	1969–1974
WHITE	WC-50	F-163	1969–1974
