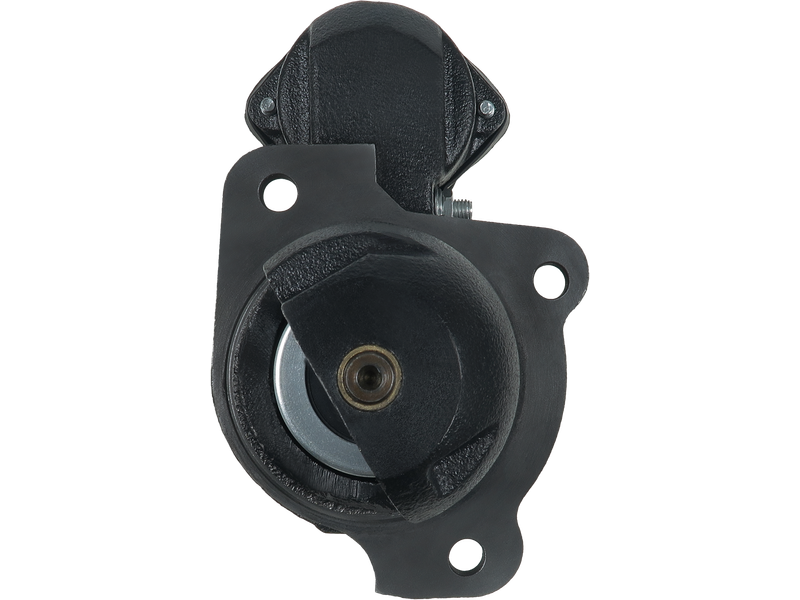

AS-PL S1293S Startmotor — CASE IH, DROTT

AS-PL S1293S Startmotor — CASE IH, DROTT

1 601,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DELCO

Spänning [ V ] 12
Effekt [ kW ] 2.50
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 348.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5902129243045
ErsätterDELCO
OE-nummer1109143

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S1293S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DELCO.

OE-nummer: 1109143

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.50
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 348.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CASE IH1845188D01975–1982
CASE IH1845S188D01975–1982
CASE IH18818801975–1978
CASE IH188D18801975–1978
CASE IH310GD-18801964–1970
CASE IH3300D-18801979–1980
CASE IH3330D-18801979–1980
CASE IH350188D01973–1982
CASE IH45020701973–1978
CASE IH5304-18801965–1970
CASE IH53001966–1969
CASE IH70+420701970–1979
CASE IH85MR2D-18801970–1979
CASE IH85MR2G-18801970–1979
CASE IHDH520701977–1986
CASE IHDH518801977–1986
CASE IHDH5B20701977–1986
CASE IHTF100020701970–1980
CASE IH3.1350B188D52diesel1973–1982
CASE IH3.1480BG188D52diesel1974–1978
CASE IH3.158018801966–1971
CASE IH3.1580B18848diesel1971–1978
CASE IH3.1584D18801984–1988
CASE IH3.1585D18848diesel1975–1988
CASE IH3.1586D18848diesel1975–1988
CASE IH3.4584C20701979–1988
DROTT85RM218801971–1978
