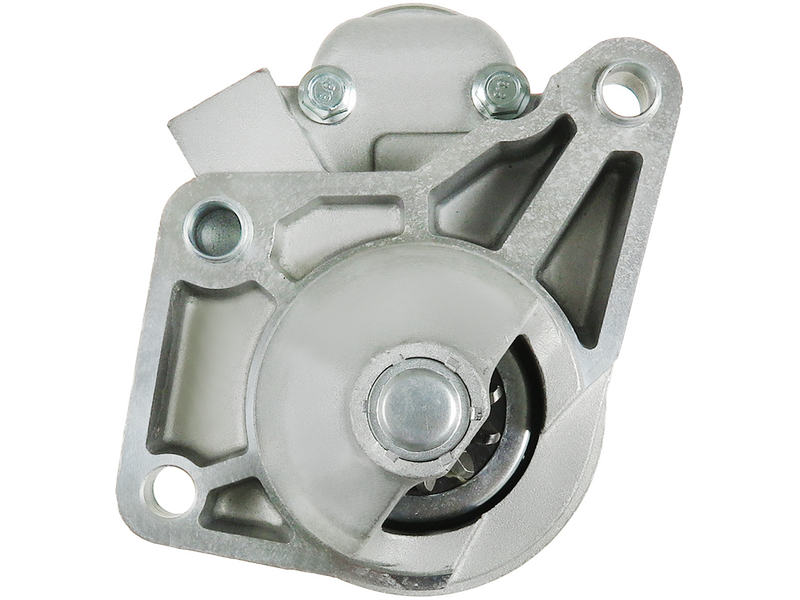

AS-PL S2025 Startmotor — RENAULT

AS-PL S2025 Startmotor — RENAULT

910,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: HITACHI

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation CW
A-storlek [ mm ] 68.00
B-storlek [ mm ] 9.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 192.00
O.1 [ mm ] 125.00
O.2 [ mm ] 55.00
O.3 [ mm ] 90.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 11.50
AS-PLSTANDARD LINE
EAN5901259457353
ErsätterHITACHI
OE-nummerS114877C

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S2025 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från HITACHI.

OE-nummer: S114877C

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation CW
A-storlek [ mm ] 68.00
B-storlek [ mm ] 9.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 192.00
O.1 [ mm ] 125.00
O.2 [ mm ] 55.00
O.3 [ mm ] 90.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 11.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
RENAULT3.5 (BJ01)VEL SATIS (BJ0_)V4Y715231Petrol2004–
RENAULT3.5 V6 (BJ0R, BJ0V, BJ0U)VEL SATIS (BJ0_)V4Y701241Petrol2002–
RENAULT3.5 V6 (BJ0R, BJ0V, BJ0U)VEL SATIS (BJ0_)V4Y715241Petrol2002–
RENAULT3.5 V6 (BJ0R, BJ0V, BJ0U)VEL SATIS (BJ0_)V4Y711241Petrol2002–
RENAULT3.5 V6 (BT0C, BT0P)LAGUNA III (BT0/1)V4Y713238Petrol2008–2015
RENAULT3.5 V6 (JK00, JK0F, JK0P, JK0S, JK0W)ESPACE IV (JK0/1_)V4Y715241Petrol2002–
RENAULT3.5 V6 (JK00, JK0F, JK0P, JK0S, JK0W)ESPACE IV (JK0/1_)V4Y711241Petrol2002–
RENAULT3.5 V6 (KT0C, KT0P)LAGUNA III Grandtour (KT0/1)V4Y713238Petrol2008–2015
