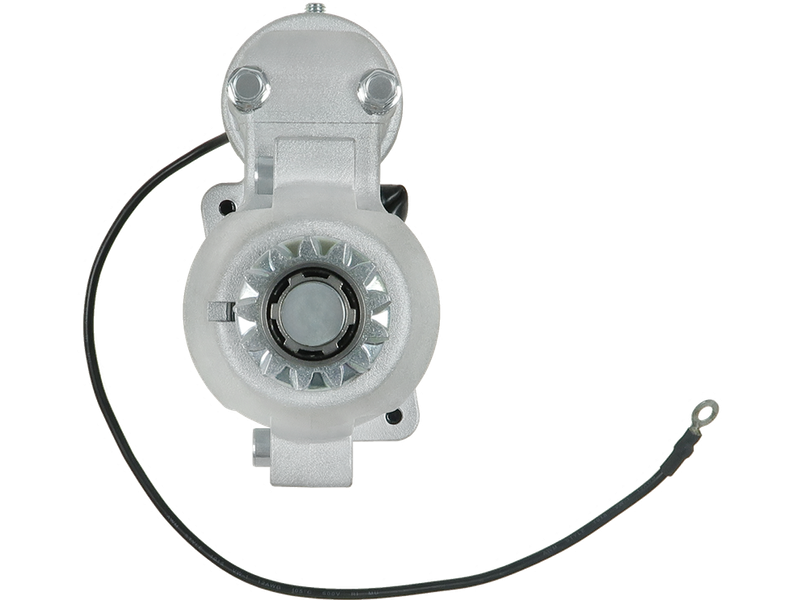

AS-PL S2143S Startmotor — YAMAHA

AS-PL S2143S Startmotor — YAMAHA

960,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: HITACHI

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation ACW
B-storlek [ mm ] 17.50
Antal kuggar [ qty. ] 13
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 233.00
O.1 [ mm ] 77.00
C.1 [ mm ] 8.50
C.2 [ mm ] 8.50
AS-PLSTANDARD LINE
EAN5902129234296
ErsätterHITACHI

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S2143S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från HITACHI.

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation ACW
B-storlek [ mm ] 17.50
Antal kuggar [ qty. ] 13
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 233.00
O.1 [ mm ] 77.00
C.1 [ mm ] 8.50
C.2 [ mm ] 8.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
YAMAHA200 HP Two Stroke (VMAX HPDI)02005–2005
YAMAHA225 HP Two Stroke (VMAX HPDI)02003–2006
YAMAHA250 HP (HPDI)02003–2006
YAMAHA250 HP (VMAX HPDI)02003–2003
YAMAHALZ250TUR02003–2006
YAMAHALZ250TXR02003–2006
YAMAHAVZ200TLR02005–2007
YAMAHAVZ225HTLR02008–2010
YAMAHAVZ225TLR02003–2007
YAMAHAVZ250FTLR02008–2010
YAMAHAVZ250TLR02003–2007
YAMAHAZ250TUR02003–2006
YAMAHAZ250TXR02003–2006
